1. What is the ABB V18345-1011220001 used for?

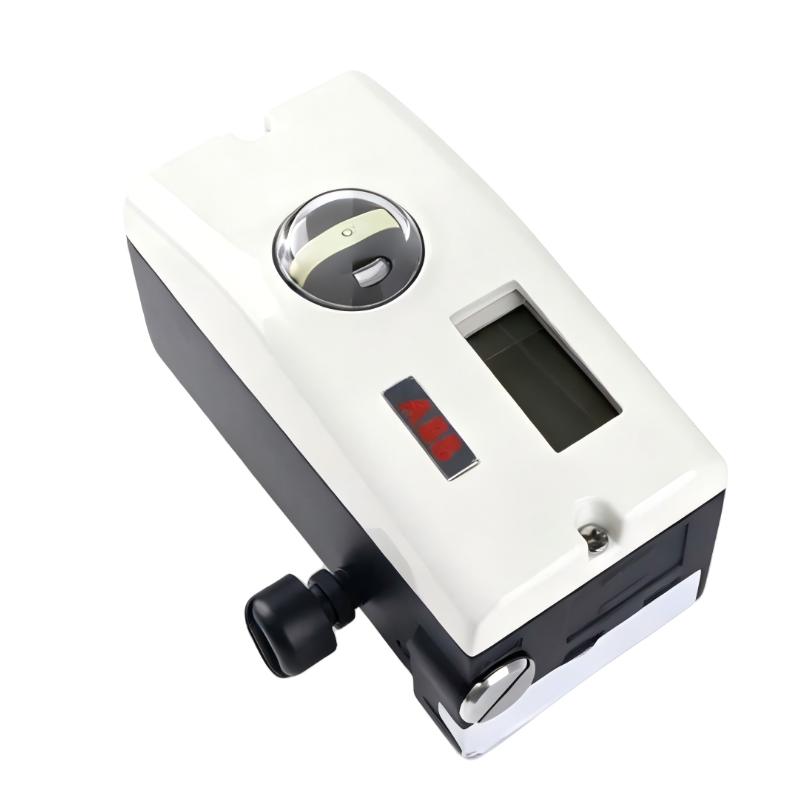

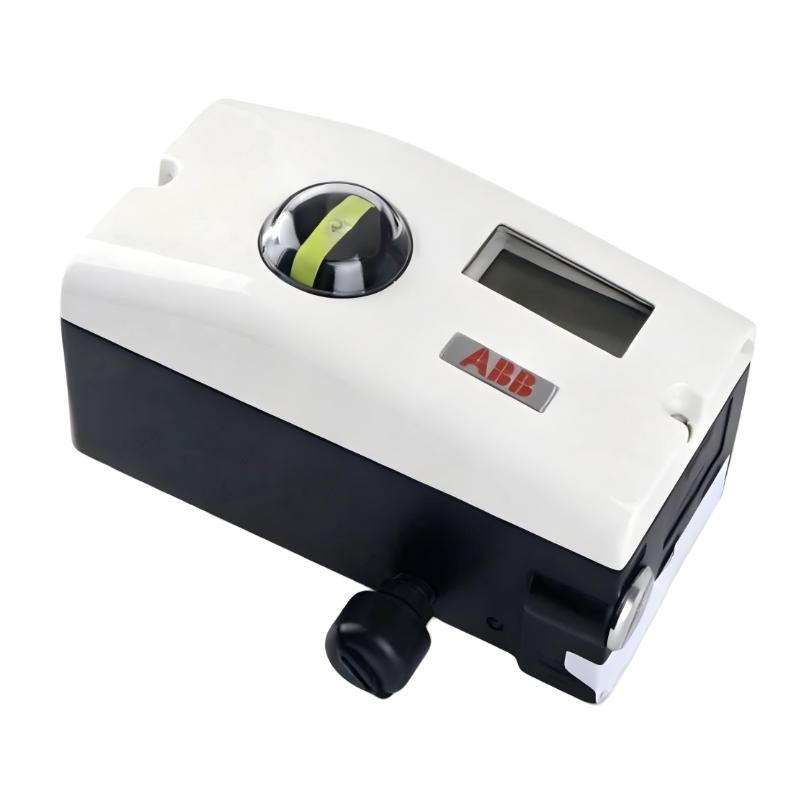

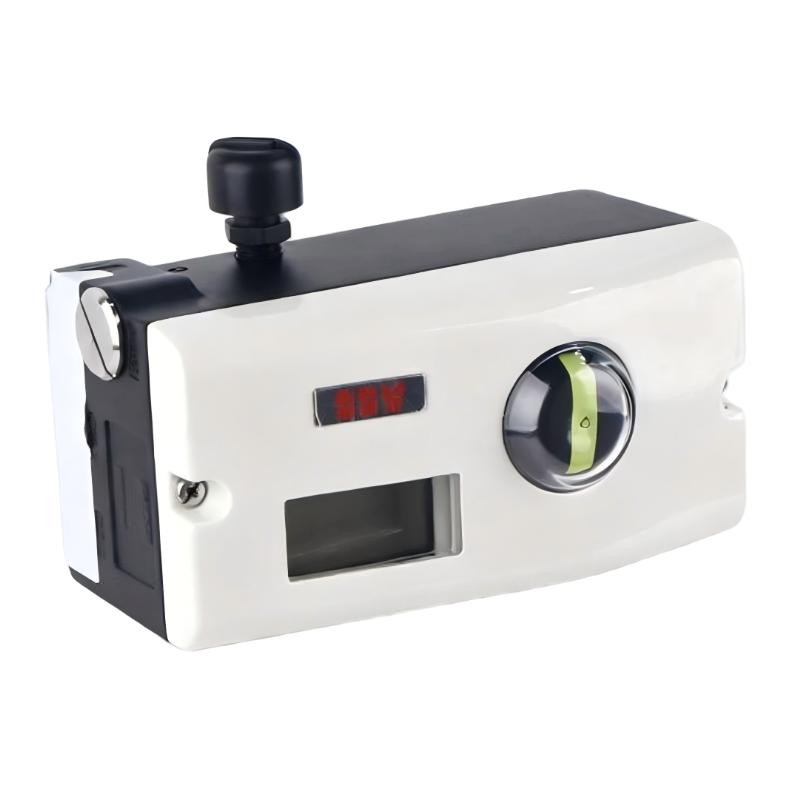

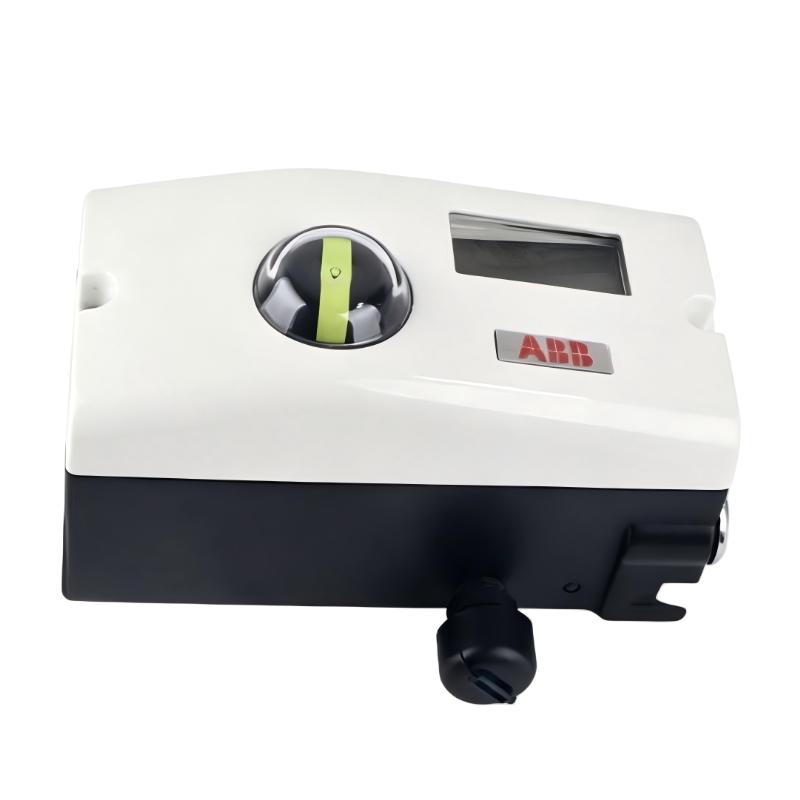

The ABB V18345-1011220001 is an intelligent electro-pneumatic valve positioner from the TZIDC family. It is designed to control the position of pneumatic valve actuators by continuously comparing the commanded position with the actual valve position and adjusting the pneumatic output accordingly. The positioner can be used with both linear and part-turn pneumatic actuators, making it suitable for a wide range of process control applications. Its microprocessor-based control system can automatically determine important actuator parameters during commissioning, helping achieve stable and accurate valve positioning.

2. How does the TZIDC positioner control a pneumatic actuator?

The positioner receives an electrical positioning command and compares it with the actual valve position detected by its feedback system. The internal control electronics then determine whether the pneumatic actuator needs to move in the opening or closing direction. An I/P module and pneumatic amplifier regulate the actuator air pressure through the pneumatic output stage. When the desired valve position is reached, the output stage can move to its neutral condition to minimize unnecessary air consumption. This closed-loop positioning process allows the valve to respond continuously to changes in the control signal and maintain the required process position.

3. Can the V18345-1011220001 be used with both linear and rotary actuators?

The TZIDC platform is designed to support both pneumatic linear actuators and part-turn actuators when the appropriate mechanical mounting arrangement and configuration are used. Linear actuator installations can use mounting arrangements based on recognized valve actuator standards, while part-turn applications use suitable mounting interfaces. The correct feedback linkage and mechanical adapter are important because the positioner must accurately detect actuator travel or rotation. During installation, the mechanical connection should be checked carefully to ensure that the full actuator movement is correctly transferred to the positioner’s feedback mechanism.

4. What is the purpose of the AUTOSTROKE function?

AUTOSTROKE is an automatic commissioning function that helps determine the actuator and valve positioning characteristics during setup. Instead of manually entering every control parameter, the positioner can perform a controlled actuator movement and use the resulting feedback to determine relevant operating parameters. This can significantly reduce commissioning time and helps the positioner establish suitable control behavior for the connected valve assembly. Before starting AUTOSTROKE, the actuator, valve, pneumatic connections, mechanical linkage, and process conditions should be checked to ensure that the valve can safely travel through the required operating range.

5. What is Adaptive Gain in the ABB TZIDC positioner?

Adaptive Gain is a control optimization function that allows the positioner’s control behavior to be adjusted according to operating conditions. Valve and actuator dynamics can vary because of friction, load changes, pneumatic characteristics, and process conditions. A fixed control setting may therefore provide excellent performance under one condition but become less effective under another. Adaptive Gain helps optimize the control response in real time, supporting stable positioning while reducing the likelihood of excessive oscillation or sluggish response. This feature is particularly useful in applications where actuator behavior changes during normal process operation.

6. What happens if the control signal or power supply is lost?

The response to a loss of electrical power or the positioning signal depends on the configured positioner version and the selected fail-safe or fail-in-place behavior. In a fail-safe configuration, the pneumatic output can be depressurized so that a spring-return actuator moves toward its predefined safe position. For double-acting actuator arrangements, the corresponding output behavior can be configured according to the application. In a fail-in-place configuration, the pneumatic outputs can remain locked so that the actuator holds its current position. The correct failure response should always be selected according to the process safety requirements of the valve application.

7. How can poor valve positioning accuracy be diagnosed?

Start by checking the mechanical linkage between the positioner and actuator because excessive looseness, incorrect alignment, or mechanical play can directly affect feedback accuracy. The pneumatic supply should also be checked for adequate pressure, contamination, moisture, or unstable supply conditions. Next, verify the electrical positioning signal and inspect the position feedback mechanism. If the mechanical and pneumatic systems are operating correctly, the positioner’s configuration and control parameters should be reviewed. Running the appropriate commissioning or automatic calibration procedure may help restore accurate control. Persistent positioning errors can also result from excessive valve friction, actuator problems, or process forces that prevent the valve from reaching the commanded position.

8. What should be checked when replacing or commissioning the V18345-1011220001?

Before installation, confirm that the positioner configuration is suitable for the specific pneumatic actuator and valve assembly. Check the mechanical mounting, feedback linkage, pneumatic supply, actuator connections, and electrical signal wiring. The actuator should be able to travel freely through its required operating range without mechanical interference. After installation, the positioner should be configured according to the application, followed by the appropriate automatic commissioning procedure such as AUTOSTROKE when applicable. The final test should verify valve travel, positioning response, control stability, diagnostic indications, and the selected failure behavior. Proper commissioning is essential because incorrect mechanical feedback or configuration can cause inaccurate positioning even when the electronic positioner itself is functioning correctly.
