1. What is the ABB V18345-1020151001 used for?

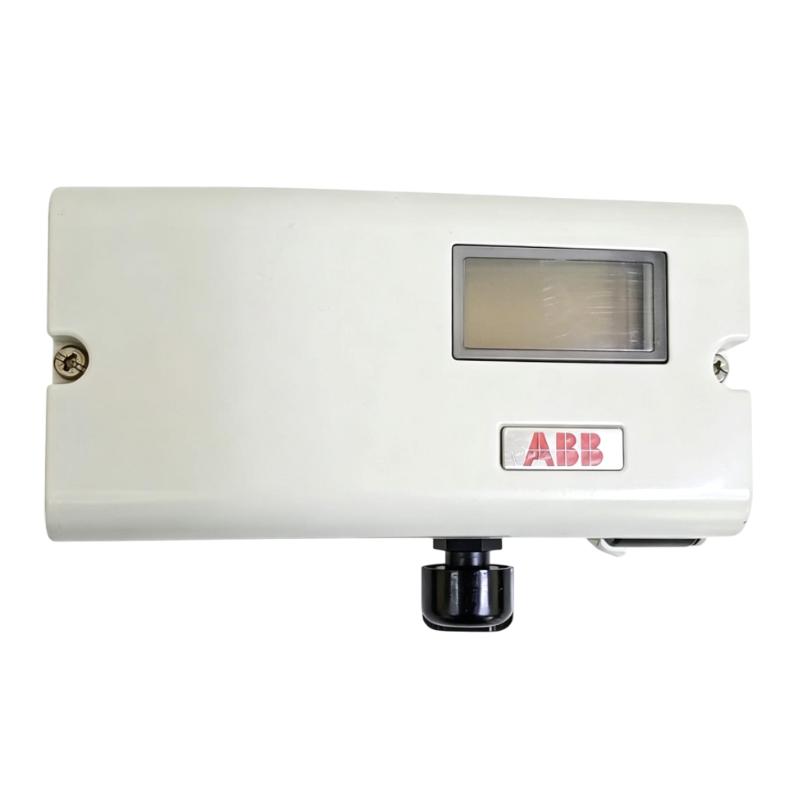

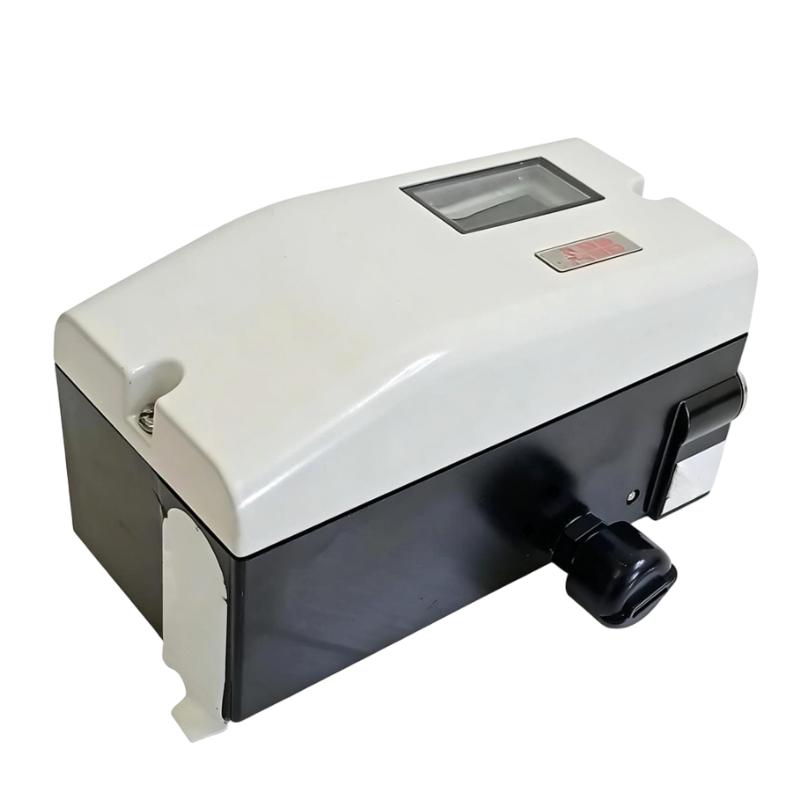

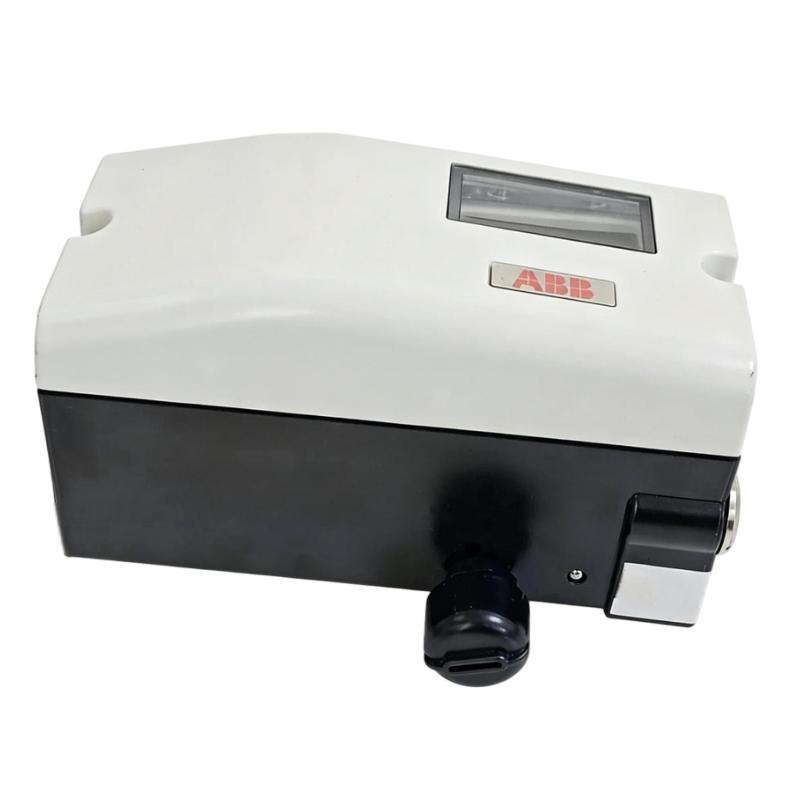

The ABB V18345-1020151001 is an electro-pneumatic valve positioner designed to control pneumatic valves in industrial process automation systems. It receives a control command from the automation system and compares the requested valve position with the actual position detected through the feedback mechanism. When a deviation is detected, the positioner adjusts its pneumatic output to move the actuator toward the required position. This closed-loop operation helps maintain stable valve positioning and improves the accuracy of flow, pressure, temperature, and level control processes. The model is part of the ABB TZIDC positioner family and can be used in a variety of process control applications. (Valve Positioner - Excellent PLC" href="https://www.excellentplc.com/abb-v18345-1020151001-valve-positioner/?utm_source=chatgpt.com">Excellent PLC)

2. What type of actuators can be used with the V18345-1020151001?

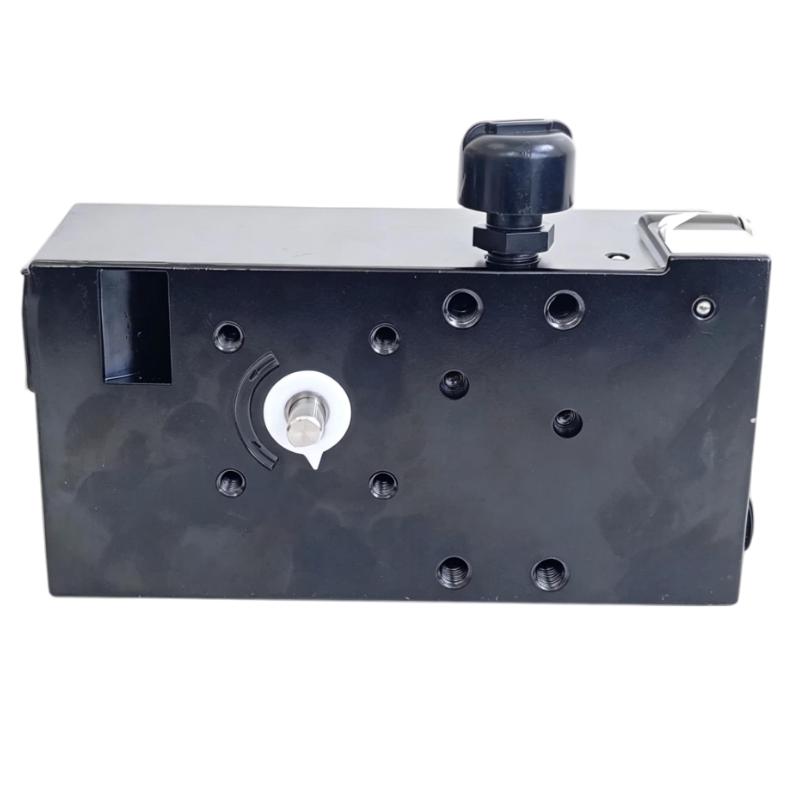

The V18345-1020151001 is intended for compatible pneumatic linear and rotary actuators. The correct mounting arrangement and feedback mechanism must be selected according to the actuator design. For a linear actuator, the feedback linkage must accurately translate the actuator’s linear travel into the positioner’s feedback movement. For a rotary actuator, the mounting arrangement must correctly transfer the actuator’s angular movement. Proper mechanical alignment is important because excessive play, incorrect linkage adjustment, or mechanical interference can cause inaccurate position feedback and unstable valve control.

3. How does the positioner maintain accurate valve positioning?

The positioner operates as a closed-loop control device. It receives the commanded valve position and continuously compares this value with the actual valve position. If the actual position differs from the target, the internal controller adjusts the pneumatic output and causes the actuator to move in the required direction. Once the actual valve position approaches the commanded position, the output is adjusted to maintain the position. This continuous correction allows the positioner to compensate for normal variations such as actuator loading, valve friction, and changes in process conditions.

4. What are the main causes of unstable valve positioning?

Unstable positioning can result from several different conditions. Mechanical backlash in the feedback linkage, excessive valve friction, incorrect actuator adjustment, or loose mounting components can cause the positioner to receive an inaccurate position signal. Pneumatic problems such as unstable instrument-air pressure, leakage, contaminated air, restricted tubing, or defective pneumatic components can also affect actuator movement. Electrical control-signal fluctuations may produce similar symptoms. Troubleshooting should therefore begin with the mechanical feedback system, followed by the pneumatic supply and electrical signal before changing control parameters.

5. How should the V18345-1020151001 be commissioned after installation?

After installation, the mechanical connection between the positioner and actuator should first be checked carefully. The actuator must be able to move through its intended range without mechanical obstruction. The pneumatic supply should then be connected and checked for adequate pressure and leakage. The electrical control wiring should be verified before applying the control signal. During commissioning, the positioner’s configuration should be matched to the actuator and valve arrangement, and the appropriate automatic adjustment procedure should be performed when supported by the installed configuration. The complete valve travel should then be checked from minimum to maximum commanded position to confirm correct feedback and stable positioning.

6. What should be checked if the valve does not reach the commanded position?

Begin by checking whether the input control signal is reaching the positioner correctly. Next, verify the pneumatic supply and confirm that sufficient actuator pressure is available. Inspect the pneumatic tubing, fittings, and actuator for leaks or restrictions. The mechanical feedback linkage should also be checked for incorrect adjustment, excessive mechanical play, or interference. If the mechanical and pneumatic systems are functioning normally, review the positioner’s configuration and calibration parameters. Valve stem friction, actuator sizing, process forces, or a mechanical problem inside the valve can also prevent the actuator from reaching the required position.

7. Can the V18345-1020151001 be used for flow, pressure, and temperature control applications?

Yes. A valve positioner does not normally control the process variable directly; instead, it controls the physical position of the pneumatic valve that regulates the process. For example, a PLC or DCS may calculate the required valve position based on flow, pressure, temperature, or level measurements and send the corresponding command to the positioner. The positioner then moves the valve to the requested position and continuously corrects positioning deviations. This arrangement allows the V18345-1020151001 to form part of a larger process-control loop in power generation, chemical processing, oil and gas, water treatment, and other industrial applications.

8. What should be checked when replacing the V18345-1020151001?

Before replacement, verify the complete model number and confirm that the replacement positioner is suitable for the existing valve actuator and control system. The original wiring, pneumatic connections, mechanical mounting arrangement, and feedback linkage should be documented before removal. After the new unit is installed, check the actuator movement, pneumatic connections, control signal, and feedback mechanism. The positioner should then be configured and commissioned for the specific valve assembly. Finally, test the complete operating range and verify that the valve responds correctly to changes in the control command. A controlled functional test should also confirm that the valve reaches the required positions without excessive oscillation, delay, or unexpected movement.
