1. What is the ABB V18345-102045100P used for?

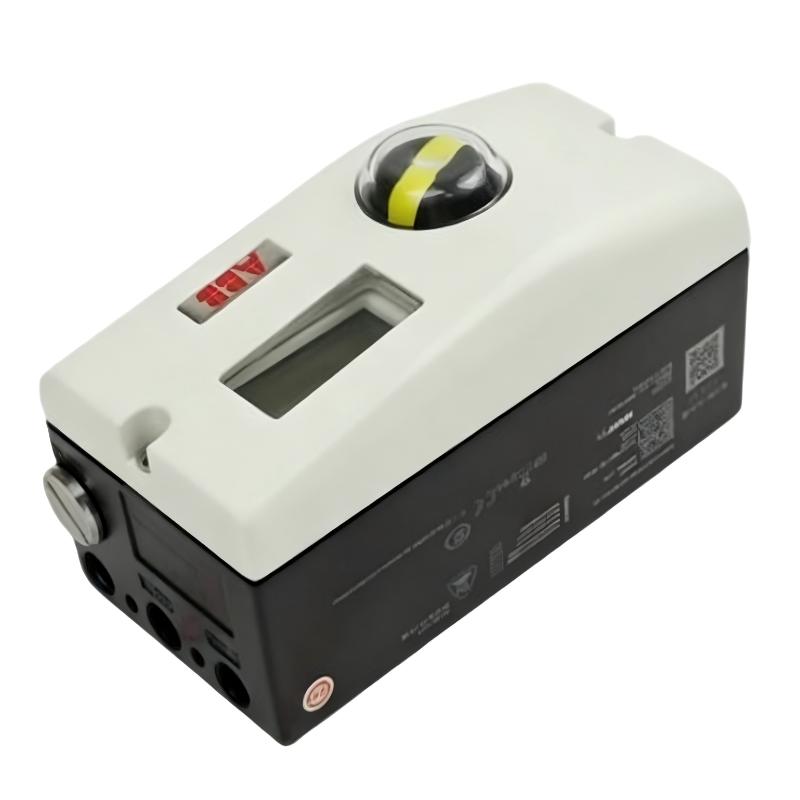

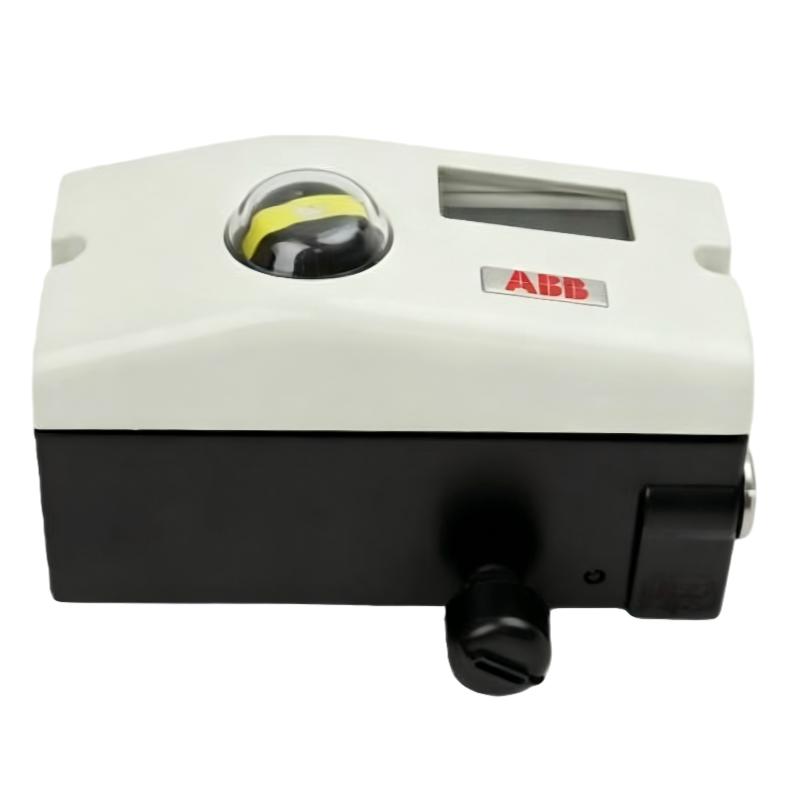

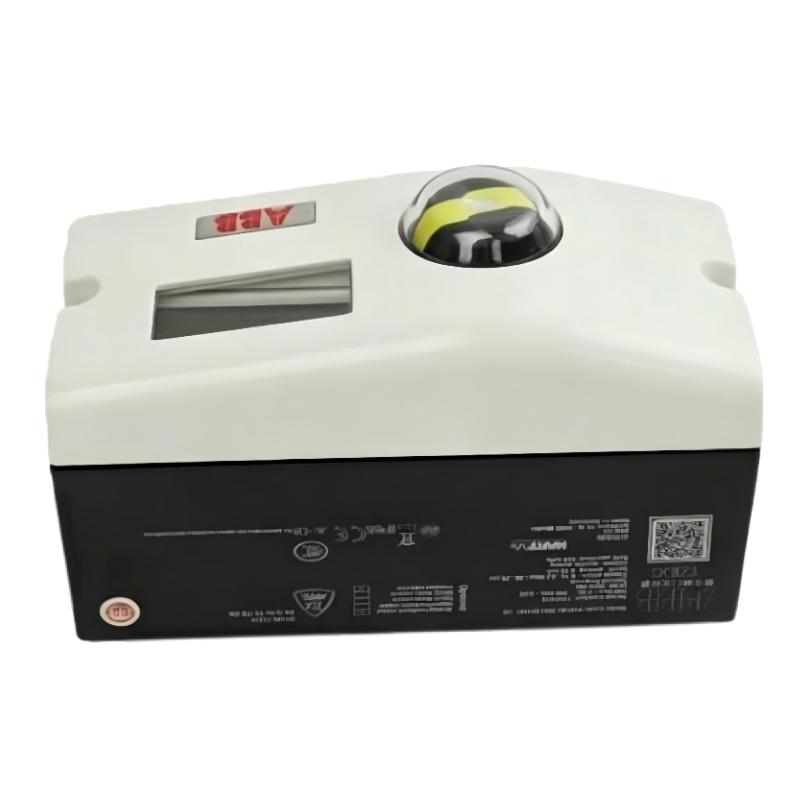

The ABB V18345-102045100P is a valve positioner designed to provide accurate positioning of pneumatic control valves in industrial process applications. It receives a control command from a process control system and uses actuator position feedback to determine whether the valve has reached the requested position. When a deviation is detected, the positioner adjusts its pneumatic output to correct the actuator position. This closed-loop operation helps maintain stable valve control and is suitable for applications involving flow, pressure, temperature, and level regulation.

2. How does the V18345-102045100P control a pneumatic valve?

The positioner works by continuously comparing the requested valve position with the actual position of the actuator. The control system sends a command through the electrical input circuit, while the feedback mechanism provides information about the actuator’s actual movement. If the two values do not match, the internal controller modifies the pneumatic output. The actuator then moves in the required direction until the actual position approaches the commanded value. This continuous correction allows the positioner to compensate for normal changes in actuator load and valve operating conditions.

3. What type of actuators can be used with the V18345-102045100P?

The V18345-102045100P is intended for use with compatible pneumatic linear and rotary actuators. The mounting arrangement and feedback mechanism must be selected according to the actuator design. Linear actuator applications require a feedback connection that accurately follows the linear travel of the actuator, while rotary applications require a mechanism capable of correctly transmitting angular movement. Correct mechanical alignment is essential because excessive backlash, loose connections, or incorrect feedback adjustment can cause the positioner to receive an inaccurate valve-position signal.

4. What should be checked if the valve does not reach the commanded position?

The first step is to verify the electrical control signal reaching the positioner. The pneumatic supply should then be checked to make sure sufficient pressure is available for the actuator. Inspect the pneumatic tubing, fittings, and actuator for leakage or restrictions. The mechanical feedback linkage should also be checked for looseness, incorrect adjustment, excessive backlash, or mechanical interference. If these areas are operating correctly, the positioner’s configuration and commissioning parameters should be reviewed. Valve stem friction, actuator performance, incorrect actuator sizing, and process forces can also prevent the valve from reaching its requested position.

5. Why is accurate position feedback important for this positioner?

Position feedback is essential because the positioner uses it to determine the actual position of the actuator. Without accurate feedback, the controller cannot reliably determine whether the valve has reached the commanded position. A damaged or incorrectly adjusted feedback mechanism can therefore result in positioning errors, oscillation, slow response, or incomplete valve travel. During installation and maintenance, the feedback linkage should be checked carefully to ensure that actuator movement is transferred correctly and that there is no excessive mechanical play.

6. How should the V18345-102045100P be commissioned after installation?

After mechanical installation, verify that the positioner is securely mounted and that the feedback mechanism follows actuator movement correctly. Connect the pneumatic supply and check the air circuit for leaks and stable pressure. The electrical control loop should then be checked for correct wiring and signal integrity. Configure the positioner according to the installed valve and actuator arrangement, then perform the applicable commissioning or automatic adjustment procedure. During final testing, operate the valve through its required range and verify movement direction, position feedback, response speed, control stability, and diagnostic status.

7. What are common causes of unstable valve positioning?

Unstable valve positioning can be caused by mechanical, pneumatic, or electrical problems. Mechanical causes include excessive valve friction, loose feedback connections, incorrect linkage adjustment, or excessive backlash. Pneumatic causes include unstable instrument-air pressure, air leakage, contaminated air, blocked tubing, or insufficient actuator pressure. Electrical signal fluctuations can also cause the positioner to continuously correct the valve position. A systematic troubleshooting process should therefore check the input signal, pneumatic system, feedback mechanism, actuator, and valve before changing control parameters.

8. What should be considered when replacing the V18345-102045100P?

Before replacement, verify the complete model number and make sure the replacement unit is compatible with the existing valve actuator, electrical control loop, pneumatic system, and feedback arrangement. Follow the applicable site safety procedures before isolating the electrical and pneumatic connections. Record the original wiring, pneumatic connections, mechanical mounting, feedback linkage, and important configuration settings. After installation, verify the control signal and pneumatic supply, then configure and commission the new positioner. The final functional test should cover the complete valve operating range, position feedback, control response, and diagnostic condition to ensure reliable operation in the process control system.
