1. What is the main function of the ABB V18345-1027120001 valve positioner?

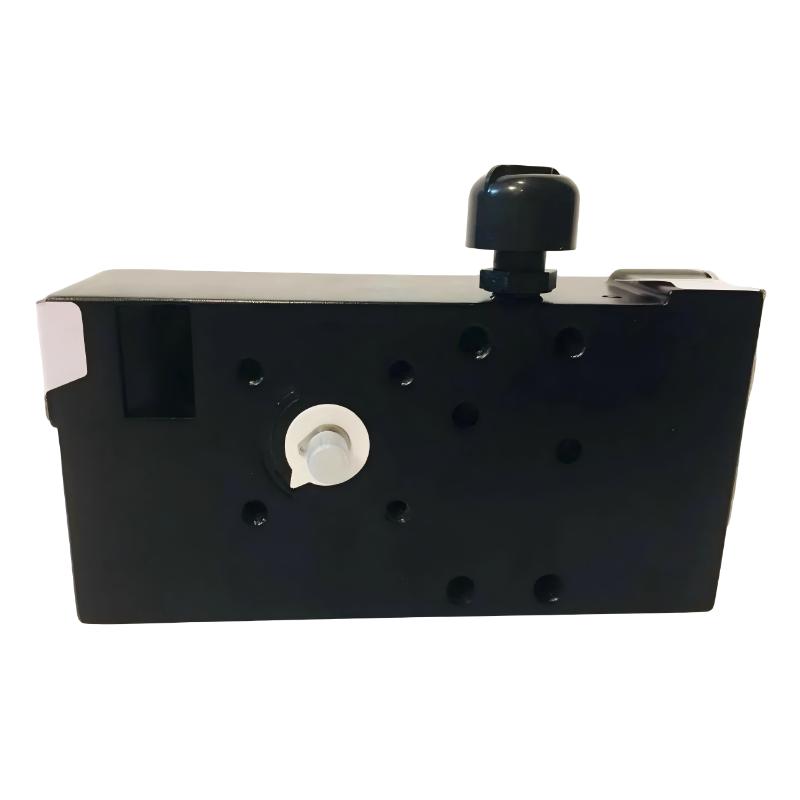

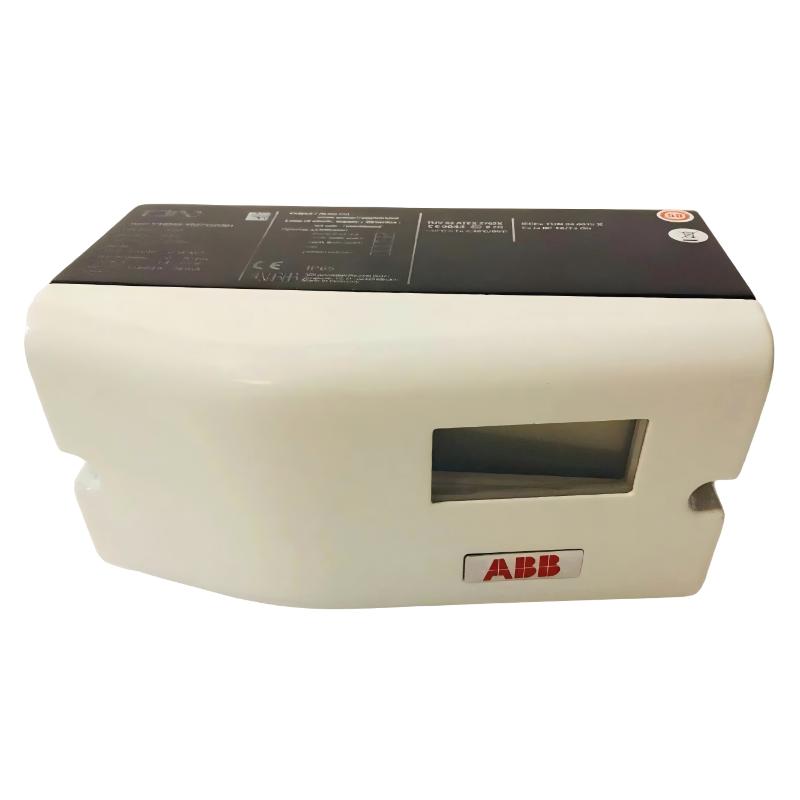

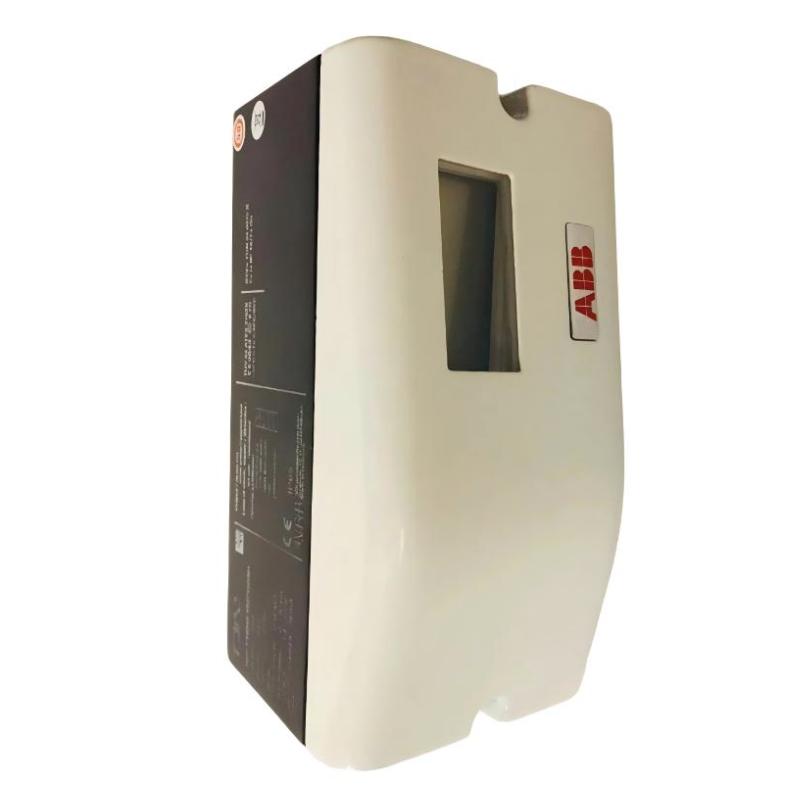

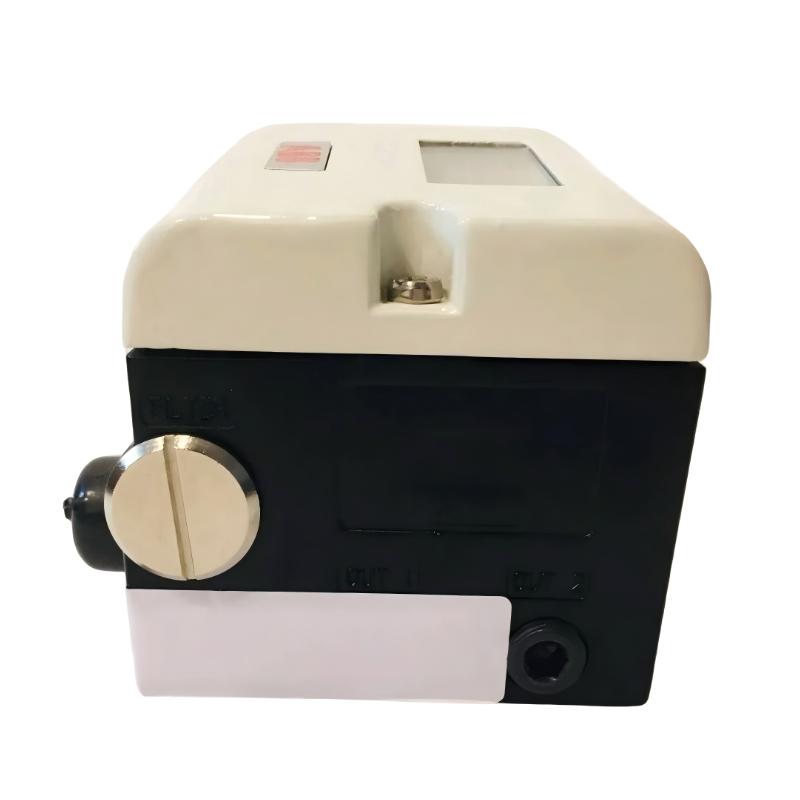

The ABB V18345-1027120001 is an intelligent electro-pneumatic valve positioner from the TZIDC series. It is designed to control the position of pneumatic control valves according to a 4–20 mA command signal from the process control system. The positioner compares the required valve position with the actual position and continuously adjusts the pneumatic output to minimize positioning deviation. This closed-loop control allows the valve to respond accurately to changing process requirements. The V18345-1027120001 configuration is designed for single-acting, fail-safe applications and includes HART communication for configuration, monitoring and diagnostics. It can be applied to suitable linear and rotary pneumatic actuators in industrial process-control systems.

2. What input signal does the V18345-1027120001 use?

The V18345-1027120001 uses a 4–20 mA two-wire input signal as the primary command signal. The process control system sends the desired valve position through the current loop, and the positioner interprets this signal to determine the required actuator position. The two-wire configuration simplifies field wiring and allows the positioner to be integrated into conventional industrial control loops. During commissioning, the control-system output range should be checked against the positioner’s configured range to ensure that the valve responds correctly throughout its operating stroke. HART communication is also available on the same signal loop, allowing technicians to access configuration and diagnostic information while retaining the standard analog control signal.

3. Does the ABB V18345-1027120001 support HART communication?

Yes. The V18345-1027120001 is configured with a communication interface for HART operation. HART communication provides digital access to device parameters, operating information and diagnostic functions in addition to the conventional 4–20 mA control signal. This makes the positioner easier to commission and maintain because technicians can review configuration data and operating status without relying solely on local mechanical adjustments. HART can also be used to investigate abnormal positioning behavior and verify important operating parameters. When connecting a HART communicator, the field loop should be checked to ensure that the electrical arrangement and communication conditions are suitable for reliable data exchange.

4. What type of actuator is the V18345-1027120001 designed for?

This configuration is intended for pneumatic actuators and is specified as a single-acting, fail-safe version. It can be used with appropriate linear or rotary actuator arrangements when the mechanical mounting and feedback mechanism are correctly matched. Linear actuator installation can follow the applicable DIN / IEC 534 or NAMUR mounting arrangement, while rotary actuator installation can use the applicable VDI / VDE 3845 interface. Before installation, the actuator type, travel range, movement direction and mechanical coupling should be verified. Correct mechanical installation is essential because an improperly aligned feedback mechanism can cause positioning errors even when the electrical signal and pneumatic supply are functioning normally.

5. What should be checked if the valve does not follow the 4–20 mA command correctly?

The first step is to verify the actual 4–20 mA input signal and confirm that the control system is generating the expected command. If the input signal is correct, the pneumatic supply should then be checked for adequate pressure and stability. Pneumatic tubing should be inspected for leakage, blockage or incorrect connections. The actuator and valve mechanism should also be checked for excessive friction, mechanical obstruction or restricted travel. After the electrical, pneumatic and mechanical sections have been verified, the positioner’s configured travel range and calibration should be checked. HART communication can be particularly useful for reviewing parameters and diagnostic information. A step-by-step check of the signal loop, air supply, actuator movement and positioner configuration can help identify whether the problem is caused by the positioner or by an external component.

6. How is the V18345-1027120001 commissioned and calibrated?

Commissioning should begin after the positioner has been securely mounted to the appropriate pneumatic actuator and all electrical and pneumatic connections have been completed. The 4–20 mA loop should be checked first, followed by the instrument-air supply and actuator movement. The valve should be able to move freely through its required operating range without mechanical interference. The positioner’s configuration can then be reviewed and adjusted using the local operator interface or HART communication. The actuator type, travel direction, operating range and other relevant control parameters should correspond to the actual installation. After calibration, the valve should be tested at multiple command values across its operating range. The actual valve position should follow the requested position smoothly and consistently, with no excessive oscillation, deadband or travel limitation.

7. What can cause unstable valve positioning with the V18345-1027120001?

Unstable valve positioning can be caused by electrical, pneumatic, mechanical or configuration-related problems. An unstable 4–20 mA signal can make the positioner continuously adjust the actuator. Insufficient or fluctuating instrument-air pressure can also produce inconsistent actuator movement. Mechanical friction, valve-stem sticking, actuator problems or incorrect feedback linkage can prevent the valve from moving smoothly. Another possible cause is an unsuitable control configuration, especially if the positioner’s parameters do not match the installed actuator and valve. Troubleshooting should therefore begin with the input signal and air supply, followed by mechanical movement and feedback operation. If those areas are normal, the positioner’s configuration and control parameters should be reviewed through the local interface or HART communication.

8. What checks should be performed after replacing the V18345-1027120001?

After replacement, the complete valve-control loop should be inspected before returning the process to automatic operation. First confirm the correct positioner configuration and verify all mechanical mounting points. The 4–20 mA signal wiring, HART communication connection and pneumatic connections should then be checked carefully. The actuator should respond correctly to the input command, and the valve movement direction should correspond to the required process-control configuration. The positioner’s parameters should be reviewed and the necessary calibration procedure completed. The valve should then be tested at several command points to confirm accurate and repeatable positioning. Finally, technicians should check diagnostic information, communication status and process-control feedback for abnormal conditions. For critical applications, extended operation under normal process conditions can help verify that the replacement positioner remains stable and provides consistent valve control.
