1. What is the main function of the ABB V18345-2010521501 valve positioner?

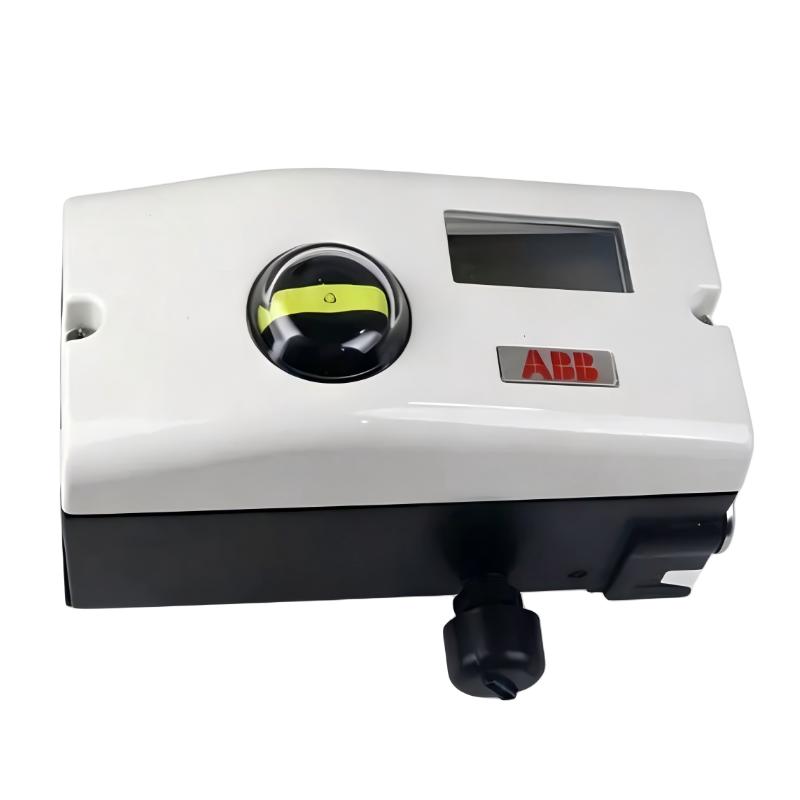

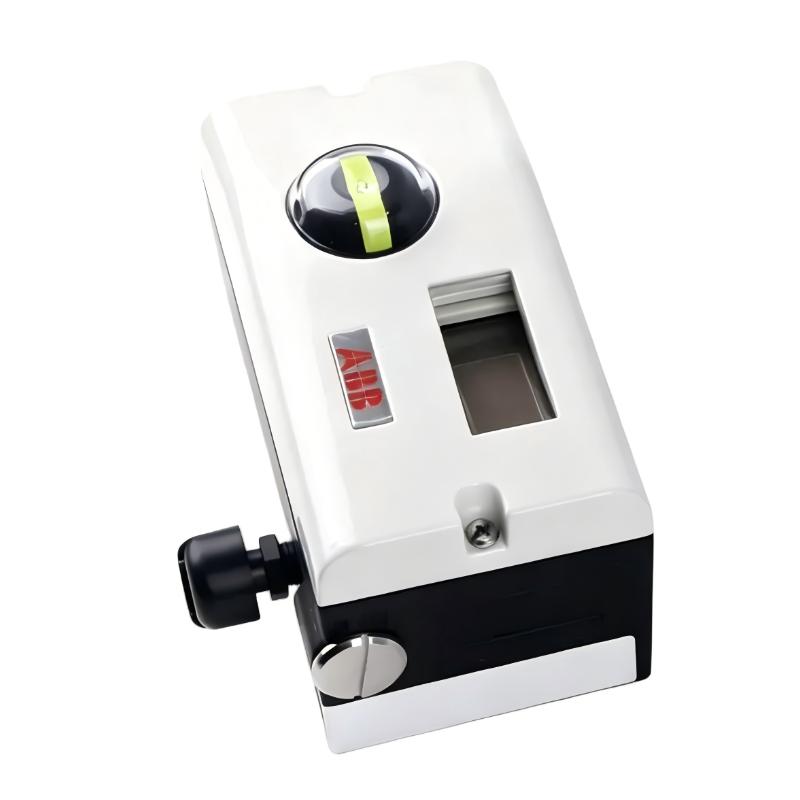

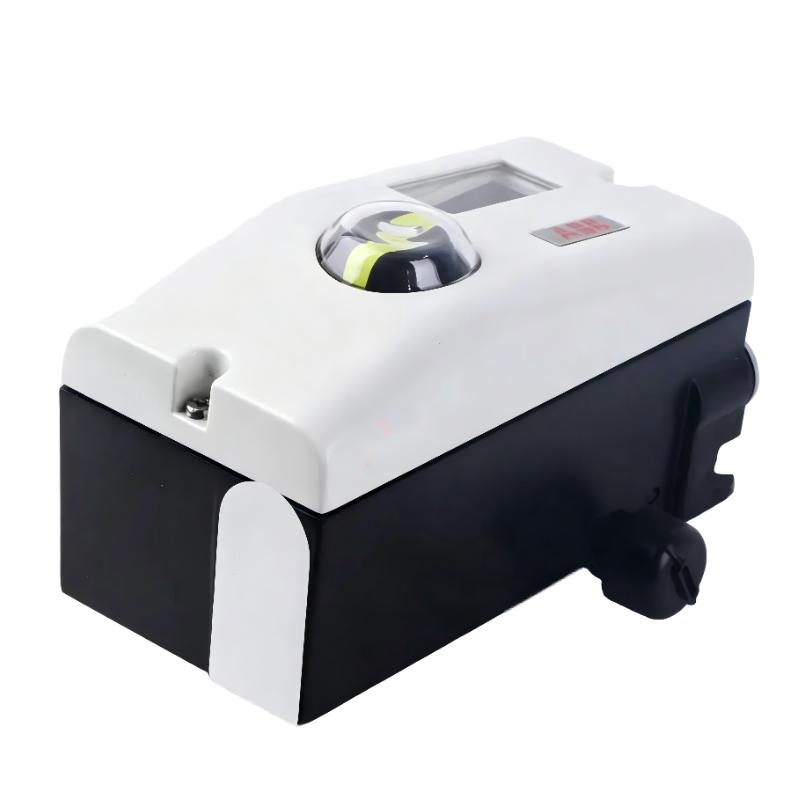

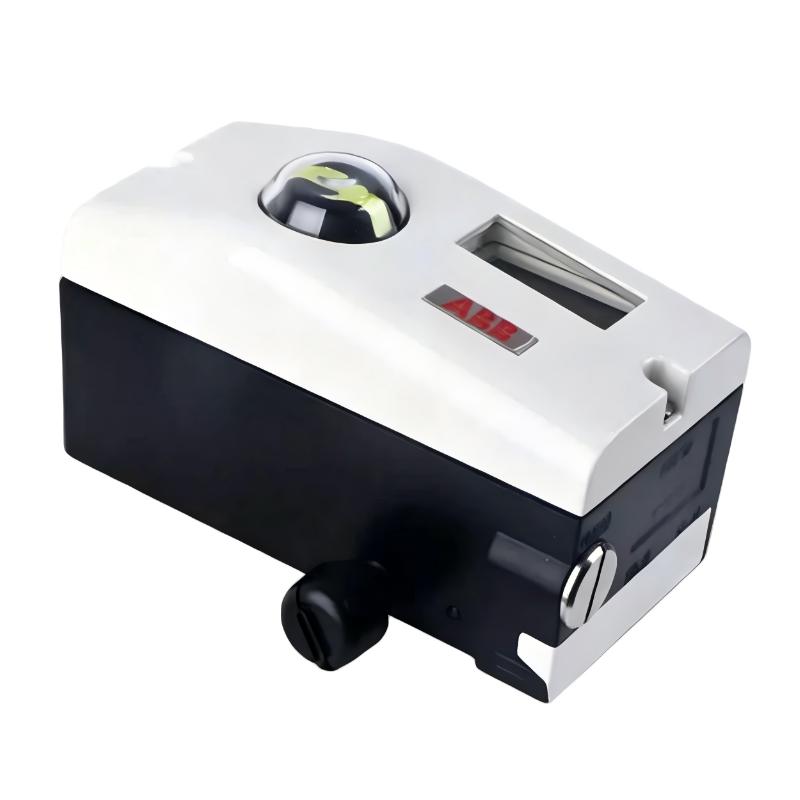

The ABB V18345-2010521501 is an intelligent electro-pneumatic valve positioner designed to control pneumatic process valves in industrial automation systems. It receives a 4–20 mA command signal from a PLC, DCS, or other process control system and converts the electrical command into pneumatic actuator movement. The positioner continuously compares the requested valve position with the actual valve position and automatically corrects any deviation through closed-loop control. This provides accurate and repeatable valve positioning even when process conditions or actuator loads change. Its double-acting configuration allows suitable pneumatic actuators to be controlled in both directions, making it suitable for demanding process-control applications.

2. What control signal does the V18345-2010521501 use?

The V18345-2010521501 uses a 4–20 mA two-wire analog input signal. This standard industrial signal allows the positioner to be integrated with PLC, DCS, and other process automation systems. The control system changes the current value to represent the required valve position, while the positioner interprets the signal and controls the pneumatic actuator accordingly. During commissioning, the complete current loop should be tested to confirm that the signal is stable and correctly scaled. Wiring problems, signal fluctuations, incorrect control-system scaling, or an incorrect input configuration can result in inaccurate valve positioning. Verifying the actual input current should therefore be one of the first steps when commissioning or troubleshooting the positioner.

3. Does the ABB V18345-2010521501 support HART communication?

Yes. The V18345-2010521501 supports HART communication, providing digital access to device configuration, operating status, and diagnostic information. HART communication is useful during commissioning because technicians can review the current configuration and make adjustments according to the connected actuator and valve. During maintenance, it can also provide additional information when the valve shows positioning errors, unstable movement, or abnormal response. Technicians can use compatible HART equipment to inspect relevant operating parameters and diagnostic information without relying solely on the local display. Before establishing communication, the 4–20 mA loop should be checked to ensure that the electrical connection and signal conditions are stable.

4. What type of pneumatic actuator is compatible with the V18345-2010521501?

The V18345-2010521501 is designed for double-acting pneumatic actuators and can be used with suitable linear or rotary actuator applications. Linear actuator installations can use DIN, IEC 534, or NAMUR mounting arrangements, while rotary actuator applications can use VDI / VDE 3845 interfaces. Before installation, the actuator’s mechanical interface, required valve travel, movement direction, and feedback mechanism should be verified. Because the positioner uses a double-acting configuration, both pneumatic output channels must be connected to the correct actuator chambers. Incorrect pneumatic connections can cause reversed movement, unstable operation, or incomplete valve travel. The feedback mechanism must also be installed correctly so the positioner can accurately determine the actual valve position.

5. What should be checked if the valve cannot reach the commanded position?

Start by checking the 4–20 mA input signal and confirm that the actual current received by the positioner corresponds to the command generated by the PLC or DCS. Next, inspect the instrument-air supply and verify that the pressure is stable and suitable for the pneumatic actuator. Since this model uses a double-acting configuration, both pneumatic output channels should be checked for correct connections, pressure response, and possible leakage. The valve and actuator should then be inspected for mechanical problems such as excessive friction, sticking, restricted travel, or actuator malfunction. If the external electrical, pneumatic, and mechanical systems are normal, check the position feedback mechanism, configuration parameters, and calibration. HART diagnostic information can provide additional data to help determine whether the problem originates from the control signal, pneumatic system, actuator, valve, or positioner.

6. How should the ABB V18345-2010521501 be installed and commissioned?

Installation should begin by confirming that the positioner’s mechanical interface matches the pneumatic actuator and that the feedback mechanism is correctly installed. The feedback linkage should move smoothly together with the actuator without excessive mechanical play. After mechanical installation, check the 4–20 mA electrical circuit and pneumatic connections. For a double-acting actuator, both pneumatic outputs must be connected to the appropriate actuator chambers. Before startup, verify that the instrument-air supply is clean, stable, and free from significant leakage. The positioner can then be configured through the local operating interface or HART communication. The actuator type, movement direction, travel range, and other control parameters should correspond to the actual installation. After configuration, test the valve at several command points and verify that the actual position follows the requested position smoothly and accurately.

7. What are the common causes of valve-position fluctuations?

Valve-position fluctuations can be caused by unstable control signals, instrument-air problems, actuator faults, valve mechanical resistance, incorrect feedback installation, or incorrect positioner parameters. The 4–20 mA input signal should be checked first because fluctuations in the command signal will cause the positioner to continuously adjust the valve. The instrument-air supply should then be inspected for pressure instability, leakage, or restrictions. Mechanical issues such as excessive valve-stem friction, sticking, actuator wear, or incorrect feedback alignment can also prevent the valve from responding smoothly. For a double-acting actuator, incorrect pneumatic connections between the two output channels can further affect stability. If the electrical, pneumatic, and mechanical systems are normal, the positioner’s calibration and control parameters should be reviewed. HART diagnostic information can provide additional operating data for systematic troubleshooting.

8. What checks are required after replacing the V18345-2010521501?

After replacing the positioner, the complete valve-control loop should be inspected before returning the equipment to automatic operation. First verify that the model and configuration are suitable for the application, then inspect the mechanical mounting and feedback mechanism. Check the 4–20 mA wiring and confirm that the control system provides a stable input signal. Because this model uses a double-acting configuration, both pneumatic output connections must be carefully checked to ensure that they are connected to the correct actuator chambers. Test the actuator movement direction and confirm that it corresponds with the control-system command. The input range, actuator configuration, movement direction, travel parameters, and other relevant settings should then be reviewed and calibrated as required. Test the valve at multiple command points and compare the requested position with the actual position. Finally, check the local status, HART communication, and diagnostic information to ensure that there are no persistent alarms, communication faults, or positioning problems. For critical process applications, extended operation under normal conditions should be observed to confirm reliable long-term performance.
