1. What is the main function of the ABB V18345-2021421001?

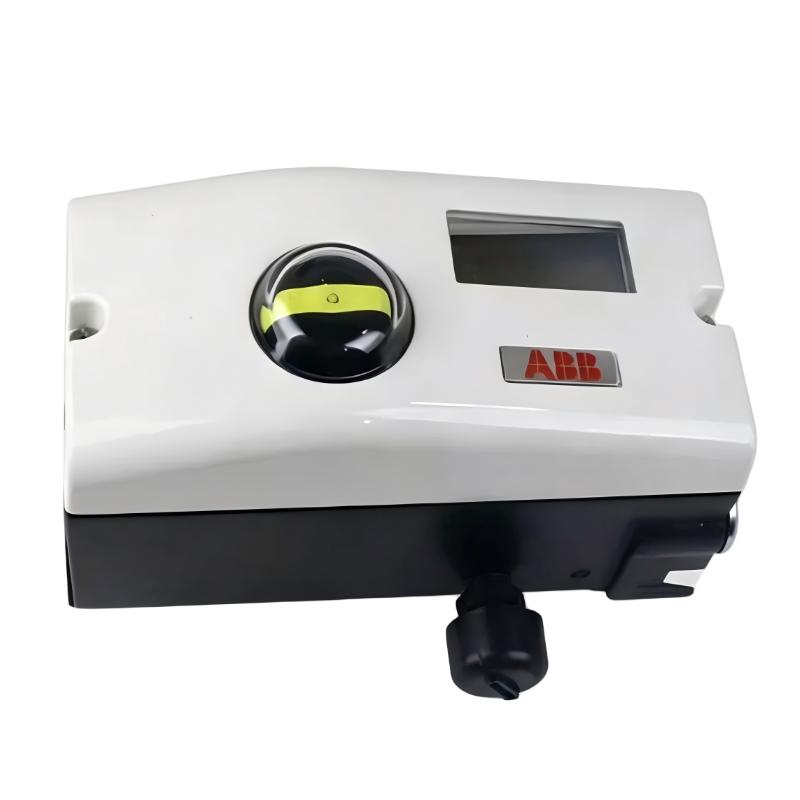

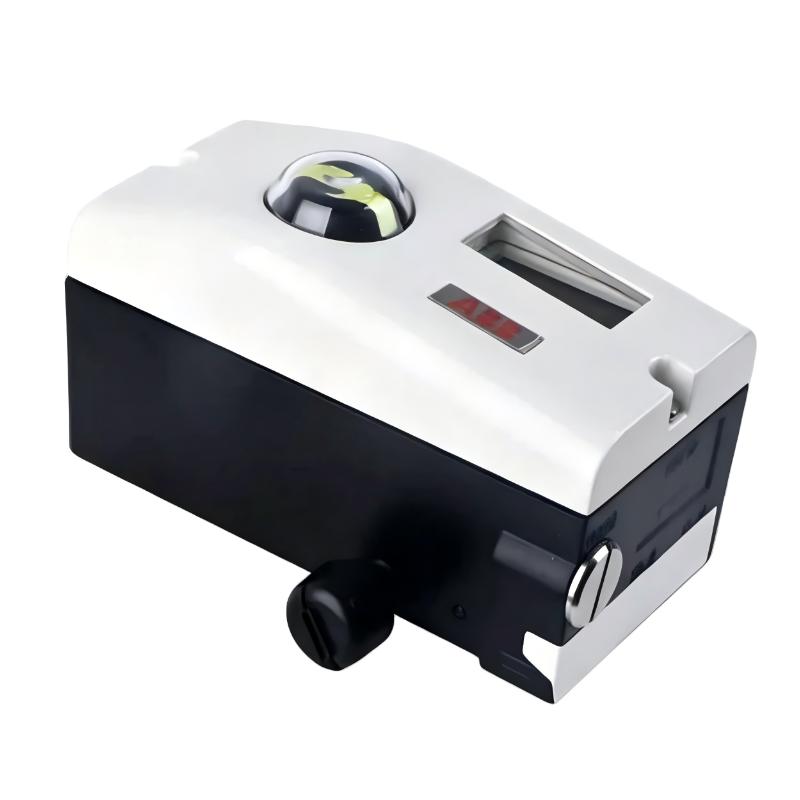

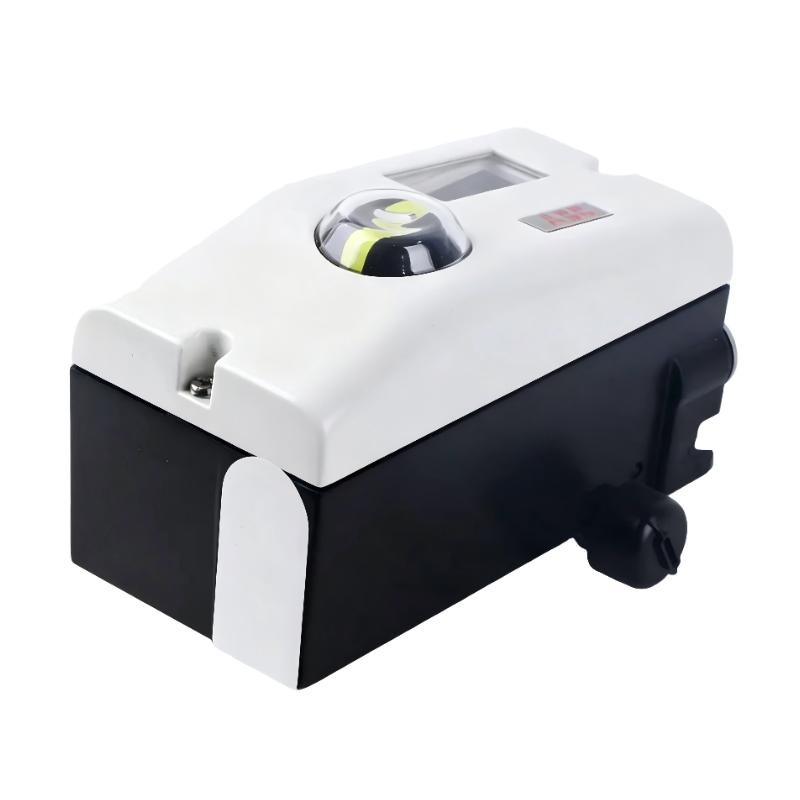

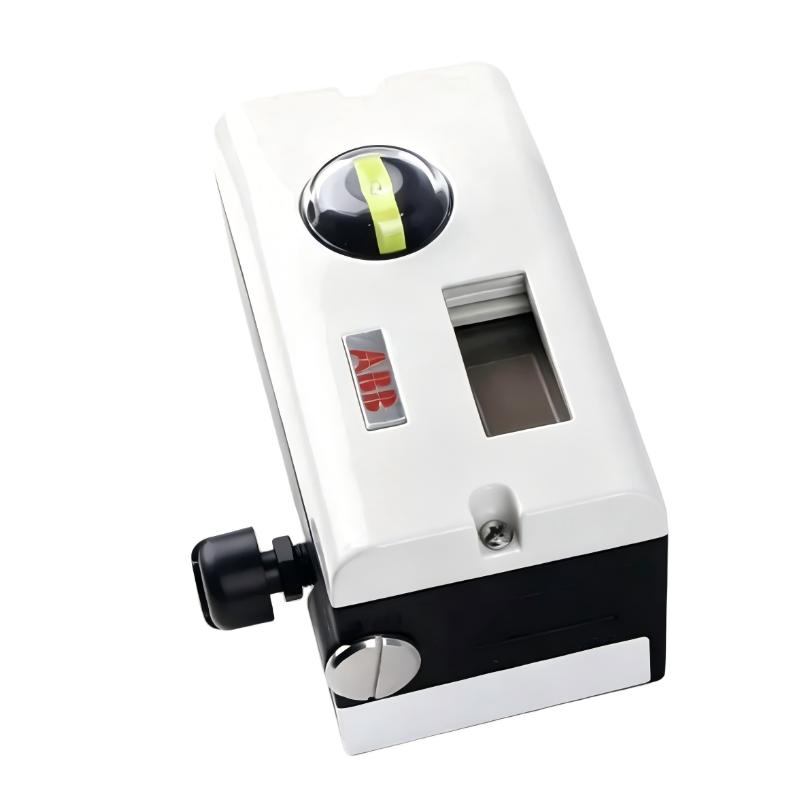

The ABB V18345-2021421001 is an intelligent electro-pneumatic valve positioner from the TZIDC series. It is designed to accurately control the position of pneumatic control valves according to commands from a process control system. The positioner receives a 4–20 mA control signal and uses an internal closed-loop control system to compare the required valve position with the actual valve position. It then adjusts the pneumatic output to move the actuator until the required position is reached. The unit is configured for double-acting, fail-safe operation and provides HART communication together with 4–20 mA analog position feedback. It is suitable for continuous valve regulation in applications involving flow, pressure, temperature, and level control.

2. What control signal does the V18345-2021421001 use?

The V18345-2021421001 uses a 4–20 mA two-wire control signal and supports HART digital communication. The current level within the 4–20 mA range represents the required valve position, allowing a PLC, DCS, or other process controller to continuously regulate valve opening. HART communication adds digital access to configuration, device status, and diagnostic information. During installation, the loop power supply, wiring polarity, controller output, and positioner input should all be checked carefully. An unstable or incorrect input current can cause inaccurate positioning, delayed response, or unexpected valve behavior.

3. What types of actuators can be used with the V18345-2021421001?

The V18345-2021421001 is designed for compatible pneumatic linear and rotary actuators. Linear actuator installations can use DIN, IEC 534, or NAMUR mounting arrangements, while rotary actuator installations can use the VDI/VDE 3845 interface. The mechanical connection between the positioner and actuator must be secure, and the feedback mechanism must accurately follow the actual actuator movement. Incorrect feedback installation can result in incorrect position detection, incomplete travel, position deviation, or unstable control. After mechanical installation, the positioner should therefore be commissioned and calibrated so that the feedback range corresponds correctly to the actual valve travel.

4. What is the purpose of HART communication on the V18345-2021421001?

HART communication provides digital communication on top of the standard 4–20 mA control loop. It allows technicians and engineers to access configuration parameters, device status, actual valve position, input information, and available diagnostic data. HART can be especially useful during commissioning and troubleshooting because it provides additional information without replacing the normal analog control signal. When a valve shows inaccurate positioning or abnormal response, HART communication can help determine whether the problem is related to the input command, device configuration, position feedback, or another operating condition. It can therefore simplify maintenance and reduce the time required for field troubleshooting.

5. How should the V18345-2021421001 be commissioned after installation?

After mechanical and pneumatic installation, first inspect the actuator, valve linkage, position feedback mechanism, and pneumatic tubing to ensure that the actuator can move freely through its complete operating range. Check the 4–20 mA loop and HART communication connection and verify that the positioner receives the correct control signal. The instrument air should be clean, dry, and stable and should remain within the required pressure range. The actuator type, valve action, travel direction, and other application-specific parameters should then be configured. The automatic commissioning function can be used to establish the relationship between the control signal, actuator movement, and actual valve position. After commissioning, test several command points, including low, intermediate, and high positions, to confirm correct positioning, feedback, pneumatic response, and fail-safe behavior.

6. What should be checked if the V18345-2021421001 shows unstable valve positioning?

Unstable valve positioning can be caused by several factors, including unstable instrument air pressure, excessive actuator or valve friction, sticking valve components, incorrect feedback installation, fluctuations in the 4–20 mA signal, or inappropriate positioner settings. Troubleshooting should begin with the instrument air supply and pneumatic tubing to verify that pressure is stable and there are no significant leaks. The valve and actuator should then be inspected for mechanical resistance, looseness, or sticking. The actual 4–20 mA signal should also be measured directly to rule out fluctuations from the PLC or DCS. If the external conditions are normal, review the positioner configuration and automatic commissioning results. HART communication can provide additional diagnostic and operating information when available.

7. What should be checked if the V18345-2021421001 does not respond to the 4–20 mA signal?

First verify that the PLC or DCS is generating the correct 4–20 mA output and measure the actual current at the positioner input. Check the loop power supply, wiring polarity, terminal connections, and cable continuity. If the input signal is correct, verify that the instrument air supply meets the required operating conditions and that the actuator is not mechanically blocked. The positioner’s operating mode, input configuration, and valve action should also be reviewed. If HART communication is available, it can be used to read the device status and configuration parameters. If the electrical signal, pneumatic supply, mechanical system, and configuration are all confirmed to be correct but the actuator still does not respond, further inspection of the positioner’s internal electronic or pneumatic components may be necessary.

8. What should be considered before replacing the V18345-2021421001?

Before replacing the positioner, confirm that the fault is actually associated with the positioner rather than the PLC or DCS output, 4–20 mA loop, instrument air supply, actuator, valve mechanism, or position feedback system. Record the existing positioner configuration, including input settings, valve action, travel configuration, characteristic curve, HART parameters, and other important application settings. If the unit is installed in a hazardous area, the applicable ATEX and intrinsic-safety requirements must also be considered during replacement. After installing the replacement unit, verify all electrical and pneumatic connections and make sure the feedback mechanism is correctly installed. Perform the required automatic commissioning procedure and test the valve at multiple operating points. Final verification should confirm correct valve movement, position feedback, 4–20 mA operation, HART communication, and fail-safe behavior across the complete operating range.
