1. What is the main function of the ABB V18348-10111200110 TZIDC-200?

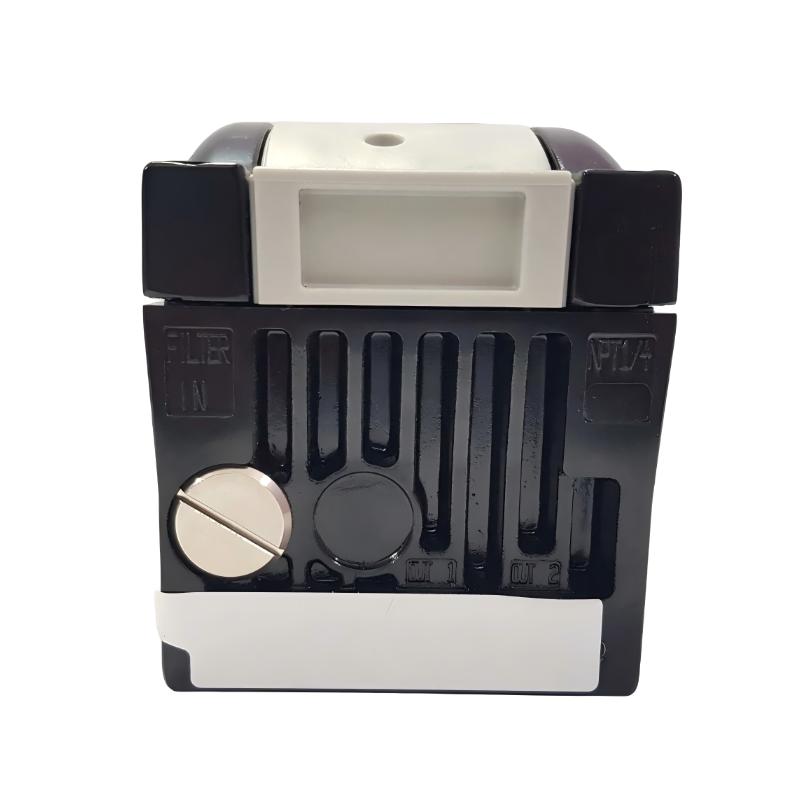

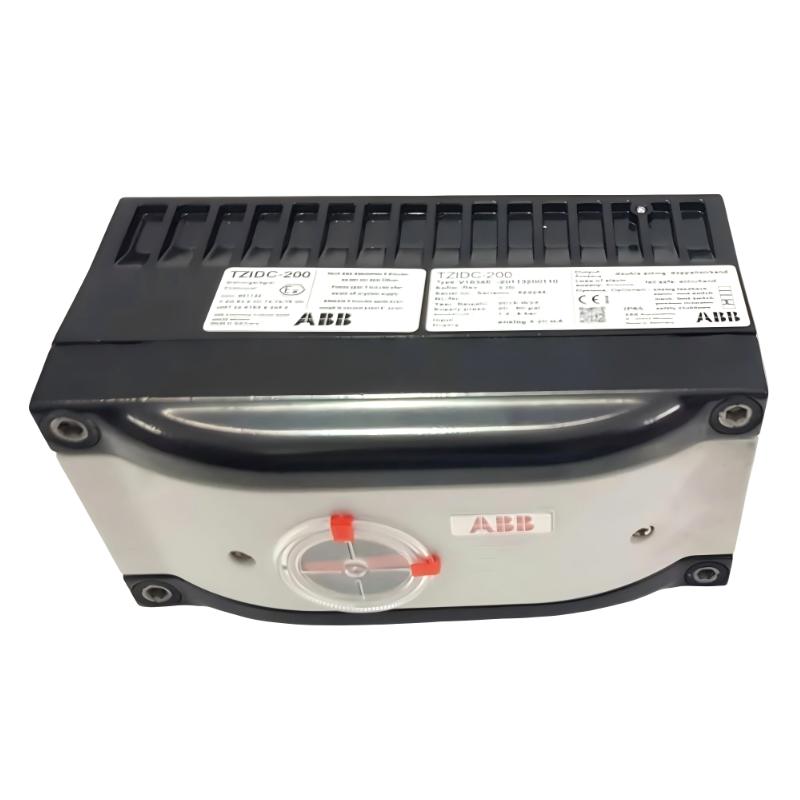

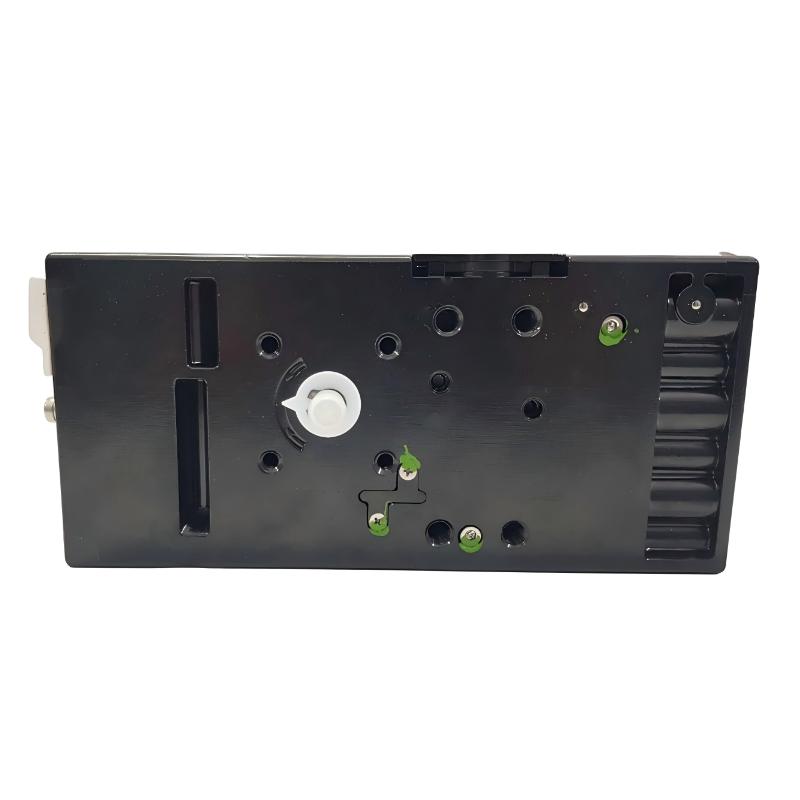

The ABB V18348-10111200110 is a TZIDC-200 digital electro-pneumatic positioner designed for accurate control of pneumatic valves. It receives a 4–20 mA command from a PLC, DCS, or other process control system and converts the electrical command into a corresponding pneumatic actuator movement. The positioner continuously compares the required valve position with the actual position and automatically corrects deviations. This closed-loop control helps maintain stable valve operation under changing process conditions and actuator loads.

2. What input and communication signals does the V18348-10111200110 support?

The positioner uses a 4–20 mA two-wire input and supports HART communication. The analog current signal represents the desired valve position, while HART provides additional digital access to configuration parameters, device status, diagnostics, and maintenance information. During commissioning, the 4–20 mA loop should be checked for correct polarity, stable current, suitable loop power, and proper connection to the PLC or DCS. HART communication can then be used for parameter verification and diagnostic work.

3. What does the flameproof enclosure of the TZIDC-200 provide?

The TZIDC-200 is designed with a flameproof enclosure and is available in configurations with different hazardous-area approvals. The exact explosion-protection certification depends on the ordering configuration. The flameproof design is intended for applications where the equipment may be installed in hazardous industrial environments. Before installation in a classified area, the equipment marking, certification, wiring method, cable entries, and local hazardous-area requirements must all be verified. The certification of the specific V18348 configuration should always match the requirements of the installation location.

4. What type of pneumatic actuators can be controlled by the V18348-10111200110?

The TZIDC-200 platform is designed for compatible pneumatic linear and rotary actuators. Linear actuators can use mounting arrangements based on DIN, IEC 534, or NAMUR standards, while rotary actuators can use VDI/VDE 3845 interfaces. Correct mechanical mounting and position feedback are essential for reliable operation. The actuator should move smoothly throughout its specified travel, and the feedback mechanism must accurately represent the actual valve position. Incorrect mechanical adjustment can result in position errors, incomplete travel, or unstable control.

5. How should the V18348-10111200110 be commissioned?

After installation, first verify the mechanical mounting, actuator linkage, pneumatic tubing, instrument air supply, and 4–20 mA control loop. Confirm that the actuator moves freely and that the position feedback system is correctly connected. The required actuator direction, travel range, operating mode, and other application parameters should then be configured. The automatic commissioning or auto-adjustment function can determine suitable control parameters and adapt the positioner to the connected valve. After automatic commissioning, test several valve positions from minimum through intermediate to maximum command values. This confirms that the positioner follows the control signal correctly and that the actuator responds smoothly.

6. What can cause unstable valve positioning on the TZIDC-200?

Unstable positioning can be caused by insufficient or fluctuating instrument air pressure, excessive valve friction, actuator problems, incorrect feedback adjustment, loose mechanical connections, unstable 4–20 mA signals, or unsuitable control parameters. Troubleshooting should start with the pneumatic system because unstable air pressure can directly affect actuator movement. The valve and actuator should then be inspected for mechanical resistance or sticking. The actual 4–20 mA input should be measured to rule out controller output problems. If these areas are normal, review the positioner’s configuration and automatic commissioning results. HART diagnostics can provide additional information when available.

7. What should be checked if the V18348-10111200110 does not respond to the control signal?

First measure the 4–20 mA signal at the positioner input and confirm that the PLC or DCS is generating the expected current. Check loop power, polarity, terminal connections, and wiring continuity. If the electrical signal is correct, inspect the instrument air supply and confirm that the actuator receives adequate pneumatic pressure. The valve and actuator should also be checked for mechanical blockage. If the external systems are functioning correctly, review the positioner’s operating mode and configuration. HART communication can be used to inspect device status and parameters. If the input signal, pneumatic system, configuration, and mechanical system are all normal but the actuator remains inactive, further inspection of the positioner’s electronic or pneumatic section may be required.

8. What should be checked before replacing the V18348-10111200110?

Before replacing the TZIDC-200 positioner, confirm that the problem is actually caused by the positioner rather than the PLC/DCS output, 4–20 mA loop, instrument air supply, actuator, valve mechanism, or position feedback system. Record the existing configuration parameters before removing the original unit, including input settings, actuator direction, travel range, characteristic curve, and HART-related parameters. For installations in hazardous areas, the replacement unit must have the appropriate explosion-protection configuration and certification. After installation, verify all electrical and pneumatic connections, perform the required automatic commissioning procedure, and test the valve at several operating points. The final test should confirm stable input response, accurate position feedback, smooth actuator movement, correct fault behavior, and reliable closed-loop control.
