1. What is the main function of the ABB XV C767 AE105 3BHB007209R0105?

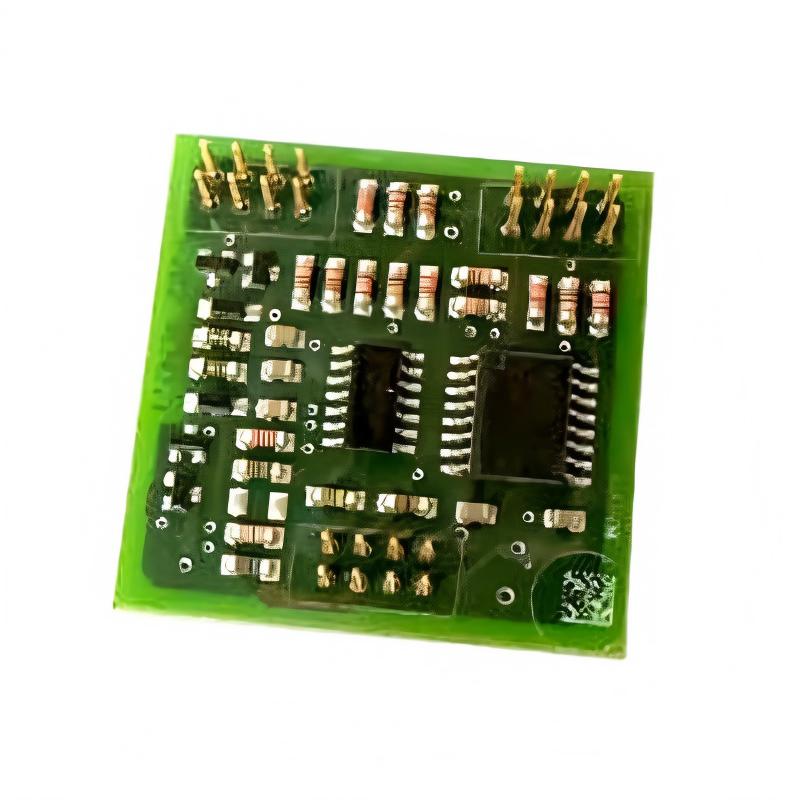

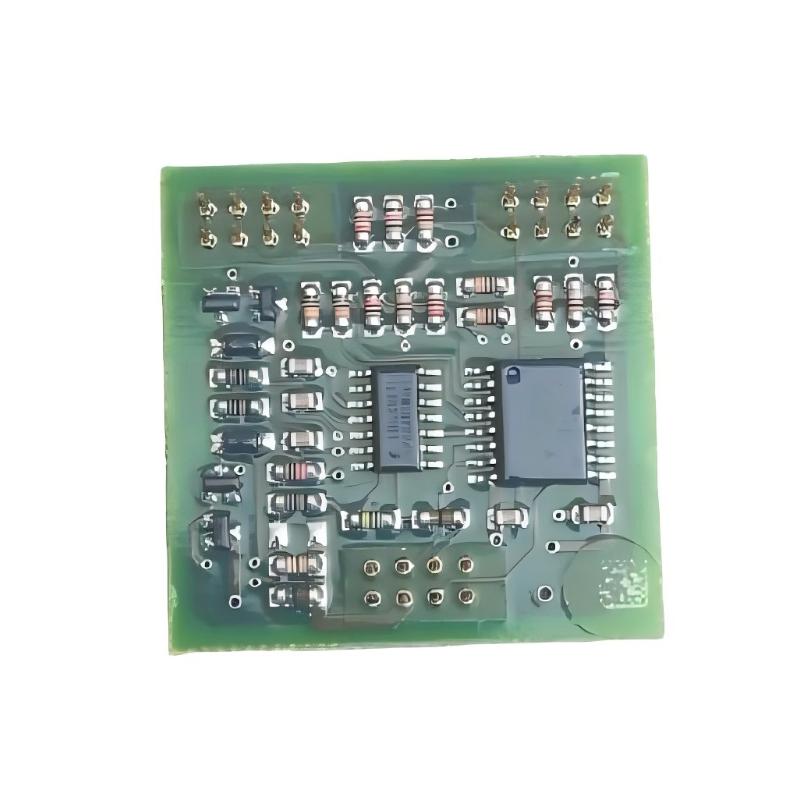

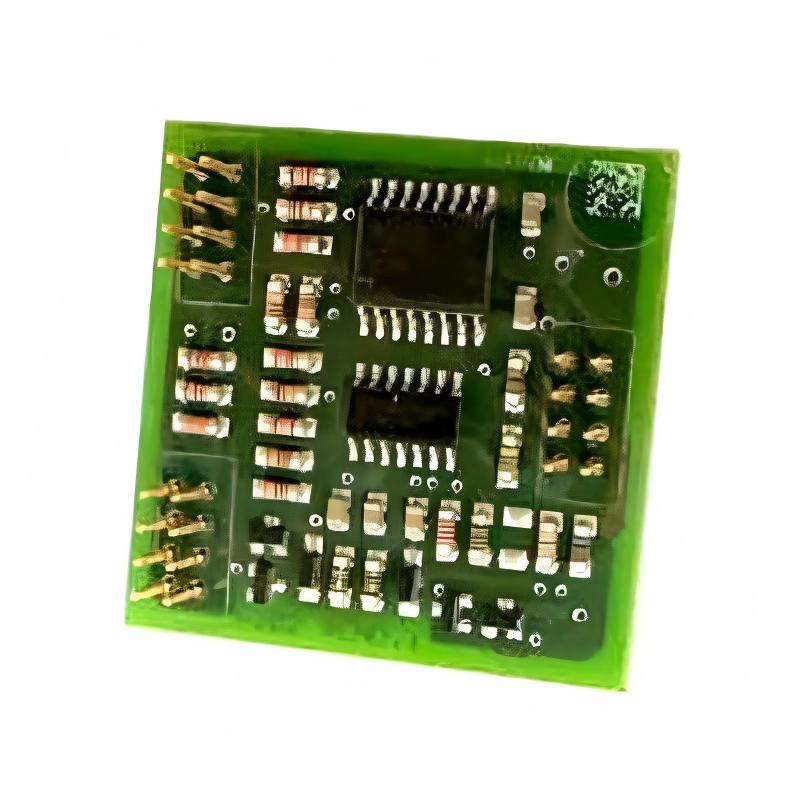

The ABB XV C767 AE105, order number 3BHB007209R0105, is an SVA plug-in subboard used for voltage adjustment and signal processing within the voltage measurement circuit of compatible ABB medium-voltage drive equipment. Its primary function is to adjust the voltage levels of analogue voltage inputs and provide the appropriate voltage information to the associated measurement and control circuitry.

The board is associated with the UF C762 CVM1/CVMI measurement board used in ABB ACS5000 Type 1 systems. It also participates in generating voltage threshold information for overvoltage detection. By performing this voltage-level adjustment, the XV C767 AE105 helps the control system process high-voltage measurement signals in a suitable form for monitoring and protection functions. The board is therefore a small but important component in the voltage measurement and protection chain.

2. Which ABB system is the XV C767 AE105 designed for?

The 3BHB007209R0105 is associated with ABB ACS5000 Type 1 medium-voltage drive systems. It is used as an SVA subboard together with the UF C762 CVM1/CVMI board. The XV C767 AE105 is not intended to be treated as a universal voltage regulation PCB because its electrical characteristics and signal interface are designed around the corresponding ABB measurement architecture.

When selecting a replacement, technicians should confirm the drive type, main measurement board, original SVA subboard identification, and complete ordering number. A similar-looking PCB from another drive family may use a different voltage scaling ratio or interface arrangement. Installing an incorrect board could result in inaccurate voltage feedback or improper operation of the overvoltage detection function.

3. What voltage range is associated with the ABB XV C767 AE105?

The XV C767 AE105 is associated with a voltage range of 0–3700 V for the applicable analogue voltage measurement inputs. The referenced voltage output value is VREP: 4.273 V. These values are important because they define the relationship between the voltage being measured and the signal presented to the associated measurement electronics.

The board performs voltage-level adjustment rather than directly exposing the high-voltage measurement signal to standard low-voltage control electronics. This allows the UF C762 measurement circuitry to process the voltage information in a suitable range. Because the scaling relationship is part of the overall drive measurement design, technicians should not modify the circuit or substitute components without confirming the correct system configuration and electrical characteristics.

4. How does the XV C767 AE105 work with the UF C762 CVM1/CVMI board?

The XV C767 AE105 operates as a plug-in SVA subboard associated with the UF C762 CVM1/CVMI measurement board. The voltage measurement system receives analogue voltage information from the drive’s power section, and the XV C767 AE105 adjusts the relevant voltage levels before the measurement information is processed by the main measurement circuitry.

The board also contributes to the generation of overvoltage detection threshold values. This allows the control and protection system to determine whether the measured voltage is within the expected operating range. The relationship between the SVA subboard and the CVM1/CVMI board is therefore important for maintaining correct voltage feedback and protection behavior.

If the subboard is incorrectly installed, damaged, or electrically incompatible, the measurement system may produce incorrect voltage values or trigger voltage-related protection functions.

5. What symptoms may indicate a faulty ABB XV C767 AE105?

A problem with the XV C767 AE105 may appear as incorrect analogue voltage feedback, unexpected voltage-related alarms, abnormal overvoltage detection, or failure of the drive to complete its normal startup or operating sequence. Depending on the failure mode, the measurement value may be continuously incorrect or may change unexpectedly during operation.

However, these symptoms do not automatically prove that the XV C767 AE105 itself has failed. Problems with the UF C762 measurement board, upstream voltage sensing components, connectors, wiring, auxiliary supplies, or other parts of the measurement circuit can produce similar symptoms.

For this reason, troubleshooting should begin with the complete voltage measurement chain. The diagnostic information provided by the drive should be reviewed, followed by inspection of the board connections and associated circuitry. If the external measurement system is confirmed to be operating correctly while the voltage feedback remains incorrect, the XV C767 AE105 can then be investigated as a possible source of the fault.

6. How should the XV C767 AE105 be checked when voltage feedback is incorrect?

First review the drive’s active alarms and historical fault information to determine when the voltage measurement problem occurs. Check whether the abnormal value appears immediately after power-up, during drive enable, during acceleration, or only under a particular operating condition.

Next inspect the connection between the XV C767 AE105 and the associated UF C762 measurement circuitry. The board should be checked for loose connections, damaged contacts, contamination, or visible signs of overheating. The relevant voltage sensing circuit should also be inspected according to the applicable maintenance procedure.

Where safe and technically appropriate, the voltage feedback can be compared with an independent measurement made using suitable equipment. If the actual system voltage is within the expected range but the control system receives an incorrect value, the voltage sensing circuit, scaling circuitry, XV C767 AE105, and CVM1/CVMI board should be investigated systematically.

Because the board is used in a medium-voltage drive environment, any electrical measurement involving the power section must be performed only with suitable equipment and appropriate safety procedures.

7. What precautions should be taken when replacing the ABB 3BHB007209R0105?

Before replacing the XV C767 AE105, the associated drive must be properly shut down and isolated according to the applicable medium-voltage maintenance procedure. All relevant power sources must be disconnected, and the required discharge and voltage verification procedures must be completed before internal electronic boards are handled.

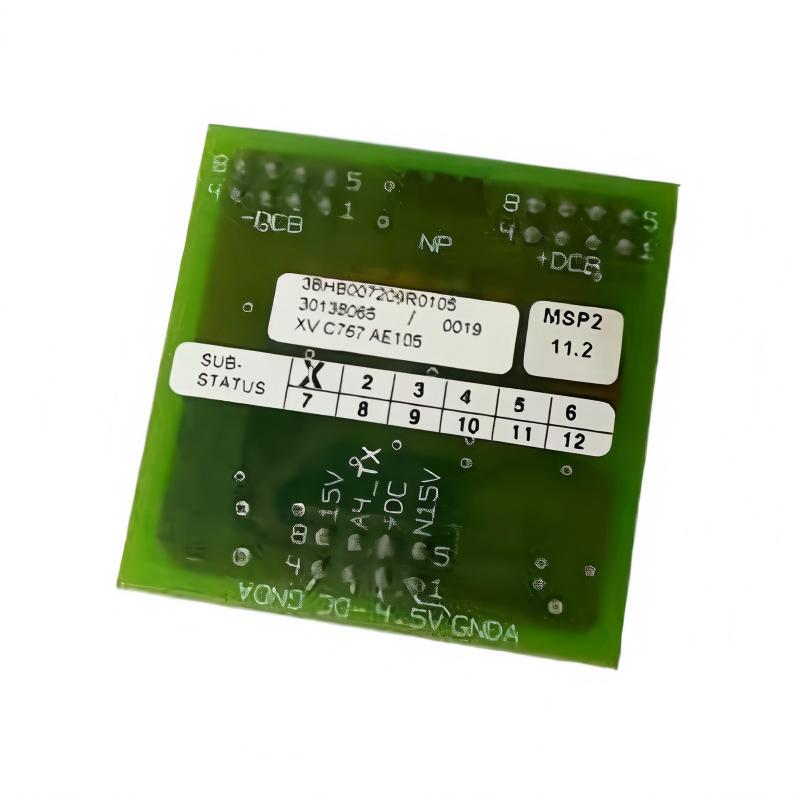

The original board should be identified carefully before removal. Confirm that the replacement is XV C767 AE105 with order number 3BHB007209R0105. Because this is a plug-in SVA subboard, its correct installation position and orientation should be verified before insertion.

The connector and mating interface should be inspected for damage or contamination. After installation, the board should be secured correctly and the surrounding connections checked before the drive is energized. Once the equipment is returned to service, the voltage measurement values and related protection functions should be checked to confirm that the measurement chain is operating correctly.

8. What should be checked if a replacement XV C767 AE105 still produces incorrect voltage measurements?

If a replacement 3BHB007209R0105 does not correct the voltage measurement problem, first confirm that the correct XV C767 AE105 configuration has been installed. The board’s connectors, mating contacts, and installation position should then be checked carefully.

If the board is installed correctly, attention should shift to the associated UF C762 CVM1/CVMI measurement board and the upstream voltage sensing circuit. A defective sensor, damaged wiring, incorrect connection, auxiliary supply problem, or fault in the main measurement board can cause the same symptoms as a defective SVA subboard.

The drive’s diagnostic records should also be reviewed to determine whether the problem is specifically related to voltage scaling or overvoltage detection. If the same fault remains immediately after replacing the XV C767 AE105, repeatedly changing the subboard is unlikely to solve the underlying problem. The complete voltage measurement path should instead be checked from the sensing circuit through the SVA subboard and CVM1/CVMI board to the drive control system.
