1. What is the main function of the ABB XV C768 115 3BHB007211R115?

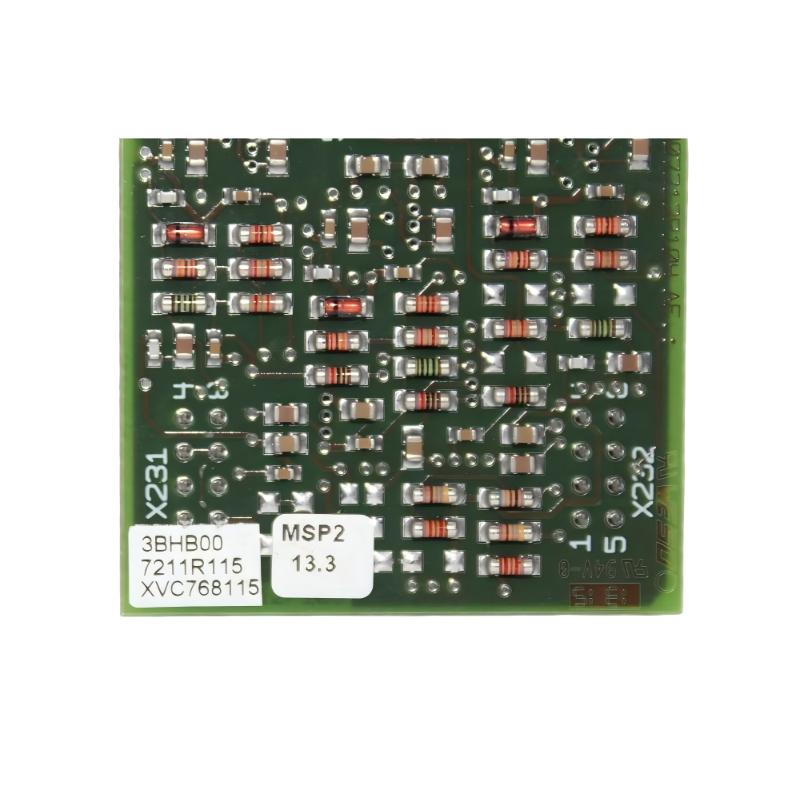

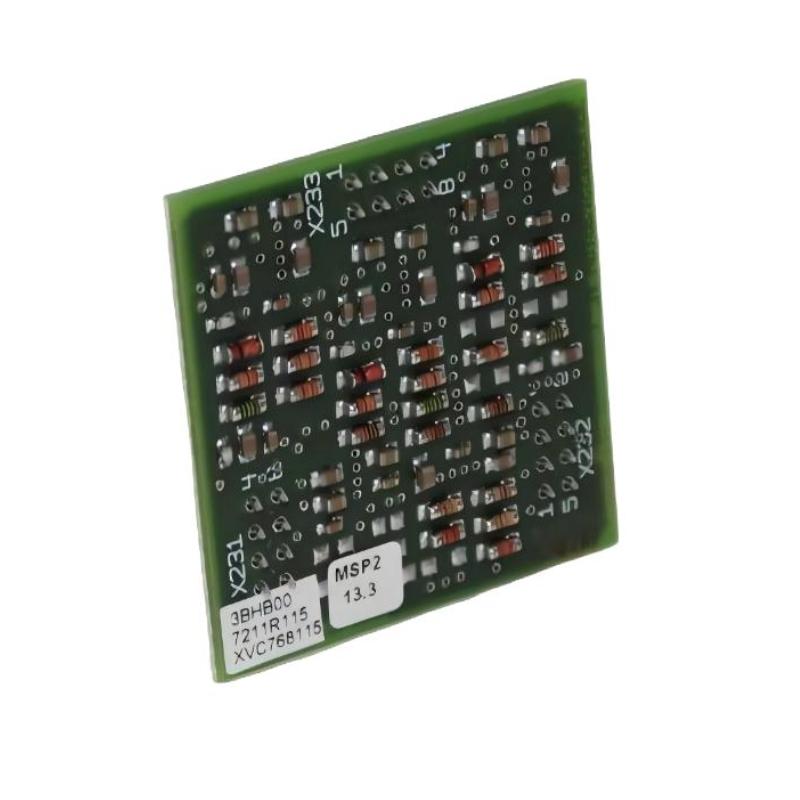

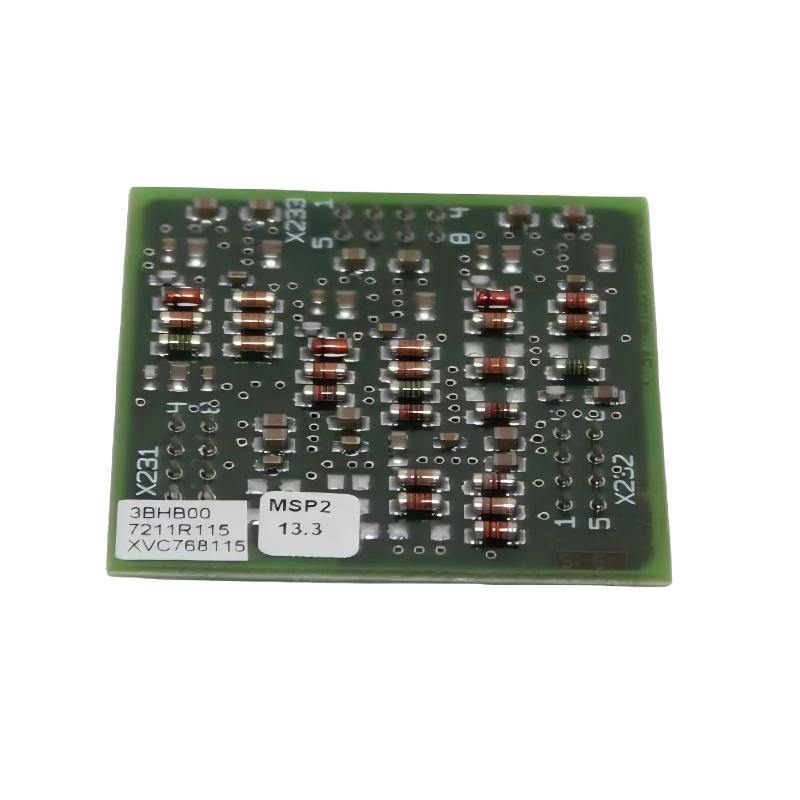

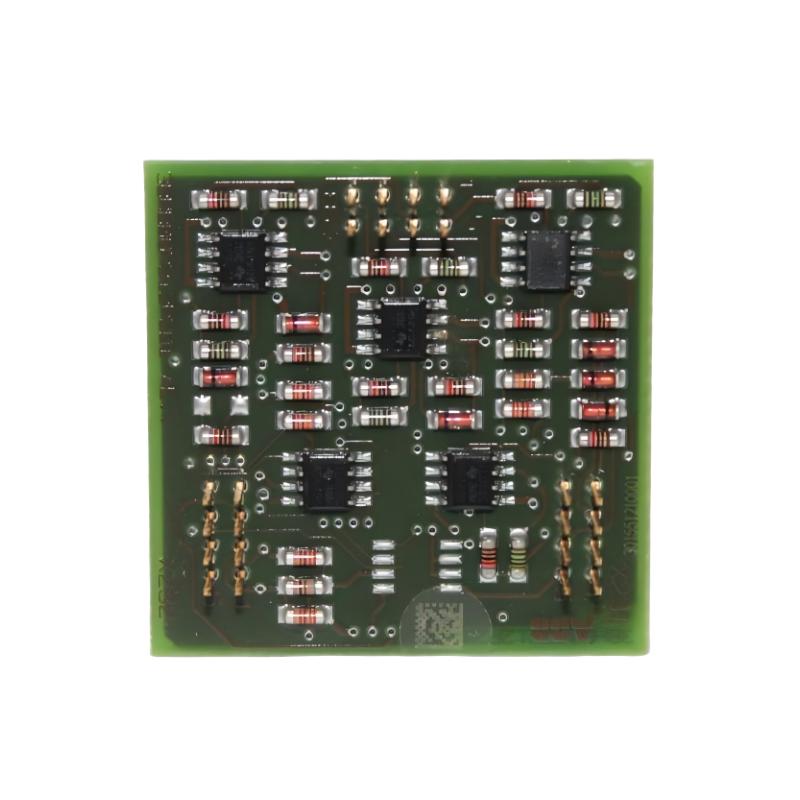

The ABB XV C768 115, order number 3BHB007211R115, is a Pulse Conversion Board used to process and convert pulse-related signals within compatible ABB industrial drive and power-electronics systems. Its primary purpose is to receive pulse signals from one section of the control or measurement circuit and convert or condition them into a suitable form for the connected electronic circuitry.

Pulse signals are important in many industrial drive applications because they can be used for timing, synchronization, triggering, feedback, and control functions. The XV C768 115 forms part of the signal interface between different sections of the control architecture, helping maintain reliable transmission of these signals.

Reliable pulse processing is particularly important in power-electronic equipment because timing and signal integrity can directly influence control and switching functions. If a pulse signal becomes distorted, unstable, incorrectly timed, or completely absent, the associated drive may experience synchronization problems, control faults, triggering errors, or diagnostic alarms.

2. What type of equipment is the XV C768 115 normally used with?

The ABB XV C768 115 is designed as a pulse conversion and interface board for compatible ABB industrial drive and power-electronics equipment. It is used where pulse signals need to be converted, conditioned, or transferred between different electronic circuits within the drive control architecture.

The board should be regarded as a system-specific component rather than a universal pulse converter. ABB drive systems can use different interface boards depending on the drive model, hardware generation, power configuration, and control architecture. Boards with similar functions may still have different electrical interfaces, signal levels, connector assignments, and timing characteristics.

For replacement purposes, technicians should verify the original board identification, including XV C768 115 and order number 3BHB007211R115. The complete drive configuration should also be checked before installation. This helps ensure that the replacement board has the appropriate electrical and functional characteristics for the existing system.

3. How does a pulse conversion board work in an industrial drive system?

A pulse conversion board receives pulse signals from an upstream circuit and processes them before passing the required information to another section of the drive control system. Depending on the system design, the conversion process can involve signal conditioning, voltage-level adaptation, waveform processing, electrical isolation, or interface conversion.

The objective is to provide the receiving circuit with a pulse signal that has characteristics suitable for reliable operation. A stable and correctly timed pulse allows the control system to coordinate specific functions accurately. This can be particularly important in power-electronic systems where multiple control signals must maintain precise timing relationships.

The XV C768 115 should therefore be considered part of a larger electronic signal chain. Its operation depends on the signal source, connected control boards, wiring, connectors, auxiliary power, and receiving circuitry. A failure elsewhere in this chain can create symptoms that appear similar to a defective pulse conversion board, which is why the complete signal path should be considered during troubleshooting.

4. What symptoms may indicate a faulty ABB XV C768 115?

A problem with the XV C768 115 may result in missing pulse signals, unstable signal transmission, incorrect triggering, synchronization errors, or pulse-related drive alarms. Depending on the function controlled by the affected signal, the drive may fail to start, stop unexpectedly, or enter a protective state during operation.

An intermittent fault may be more difficult to identify. For example, a loose connector, contaminated contact, damaged cable, or unstable auxiliary supply may cause the pulse signal to disappear temporarily. The fault may then disappear after a restart or when the operating conditions change.

A pulse-related diagnostic alarm does not necessarily mean that the XV C768 115 itself is defective. The signal source, associated control boards, connectors, wiring, power supply, and receiving circuitry can all produce similar symptoms. A proper diagnosis should therefore trace the signal through the complete circuit rather than replacing the board immediately.

5. How should the XV C768 115 be tested when pulse signals are abnormal?

Troubleshooting should begin by identifying which pulse signal is abnormal and determining the exact operating condition in which the problem occurs. The drive’s diagnostic information should be reviewed to establish whether the fault appears during startup, drive enable, acceleration, normal operation, or a particular control sequence.

The connections associated with the XV C768 115 should then be inspected. Check for loose connectors, contaminated contacts, oxidation, damaged terminals, or signs of mechanical stress. The associated signal wiring should also be checked for continuity and physical damage where appropriate.

When suitable test equipment and safe test conditions are available, the pulse waveform can be examined at appropriate input and output points. Depending on the system, useful characteristics may include signal presence, waveform stability, frequency, timing, and signal level.

If the expected pulse is present at the board input but missing or significantly different at the corresponding output, the XV C768 115 becomes a stronger candidate for further investigation. If the input itself is incorrect, the problem is more likely to be located upstream. Testing should only be performed by qualified personnel using appropriate equipment and electrical safety procedures.

6. Can ABB 3BHB007211R115 be directly replaced by another pulse conversion board?

The ABB 3BHB007211R115 should not automatically be treated as interchangeable with another pulse conversion board. Different ABB boards can perform similar signal-processing functions while having different signal levels, connector configurations, conversion characteristics, timing requirements, and system interfaces.

Physical compatibility alone is not sufficient for determining whether a replacement is suitable. A board that fits mechanically may still process the pulse signal incorrectly. Incorrect signal conversion can result in missing pulses, timing errors, false alarms, synchronization problems, or unreliable operation of the associated control system.

Before replacement, the original XV C768 115 identification and 3BHB007211R115 order number should be checked carefully. The drive model and hardware configuration should also be verified. If another part number is being considered as an alternative, compatibility should be confirmed against the actual equipment configuration rather than assumed based on appearance or general function.

7. What precautions should be taken when replacing the ABB XV C768 115?

The associated drive should be properly shut down and isolated before replacing the XV C768 115. If the board is installed inside high-energy or medium-voltage drive equipment, all applicable isolation, discharge, grounding, and voltage verification procedures must be completed before internal electronics are accessed.

Before removing the original board, technicians should record the position and arrangement of all relevant connectors. This is especially important for pulse conversion boards because incorrect signal connections can cause unexpected control behavior even when the replacement board itself is functioning correctly.

The replacement should be verified as ABB XV C768 115 with order number 3BHB007211R115 before installation. The connectors and contacts should be inspected for contamination, mechanical damage, or bent pins. The board should then be installed securely and all connections checked carefully.

After installation, the drive should be returned to service according to the applicable commissioning or maintenance procedure. Pulse-related signals, diagnostic information, and the functions controlled by the board should be verified before the equipment is returned to normal production operation.

8. What should be checked if a new XV C768 115 does not resolve the pulse-related fault?

If a replacement 3BHB007211R115 does not resolve the fault, first verify that the replacement is the correct XV C768 115 configuration. The connector arrangement, installation position, and wiring should then be checked carefully. Incorrect wiring can produce symptoms that are almost identical to a defective conversion board.

The next step is to trace the complete pulse signal path. The original signal source, upstream control board, signal wiring, connectors, auxiliary supply, XV C768 115, and downstream receiving circuit should all be considered. If the required pulse signal is missing before it reaches the conversion board, replacing the XV C768 115 cannot correct the underlying problem.

Where appropriate, an oscilloscope or other suitable diagnostic instrument can be used to compare the input and output pulse characteristics. Signal presence, frequency, timing, waveform quality, and level should be evaluated according to the requirements of the specific drive system.

If the input signal is correct but the expected output is missing or significantly distorted, the XV C768 115 should be investigated further. If both input and output signals are correct but the drive still reports a pulse-related fault, the downstream control circuit, receiving interface, or diagnostic logic should be examined. A systematic signal-path diagnosis is generally more effective than repeatedly replacing electronic boards.
