1. What is the main function of the ABB XV C768 AE105 Current Measuring Instrument?

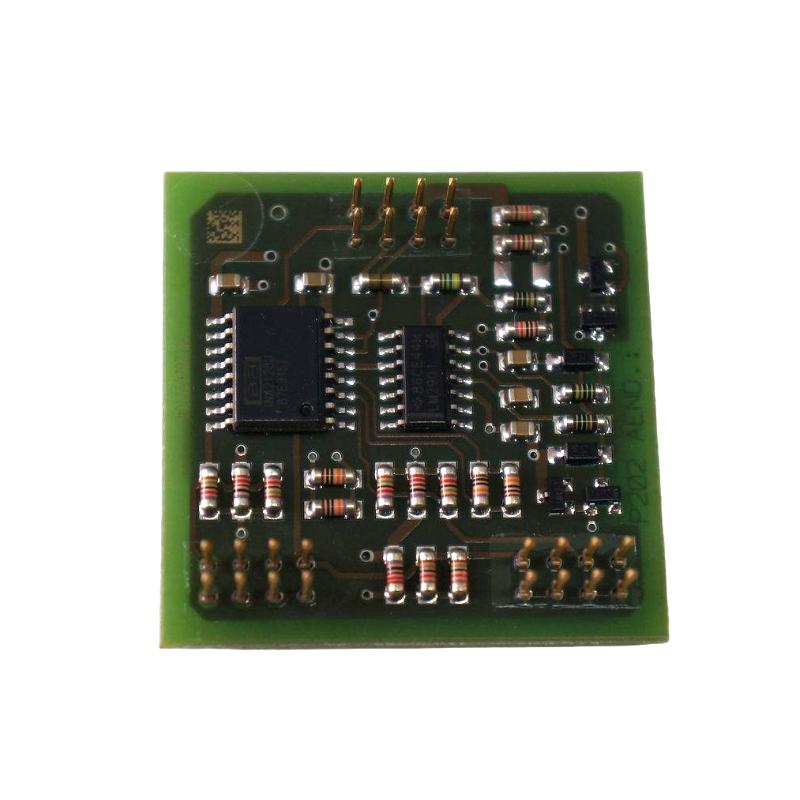

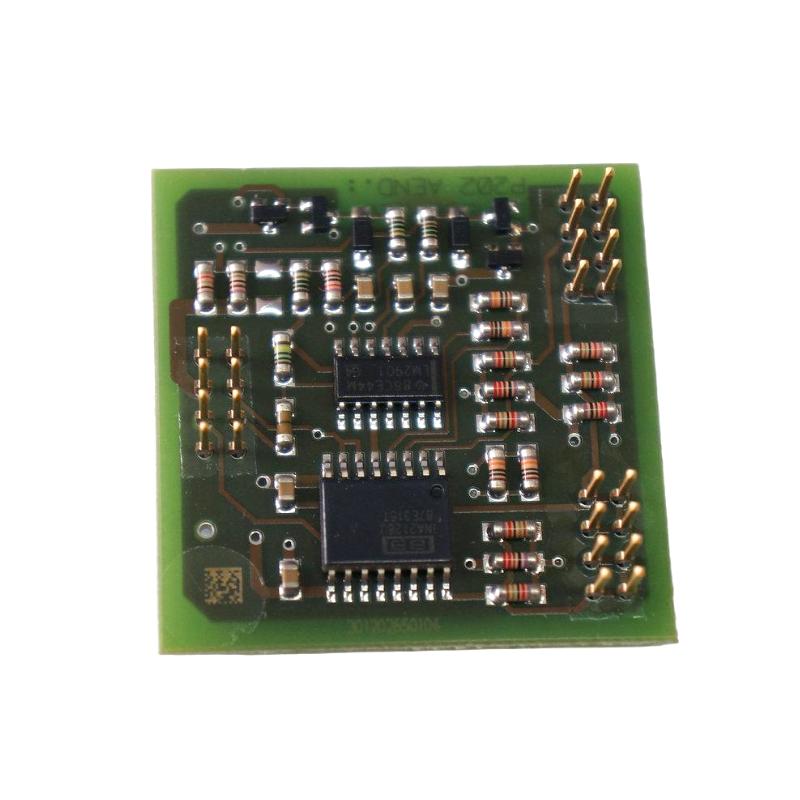

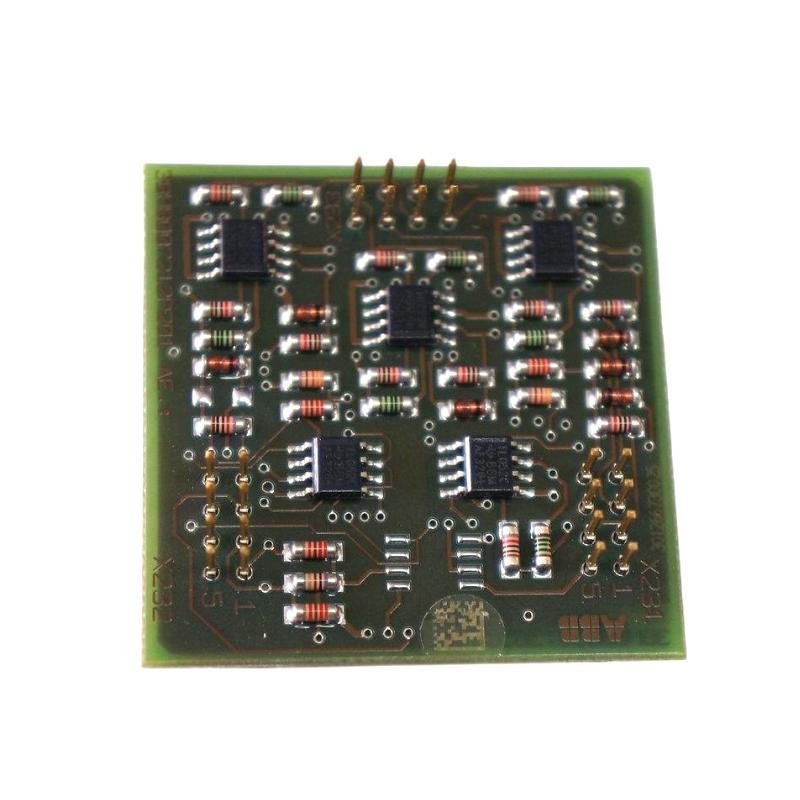

The ABB XV C768 AE105 is an SCA current measurement and scaling board used in compatible ABB ACS6000 drive systems. Its main purpose is to process current feedback from the power section and provide the control system with a suitable measurement signal. Accurate current feedback is essential for motor control, load regulation, inverter protection, and stable operation. The board is identified by the model XV C768 AE105 and ABB order number 3BHB007211R0105.

2. What is the measurement range of the XV C768 AE105?

For the ACS6000 configuration identified with XV C768 AE105 and order number 3BHB007211R0105, the documented measurement range is approximately -2,046 to +2,046 A. The corresponding ACS6000 configuration is associated with a 700 A RMS rated inverter current and 5 MVA inverter type. When replacing or commissioning the board, the measurement range should be matched with the actual inverter configuration rather than relying only on the physical appearance of the board.

3. What symptoms may indicate a faulty XV C768 AE105 current measurement board?

A defective board or abnormal current measurement circuit may produce inaccurate current feedback, unstable displayed current values, current-related alarms, unexpected protective actions, or incorrect drive regulation. In some cases, the drive may report a current measurement fault even though the actual motor current is normal. Because the measurement chain includes sensors, connections, the SCA board, and control electronics, these components should be checked systematically before determining that the XV C768 AE105 itself has failed.

4. How should abnormal current feedback from the XV C768 AE105 be diagnosed?

Start by comparing the drive’s reported current with the actual operating condition and, where permitted by the maintenance procedure, an independent measurement. Check the board connectors and associated signal paths for loose connections, contamination, oxidation, or physical damage. Review the drive’s diagnostic and fault history to determine whether the problem is continuous or intermittent. If the feedback remains abnormal after the external measurement circuit and connections have been verified, the XV C768 AE105 should be considered as a possible source of the problem.

5. Can a poor connection cause current measurement errors on the XV C768 AE105?

Yes. A poor connection can interrupt or distort the current feedback signal and may cause unstable measurements or intermittent drive alarms. Connector problems can sometimes be difficult to identify because the system may operate normally under one condition and fail when vibration, temperature, or load changes. Before replacing the board, inspect the connectors and related signal wiring carefully and verify that the board is correctly seated and electrically connected.

6. Is the XV C768 AE105 interchangeable with other XV C768 models?

Different XV C768 models should not be treated as automatically interchangeable. ABB documentation identifies several XV C768 variants with different measurement ranges and associated ACS6000 inverter configurations. For example, XV C768 AE101, AE102, AE105, and AE106 correspond to different current measurement ranges and inverter ratings. Therefore, a replacement for XV C768 AE105 should normally be the same model and order number, 3BHB007211R0105, unless an approved alternative has been confirmed for the specific drive configuration.

7. What should be checked before replacing the ABB XV C768 AE105?

First verify the identification on the existing board and confirm XV C768 AE105 / 3BHB007211R0105. The corresponding ACS6000 drive configuration should also be checked to ensure that the current measurement range and inverter rating are appropriate. Before removal, follow the equipment’s electrical isolation and discharge procedures. Record connector positions and installation information, then inspect the replacement board for visible damage before installation. After replacement, the current feedback should be checked during controlled startup and compared with the expected operating values.

8. What maintenance practices can help maintain reliable current measurement?

Maintenance should focus on the complete current measurement path rather than the board alone. Check connectors, signal wiring, board seating, and surrounding components for contamination, looseness, overheating, or physical damage. Review recurring current-related alarms and compare feedback values with actual operating conditions when appropriate. If the drive operates continuously under high load, periodic inspection of the measurement circuit can help identify connection degradation before it develops into an intermittent control problem. Any board replacement or electrical testing should be performed according to the applicable ACS6000 maintenance procedures.
