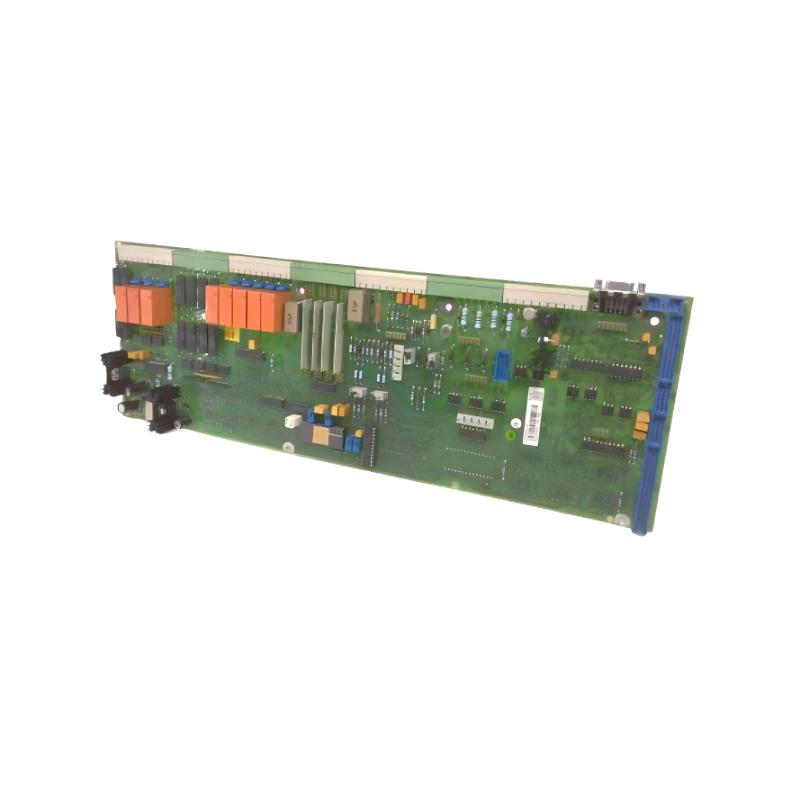

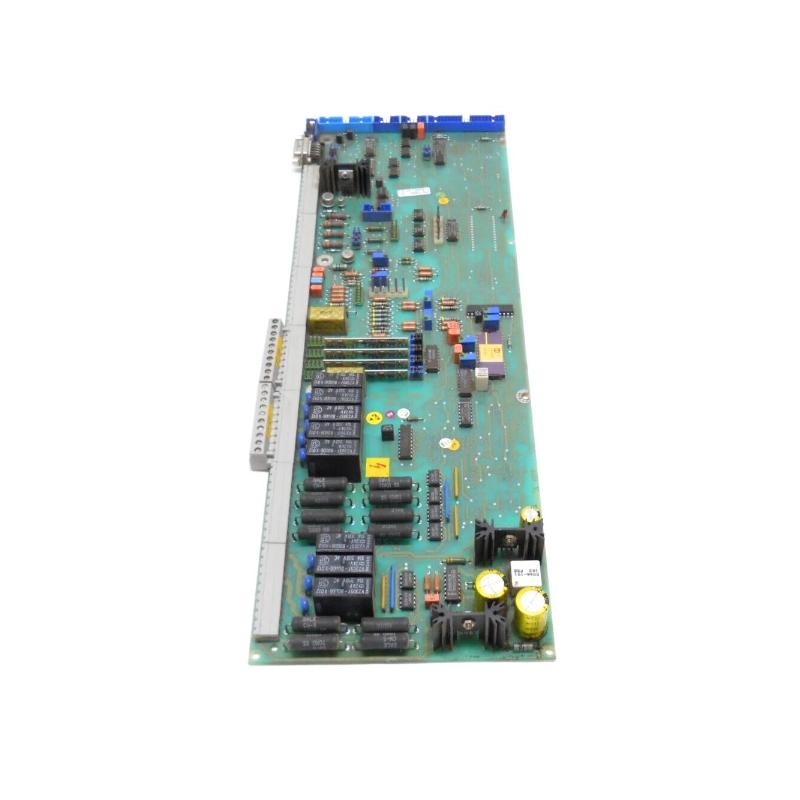

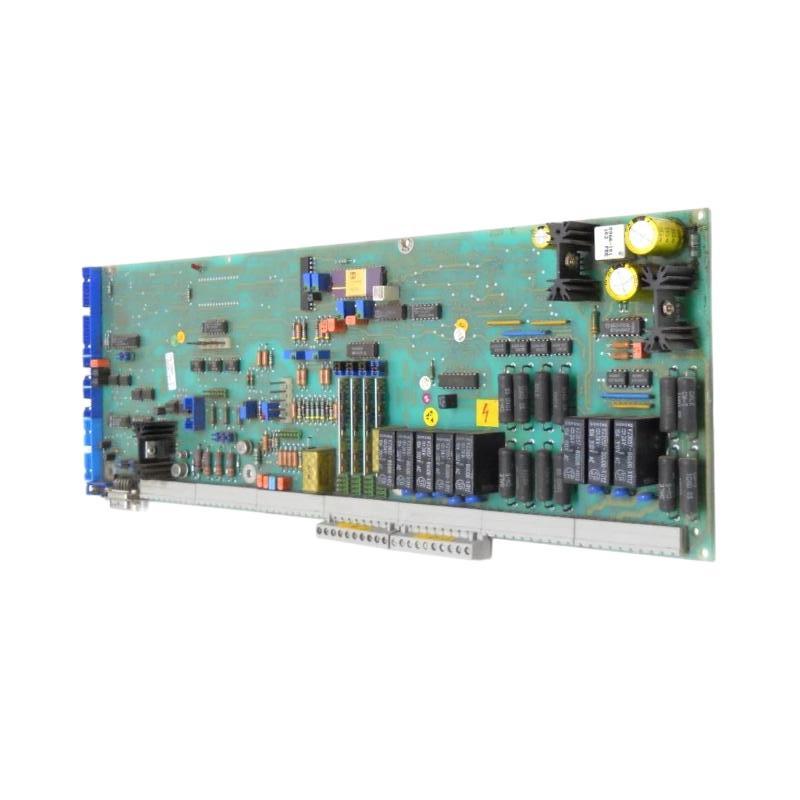

1. What is the main function of the ABB YPQ 108A YT204001-DT Circuit I/O Board?
The ABB YPQ 108A is a Circuit I/O Board designed to provide signal interfacing between an industrial control system and field devices. It handles input signal acquisition and output control, allowing the control system to monitor equipment status and issue commands to connected devices. Its role is particularly important in applications where reliable field signal exchange is required.

2. How many digital input and output channels does the YPQ 108A provide?
The YPQ 108A provides 8 digital input channels and 8 digital output channels. The digital inputs can be used to monitor binary field signals such as switches, contacts, and equipment status signals, while the digital outputs can be used to control compatible external devices according to the control system logic.

3. What power supply does the ABB YPQ 108A YT204001-DT require?
The module is designed for a 24 VDC supply and has a typical current consumption of approximately 120 mA. Before installation, the supply voltage should be checked carefully, and the wiring should be inspected for correct polarity and secure connections. Unstable power or poor connections can cause intermittent I/O operation and unexpected system alarms.

4. What should I check if a digital input on the YPQ 108A is not detected?
Start by checking whether the external field device is generating the expected signal. Then inspect the wiring, terminals, supply voltage, and corresponding input channel. If the field signal reaches the board correctly but the control system does not recognize the input, check the board connector and system configuration. Testing the same signal with a known-good channel or compatible board can help determine whether the problem is external wiring or the I/O board itself.

5. Why might a digital output from the YPQ 108A fail to activate the connected device?
A failed digital output can be caused by an incorrect control command, a wiring problem, an external load fault, insufficient power, or a damaged output circuit. Troubleshooting should begin by confirming that the control logic is actually requesting the output. The output status can then be checked together with the field wiring and connected load to determine where the signal path is interrupted.

6. Can the YPQ 108A YT204001-DT be replaced directly with another ABB I/O board?
Replacement should not be based only on physical appearance or the number of I/O channels. The complete model YPQ 108A and order number YT204001-DT should be verified, along with the hardware revision, electrical characteristics, communication requirements, and system configuration. A different ABB I/O board should only be used after its compatibility with the existing control system has been confirmed.

7. How can I determine whether the YPQ 108A itself is faulty or the problem is in the external field wiring?
A systematic check should begin with the field device, power supply, terminals, and signal wiring. If the external signal is confirmed to be correct but the corresponding I/O channel remains inactive, inspect the board connectors and diagnostic information. Comparing the affected channel with a known-good channel can also help isolate the fault. If the problem follows the board during a controlled replacement test, the YPQ 108A becomes a stronger candidate as the source of the fault.

8. What precautions should be taken when replacing the ABB YPQ 108A YT204001-DT Circuit I/O Board?
The equipment should be properly powered down before removing or installing the board unless the specific system documentation explicitly permits energized replacement. Record the existing wiring and module position before removal, verify the replacement model and order number, and use suitable ESD protection when handling the circuit board. After installation, check all connections carefully and perform input, output, and system communication tests before returning the equipment to normal operation.
