1. What is the main function of the 1336-L7E Control Interface Board?

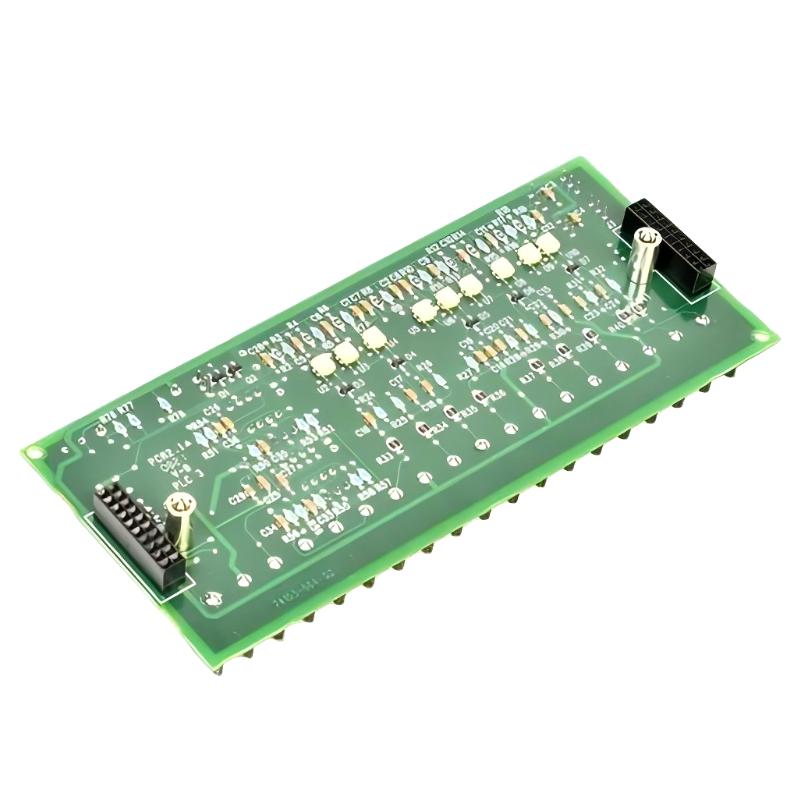

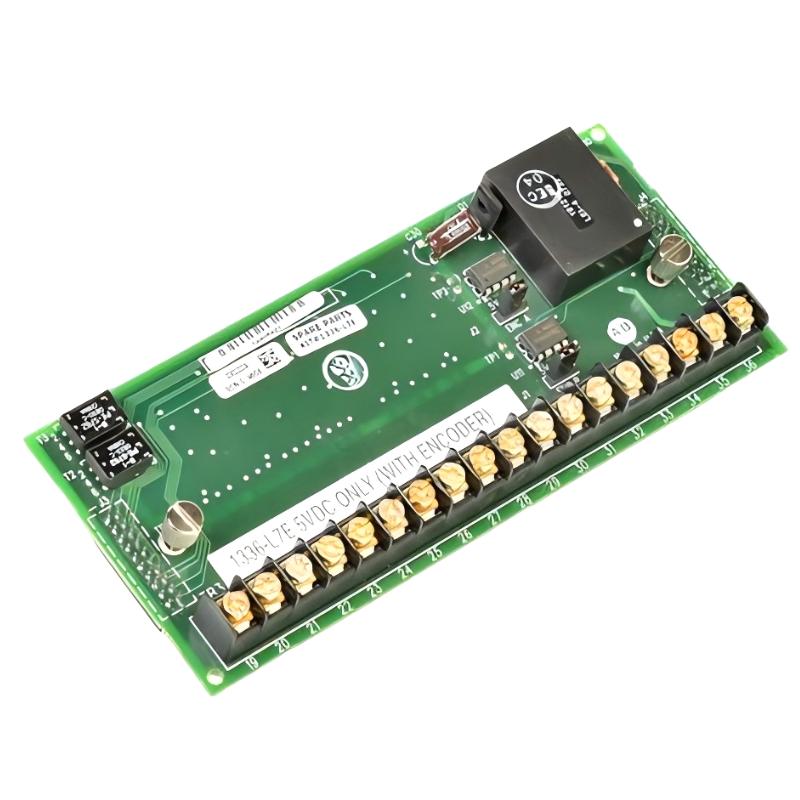

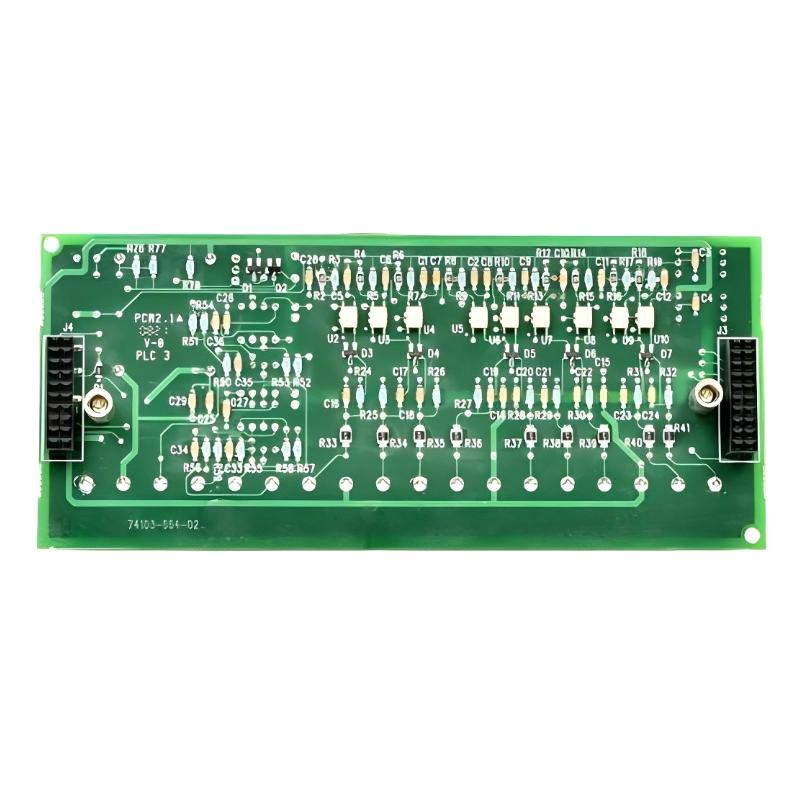

The 1336-L7E is a control interface board designed for compatible Allen Bradley 1336 series adjustable frequency drives. Its primary function is to provide an interface between external control devices and the drive control system. The board uses contact-closure inputs to receive operating commands and provides an interface for encoder feedback in applications that require feedback monitoring. It can be used for functions such as start, stop, enable, reset, speed-related commands, and other configurable drive control functions depending on the application and drive configuration. The board works together with the drive’s main control circuitry and should be configured according to the specific control requirements of the installation.

2. What type of control signals does the 1336-L7E accept?

The 1336-L7E uses a 5V TTL contact-closure interface for its control inputs. It provides nine control inputs, including user-configurable inputs and factory-defined control inputs. The input circuit is designed to work with external contact devices that can provide the required electrical characteristics. A low-state signal is generally recognized when the external circuit pulls the input to approximately 3.0 V DC or lower, while the high-state condition is within the expected 4.0–5.0 V DC range. When connecting external switches, relays, PLC outputs, or other control equipment, the electrical characteristics of the external device should be checked carefully to ensure reliable signal recognition.

3. Does the 1336-L7E support encoder feedback?

Yes. The 1336-L7E provides encoder feedback functionality for compatible 1336 drive applications. This allows the drive to receive feedback signals from an encoder and monitor the feedback condition during operation. Encoder feedback can be important in applications where accurate speed regulation, feedback monitoring, or closed-loop control is required. When using an encoder, the wiring, signal type, supply voltage, feedback channels, and drive configuration must be checked carefully. If the encoder signal is unstable or incorrectly configured, the drive may not receive reliable feedback, which can result in incorrect operation or encoder-related faults.

4. How does encoder loss detection work with the 1336-L7E?

The 1336-L7E can support encoder loss detection by monitoring the encoder feedback signal during drive operation. The drive uses the incoming feedback information to determine whether the expected encoder signal is available. If the feedback signal disappears or becomes abnormal, the drive can respond according to its configured fault and protection settings. This function is useful in applications where loss of encoder feedback could cause unstable speed control or undesirable machine behavior. When commissioning encoder loss detection, technicians should verify the encoder supply, feedback wiring, signal quality, connector condition, and related drive parameters. A stable encoder signal and correct configuration are essential for reliable fault detection.

5. How should the 1336-L7E be installed in a compatible drive?

The 1336-L7E is installed as a plug-in option board within the compatible drive control assembly. Before installation, the drive should be completely disconnected from all power sources, and appropriate electrical safety and electrostatic discharge precautions should be followed. The board must be correctly seated in the designated connectors, while the external control wiring should be connected to the appropriate terminal locations. After installation, technicians should verify the board connections, control wiring, jumper configuration, and associated drive parameters. The drive should then be powered up under controlled conditions and tested before being returned to full operating service.

6. What should be checked if the 1336-L7E control inputs do not respond?

If one or more control inputs fail to respond, troubleshooting should begin with the external control circuit. Check whether the connected switch, relay, PLC output, or other control device is providing the correct electrical signal. The wiring should be inspected for loose terminals, damaged conductors, incorrect connections, or poor contact conditions. The corresponding input assignment and drive parameters should also be checked because user-configurable inputs may be assigned different functions depending on the application. If the external signal and configuration are correct but the drive still does not recognize the input, the interface connectors and the 1336-L7E board itself should be inspected. Testing each input separately can help identify whether the problem is isolated to one circuit or affects the complete interface.

7. What can cause encoder feedback faults when using the 1336-L7E?

Encoder feedback faults can be caused by incorrect wiring, damaged encoder cables, loose connectors, incorrect encoder configuration, electrical interference, poor signal quality, grounding problems, or a defective encoder. An incorrect supply connection can also prevent the encoder from operating correctly and can result in missing or unstable feedback signals. Troubleshooting should begin by confirming that the encoder receives the correct supply and that all feedback conductors are correctly connected. The encoder signal should then be checked during operation to determine whether the expected feedback is being generated consistently. If the encoder itself operates normally but the drive cannot detect the signal correctly, the interface connections, control configuration, and 1336-L7E board should be investigated further.

8. What should be checked after replacing a 1336-L7E Control Interface Board?

After replacing the 1336-L7E, the complete control interface should be inspected and tested before the drive is returned to normal production operation. First, confirm that the board is properly installed and that all connectors are fully seated. Next, inspect the external control wiring and verify that each signal is connected to the correct terminal. The relevant jumper settings and drive parameters should also be compared with the previous configuration to ensure that the new board is configured correctly. Each control input should then be tested individually to verify that the drive responds to the intended commands. If an encoder is connected, its power supply, feedback signals, and encoder loss detection should also be tested. Finally, perform a controlled startup and observe the drive status, control response, and feedback signals before gradually returning the system to normal operating conditions.
