1. What is the main function of the Allen-Bradley 1738-IB16DM12 digital input module?

The 1738-IB16DM12 is designed to collect and process digital ON/OFF signals from field devices in industrial automation systems. It receives discrete input signals from devices such as limit switches, push buttons, proximity sensors, and safety interlocks, then transmits this status information to the control system for real-time decision-making and logic execution.

2. Where is this module typically used?

This module is widely used in Allen-Bradley ArmorPoint-based automation systems across industries such as manufacturing, packaging, material handling, assembly lines, and process monitoring. It is especially useful in applications requiring high-density digital signal acquisition.

3. What is the difference between a digital input module and an analog input module?

A digital input module only recognizes two states: ON or OFF, representing discrete signals. In contrast, an analog input module measures continuous signal values such as voltage or current. Digital input modules are therefore used for status detection, while analog modules are used for process variable measurement.

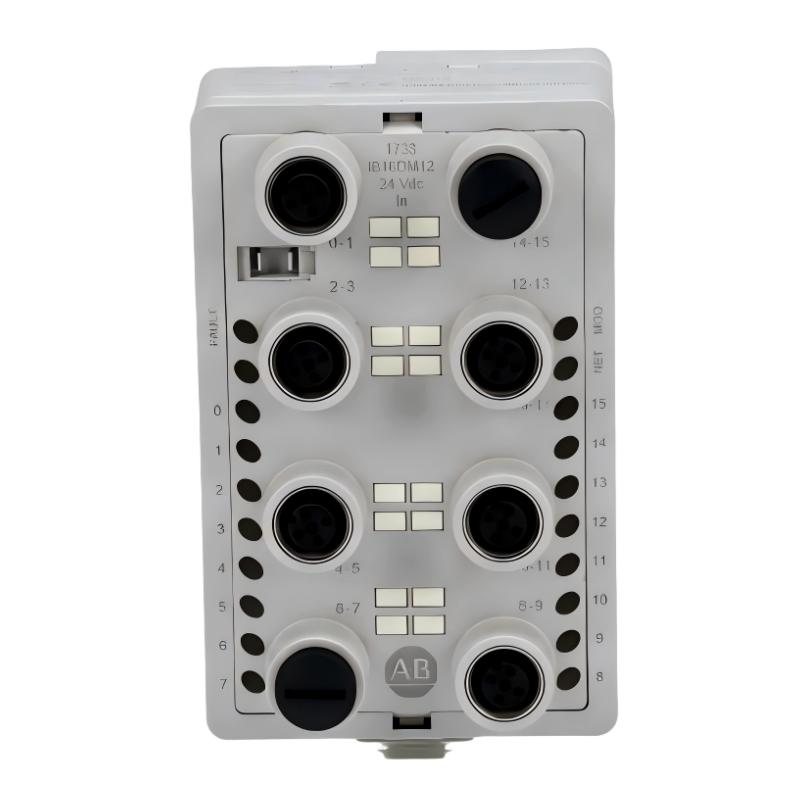

4. What is the purpose of the LED indicators on each channel?

Each input channel is equipped with an LED indicator that shows whether the signal is active or inactive. This provides a quick visual reference during commissioning and troubleshooting, allowing technicians to verify wiring and device status without additional tools.

5. How does this module communicate with the control system?

The module connects to the ArmorPoint backplane system and communicates through an adapter module, which then transmits data over an industrial network such as EtherNet/IP. This architecture enables real-time data exchange between field devices and PLC controllers.

6. Is the module suitable for harsh industrial environments?

Yes, it is designed with industrial-grade electromagnetic interference protection. This ensures stable operation even in environments with heavy electrical noise generated by motors, drives, and switching equipment.

7. What should be considered during installation?

During installation, the module must be properly seated in its ArmorPoint base and installed with power off. It is also important to separate signal wiring from high-power cables to minimize electromagnetic interference and ensure stable signal integrity.

8. Why is this module important in automation systems?

This module plays a critical role in collecting real-time field status information and delivering it to the control system. It enables PLCs to make timely logic decisions, supporting machine coordination, safety monitoring, and automated process control.
