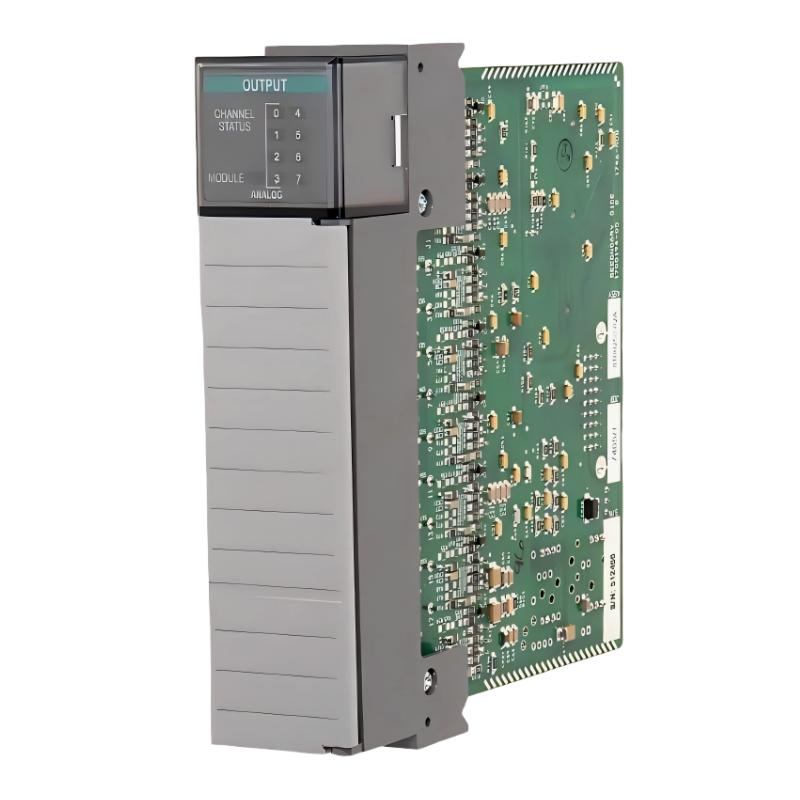

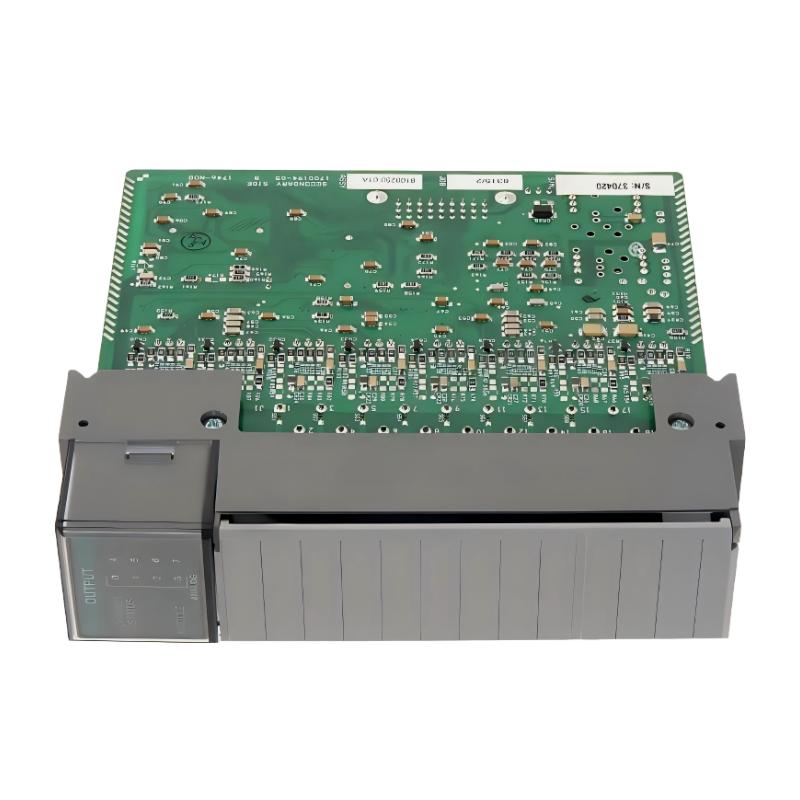

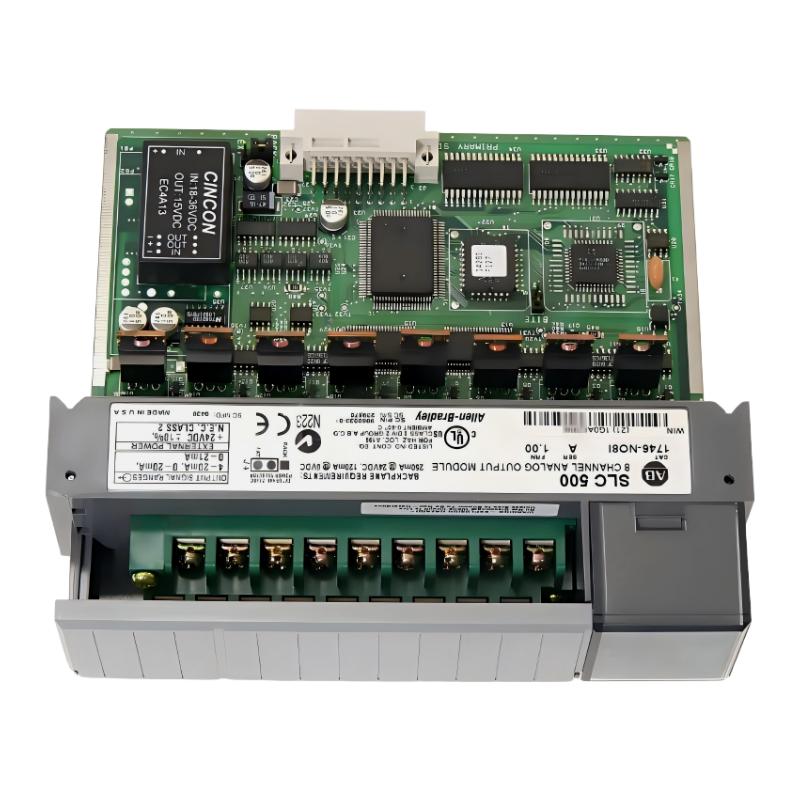

1. What is the main function of the 1746-NO8I Analog Output Module?
The 1746-NO8I is designed to convert digital control signals from the SLC 500 PLC into standard analog current outputs. These outputs are used to drive field devices such as control valves, variable frequency drives (VFDs), proportional actuators, and industrial instrumentation. It enables the PLC to perform continuous process control by generating precise analog signals based on control logic.

2. Where is this module typically used?
This module is widely used in SLC 500-based automation systems across industries such as chemical processing, oil and gas, power generation, water treatment, and manufacturing. It is suitable for applications requiring precise analog signal control, such as flow regulation, pressure control, and temperature adjustment.

3. What output signal types does it support?
The module supports industry-standard current loop outputs, typically 0–20 mA and 4–20 mA. These signals are widely used in industrial automation because they offer strong noise immunity, long-distance transmission capability, and compatibility with most process control devices.

4. How does the module communicate with the PLC system?
The 1746-NO8I communicates with the SLC 500 processor through the chassis backplane. Once installed, it is automatically recognized by the system and continuously receives digital control values from the CPU, which are then converted into proportional analog current outputs.

5. How does the signal conversion process work?
The module uses Digital-to-Analog (D/A) conversion technology. It takes numerical control values from the PLC program and converts them into corresponding analog current signals. This ensures smooth, continuous control output suitable for regulating industrial processes.

6. Does the module provide electrical isolation?
Yes, it provides channel-to-backplane electrical isolation. This isolation protects the system from electrical noise, grounding issues, and voltage disturbances from field wiring, improving stability and ensuring accurate signal output in industrial environments.

7. What installation considerations are important?
The module must be properly inserted into a compatible SLC 500 chassis slot to ensure secure backplane connection. It should be installed inside a properly shielded control cabinet with stable power supply and controlled environmental conditions to maintain signal accuracy and system reliability.

8. Does this module require regular maintenance?
The module requires minimal maintenance under normal operating conditions. However, periodic inspection of output wiring, module seating, and status indicators is recommended. Keeping the control cabinet clean and ensuring stable electrical connections helps maintain long-term output accuracy and reliable system performance.
