1. What is the main function of the Allen Bradley 1747-L542/B SLC 5/04 Processor?

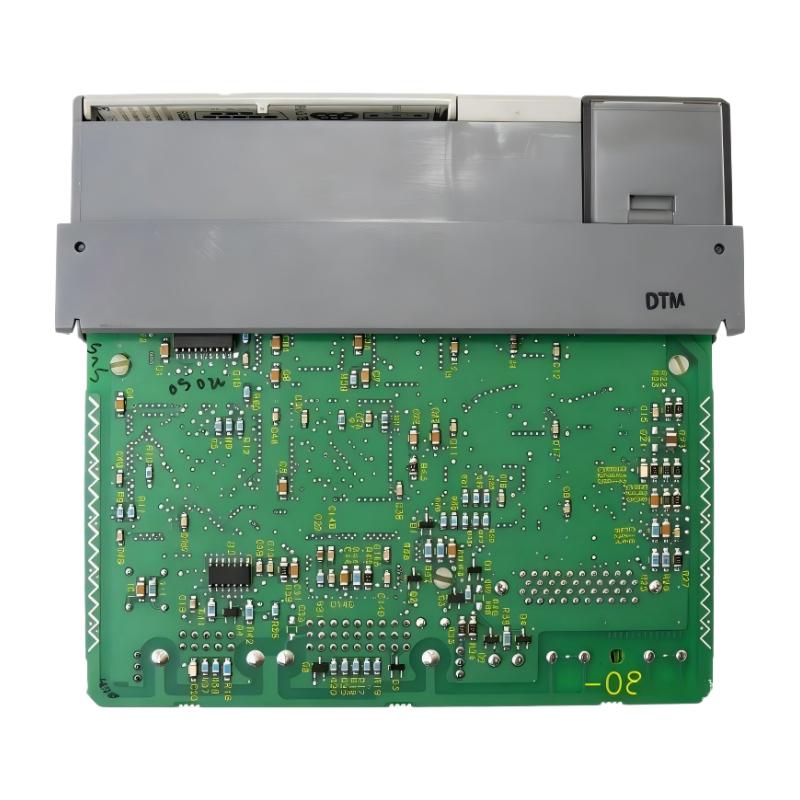

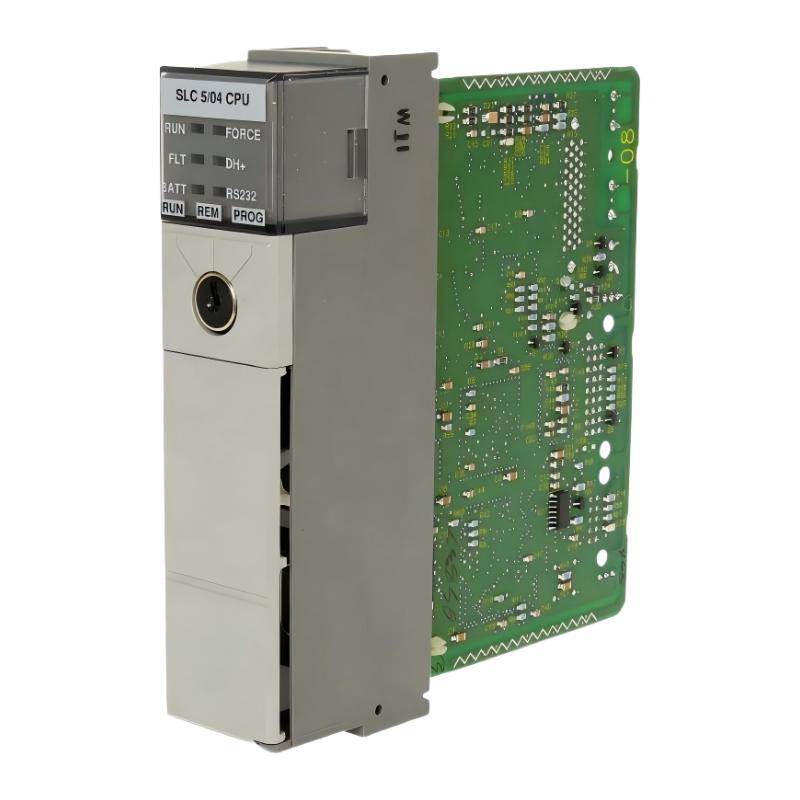

The Allen Bradley 1747-L542/B SLC 5/04 Processor is a CPU module designed for the SLC 500 control platform. It is responsible for executing user programs, processing input and output data, and coordinating communication between different control modules.

As the central processing unit of an SLC 500 system, it performs ladder logic execution, machine sequencing control, data processing, and industrial automation tasks.

2. What communication methods are supported by the 1747-L542/B processor?

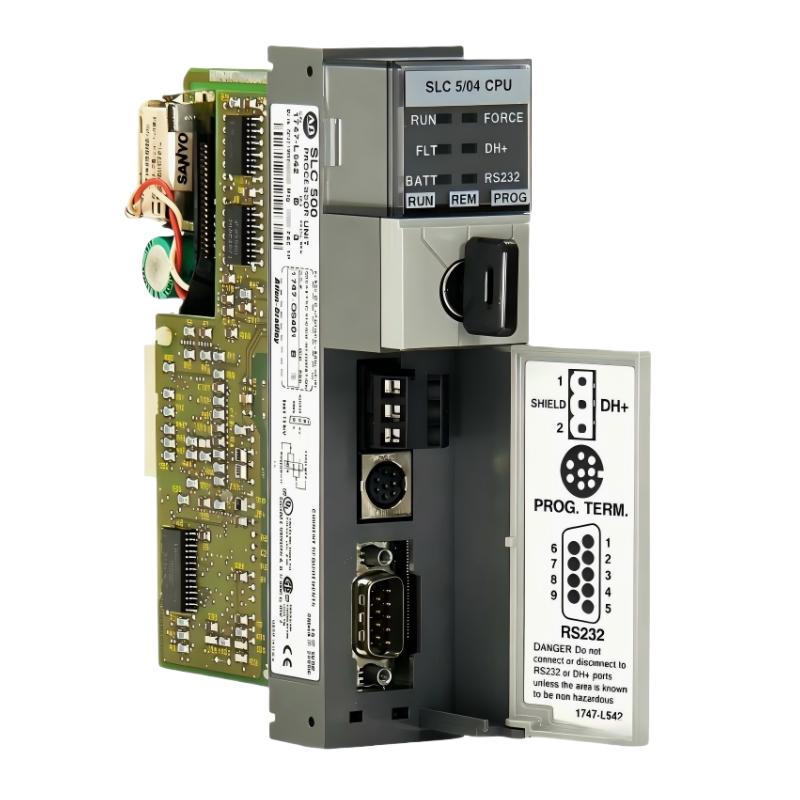

The 1747-L542/B supports DH+ (Data Highway Plus) industrial communication networks, allowing PLC-to-PLC data exchange, remote programming, and communication with industrial devices.

It also supports RS-232 communication, which can be used to connect programming terminals, operator interfaces, and other serial communication equipment.

These communication capabilities allow users to build reliable industrial automation networks.

3. Which software is used to program the 1747-L542/B?

The 1747-L542/B is mainly programmed using RSLogix 500 software.

Engineers can use RSLogix 500 to create, edit, monitor, and troubleshoot ladder logic programs, as well as perform online diagnostics and data monitoring.

Before downloading or modifying programs, users should ensure that communication is stable and keep a backup of the original application program.

4. What are the common faults of the 1747-L542/B processor?

Common issues with the 1747-L542/B include processor failure to enter run mode, communication errors, program faults, and system alarms.

Troubleshooting should begin by checking the power supply condition, processor status indicators, communication connections, and user program status.

If abnormal program operation occurs, engineers should review ladder logic, data table settings, and communication configuration to identify the source of the problem.

5. How can communication problems with the 1747-L542/B be solved?

When communication problems occur, check the DH+ network connection, node address settings, and communication parameter configuration.

Users should also verify network termination, cable connections, and the operating status of connected communication devices.

If communication settings are correct but the connection still fails, RSLogix 500 diagnostic tools can be used to check processor status and identify communication issues.

6. How can the 1747-L542/B program be backed up?

The 1747-L542/B supports program upload and storage through programming software and can also use EEPROM modules for program backup.

Before replacing the processor or performing system maintenance, users should upload the current PLC program and save a backup copy.

Regular program backups reduce downtime risks and make system recovery easier during maintenance or unexpected failures.

7. Where is the 1747-L542/B commonly used in industrial applications?

The 1747-L542/B is widely used in industrial automation systems such as manufacturing production lines, packaging equipment, conveyor systems, machine tools, and process monitoring applications.

With reliable processing performance and industrial communication capabilities, it is suitable for automation systems requiring stable logic control and coordinated equipment operation.

8. What should be considered when replacing the 1747-L542/B processor?

Before replacing the 1747-L542/B processor, users should confirm that the replacement module is compatible with the existing SLC 500 system configuration and back up all PLC programs and settings.

During installation, check module connections, communication configuration, and system power conditions to ensure correct operation.

After replacement, use RSLogix 500 to verify program execution, communication performance, and I/O module operation to confirm that the control system has returned to normal operation.
