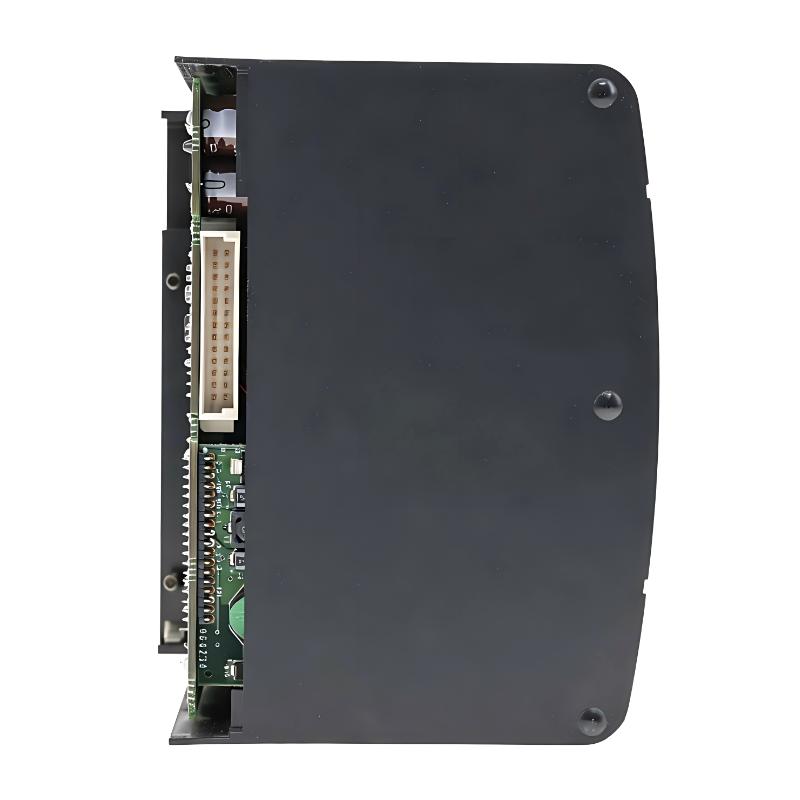

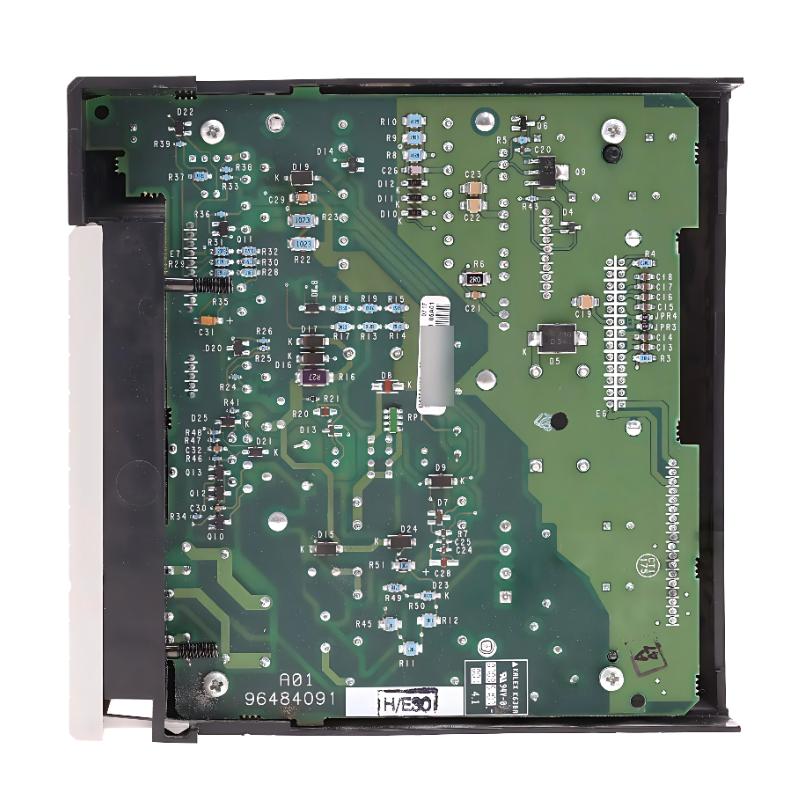

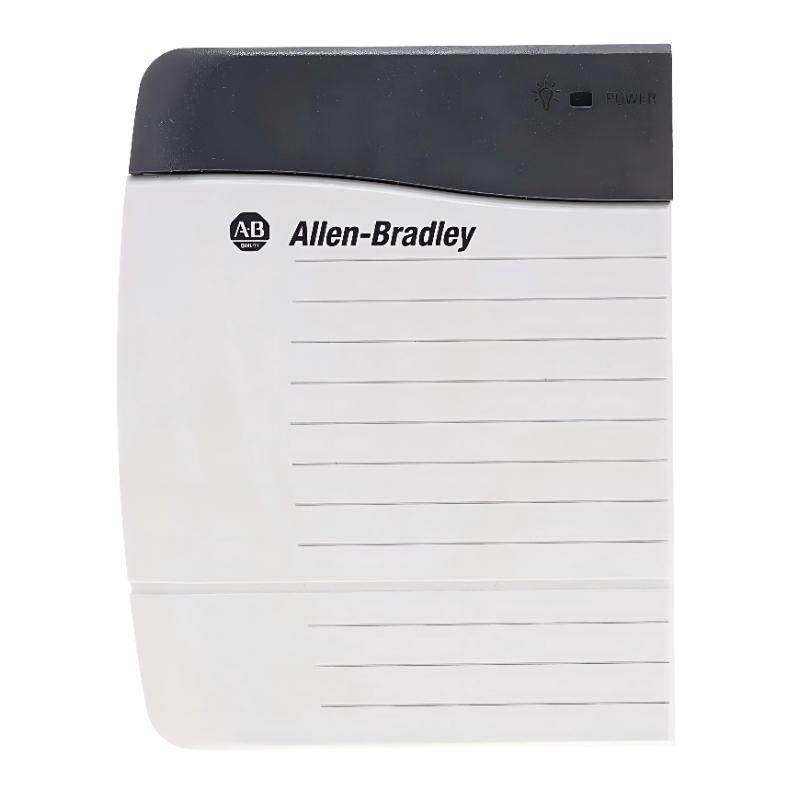

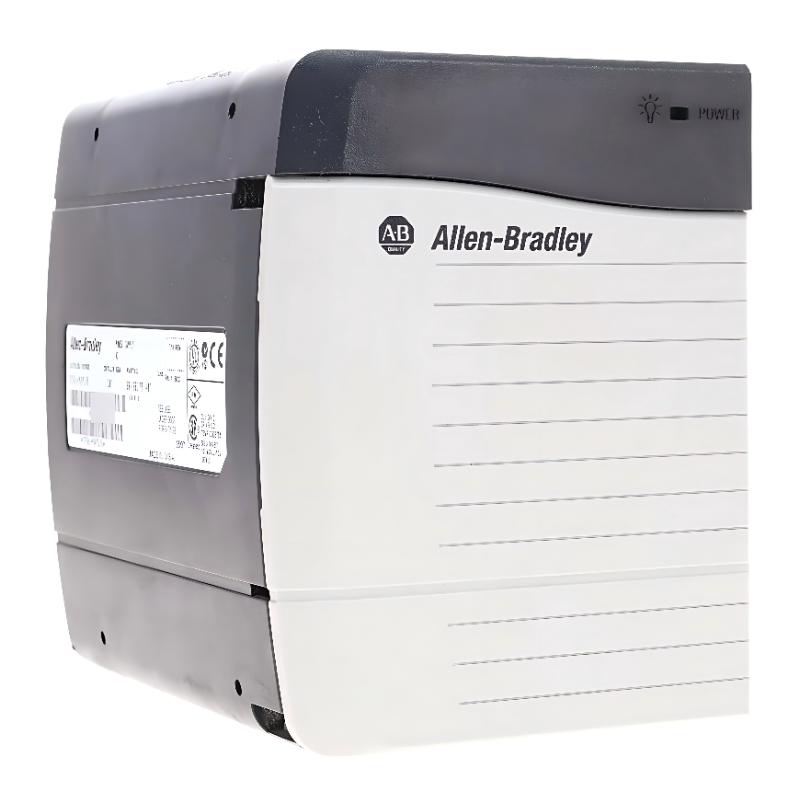

Allen Bradley 1756-PA75/B Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | AC Power Supply Module |
| Model Number | 1756-PA75/B |
| Series | Allen-Bradley ControlLogix |
| Power Supply Type | Standard AC Power Supply |
| Input Voltage Range | 85–265V AC |
| Nominal Input Voltage | 120/240V AC |
| Input Frequency | 47–63 Hz |
| Maximum Input Power | 100 VA / 100 W |
| Output Power | 75 W |
| Output Current @ 5.1V DC | 13 A |
| Output Current @ 24V DC | 2.8 A |
| Output Current @ 3.3V DC | 4 A |
| Output Current @ 1.2V DC | 1.5 A |
| Isolation Voltage | 250V Continuous |
| Inrush Current | 20 A Maximum |
| Hold-Up Time | 2–20 cycles depending on input voltage |
| Mounting Type | Left-side mounting on 1756 chassis |
| Compatible Chassis | 1756-A4, A7, A10, A13, A17 (Series B chassis) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (L × W × H) | Approx. 140 × 112 × 145 mm |
| Weight | Approx. 0.95 kg |
| Protection Features | Non-replaceable internal fuse, reinforced insulation |
| Key Features | High-capacity 75 W ControlLogix AC power supply with wide AC input range, stable backplane power delivery, and support for high-current ControlLogix chassis configurations |
FAQ
- What is the 1756-PA75/B used for?
It is an AC power supply module designed to provide backplane power for Allen-Bradley ControlLogix chassis systems. - What input voltage does it support?
The module supports 85–265V AC input with nominal operating voltages of 120V AC or 240V AC. - How much output power is available?
It provides up to 75 W output power for the ControlLogix backplane. - Which chassis are compatible?
It is compatible with 1756-A4, A7, A10, A13, and A17 Series B chassis. - Does it support redundant operation?
No, the 1756-PA75/B is a non-redundant standard power supply module. - What is the difference between PA72 and PA75?
The PA75 provides higher 5.1V DC current capacity (13 A vs 10 A), requiring Series B chassis support. - Is the 1756-PA75/B still active?
Yes, Rockwell Automation currently lists the 1756-PA75 product family with Active lifecycle status.
Allen Bradley 1756-PA75/B Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
