Technical Specifications
| Parameter | Specification |
|---|---|

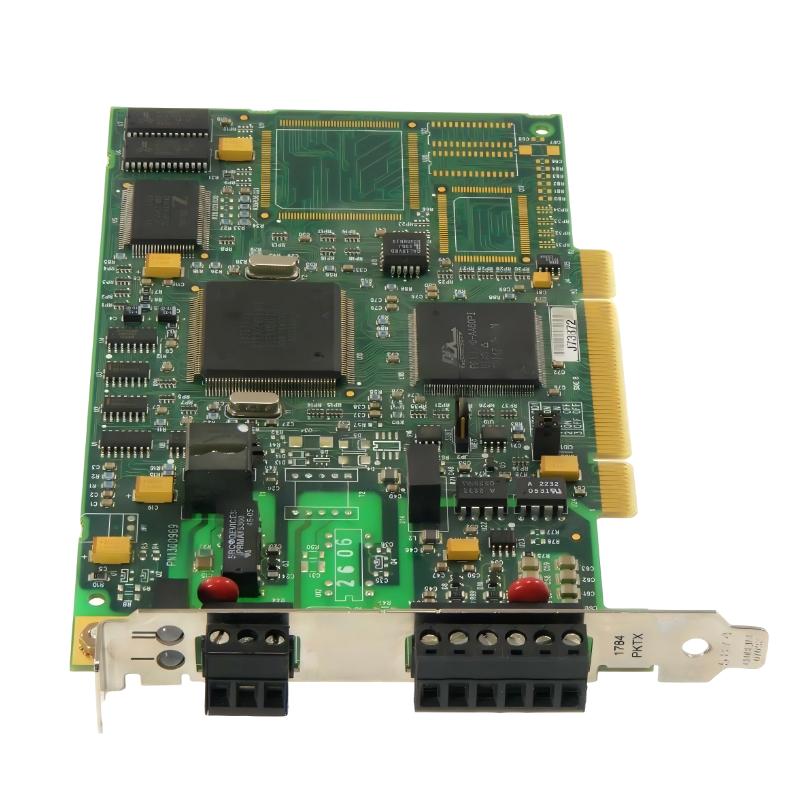

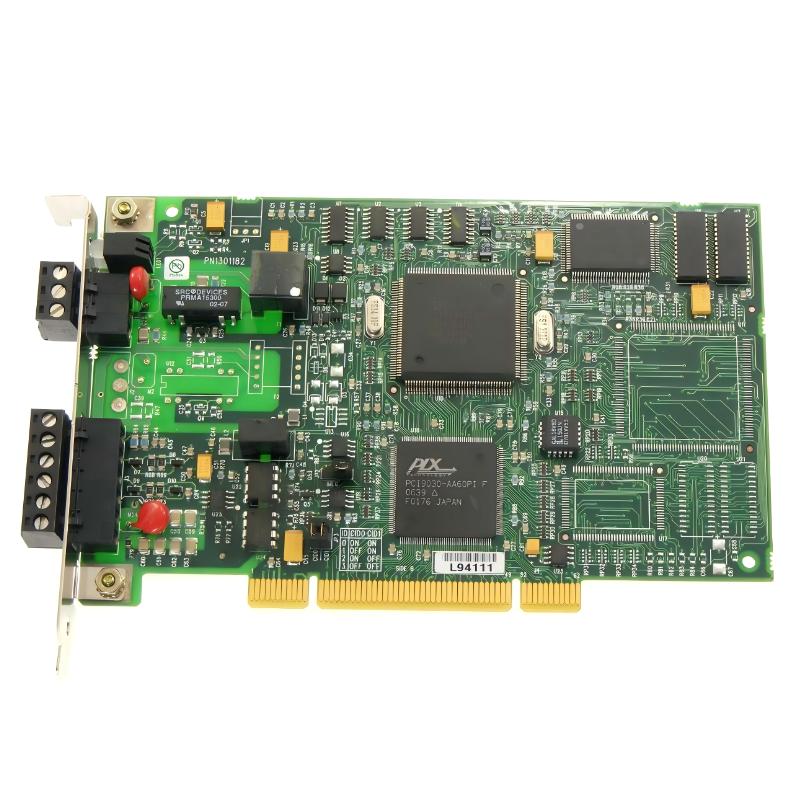

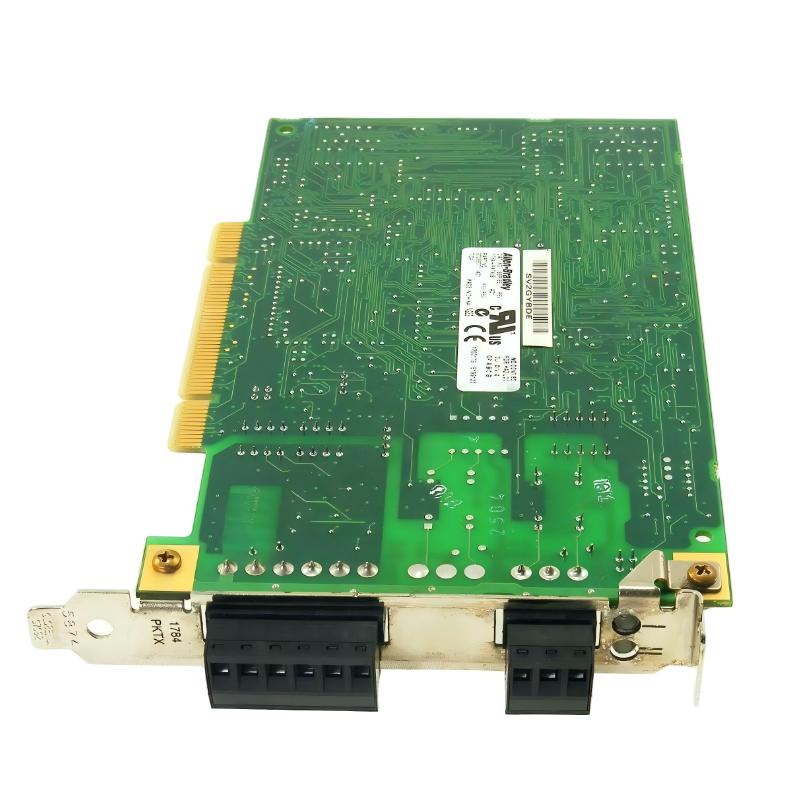

| Product Name | 1784-PKTX Communication Interface Card |
| Product Type | Industrial Equipment |
| Device Type | PCI Communication Interface Card |
| Communication Protocols | Data Highway Plus (DH+), DH-485, Remote I/O (RIO) |
| Bus Interface | PCI Bus |
| Compatible Systems | Industrial PCs and desktop computers with PCI slot |
| Supported Software | RSLinx, RSLogix, FactoryTalk legacy software |
| Communication Speed | Up to 230.4 Kbps (DH+) |
| Network Media | Twinaxial cable (DH+/RIO) |
| Connector Type | 3-pin Phoenix-style connector |
| Number of Channels | Single communication channel |
| LED Indicators | Communication and network status LEDs |
| Power Source | Powered through PCI bus |
| Mounting Type | Internal PCI expansion card |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5%–95% non-condensing |
| Dimensions (L × W × H) | Approx. 175 × 107 × 20 mm |
| Weight | Approx. 0.2–0.4 kg |
| Typical Applications | PLC programming, DH+ network access, Remote I/O communication, industrial automation diagnostics |
FAQ
What is the 1784-PKTX used for?
It is a PCI communication interface card used to connect PCs to Allen-Bradley DH+, DH-485, and Remote I/O networks.
Which communication protocols does it support?
It supports Data Highway Plus (DH+), DH-485, and Remote I/O (RIO).
What type of computer slot is required?
It requires a standard PCI expansion slot.
Can it be used in modern PCs?
Only if the system includes a legacy PCI slot; it is not compatible with PCIe-only systems without adapters.
What software is commonly used with this card?
It is commonly used with RSLinx, RSLogix, and FactoryTalk legacy software platforms.
What is the maximum communication speed?
DH+ communication supports speeds up to 230.4 Kbps.
Is this a legacy product?
Yes, it is considered legacy hardware but is still used in older industrial automation systems.
Where is the 1784-PKTX commonly installed?
It is commonly installed in industrial PCs, maintenance workstations, and PLC programming systems requiring access to DH+ networks.
Allen Bradley 1784-PKTX Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
