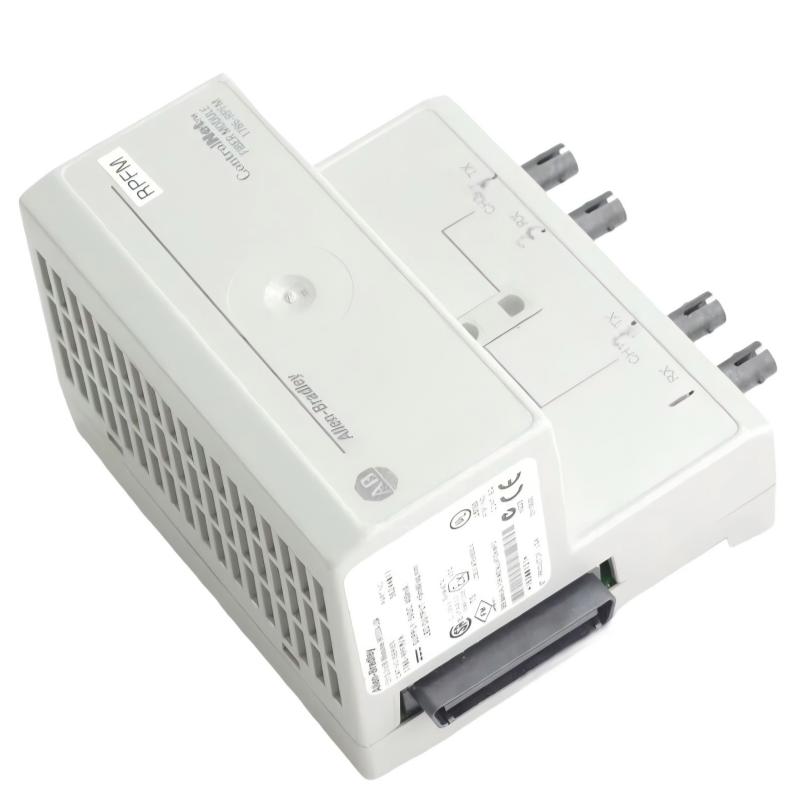

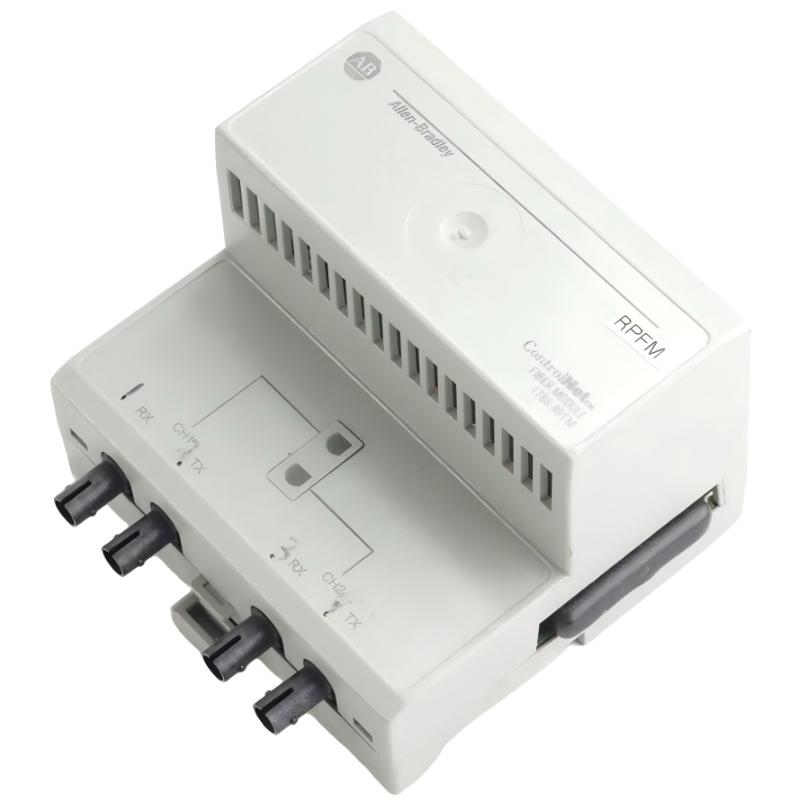

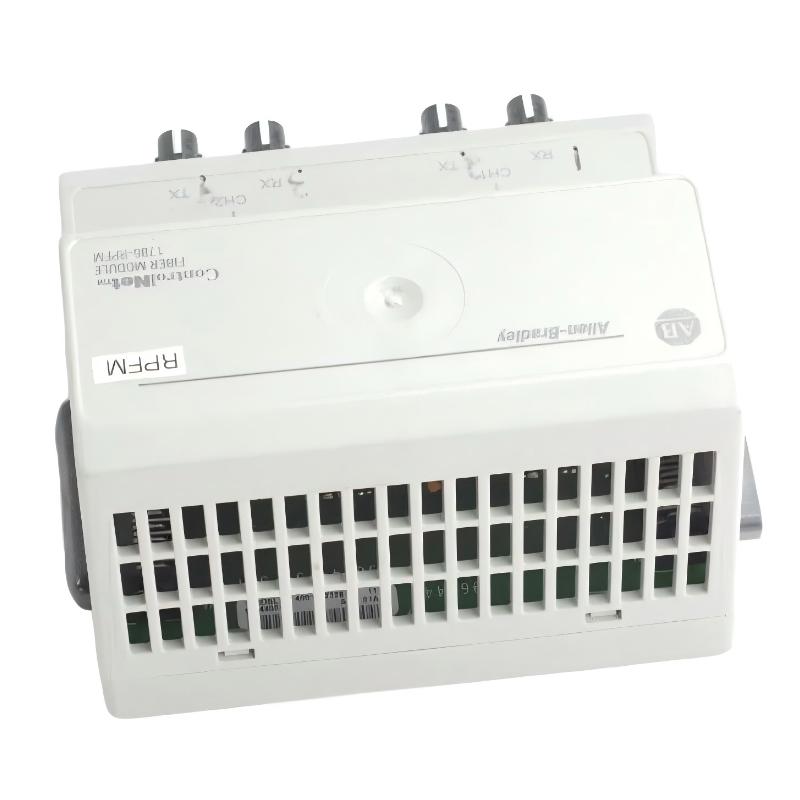

Allen Bradley 1786-RPFM Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
1786-RPFM Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 1786-RPFM ControlNet Repeater Fiber Media Module |
| Product Type | Industrial Network Repeater Module |
| Series | ControlNet |
| Device Type | Fiber Optic Repeater / Media Module |
| Primary Function | Extends ControlNet network using fiber optic media |
| Network Type | ControlNet |
| Media Type | Fiber optic cable |
| Communication Role | Signal regeneration and fiber media conversion |
| Repeater Function | Converts and regenerates ControlNet signals for fiber segments |
| Topology Support | Linear / segmented ControlNet architecture |
| Installation Type | ControlNet repeater chassis module |
| Power Source | Powered via repeater chassis backplane |
| Status Indicators | Module status and network activity LEDs |
| Electrical Isolation | Full optical isolation between segments |
| Noise Immunity | High immunity due to fiber optic transmission |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5%–95% non-condensing |
| Shock Resistance | Industrial-grade |
| Vibration Resistance | Industrial-grade |
| Dimensions (L × W × H) | Approx. 135 × 90 × 60 mm |
| Weight | Approx. 0.3 – 0.6 kg |
| Typical Applications | Long-distance ControlNet communication, industrial plant networking, high-noise environments, fiber-based network extension |
FAQ
What is the 1786-RPFM used for?
It is used to extend ControlNet networks using fiber optic media for longer distance and higher noise immunity.
What does RPFM stand for?
RPFM stands for Repeater Fiber Media Module.
What is its main advantage?
It provides optical isolation and allows long-distance communication with high resistance to electrical noise.
What type of cable does it use?
It uses fiber optic cables instead of coaxial cable.
Where is it installed?
It is installed in ControlNet repeater chassis or network cabinets.
Is it an active device?
Yes, it actively regenerates and converts network signals between fiber segments.
Is it still used today?
Yes, it is still used in existing ControlNet systems, especially in harsh industrial environments.
Why choose fiber over coax in ControlNet?
Fiber provides longer distance capability and stronger immunity to electrical interference.
Allen Bradley 1786-RPFM Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
