1. What is the main function of the Allen Bradley 1786-XT ControlNet termination plug?

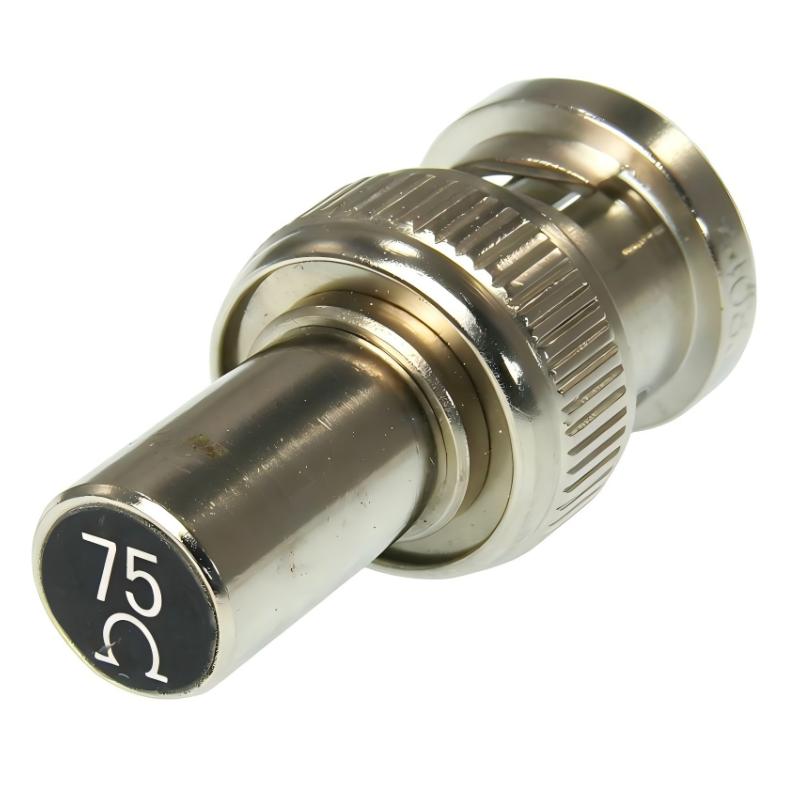

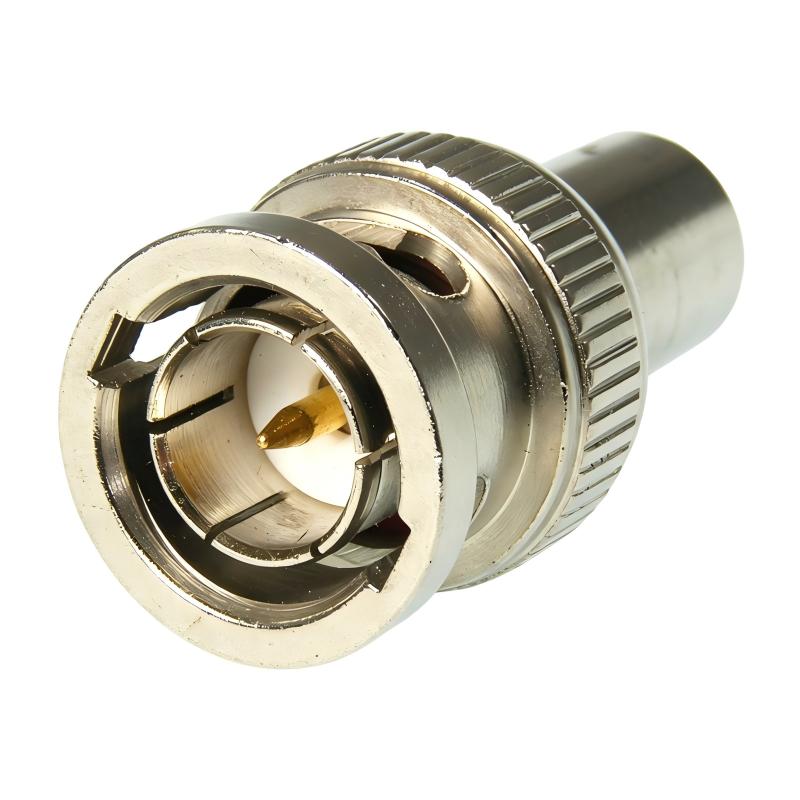

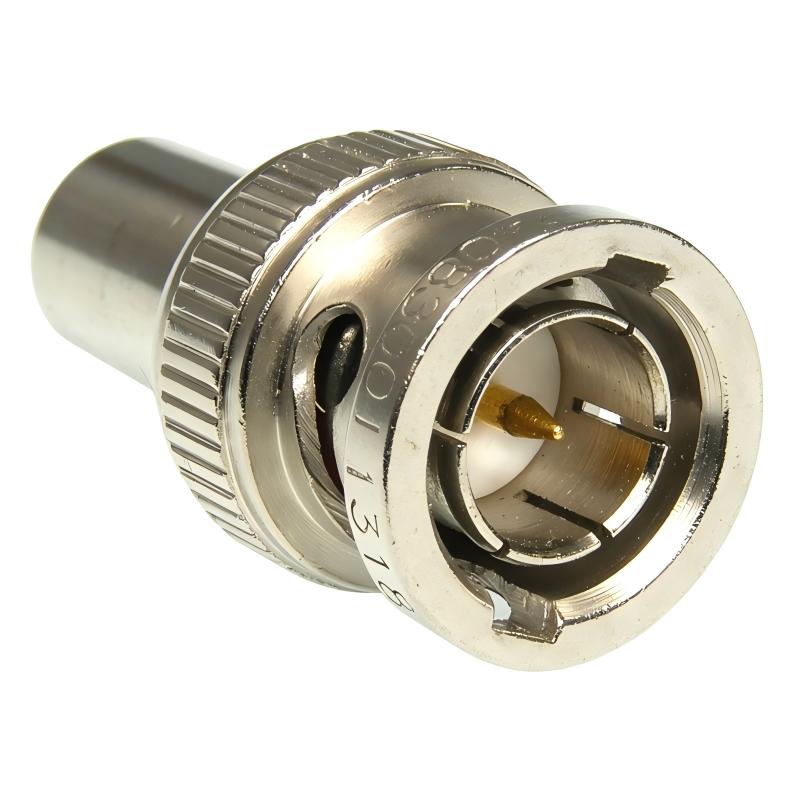

The Allen Bradley 1786-XT is a 75-ohm network termination plug designed for use with ControlNet communication networks. Its primary purpose is to provide the required electrical termination at the appropriate end of a ControlNet network segment. Proper termination is important because it helps maintain the expected electrical characteristics of the network and reduces signal reflections that can interfere with reliable communication. In a correctly installed ControlNet system, termination components form an important part of the physical network architecture and should be installed according to the network design and applicable installation requirements.

2. Why does a ControlNet network require 75-ohm termination?
ControlNet uses a defined network impedance, and proper termination is required to prevent signal reflections at the ends of the communication segment. Without appropriate termination, electrical signals traveling through the network cable can be reflected back toward the transmitting equipment, potentially causing communication errors, unstable connections, or difficulty establishing reliable network communication. The 1786-XT provides the required 75-ohm termination for the relevant ControlNet network segment. Correct termination should be maintained at the designated network endpoints rather than installed randomly at intermediate points.

3. Where should the 1786-XT be installed in a ControlNet network?
The 1786-XT should be installed at the appropriate physical end of the ControlNet network segment according to the network topology. Termination should normally be located at the endpoints of the properly designed network trunk rather than at intermediate nodes. Incorrect placement can change the electrical characteristics of the network and may result in communication problems. During installation or maintenance, technicians should refer to the actual ControlNet network layout and verify that the termination arrangement corresponds with the intended topology before placing the network into service.

4. What communication problems can be caused by incorrect ControlNet termination?
Incorrect termination can contribute to unstable communication, intermittent network faults, communication errors, node connection problems, or difficulty maintaining reliable data exchange between ControlNet devices. A missing termination plug may allow signal reflections to occur, while incorrect termination placement can produce similar network integrity problems. When troubleshooting a ControlNet network, technicians should therefore check the termination components along with cables, connectors, taps, network devices, and other physical-layer components. Physical network inspection is particularly important when communication faults affect multiple nodes simultaneously.

5. How can the 1786-XT be checked when troubleshooting a ControlNet network?
Start by confirming that the termination plug is installed at the correct network endpoint and that the physical connection is secure. Inspect the connector for signs of mechanical damage, contamination, loose fitting, or other physical abnormalities. Verify that the network topology has not been changed during maintenance or equipment replacement. If communication problems appeared after a cable or network component was replaced, compare the current network arrangement with the original design. It is also useful to determine whether the fault affects the entire ControlNet segment or only specific nodes, as this information can help distinguish a termination or physical-layer problem from a device-specific communication fault.

6. Can a missing or damaged 1786-XT cause intermittent ControlNet communication?
Yes. A missing, incorrectly installed, or damaged termination component can affect the electrical behavior of a ControlNet segment and may contribute to intermittent communication problems. Symptoms can include communication errors, unstable node connections, or network behavior that changes depending on operating conditions. If a network was previously stable and communication problems began after maintenance, cable replacement, or network modification, the termination arrangement should be checked carefully. The condition of associated connectors and network cables should also be inspected because several physical-layer problems can produce similar symptoms.

7. What should be considered when replacing an Allen Bradley 1786-XT?
When replacing a 1786-XT, the replacement component should be appropriate for the ControlNet network and provide the required 75-ohm termination. Before removing the existing termination plug, document its location and confirm the network topology. Follow the applicable electrical safety and maintenance procedures before performing the replacement. After installation, verify that the termination is securely connected at the correct endpoint and that no network segment has been unintentionally modified. The ControlNet network should then be checked for normal communication and node status. If the system is part of a critical PLC or automation application, communication should be verified across the complete network before returning the system to normal operation.

8. How can proper termination be verified after installing the 1786-XT?
After installation, confirm that the 1786-XT is positioned at the designated endpoint of the ControlNet network segment and that the connector is securely installed. Check the complete network topology to ensure that termination has not been omitted or incorrectly placed elsewhere. The connected ControlNet devices should then be monitored for normal network status and stable communication. If the system reports communication errors, node faults, or unstable connections, inspect the termination, network cable, connectors, taps, and other physical-layer components systematically. A successful verification should include stable communication across the required ControlNet nodes under normal operating conditions.
