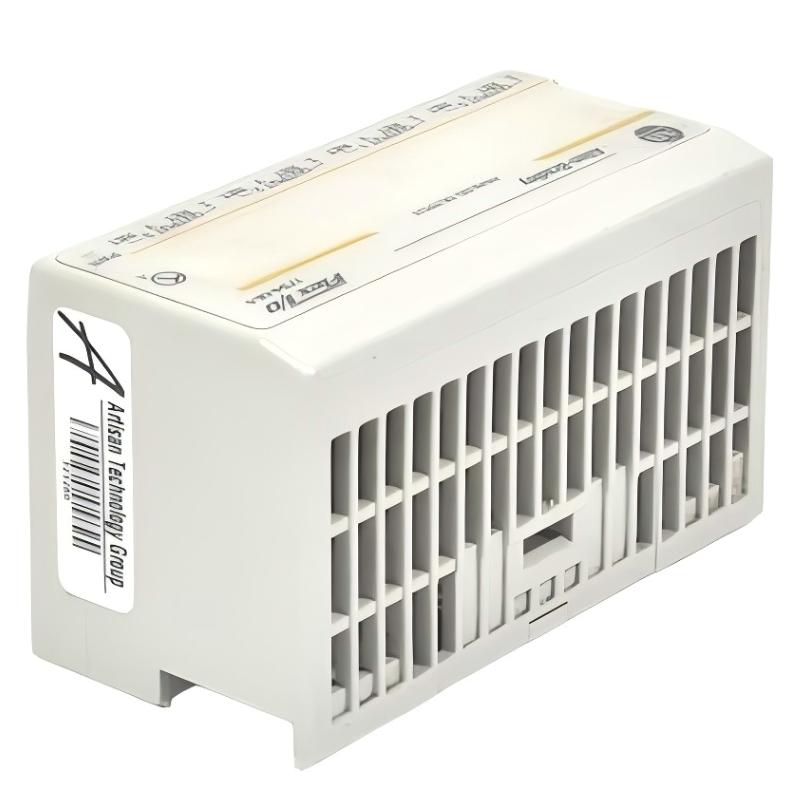

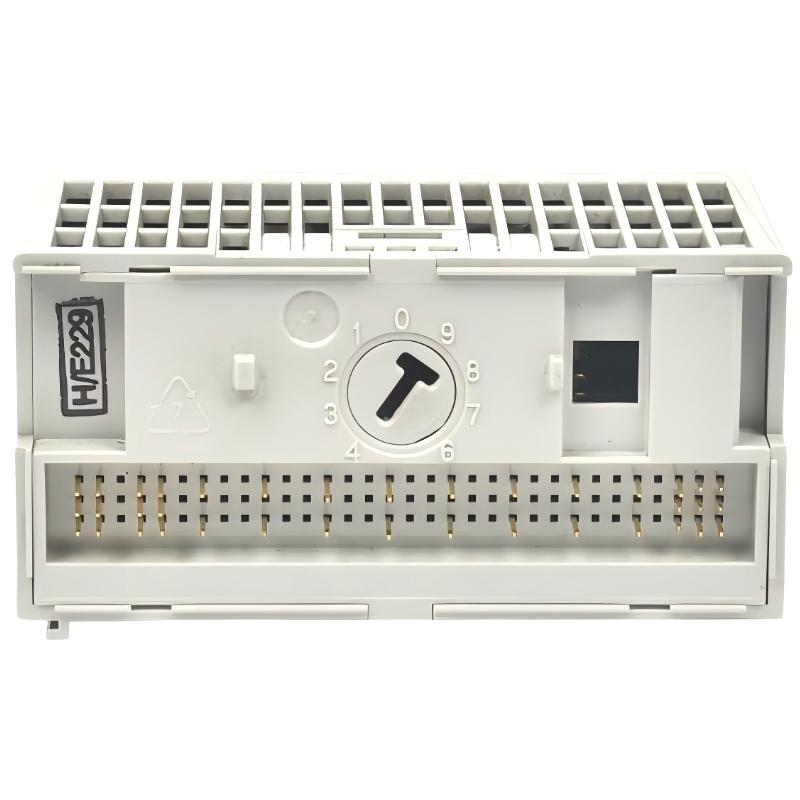

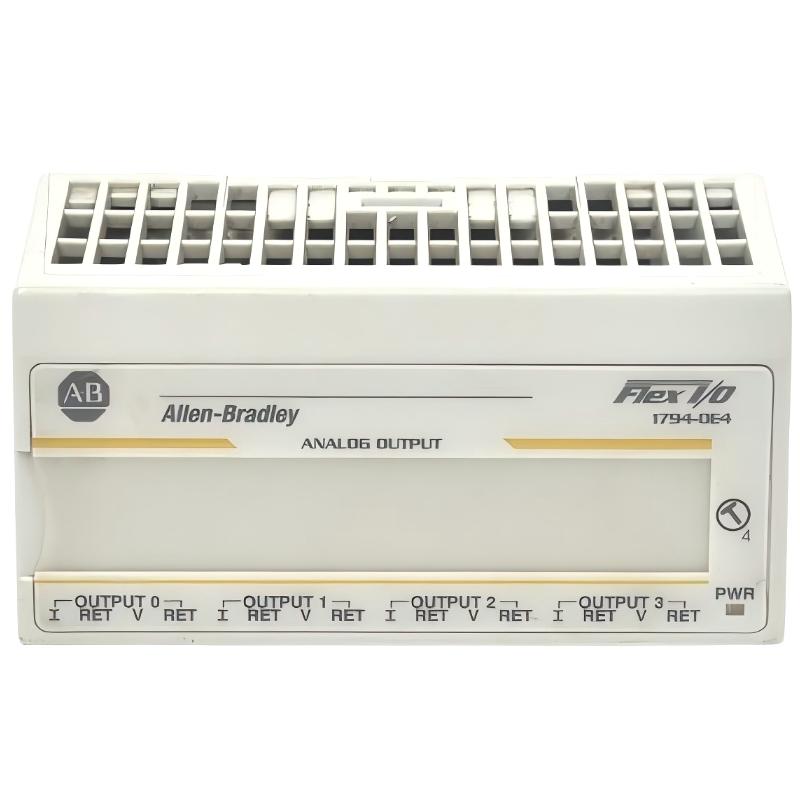

Allen Bradley 1794-OE4XT FLEX I/O XT 4-Point Analog Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | 1794-OE4XT |
| Product Type | FLEX I/O XT 4-Point Analog Output Module |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Series | FLEX I/O XT Series |
| Main Function | Analog output signal conversion for industrial control systems |
| Application | PLC remote I/O systems, process control, machine automation |
| Output Channels | 4 analog output channels |
| Output Type | Single-ended analog outputs |
| Output Signal Range | Voltage and current configurable |
| Resolution | 12-bit digital-to-analog conversion |
| Output Conversion Rate | Approx. 1 ms per channel |
| Power Supply | 24 VDC |
| Communication | Through FLEX I/O adapter (EtherNet/IP, ControlNet, DeviceNet, etc.) |
| Terminal Base Requirement | 1794-TB series terminal base |
| Isolation | Channel-to-system isolation |
| Diagnostic Functions | Module status indication and fault diagnostics |
| Mounting Method | DIN rail mounting |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Enclosure Type | Open-style module |
| Dimensions | Approx. 46 × 94 × 53 mm |
| Weight | Approx. 0.13 kg |
| Typical Applications | Factory automation, process control, motor control, instrumentation systems |
FAQ
Q1: What is the 1794-OE4XT mainly used for?
A: The 1794-OE4XT is an analog output module used in FLEX I/O systems to convert PLC digital values into analog control signals for field devices such as valves, drives, actuators, and process instruments.
Q2: How many output channels does the 1794-OE4XT provide?
A: The module provides four independent analog output channels.
Q3: What is the difference between 1794-OE4 and 1794-OE4XT?
A: The 1794-OE4XT is an extended-temperature version designed for more demanding industrial environments, offering improved temperature resistance compared with the standard model.
Q4: What systems can use the 1794-OE4XT?
A: It can be used in Allen-Bradley FLEX I/O systems connected to compatible PLC platforms through FLEX I/O communication adapters.
Q5: What is the function of the analog outputs?
A: The analog outputs provide proportional control signals for regulating speed, position, flow, pressure, temperature, and other industrial process variables.
Q6: What terminal base is required for the 1794-OE4XT?
A: The module requires a compatible FLEX I/O terminal base, such as the 1794-TB series.
Q7: Can the 1794-OE4XT operate in harsh environments?
A: Yes. The XT version is designed for extended-temperature industrial applications and supports operation in a wider temperature range than standard modules.
Q8: What are the main advantages of the 1794-OE4XT?
A: It provides compact remote I/O integration, four-channel analog output capability, reliable industrial performance, and compatibility with Allen-Bradley FLEX I/O control systems.
Allen Bradley 1794-OE4XT FLEX I/O XT 4-Point Analog Output Module is in stock. Please contact us for a quick quote and competitive pricing.
