1. What is the primary function of 20-750-POD1-F8?

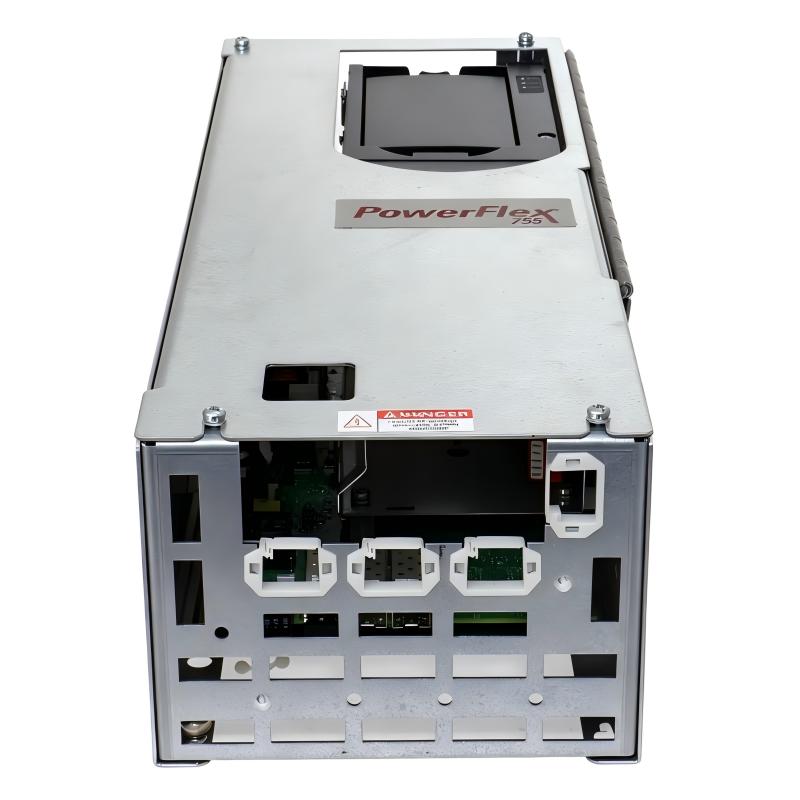

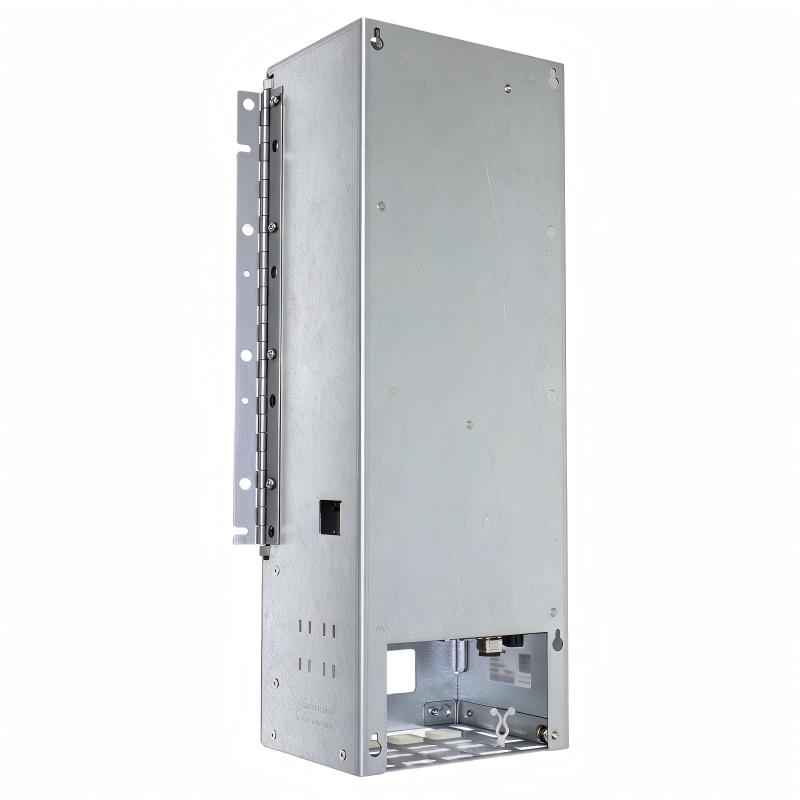

The 20-750-POD1-F8 is a Pod/Bucket Kit Assembly designed for the PowerFlex 755 Frame 8 drive system. It provides the mechanical structure required to mount the Control Pod and supports the proper positioning and connection of the internal control components. The assembly works together with the Main Control Board, Fiber Interface Board, and related connections to support the drive’s control and communication functions.

2. Which PowerFlex 755 drive configuration is 20-750-POD1-F8 designed for?

The 20-750-POD1-F8 is designed for PowerFlex 755 Frame 8 configurations. It is associated with the IP00 / NEMA/UL Open Type drive structure and is intended to integrate with the corresponding control and interface hardware. Before installation or replacement, the drive frame, existing hardware configuration, and associated components should be checked to ensure that the replacement assembly matches the original system configuration.

3. Does 20-750-POD1-F8 include control-related components?

The 20-750-POD1-F8 is a Control Pod / Pod Bucket Assembly rather than a simple empty mounting bracket. The assembly is associated with the Main Control Board and Fiber Interface Board used within the PowerFlex 755 control system. When replacing the assembly, technicians should verify the condition and compatibility of the control boards, connectors, fiber interfaces, and associated wiring before returning the drive to service.

4. What is the difference between 20-750-POD1-F8 and 20-750-RPD1-F8?

The two components serve different installation purposes. The 20-750-POD1-F8 is the Pod/Bucket Kit Assembly intended for the standard PowerFlex 755 control Pod arrangement, while the 20-750-RPD1-F8 is associated with remote mounting of the Control Pod. A remote installation can require additional fiber-optic and power connections, so the two part numbers should not be treated as interchangeable replacement components without checking the complete drive configuration.

5. What should be checked when installing 20-750-POD1-F8?

Installation should begin with the drive isolated from all applicable power sources and the required electrical safety procedures completed. The technician should then check the mechanical mounting position, connector alignment, control-board connections, fiber-optic interfaces, and associated wiring. For Frame 8 applications, the compatible power and fiber connections should also be verified. Fiber connectors should be kept clean and protected from excessive bending or mechanical stress. After installation, the control system should be inspected before the drive is energized and returned to operation.

6. What should be checked if a communication problem occurs after installing 20-750-POD1-F8?

If communication problems appear after installation, inspect the Fiber Interface Board, fiber-optic connectors, and associated fiber cables first. Loose connectors, incorrect connections, damaged fiber cables, or contaminated connector ends can affect communication reliability. The Main Control Board and other internal control connections should also be inspected for proper seating. If a remote Control Pod configuration is being used, the remote mounting connections and associated power and fiber interfaces should be checked as well. Drive fault records and diagnostic information can then be reviewed to determine whether the problem is related to communication, control hardware, or another part of the system.

7. Can 20-750-POD1-F8 be used as a standalone control system component?

The 20-750-POD1-F8 should not be considered a complete standalone PowerFlex 755 control system. It is an assembly that works together with the drive’s control boards, interface hardware, power connections, fiber-optic connections, and other system components. The exact hardware required depends on the drive frame and application configuration. When ordering a replacement, technicians should therefore compare the existing assembly and drive configuration rather than selecting the part number solely by physical appearance.

8. Is commissioning required after replacing 20-750-POD1-F8?

A post-replacement inspection and commissioning procedure should be performed before the drive is placed back into normal operation. The technician should verify that the assembly is securely installed, all control and fiber connections are correctly seated, and the drive does not report unexpected faults or communication errors. The control system should then be checked under the applicable PowerFlex 755 startup procedure. If other control components were replaced at the same time, additional parameter, communication, and functional checks may be necessary before the drive is returned to its normal load.
