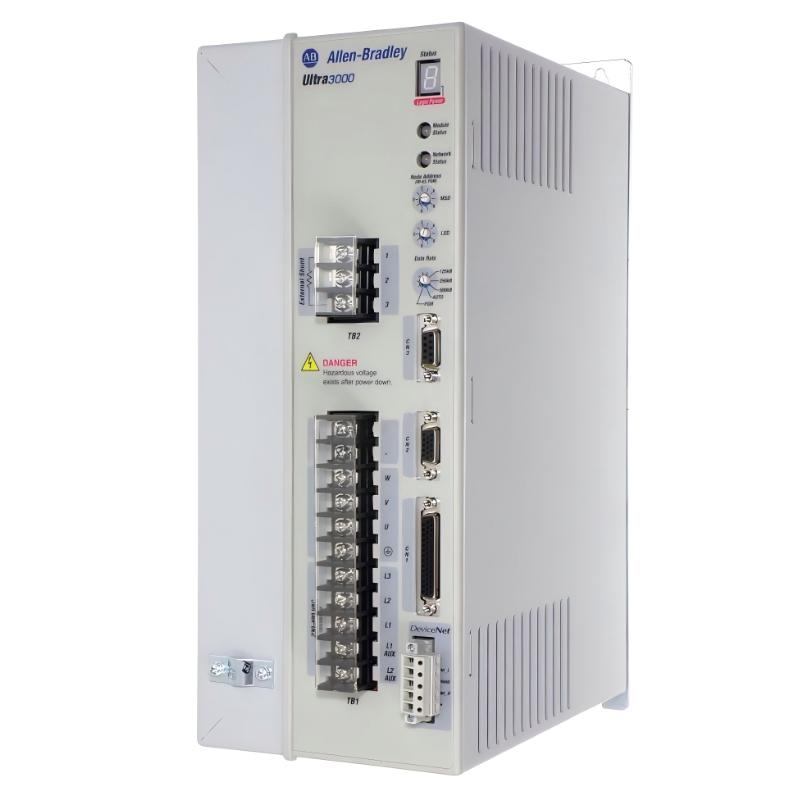

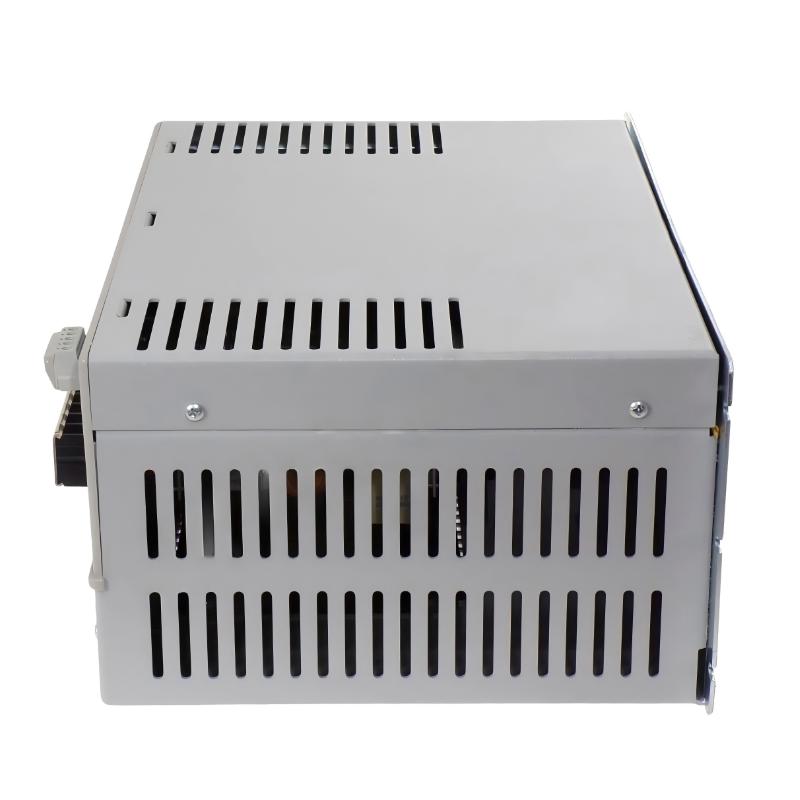

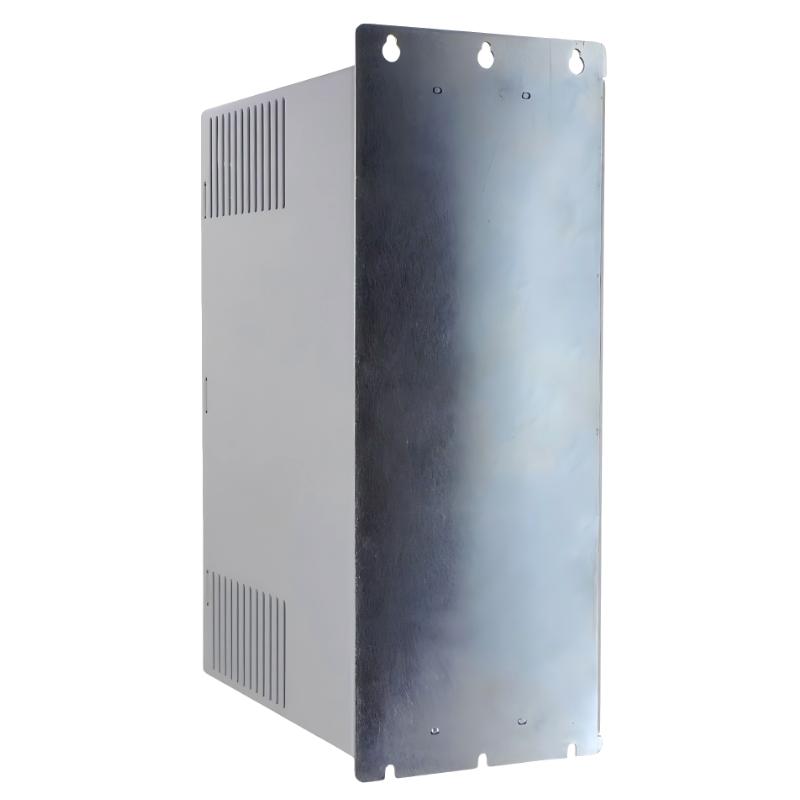

Allen Bradley 2098-DSD-HV030X-DN Ultra3000i Digital Servo Driver
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 2098-DSD-HV030X-DN |
| Product Name | Ultra3000i Digital Servo Driver |
| Brand | Allen-Bradley |
| Product Type | High-Performance Digital Servo Drive |
| Series | Ultra3000i HV Series |
| Main Function | Provides precise motion control for servo motor systems (position, speed, torque) |
| Control Method | Fully digital closed-loop servo control |
| Input Power | High-voltage industrial AC supply (system dependent) |
| Motor Compatibility | Compatible with Allen-Bradley servo motors and encoder feedback systems |
| Feedback Type | Encoder-based closed-loop feedback |
| Control Modes | Position control / Speed control / Torque control |
| Communication Interface | DeviceNet (DN) industrial network |
| Dynamic Performance | High-speed response with high-precision motion control |
| Auto Tuning | Supports automatic and manual servo tuning |
| Protection Functions | Overcurrent, overvoltage, overtemperature, and system fault protection |
| Diagnostics | Built-in real-time monitoring and fault diagnostics |
| Mounting Type | Panel-mounted installation |
| Cooling Method | Forced air cooling (system dependent) |
| Application Areas | CNC machines, robotics, automated production lines, motion control systems |
| Operating Environment | Industrial control cabinet environment |
| Operating Temperature | Standard industrial automation range |
| Protection Design | Industrial-grade drive protection architecture |
| Maintenance Method | Modular replacement and software-based diagnostics |
| Dimensions | 360.7 × 138.7 × 242.2 mm |
| Weight | 8.55 kg |
| Country of Origin | United States |
FAQ
Q1: What is the main function of the Allen-Bradley 2098-DSD-HV030X-DN Ultra3000i Digital Servo Driver?
A: This servo drive is designed for high-precision industrial motion control. Its main function is to regulate servo motor position, speed, and torque using a fully digital closed-loop system. It continuously receives commands from a controller and uses encoder feedback to ensure accurate, stable, and repeatable motion performance.
Q2: What does the “DN” suffix indicate in this model?
A: The “DN” suffix indicates that this model supports DeviceNet communication. This allows the drive to integrate into DeviceNet-based industrial automation networks, enabling fast data exchange and synchronized control with PLCs and other automation controllers.
Q3: What control modes are supported by this servo drive?
A: The 2098-DSD-HV030X-DN supports three primary control modes: position control, speed control, and torque control. Position control is used for precise positioning tasks, speed control for continuous motion applications, and torque control for force-based processes such as tension or pressing operations.
Q4: How does this drive achieve high-precision motion control?
A: It uses a fully digital closed-loop architecture with real-time encoder feedback. The system constantly compares actual motor behavior with command signals and performs rapid corrections. This ensures smooth motion profiles, high positioning accuracy, and strong dynamic response even under changing load conditions.
Q5: What industries commonly use this servo drive?
A: It is widely used in CNC machining, industrial robotics, packaging machinery, automated production lines, and material handling systems. These industries require precise motion control, fast response, and reliable multi-axis coordination.
Q6: What protection features are included in this device?
A: The drive includes multiple built-in protections such as overcurrent, overvoltage, overtemperature, and fault detection. These mechanisms help protect both the drive and the connected servo motor, ensuring safe and stable operation in demanding environments.
Q7: What maintenance practices are recommended for long-term operation?
A: Recommended maintenance includes monitoring diagnostic logs, ensuring proper cooling airflow, checking wiring integrity, and maintaining a clean control cabinet environment. Regular inspections help prevent unexpected downtime and maintain system reliability.
Q8: What are the key advantages of the Ultra3000i DN series?
A: The Ultra3000i DN series combines high-performance motion control with DeviceNet network integration. It offers fast response, high accuracy, and strong system compatibility, making it suitable for complex industrial automation systems requiring coordinated multi-axis control.
Allen Bradley 2098-DSD-HV030X-DN Ultra3000i Digital Servo Driver is in stock. Please contact us for a quick quote and competitive pricing.
