Technical Specifications

FAQ

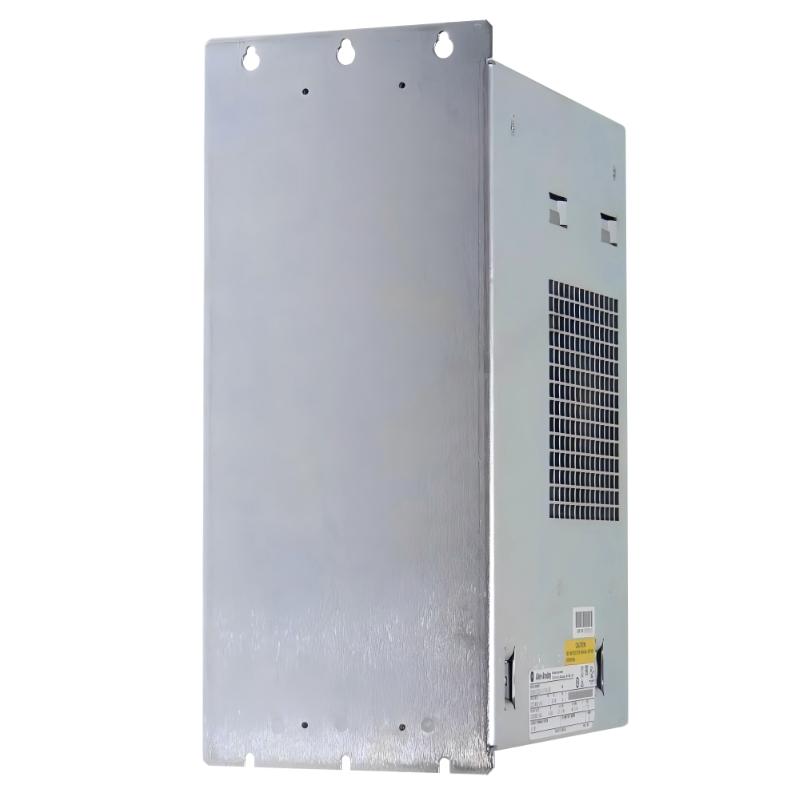

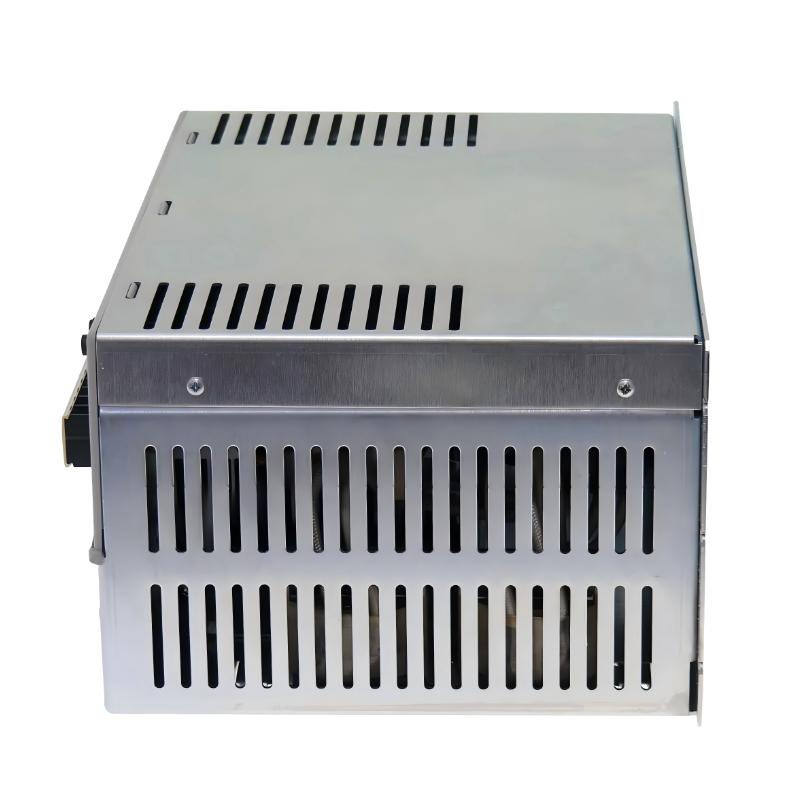

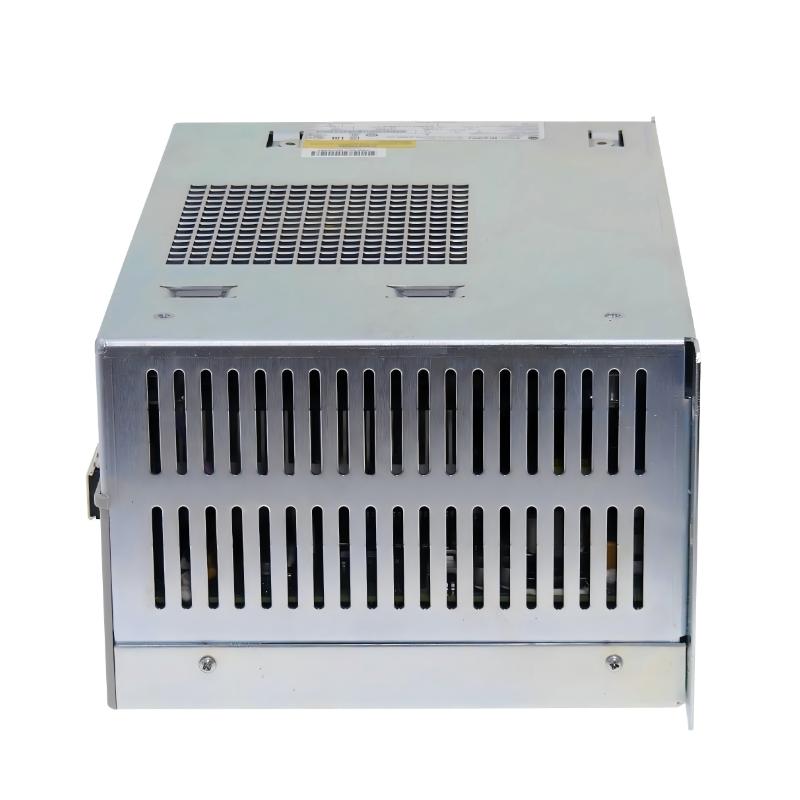

Q1: What is the main function of the Allen-Bradley 2098-DSD-HV100-SE Ultra3000 Digital Servo Driver?

A: The HV100-SE is designed for high-power industrial motion control applications. Its primary function is to precisely regulate servo motor position, speed, and torque using a fully digital closed-loop system. It continuously processes motion commands from the controller while receiving encoder feedback from the motor, ensuring accurate and stable performance even under heavy-load and high-inertia conditions.

Q2: What does the “SE” designation indicate in this model?

A: The “SE” suffix typically indicates an enhanced safety-related configuration or feature set within the drive family. In industrial applications, this often relates to additional safety-oriented control behavior or system-level safety integration capabilities. It is commonly used in systems where higher safety standards or certified motion control behavior is required.

Q3: What control modes are supported by this servo drive?

A: The drive supports three main control modes: position control, speed control, and torque control. Position control is used for precise positioning tasks, speed control is applied in continuous motion systems, and torque control is used in force-sensitive processes such as pressing, winding, or tension control applications.

Q4: How does this drive achieve high-precision motion control?

A: It uses a fully digital closed-loop architecture with real-time encoder feedback. The system constantly compares commanded motion values with actual motor behavior and makes rapid corrections. This ensures smooth motion profiles, minimal positioning error, and high repeatability even under dynamic load changes.

Q5: What industries typically use the HV100-SE servo drive?

A: This model is widely used in heavy-duty industrial environments such as automotive manufacturing, large-scale CNC machining, robotics systems, metal processing, packaging machinery, and high-load automation production lines where precision and reliability are critical.

Q6: What protection features are included in this servo drive?

A: The drive includes multiple built-in protection mechanisms such as overcurrent protection, overvoltage protection, overtemperature protection, and fault detection systems. These protections help safeguard both the drive and connected motor, ensuring stable operation under demanding industrial conditions.

Q7: What maintenance practices are recommended for this drive?

A: Recommended maintenance includes regular monitoring of diagnostic logs, ensuring proper cooling airflow, checking electrical connections for tightness, and maintaining a clean control cabinet environment. Periodic system checks help prevent unexpected downtime and extend equipment service life.

Q8: What are the key advantages of the Ultra3000 HV series with SE variant?

A: The HV series offers high power capability, strong dynamic response, and precise closed-loop control performance. The SE variant further enhances system-level safety integration, making it suitable for applications that require both high-performance motion control and advanced safety considerations. Combined with robust diagnostics and protection features, it delivers reliable operation in complex industrial automation environments.
