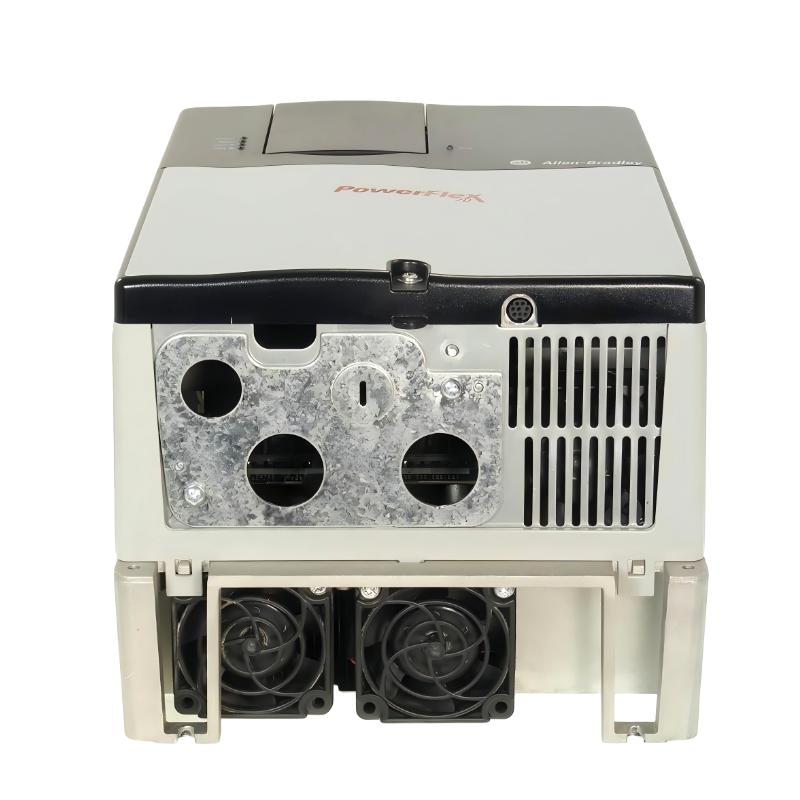

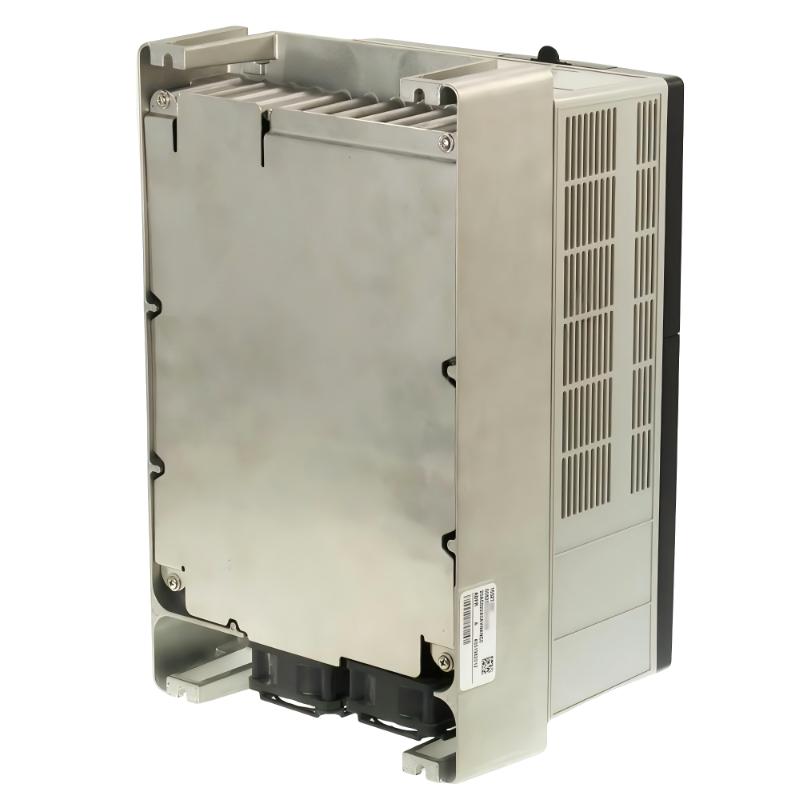

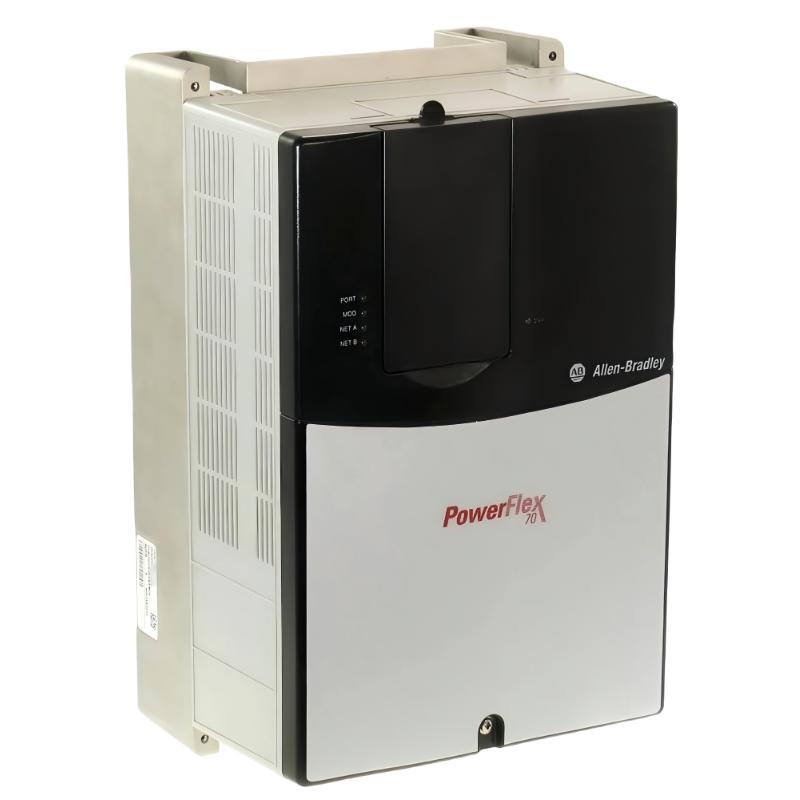

Allen Bradley 20AC015A3AYNAEC0 PowerFlex 70 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | 20AC015A3AYNAEC0 |
| Product Type | PowerFlex 70 AC Drive |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Series | PowerFlex 70 Series |
| Main Function | Adjustable frequency AC drive for controlling motor speed, torque, and operation |
| Application | Industrial motor control, conveyors, pumps, fans, machine automation, process equipment |
| Input Voltage | 480 VAC |
| Input Phase | 3-phase |
| Output Phase | 3-phase |
| Output Current | 15 A |
| Normal Duty Power Rating | 10 HP (7.5 kW) |
| Heavy Duty Power Rating | 7.5 HP (5.5 kW) |
| Frame Size | Frame C |
| Control Type | Enhanced Control |
| Motor Control Method | Sensorless Vector Control / Vector Control |
| Output Frequency Range | 0…400 Hz |
| Overload Capacity | 150% for 1 minute |
| Brake Function | Brake IGBT installed |
| Brake Resistor | No internal brake resistor |
| EMC Filtering | Second Environment EMC filter |
| Human Interface Module (HIM) | No HIM included (blank cover) |
| Feedback Option | No Feedback |
| Communication Module | Ethernet/IP DPI communication module included |
| Communication Interface | DPI interface |
| Supported Communication Options | EtherNet/IP, DeviceNet, ControlNet, PROFIBUS, Modbus (with optional adapters) |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Mounting Method | Panel mounting |
| Cooling Method | Forced air cooling |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | Approx. 250 × 180 × 220 mm |
| Weight | Approx. 5.9 kg |
| Typical Applications | Industrial machinery, conveyors, pumps, fans, packaging equipment, automation systems |
FAQ
Q1: What is the 20AC015A3AYNAEC0 mainly used for?
A: The 20AC015A3AYNAEC0 is a PowerFlex 70 AC drive used for variable speed control of three-phase AC motors in industrial automation applications.
Q2: What motor power does the 20AC015A3AYNAEC0 support?
A: It supports approximately 10 HP (7.5 kW) under normal-duty operation and 7.5 HP (5.5 kW) under heavy-duty operation.
Q3: What input power supply is required?
A: The drive requires a 480 VAC three-phase power supply.
Q4: Does the 20AC015A3AYNAEC0 include a brake resistor?
A: No. It includes a brake IGBT, but an external brake resistor is required when dynamic braking is needed.
Q5: Does this model include a HIM display?
A: No. This configuration does not include a Human Interface Module.
Q6: Does the 20AC015A3AYNAEC0 support encoder feedback?
A: No. This model is configured without encoder feedback.
Q7: What communication function does this model provide?
A: It supports DPI communication and includes an EtherNet/IP communication option for integration into industrial control networks.
Q8: What are the main advantages of the 20AC015A3AYNAEC0?
A: It provides reliable motor speed control, enhanced vector control, Ethernet communication capability, EMC filtering, braking support, and compatibility with Allen-Bradley automation systems.
Note: PowerFlex 70 series products are discontinued and should be evaluated for replacement in new system designs.
