1. What are the main electrical ratings of the 20AE1P7A0AYNNNC0?

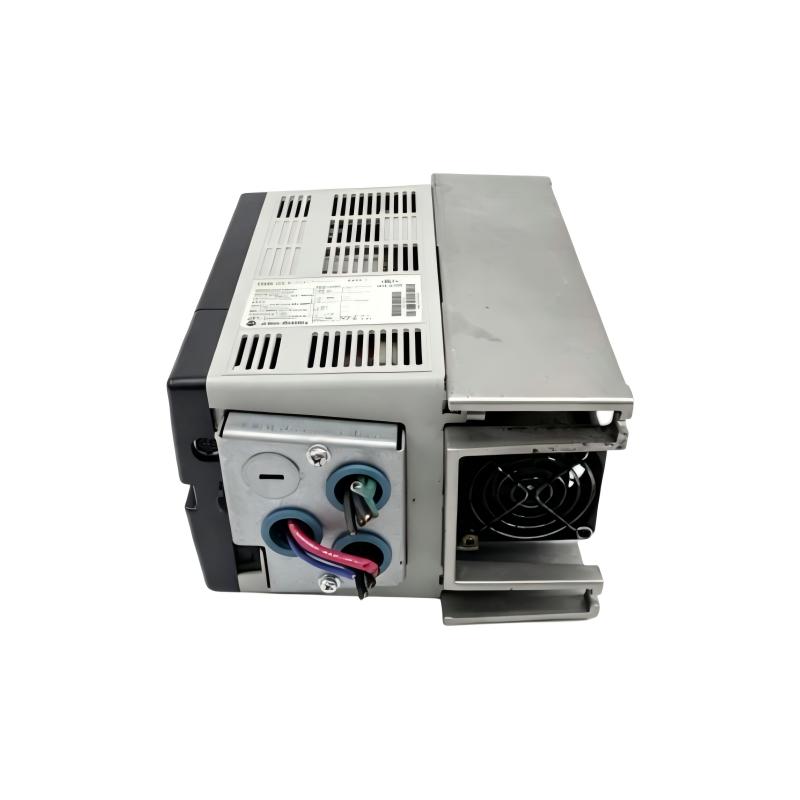

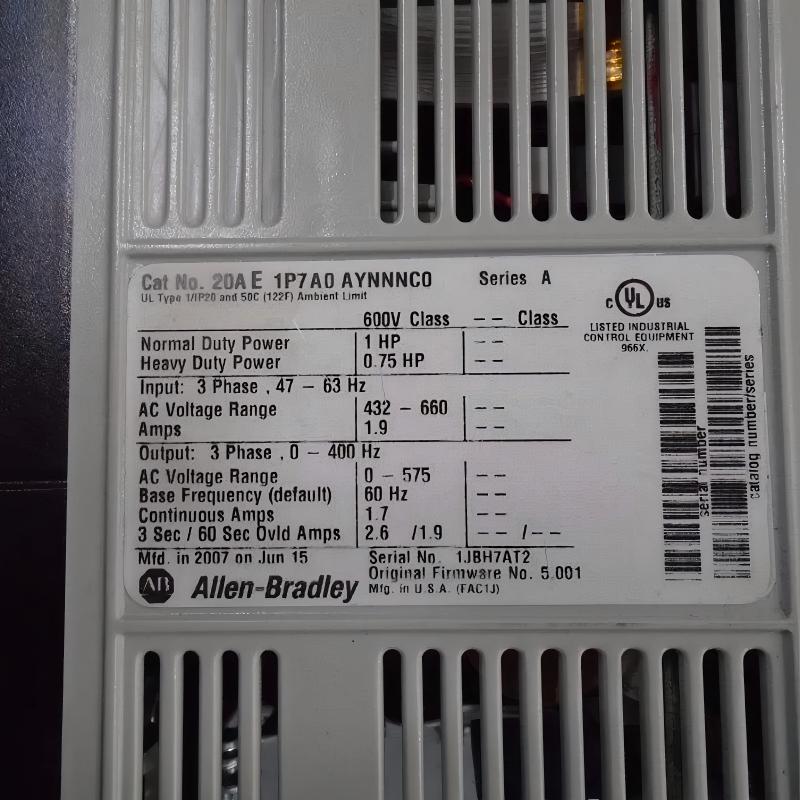

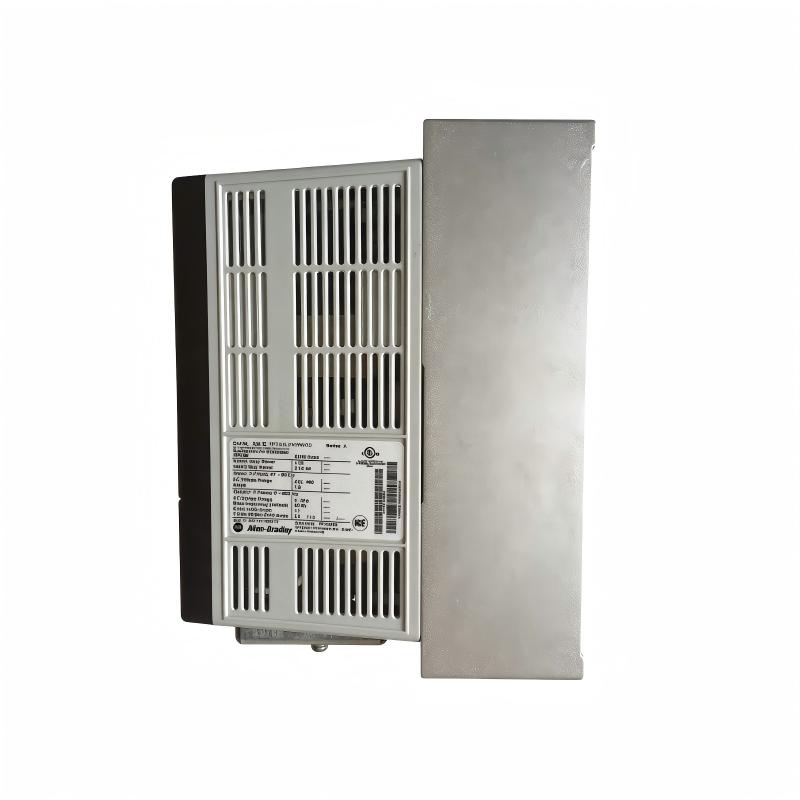

The 20AE1P7A0AYNNNC0 is a PowerFlex 70 AC drive designed for a 600 VAC three-phase power supply. It has a continuous output current rating of 1.7 A, with approximately 1.9 A available for one minute and 2.6 A for three seconds under the specified overload conditions. The normal-duty power rating is 1 HP (0.75 kW), while the heavy-duty rating is 0.75 HP. Motor selection should be based on the motor nameplate current and actual application duty rather than horsepower alone.

2. What type of motor applications is the 20AE1P7A0AYNNNC0 suitable for?
The drive is designed for variable-speed control of three-phase AC motors in industrial equipment. Its Enhanced Control configuration provides functions for controlled motor starting, stopping, acceleration, deceleration, and speed regulation. It can be used in applications such as small conveyors, pumps, fans, machine mechanisms, and other motor-driven equipment requiring adjustable speed. Before installation, the motor voltage, current, frequency, and load characteristics should be checked against the drive ratings.

3. Does the 20AE1P7A0AYNNNC0 have a built-in braking function?
Yes. The 20AE1P7A0AYNNNC0 includes a brake IGBT, allowing an external dynamic braking resistor to be used when the application requires additional braking capability. The specified configuration does not include a drive-mounted braking resistor. During rapid deceleration, a motor connected to a high-inertia load can generate regenerative energy, which raises the DC bus voltage. If the application requires short stopping times, the braking resistor should be selected according to the required braking energy and duty cycle.

4. Does the 20AE1P7A0AYNNNC0 include a communication module?
The specified configuration does not include an internal communication module. If the drive needs to exchange control or status information with a PLC, DCS, SCADA system, or other automation equipment, the appropriate communication option should be selected according to the required network architecture. For installations without network communication, the available digital and analog I/O can be used for hardwired commands and monitoring. Communication parameters and command sources should be verified during commissioning when an optional network interface is installed.

5. What I/O interfaces are available on the 20AE1P7A0AYNNNC0?
The drive provides six digital inputs, two digital outputs, two analog inputs, and one analog output. These interfaces can be configured for functions such as start, stop, direction control, speed reference, drive status, fault indication, and equipment interlocking. Analog inputs can be used for external speed references or other analog control signals, while digital inputs can receive discrete commands from switches or a PLC. The actual function of each I/O terminal depends on the drive parameter configuration and the control requirements of the application.

6. What should be checked if the 20AE1P7A0AYNNNC0 trips on overcurrent during startup?
First, verify that the motor nameplate information programmed into the drive is correct, particularly rated voltage, rated current, and frequency. Then inspect the motor cables and terminals for incorrect connections, short circuits, ground faults, or insulation damage. Mechanical conditions should also be checked for excessive friction, a locked mechanism, bearing problems, or an unusually high starting load. If the acceleration time is too short, the drive may need to produce high torque and current within a short period. Increasing the acceleration time may reduce the instantaneous current demand. The drive fault code and operating parameters should also be reviewed to identify the specific protection condition.

7. Why can the 20AE1P7A0AYNNNC0 trip on overvoltage during deceleration?
During deceleration, a motor connected to a high-inertia load can temporarily operate as a generator. The resulting regenerative energy flows back into the drive and increases the DC bus voltage. If the deceleration time is too short, the voltage can rise quickly enough to trigger the drive’s overvoltage protection. When the process allows it, increasing the deceleration time can reduce the rate of regenerative energy return. For applications requiring rapid stopping, an appropriately selected external braking resistor may be required to dissipate the regenerated energy.

8. What environmental and electrical conditions should be considered when installing the 20AE1P7A0AYNNNC0?
The 20AE1P7A0AYNNNC0 is a panel-mounted drive with an IP20 / NEMA/UL Type 1 enclosure rating. The installation should provide sufficient ventilation and heat dissipation around the drive. The operating environment should be kept within the specified temperature and humidity limits and protected from condensation, conductive dust, excessive moisture, corrosive substances, and other contaminants that could affect electrical insulation or cooling. The 600 VAC three-phase supply should be verified before energizing the unit. Proper grounding, motor wiring, control wiring, and parameter configuration should also be checked before commissioning. The drive should then be tested progressively to verify motor direction, acceleration, deceleration, current, and protective functions.
