1. What are the main electrical ratings of the Allen Bradley 20BC085A3ANNACC0?

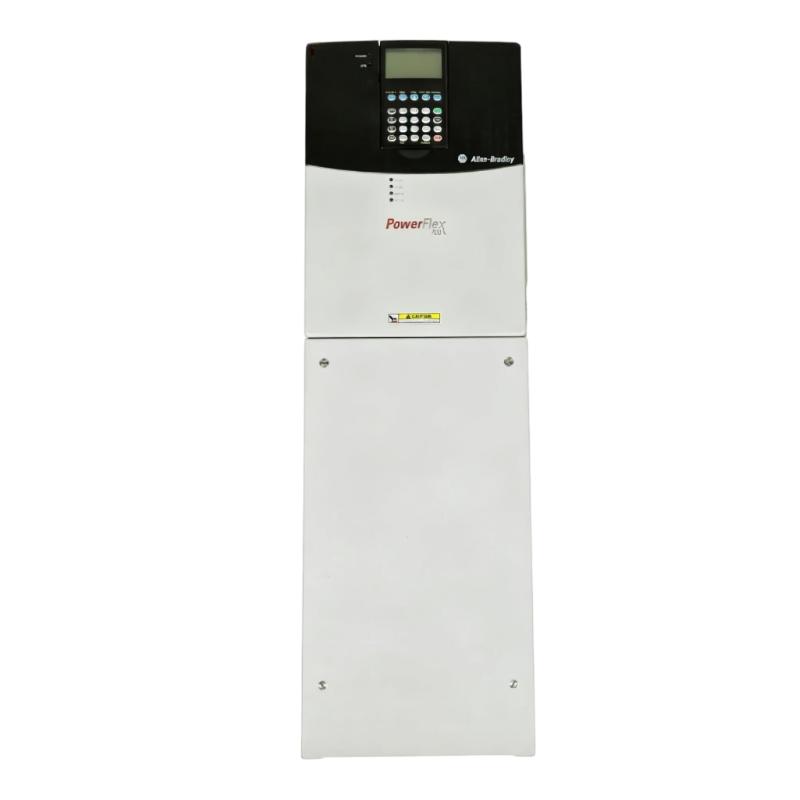

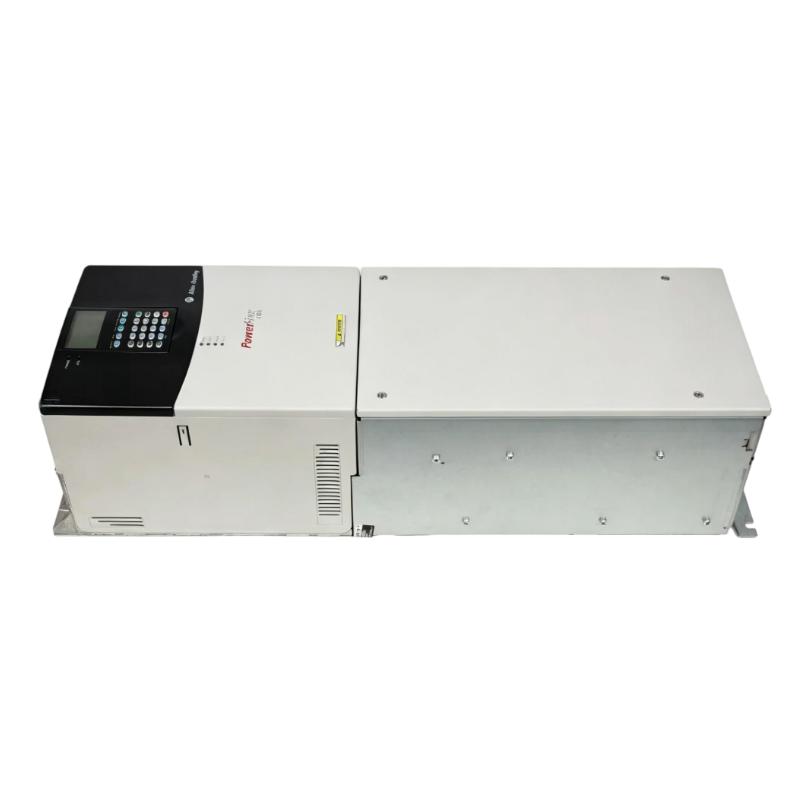

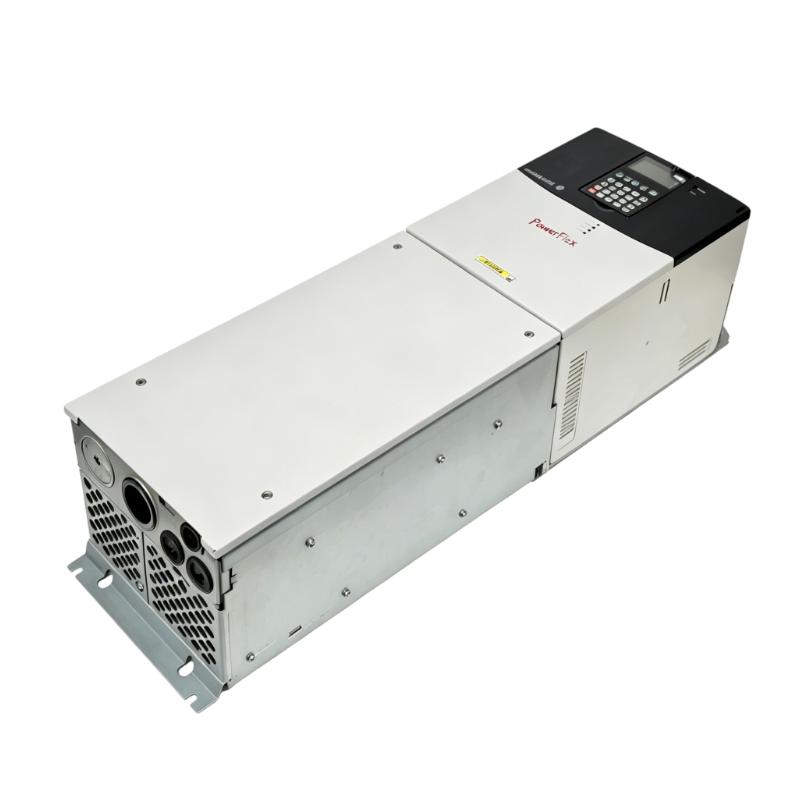

The Allen Bradley 20BC085A3ANNACC0 is a PowerFlex 700 AC drive rated for a 400 VAC, three-phase power supply. It provides an 85 A output rating and is specified for 45 kW normal-duty operation. For applications requiring heavier continuous loading, the drive is rated at 37 kW heavy duty. These ratings make it suitable for medium-to-high power industrial motor control applications.

2. What type of motor can be controlled by the 20BC085A3ANNACC0?
The 20BC085A3ANNACC0 is designed for industrial three-phase AC motor applications. It can be used where controlled motor speed, acceleration, deceleration, and torque are required. Typical applications include conveyors, pumps, fans, material-handling equipment, and other machinery that requires adjustable-frequency motor control.

3. What control method does the 20BC085A3ANNACC0 use?
This configuration uses vector control, which provides more controlled motor operation than basic frequency-only control. Proper motor data and drive parameters should be entered during commissioning so that the drive can establish the required motor operating characteristics. Correct tuning and parameter configuration are particularly important when the application requires stable speed or torque performance.

4. What operator interface is included with the 20BC085A3ANNACC0?
The drive is equipped with an LCD Display Full Keypad. The keypad can be used for viewing operating conditions, accessing drive parameters, entering configuration values, and checking diagnostic or fault information. During commissioning and troubleshooting, the local interface can also help technicians identify drive status and parameter-related problems without relying entirely on the control system.

5. What communication interface is provided on the 20BC085A3ANNACC0?
The 20BC085A3ANNACC0 is configured with a ControlNet coaxial communication interface. This allows the drive to be integrated into an industrial automation system using a compatible ControlNet network. When commissioning network communication, the drive’s communication parameters, network configuration, node information, and controller-side configuration should be checked together to ensure reliable data exchange.

6. What should be checked if the 20BC085A3ANNACC0 trips on overcurrent?
An overcurrent trip should first be investigated from both the mechanical and electrical sides of the system. Check whether the motor is overloaded, mechanically obstructed, or starting against excessive load. The motor cables and terminals should also be inspected for short circuits, incorrect connections, or insulation problems. In addition, verify the motor nameplate data programmed into the drive and review acceleration settings. If the acceleration time is too short for the connected load, increasing it may reduce the current demand during startup.

7. What can cause a DC-bus overvoltage fault during deceleration?
A DC-bus overvoltage condition can occur when the motor regenerates energy during rapid deceleration and the drive cannot dissipate that energy quickly enough. Large-inertia loads are particularly likely to produce regenerative energy. Check the programmed deceleration time and consider increasing it if the application permits. The mechanical load characteristics, stopping requirements, and available braking or energy-management solution should also be reviewed when frequent rapid deceleration is required.

8. What should be checked before commissioning the 20BC085A3ANNACC0?
Before commissioning, verify the incoming three-phase supply, motor wiring, protective grounding, control wiring, and communication connections. Confirm that the motor voltage, current, frequency, and other nameplate information have been entered correctly into the drive. Check that the selected operating mode and control commands match the machine control system. It is also important to inspect ventilation and cabinet conditions before energizing the drive. Initial testing should preferably begin with controlled operating conditions so that motor rotation, current, acceleration, deceleration, and fault behavior can be verified before the equipment is placed into normal production service.
