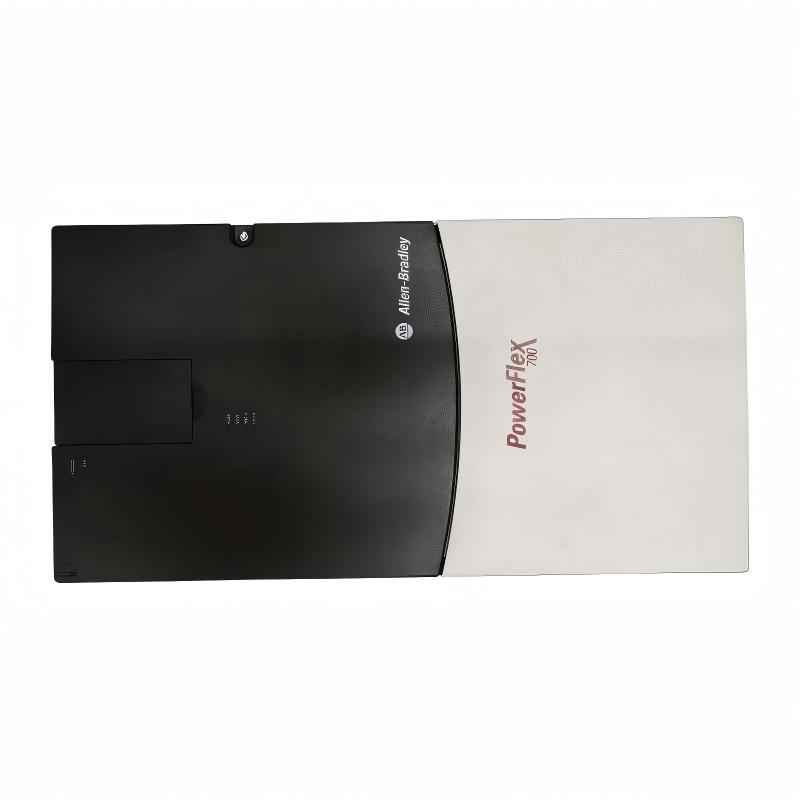

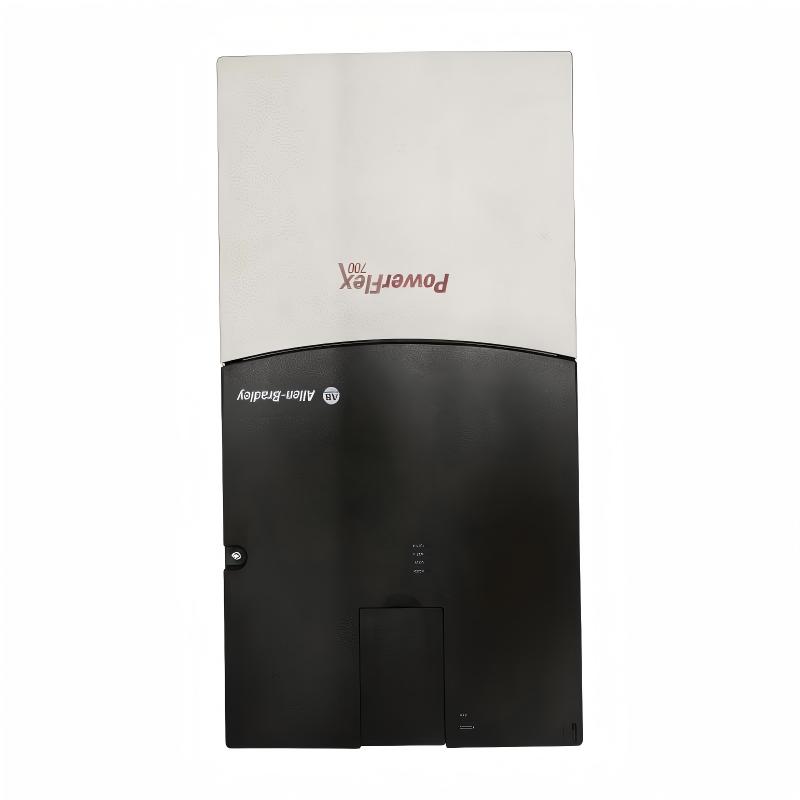

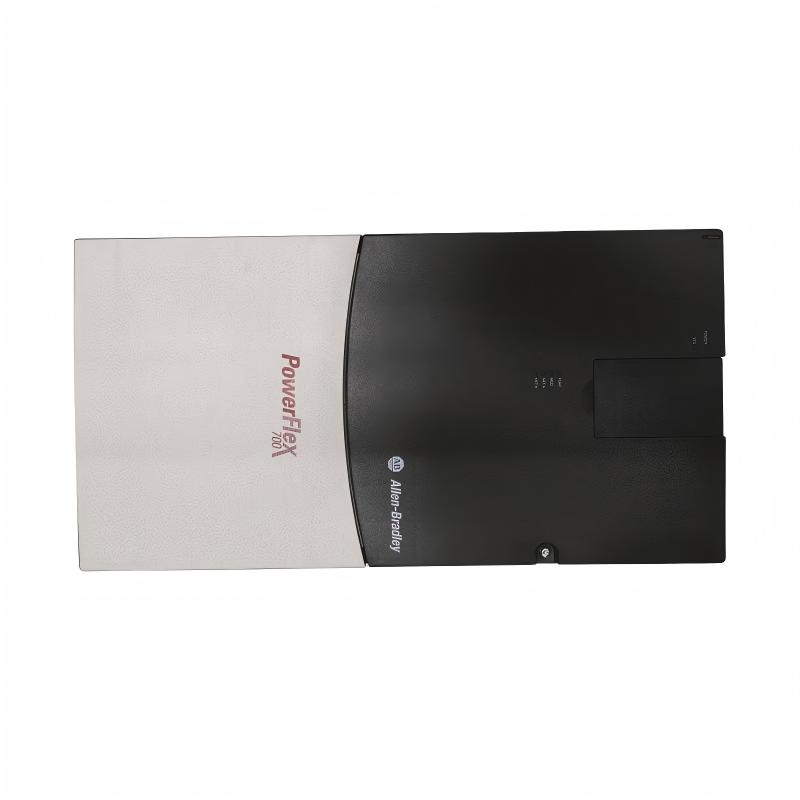

Technical Specifications

FAQ

1. What is the rated output current of 20BC125A0NNNANN0?
The 20BC125A0NNNANN0 has a rated continuous output current of 125 A. Its short-term overload capability is approximately 138 A for 1 minute and 163 A for 3 seconds. When selecting this drive for a motor application, the motor’s rated current should be compared with the drive output rating. Motor power, starting torque, acceleration requirements, load inertia, and the expected operating cycle should also be considered to ensure that the drive can handle the actual application conditions.

2. What input power supply is required for 20BC125A0NNNANN0?
The drive is designed for a three-phase AC input with a nominal voltage of 400 VAC and an applicable input voltage range of 380–480 VAC. The typical input frequency is 50 Hz. Before commissioning, the incoming supply should be checked for correct voltage, phase balance, available capacity, and proper grounding. Suitable upstream protection and correctly sized power cables should also be selected according to the complete installation. Stable input power helps prevent abnormal operating conditions and unnecessary drive protection trips.

3. What type of motor control can be used with 20BC125A0NNNANN0?
The PowerFlex 700 platform supports both standard control functions and vector-based motor control depending on the configured drive and control architecture. For applications requiring improved speed and torque response, vector control parameters can be configured when supported by the installed control configuration. Correct motor nameplate information is essential during commissioning. Rated voltage, current, frequency, and speed should match the actual motor so that the drive can establish appropriate operating characteristics and maintain stable motor performance.

4. Does 20BC125A0NNNANN0 have a built-in braking resistor?
No. This configuration does not include an internal braking resistor or a braking IGBT. When a high-inertia motor decelerates quickly, regenerative energy can return to the DC bus and cause the DC bus voltage to increase. Applications involving rapid deceleration, frequent stopping, or large regenerative loads should therefore be evaluated carefully. If the process requires substantial braking energy management, an appropriate external braking solution should be considered based on motor power, load inertia, deceleration time, and braking frequency.

5. How should an overcurrent fault be diagnosed on 20BC125A0NNNANN0?
An overcurrent fault should first be investigated by checking the motor output wiring for phase-to-phase shorts, ground faults, insulation damage, or incorrect connections. The motor itself should then be inspected for electrical problems. Mechanical conditions are also important, particularly if the machine has suddenly developed excessive friction, a seized component, or an unusually high load. If the fault occurs primarily during acceleration, the acceleration time should be reviewed. Motor parameters stored in the drive should also be compared with the actual motor nameplate data to ensure that the control configuration is correct.

6. Why can 20BC125A0NNNANN0 experience a DC bus overvoltage fault during deceleration?
During rapid deceleration, a motor driving a high-inertia load can operate as a generator and return energy to the drive. This regenerative energy increases the DC bus voltage. If the energy exceeds the drive system’s ability to manage it, a DC bus overvoltage condition can occur. Troubleshooting should include checking the deceleration time, load inertia, braking requirements, and machine operating cycle. If the application requires frequent rapid stopping, the braking method should be evaluated as part of the overall system design rather than simply changing protection parameters.

7. How should 20BC125A0NNNANN0 be commissioned with a new motor?
Before applying power, verify the incoming supply, motor connections, grounding, and control wiring. Enter the motor nameplate information accurately, including rated voltage, rated current, rated frequency, and rated speed. Configure the required start and stop commands, minimum and maximum frequency, acceleration time, and deceleration time according to the machine process. During the initial test, operate the motor at a low speed and check the rotation direction, output current, drive status, and fault information. After confirming normal operation, gradually increase the speed and load while monitoring the system response.

8. How can 20BC125A0NNNANN0 be integrated into a PLC-based automation system?
The drive can be integrated into a PLC control system using its available 24 V I/O for basic control and status signals. Typical signals can include run, stop, enable, reset, drive-ready, running status, and fault feedback. Depending on the selected system architecture, speed commands can also be provided through an appropriate analog reference or compatible communication configuration. During PLC commissioning, the control engineer should verify signal polarity, input and output assignments, speed-reference scaling, fault-reset logic, drive status feedback, and emergency-stop functions. Correct coordination between PLC logic and drive parameters is essential for reliable automated motor control.
