1. What are the main electrical specifications of the 20BC140F0ANNAND0?

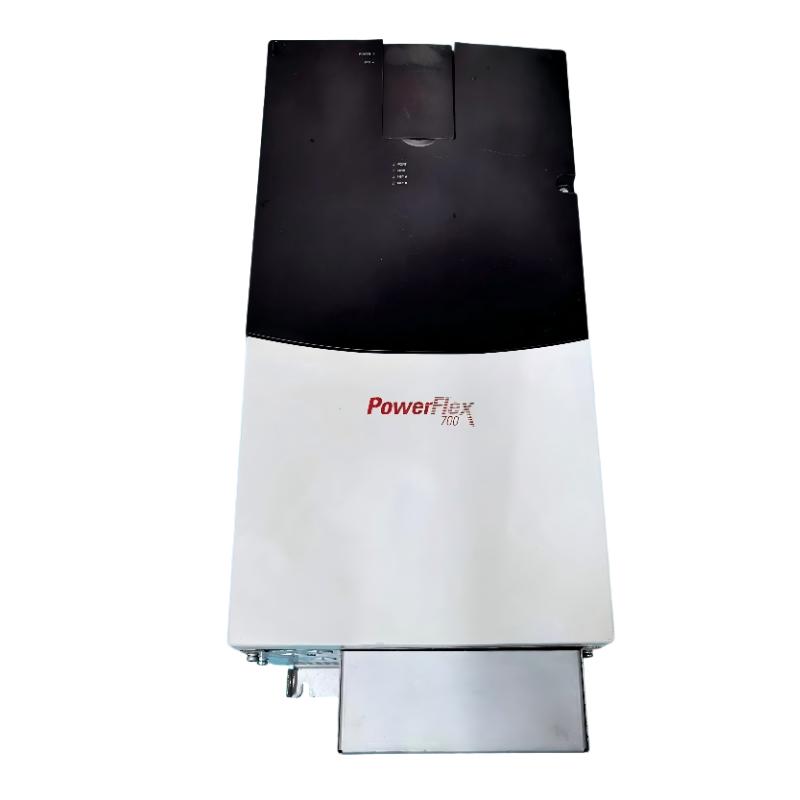

The 20BC140F0ANNAND0 is a three-phase PowerFlex 700 AC drive designed for industrial motor control applications. It operates with a 380–480 V AC input supply, with 400 V AC as the nominal input voltage, and provides a rated output current of 140 A. The drive is suitable for applications around 75 kW under normal-duty conditions and approximately 55 kW under heavy-duty conditions. It supports an output frequency of up to 420 Hz, providing flexibility for applications that require variable-speed operation. When selecting the drive for a particular motor, the motor’s rated current should be checked carefully in addition to the motor power rating. Load characteristics, acceleration requirements, overload conditions, and operating duty should also be evaluated to ensure adequate drive capacity.

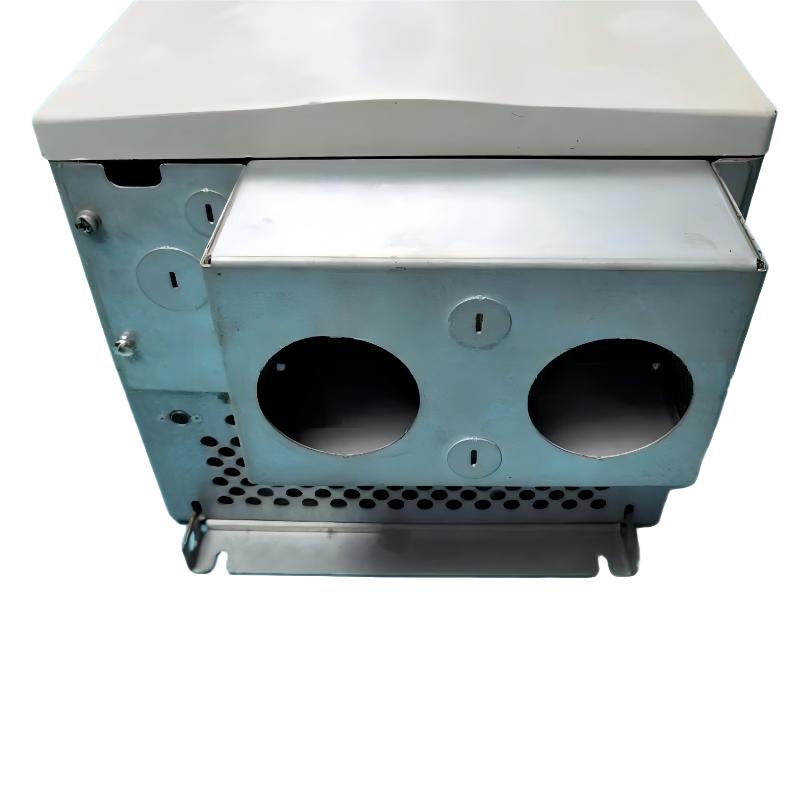

2. What are the advantages of the flange-mount configuration of the 20BC140F0ANNAND0?

The 20BC140F0ANNAND0 uses a flange-mount configuration, which allows the drive to be integrated into a suitable control cabinet or equipment enclosure while separating the power section from the protected control area. This type of installation can be useful when cabinet space, thermal management, and environmental protection need to be carefully managed. The mounting structure must provide sufficient mechanical support and allow appropriate airflow around the heat-generating components. Because this configuration is an open-type flange design, it should not simply be treated as a fully enclosed drive. The control cabinet must provide the required environmental protection against dust, moisture, accidental contact, and other site conditions while also maintaining adequate heat dissipation.

3. Does the 20BC140F0ANNAND0 include a braking resistor or brake IGBT?

The 20BC140F0ANNAND0 does not include an internal braking resistor, and this configuration does not include a brake IGBT. This should be considered carefully when applying the drive to high-inertia machinery, rapid deceleration systems, or equipment that frequently starts and stops. During deceleration, the rotating motor and load can return regenerative energy to the drive’s DC bus. If this energy causes the DC-bus voltage to rise beyond the allowable level, an overvoltage condition may occur. Applications involving rapid stopping, hoisting, winding, centrifuges, or other high-inertia equipment should therefore be evaluated for their braking requirements. An external braking solution or another appropriate method of managing regenerative energy may be necessary depending on load inertia, operating speed, deceleration time, and stopping frequency.

4. What I/O configuration is available on the 20BC140F0ANNAND0?

The 20BC140F0ANNAND0 provides six digital inputs, three digital outputs, two analog inputs, and two analog outputs for integration with industrial control systems. The drive uses a 120 V AC/DC I/O configuration, so the control voltage must be verified before connecting external PLCs, relays, switches, interlocks, or other control equipment. Digital inputs can be assigned to functions such as start, stop, enable, direction control, fault reset, and other drive commands. Analog inputs can be used for speed references or process control signals, while analog outputs can provide operating feedback or monitoring signals. During commissioning, each I/O point should be tested individually to confirm that the physical wiring, parameter assignment, signal polarity, and control logic correspond correctly with the PLC or external control system.

5. Which communication protocols are supported by the 20BC140F0ANNAND0?

The PowerFlex 700 platform supports a range of industrial communication technologies, including DeviceNet, EtherNet/IP, PROFIBUS, CAN, Modbus, TCP/IP, and LON, depending on the communication option installed. The 20BC140F0ANNAND0 configuration does not include an internal communication module, so an appropriate communication adapter may be required when integrating the drive with a PLC, SCADA system, HMI, or plant-wide industrial network. During network commissioning, the communication address, network parameters, control source, reference source, and timeout behavior should all be configured correctly. The communication link should then be tested for start and stop commands, speed references, drive status, alarms, and fault information. Proper communication configuration is especially important when the drive is remotely controlled because loss-of-communication behavior should be defined to prevent unexpected machine operation.

6. How should the motor parameters be configured on the 20BC140F0ANNAND0?

During initial commissioning, the motor parameters should be entered according to the motor nameplate and the actual motor being connected to the drive. Important parameters normally include rated voltage, rated current, rated frequency, rated speed, and other applicable motor data required by the selected control method. Accurate motor data is important because the drive uses these values to establish appropriate operating and protection characteristics. If the motor current is configured incorrectly, the drive may not provide the expected overload protection or control performance. After entering the parameters, the motor should initially be operated at a low speed so that rotation direction, current, acceleration response, and mechanical behavior can be checked. Once the low-speed test is successful, the operating frequency and load can be increased gradually while monitoring the drive for abnormal current, vibration, temperature, or fault conditions.

7. How should overcurrent, overload, or overvoltage faults on the 20BC140F0ANNAND0 be diagnosed?

Fault diagnosis should begin by identifying exactly when the fault occurs and what the motor and machine were doing at that moment. If an overcurrent or overload fault occurs during starting or acceleration, check for mechanical blockage, excessive load, insufficient acceleration time, incorrect motor parameters, or abnormal motor current. If the fault occurs during normal constant-speed operation, inspect the mechanical load, motor connections, motor condition, and incoming power supply. Overvoltage faults that occur mainly during deceleration should be investigated differently because they may be related to regenerative energy and excessive deceleration rates. The motor and load inertia, deceleration time, and stopping frequency should be reviewed in such cases. The motor cables should also be checked for loose connections, insulation damage, or incorrect wiring. Reviewing the drive’s fault history together with output current, output frequency, DC-bus behavior, and machine operating conditions can provide useful information for identifying the root cause instead of simply resetting the fault repeatedly.

8. What installation and environmental conditions should be considered for the 20BC140F0ANNAND0?

The 20BC140F0ANNAND0 is designed for operation at temperatures up to 40 °C under the specified 400 V AC condition. The specified relative humidity range is 5–95% without condensation, and the standard maximum installation altitude is 1000 m without derating. Because this model uses an open flange-mount configuration, the control cabinet or equipment enclosure must provide suitable protection from dust, moisture, accidental contact, and other environmental hazards. Adequate airflow and heat dissipation are also essential because excessive ambient temperature or restricted ventilation can increase the thermal stress on the drive. The installation should avoid areas exposed to corrosive gases, conductive dust, excessive moisture, or continuous mechanical vibration. For installations at higher altitudes or in environments with temperatures above the standard operating range, the thermal conditions should be evaluated and appropriate derating or additional cooling measures should be considered.
