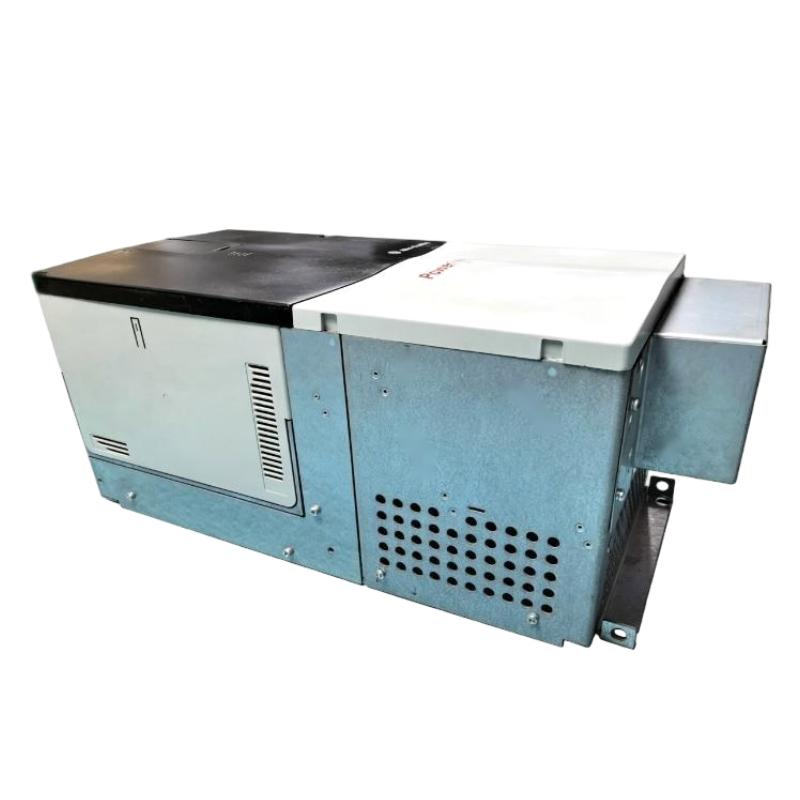

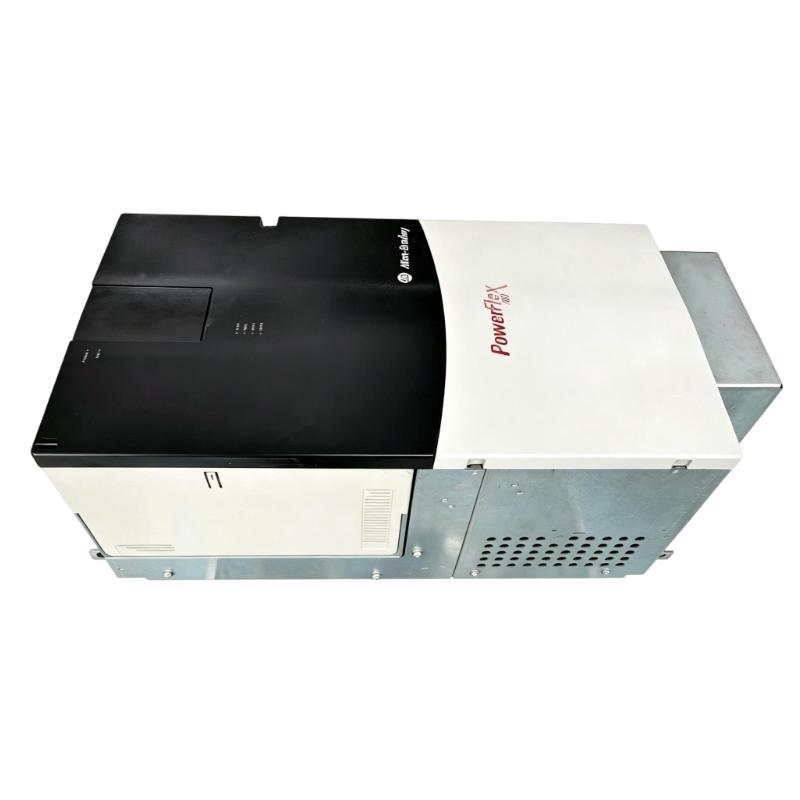

1. What is the rated output current of the Allen Bradley 20BC140GJANNANC0?
The 20BC140GJANNANC0 has a continuous rated output current of 140 A. It is designed for high-power three-phase AC motor applications and is typically used with motors up to 75 kW under normal-duty conditions or 55 kW for heavy-duty applications. Actual selection should be based on motor nameplate current, load characteristics, acceleration requirements, and operating duty rather than motor power alone.

2. What type of motor control does the 20BC140GJANNANC0 provide?
This PowerFlex 700 model uses vector control with 24 V I/O. Vector control allows the drive to regulate motor speed and torque more precisely than basic frequency control. During commissioning, the motor nameplate data should be entered accurately, including rated voltage, current, frequency, and speed. Correct motor data is important for stable operation and proper dynamic response.

3. What is the enclosure protection rating of the 20BC140GJANNANC0?

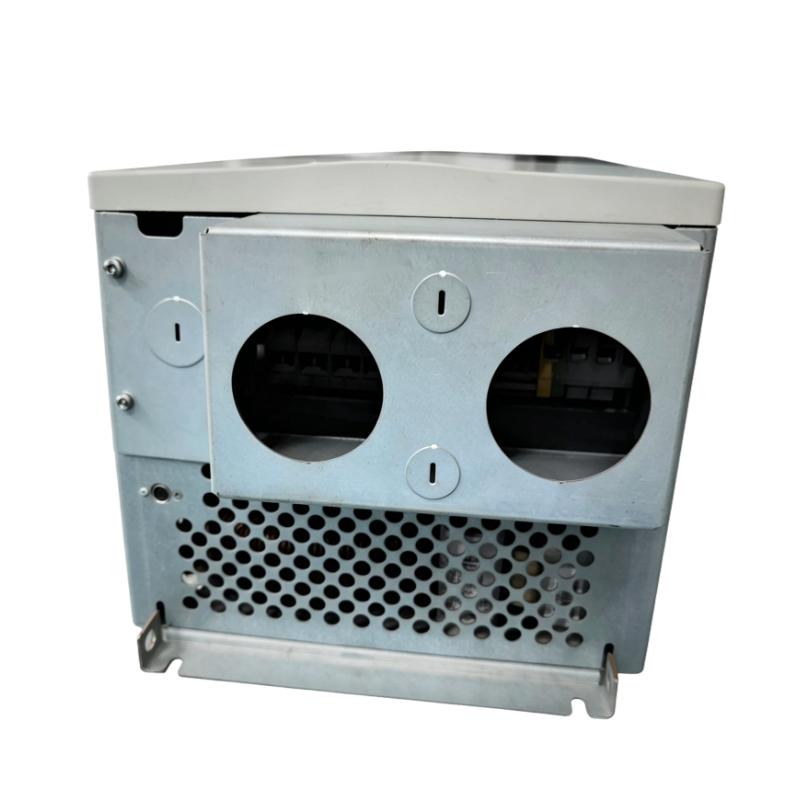

The 20BC140GJANNANC0 is designed for wall or machine mounting with an IP54 / NEMA Type 12 enclosure configuration. This provides protection against dust and other environmental contaminants suitable for many industrial installations. The installation environment should still be evaluated for temperature, humidity, corrosive substances, ventilation, and other site conditions that could affect long-term drive reliability.

4. Does the 20BC140GJANNANC0 have a built-in braking resistor?
The 20BC140GJANNANC0 does not include a drive-mounted braking resistor and does not have an integrated brake IGBT. If the application involves high-inertia loads or rapid deceleration, regenerated energy can raise the DC bus voltage. The deceleration profile should therefore be evaluated carefully, and an appropriate external braking solution should be considered when the process requires frequent or rapid stopping.

5. How should an overcurrent fault on the 20BC140GJANNANC0 be diagnosed?
Start by checking the motor output wiring for phase-to-phase shorts, ground faults, loose terminals, or incorrect connections. Mechanical problems such as excessive load torque, blocked machinery, or sudden load changes should also be investigated. If the fault occurs during acceleration, check whether the acceleration time is too short and verify the motor parameters. The drive’s fault history can help identify the operating condition that triggered the protection.

6. What can cause DC bus overvoltage during operation?
DC bus overvoltage is commonly associated with regenerative energy from the motor, especially when a high-inertia load is decelerated too quickly. Increasing the deceleration time can reduce the amount of energy returned to the drive. If the application requires rapid stopping, an external braking system may be necessary. Input voltage should also be checked to make sure the incoming supply remains within the permitted operating range.

7. How can the 20BC140GJANNANC0 be integrated into an industrial control system?
The drive provides 24 V I/O for control integration and can exchange control and status signals with an automation system through the configured control architecture. Start/stop commands, speed references, direction, running status, alarms, and fault reset functions should be tested individually during commissioning. For a PLC-based system, the control sequence should first be validated without a significant mechanical load before normal production operation.

8. What maintenance should be performed on the 20BC140GJANNANC0?
Regular maintenance should include inspection of cooling fans, ventilation paths, electrical connections, and accumulated dust or contamination. The IP54/NEMA Type 12 configuration helps protect the drive from the surrounding environment, but it does not eliminate the need for periodic inspection. Operators should also monitor temperature, unusual fan noise, repeated overcurrent or overvoltage faults, and other abnormal operating conditions. Recording fault history can help identify developing problems before they result in production downtime.
