Technical Specifications

FAQ

1. What is the rated output current of the Allen-Bradley 20BC365A0ANNNNC0?

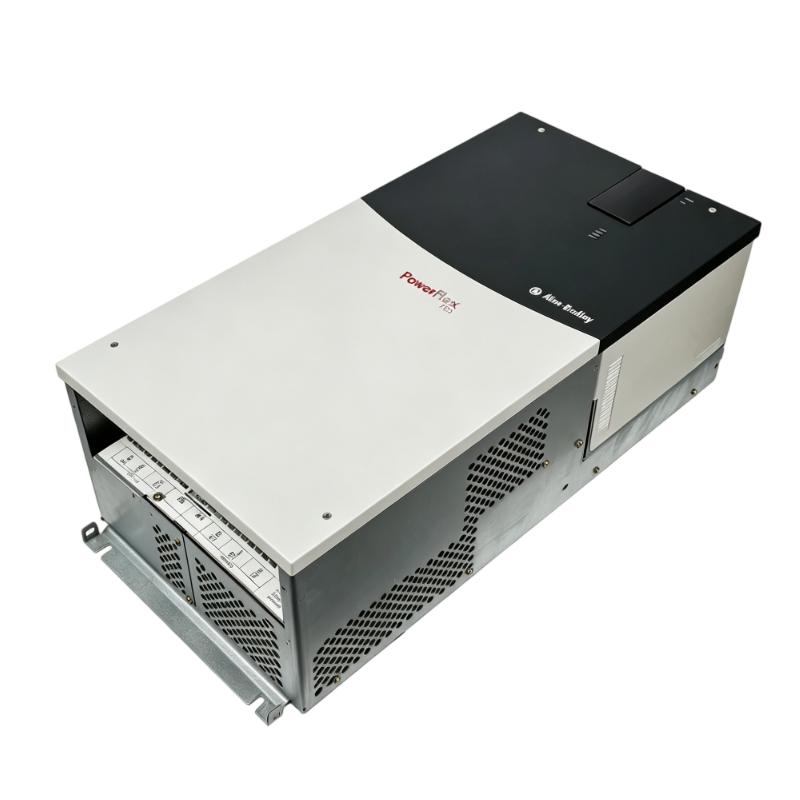

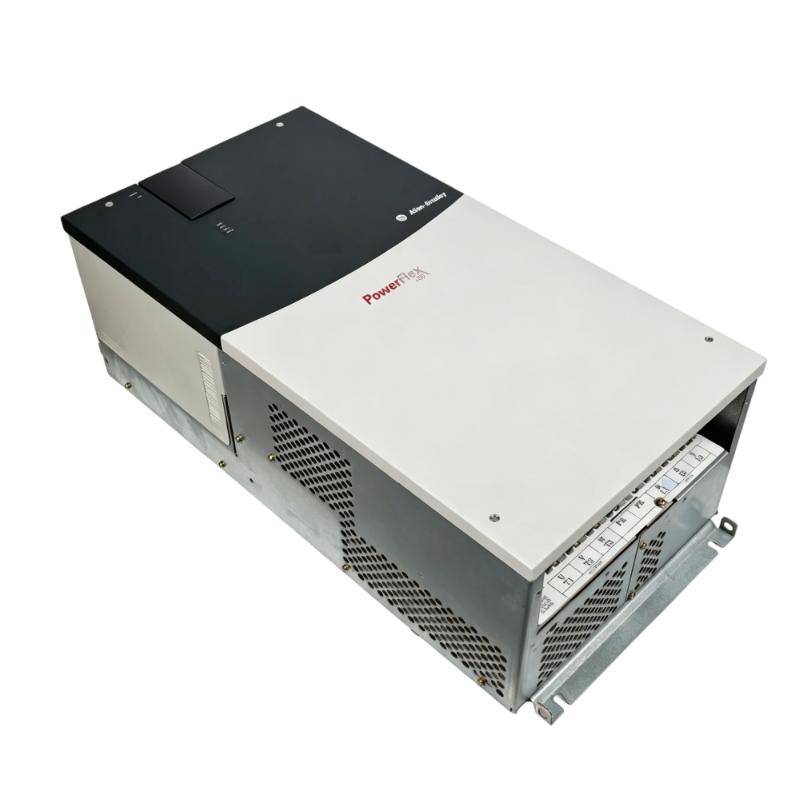

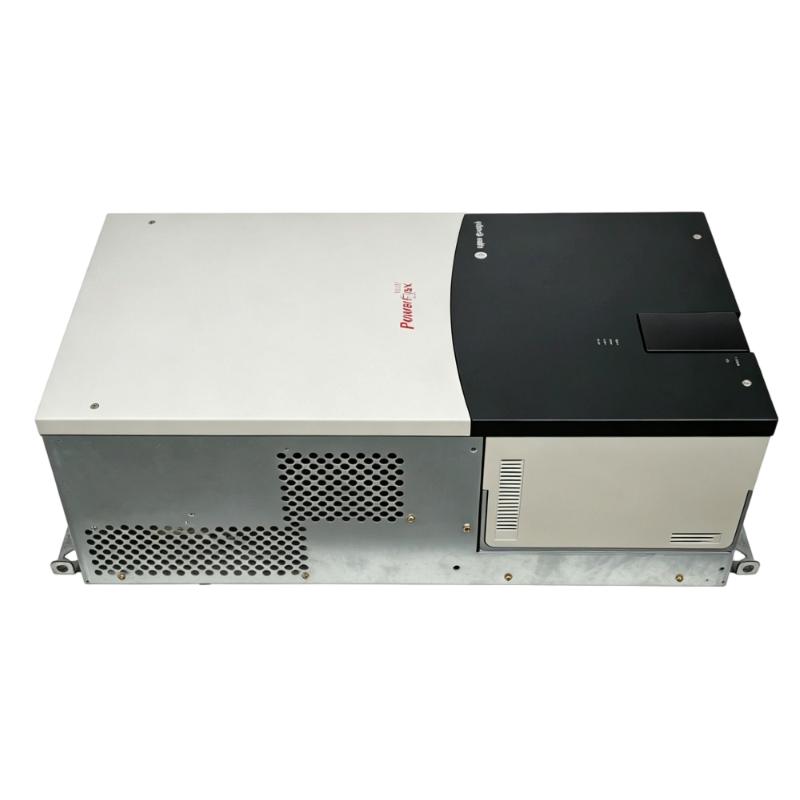

The Allen-Bradley 20BC365A0ANNNNC0 PowerFlex 700 AC Drive provides a continuous output current rating of 365 A. Under specified operating conditions, the drive can provide approximately 402 A for one minute and 548 A for three seconds during short-duration overload conditions. When selecting the drive for a motor application, the motor full-load current should be compared with the drive output-current rating rather than relying only on the motor’s nominal kW rating. This is particularly important for high-inertia machinery, conveyors, compressors, and applications requiring substantial starting or acceleration torque.

2. What are the input power requirements for the 20BC365A0ANNNNC0?
The 20BC365A0ANNNNC0 is designed for a three-phase 400 V AC power system and supports the applicable 380–480 V AC range. Before commissioning, verify the incoming voltage, phase configuration, protective devices, disconnecting equipment, grounding system, and available fault current. The power distribution system must be appropriately sized for the drive and connected load. Excessive voltage drop or an improperly sized supply can cause nuisance faults, unstable operation, or difficulty during motor acceleration.

3. What motor applications are suitable for the 20BC365A0ANNNNC0?
This model is a high-power PowerFlex 700 AC drive with a 365 A continuous output rating and approximately 200 kW normal-duty capacity. It can be used for industrial motor applications requiring adjustable-speed operation, controlled acceleration, controlled deceleration, and variable torque or constant torque control. Typical applications can include conveyors, pumps, fans, compressors, material-handling equipment, and other large motor-driven systems. Final drive selection should consider motor rated current, load profile, overload requirements, acceleration characteristics, operating speed range, ambient conditions, and braking requirements.

4. How should vector control be configured on the 20BC365A0ANNNNC0?
Vector control should be configured using accurate motor nameplate information. Important parameters normally include motor rated voltage, rated current, rated frequency, rated speed, and other motor-specific characteristics required by the control algorithm. Where applicable, an identification or autotune procedure can be performed to establish appropriate motor-control parameters. Incorrect motor data may result in poor torque response, excessive motor current, unstable speed regulation, or unexpected drive faults. During commissioning, verify the motor parameters before applying full mechanical load and confirm that the actual motor behavior matches the expected operating characteristics.

5. Does the 20BC365A0ANNNNC0 include an internal braking resistor or Brake IGBT?
The 20BC365A0ANNNNC0 configuration does not include an internal braking resistor or Brake IGBT. Applications involving high-inertia loads or rapid deceleration should therefore be evaluated for regenerative energy. When the motor decelerates, mechanical energy can be returned to the drive DC bus, causing the DC-bus voltage to rise. If the application requires frequent or aggressive braking, an external braking or regenerative solution may be required. The appropriate solution should be selected according to braking energy, deceleration time, duty cycle, and machine operating requirements.

6. What should be checked if the 20BC365A0ANNNNC0 trips on overcurrent during acceleration?
Begin by checking the driven machinery for excessive mechanical load, locked components, abnormal friction, damaged bearings, or other mechanical restrictions. Then verify the motor nameplate parameters and acceleration-time settings in the drive. An acceleration time that is too short can require excessive current, especially when driving a high-inertia load. Motor cable connections, insulation, grounding, output terminals, and phase connections should also be inspected. If the mechanical system is normal, review current-limit, torque-control, and vector-control parameters together with the drive fault history to determine whether the problem is electrical, configuration-related, or load-related.

7. Why can the PowerFlex 700 experience DC-bus overvoltage during deceleration?
During deceleration, a motor connected to a high-inertia mechanical load can temporarily operate as a generator and return energy to the drive. This regenerative energy raises the DC-bus voltage. If the energy cannot be dissipated or transferred back to the power system, the drive may eventually generate a DC-bus overvoltage fault. Because the 20BC365A0ANNNNC0 does not include an internal braking resistor or Brake IGBT, applications requiring rapid deceleration should be evaluated carefully. Increasing the deceleration time or using an appropriate external braking or regenerative system can help manage regenerated energy.

8. What maintenance is recommended for the 20BC365A0ANNNNC0?
Routine maintenance should include inspection of cooling fans, ventilation paths, heat-sink surfaces, power terminals, control wiring, grounding connections, and cabinet airflow. Dust, conductive contamination, or restricted airflow can increase operating temperature and reduce drive reliability. During scheduled maintenance, inspect terminals and electrical connections for signs of overheating, discoloration, corrosion, loose connections, or damaged insulation. Reviewing fault history can also help identify recurring electrical or thermal problems. Before internal inspection, the drive should be properly isolated from the power supply and sufficient time should be allowed for the DC bus to discharge.
