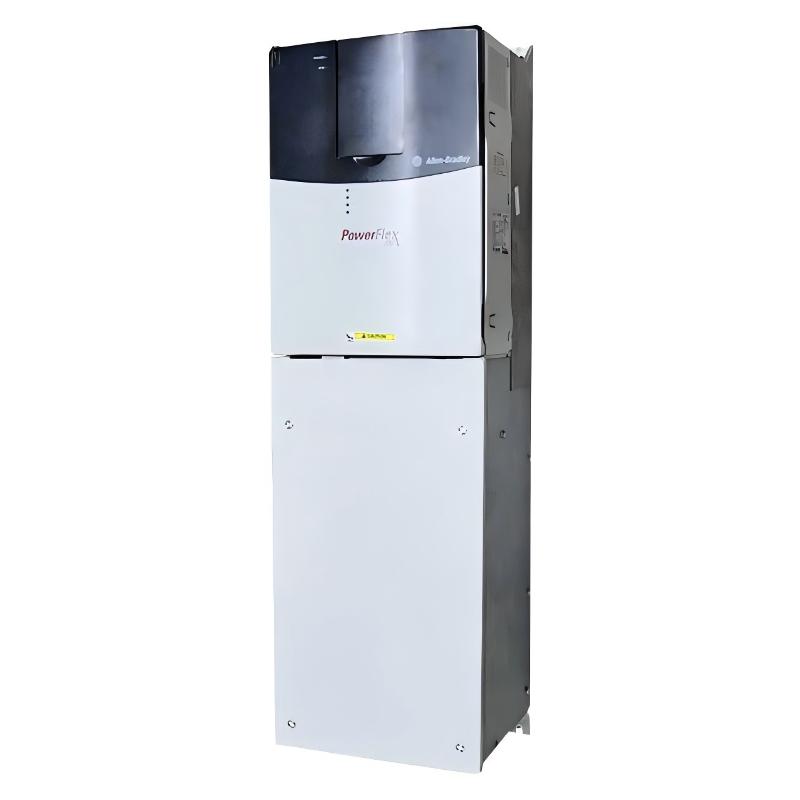

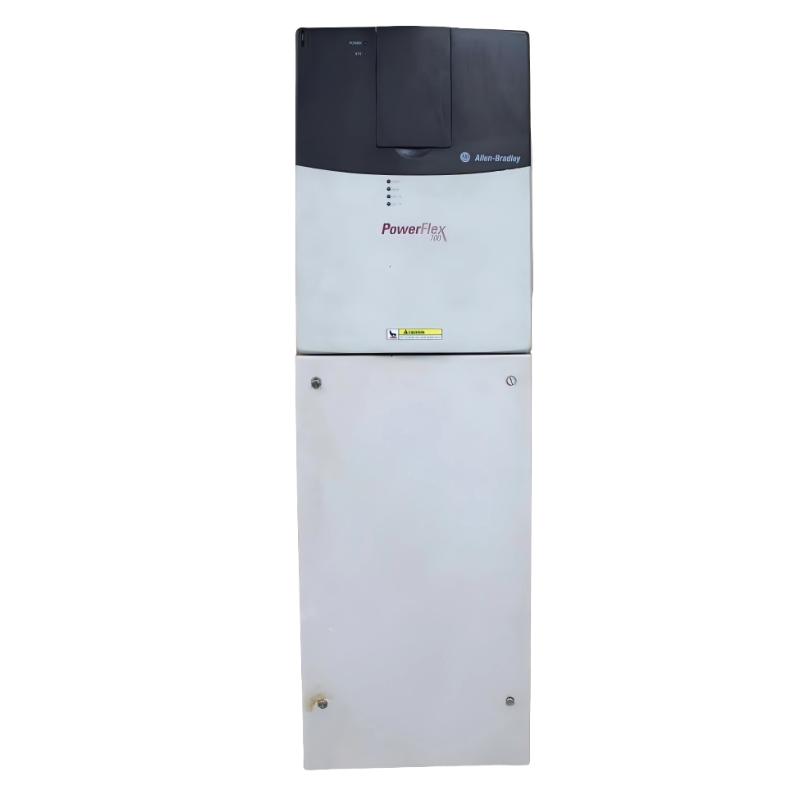

1. What is the rated output current of the Allen-Bradley 20BC481N0ANNNNC0?
The 20BC481N0ANNNNC0 PowerFlex 700 AC Drive has a continuous output current rating of 481 A, with approximately 530 A available for one-minute overload operation and 722 A for three-second overload operation. At a 400 V AC system voltage, the drive corresponds to approximately 280 kW for normal-duty applications and 240 kW for heavy-duty applications. Drive selection should be based primarily on the motor’s rated current, actual load characteristics, and operating duty rather than motor power alone. High-inertia and high-starting-torque applications should also be evaluated against the available overload capacity.

2. What type of power supply is required for the 20BC481N0ANNNNC0?
The 20BC481N0ANNNNC0 is designed for a three-phase 380–480 V AC power system, with 400 V AC being the typical nominal input voltage. Before installation, verify the incoming supply voltage, available power capacity, upstream protection, disconnecting equipment, and grounding arrangement. Because this is a high-current drive, input conductors and protective devices must be appropriately sized for the actual installation. Voltage drop, short-circuit capacity, cabinet ventilation, and power-system stability should also be considered during system design.

3. What industrial motor applications are suitable for the 20BC481N0ANNNNC0?
With a continuous output rating of 481 A, the 20BC481N0ANNNNC0 is intended for large industrial motor applications requiring variable-speed control. The drive can be considered for conveyors, fans, pumps, compressors, material-handling machinery, and other high-power equipment. The final application should be evaluated using motor rated current, load inertia, operating speed range, starting torque, acceleration and deceleration requirements, and duty cycle. Applications involving frequent starting or high dynamic loads require particular attention to the drive’s overload capability.

4. What motor parameters should be configured when using vector control?
For vector-control operation, accurate motor nameplate data should be entered into the drive. This normally includes motor rated voltage, rated current, rated frequency, and rated speed, together with other parameters required by the selected control method. Where applicable, a motor identification or autotune procedure can be performed. Incorrect motor parameters may cause excessive current, insufficient torque, unstable speed regulation, or overcurrent during acceleration. After configuration, a no-load or low-load test should be performed before the motor is operated under full mechanical load.

5. Does the 20BC481N0ANNNNC0 include a Brake IGBT or internal braking resistor?
The N0 configuration does not include a Brake IGBT or internal braking resistor. This is important when the drive is connected to high-inertia equipment or machinery requiring rapid deceleration. During deceleration, mechanical energy can be regenerated from the motor into the drive’s DC bus, increasing DC-bus voltage. If the regenerated energy cannot be adequately managed, the drive may generate a DC-bus overvoltage fault. Applications requiring rapid or frequent braking should therefore be evaluated for an external braking or regenerative-energy solution.

6. How should an overcurrent fault on the 20BC481N0ANNNNC0 be investigated?
Start by checking the mechanical load for binding, locked components, excessive friction, bearing problems, or sudden increases in load torque. Then verify motor rated parameters, acceleration time, current-limit settings, and vector-control configuration. If the acceleration time is too short, a high-inertia load may demand excessive current during startup. Motor cables, output terminals, phase connections, and insulation should also be inspected. The drive fault history can help determine whether the overcurrent occurs during startup, acceleration, steady-state operation, or a sudden load change, which helps narrow down the cause.

7. What causes a DC-bus overvoltage fault during deceleration?
When a high-inertia load decelerates rapidly, the motor can operate in a regenerative condition and return mechanical energy to the drive’s DC bus. This causes the DC-bus voltage to rise. Since the 20BC481N0ANNNNC0 does not include an internal Brake IGBT or braking resistor, rapid-deceleration applications require careful evaluation of regenerative energy. Increasing the deceleration time can reduce the rate at which energy is returned to the DC bus. If rapid stopping is mandatory, an external braking or regenerative system may be required based on load inertia, braking frequency, and deceleration time.

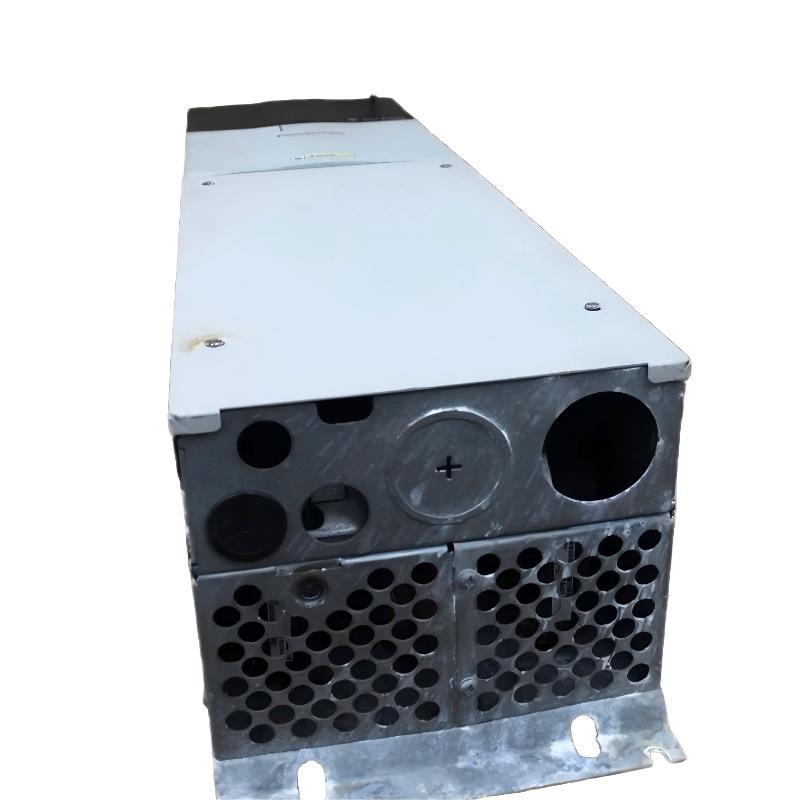

8. What maintenance should be performed on the 20BC481N0ANNNNC0?
Routine maintenance should focus on cooling airflow, fans, heat sinks, power terminals, control wiring, and grounding connections. As a high-power Frame 8 drive, proper thermal management is important for long-term reliability. Dust and other contaminants should be removed from ventilation areas, and airflow should be checked regularly. Electrical connections should be inspected for looseness, overheating, discoloration, or corrosion. Reviewing the drive fault history can also help identify recurring overcurrent, overvoltage, or overtemperature conditions. Before maintenance, isolate the drive from all power sources and verify that the DC bus has discharged to a safe level.
