Technical Specifications

FAQ

1. What are the input voltage and rated output current of 20BD077A3ANNAND0?

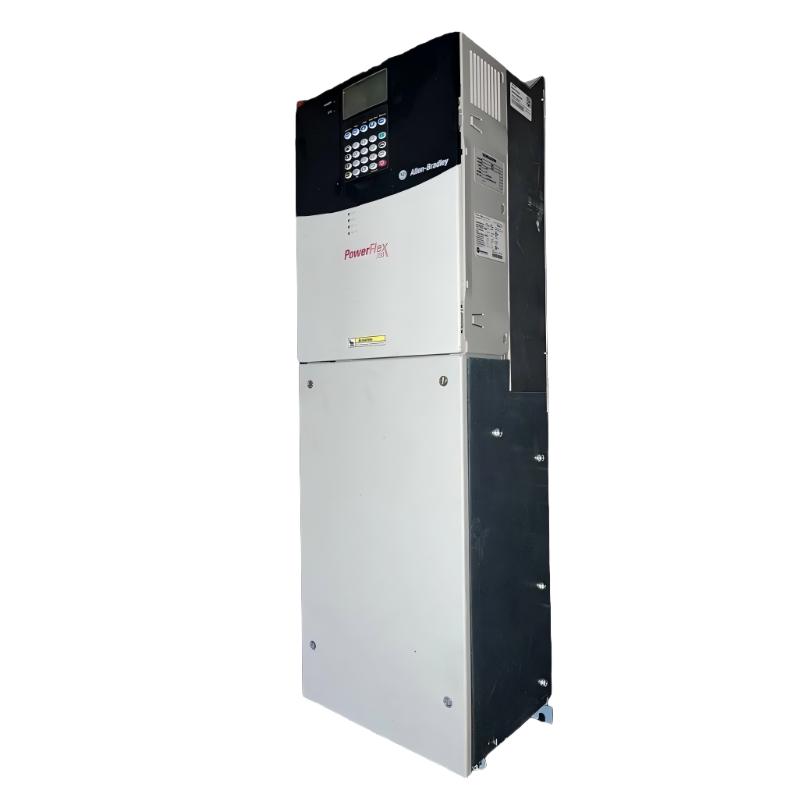

20BD077A3ANNAND0 is a PowerFlex 700 AC drive designed for three-phase 480 VAC power systems, with a rated output current of 77 A. The input power configuration should be matched with the plant electrical system and the applicable protective equipment. When selecting this drive for a motor application, the motor nameplate current is particularly important because the drive should be sized according to the actual motor current and duty requirements rather than relying only on the motor horsepower rating. Proper incoming power protection, grounding, conductor sizing, and installation practices are also important for maintaining stable operation and protecting the drive from electrical disturbances.

2. What motor power rating is supported by 20BD077A3ANNAND0?
20BD077A3ANNAND0 provides a normal-duty power rating of 60 HP and a heavy-duty power rating of 50 HP. The appropriate rating depends on the type of application and the load profile. Applications with relatively stable loads may operate under the normal-duty rating, while applications involving frequent acceleration, high starting torque, rapid load changes, or repeated overload conditions should be evaluated using the heavy-duty rating. Before commissioning, the motor voltage, full-load current, frequency, power, and other nameplate information should be entered correctly into the drive so that the control system can operate within the intended electrical and thermal limits.

3. What control technology does 20BD077A3ANNAND0 use?
20BD077A3ANNAND0 uses vector control technology, which provides more precise motor control than basic scalar control methods in many industrial applications. Vector control can provide improved speed regulation, torque response, and overall motor performance, making the drive suitable for applications where stable and responsive motor operation is required. During commissioning, correct motor data configuration is essential because the drive’s control performance depends on accurate motor parameters. If the application requires precise speed or torque control, the commissioning process should also include appropriate motor identification and tuning procedures supported by the drive configuration.

4. Does 20BD077A3ANNAND0 include a communication module?
The 20BD077A3ANNAND0 configuration does not include an integrated communication module. If the drive needs to exchange operating commands, speed references, status information, or diagnostic data with a PLC, DCS, HMI, or industrial network, the communication requirements should be evaluated before installation. The selected communication solution must be compatible with the overall control architecture. After adding the required communication hardware, parameters such as node address, communication settings, control source, reference source, and data mapping should be configured correctly. The control system should then be tested to verify that start, stop, speed reference, drive status, and fault information are transmitted correctly.

5. What should be checked when 20BD077A3ANNAND0 reports an overcurrent fault?
An overcurrent fault should first be investigated from both the electrical and mechanical sides of the system. Check the motor output wiring for short circuits, incorrect connections, damaged insulation, or grounding problems. The motor itself should also be inspected for abnormal mechanical resistance, locked components, excessive load, or sudden changes in operating conditions. If the fault occurs primarily during acceleration, the acceleration time may be too short for the connected load. Motor nameplate parameters should also be verified because incorrect voltage, current, frequency, or motor data can negatively affect drive control. If the external motor circuit and mechanical system are confirmed to be normal but the overcurrent fault continues, the drive’s output power section and associated circuitry may require further technical inspection.

6. What can cause excessive temperature during operation of 20BD077A3ANNAND0?
Excessive operating temperature can result from insufficient ventilation, high ambient temperature, continuous high load, blocked cooling passages, or problems with the drive’s cooling system. The installation environment should provide adequate airflow around the drive, and the enclosure should not allow excessive heat from other electrical equipment to accumulate around the unit. Dust and contaminants can gradually restrict ventilation paths and reduce cooling efficiency, particularly in industrial environments. The actual motor current should also be monitored because continuous operation near the drive’s maximum current can increase internal thermal stress. If the drive operates at a high load for extended periods, the application should be reviewed to determine whether the selected drive capacity and duty rating are appropriate.

7. Why might 20BD077A3ANNAND0 fail to start the connected motor?
If the motor does not start, troubleshooting should begin by verifying that the drive has a valid incoming power supply and is not displaying an active fault or alarm condition. The start command source and speed reference source should then be checked to ensure that the drive is receiving the expected control signals. Since this model uses 120 VAC I/O, the associated control wiring and I/O states should be verified carefully. External interlocks, permissive signals, emergency stop circuits, and other machine-level conditions may also prevent the drive from receiving a valid run command. In addition, motor parameters, minimum and maximum frequency settings, acceleration time, and control mode should be reviewed. When a PLC or other controller is used, its command logic should be compared with the actual drive configuration to ensure that the control source has been correctly assigned.

8. What should be checked when commissioning a replacement 20BD077A3ANNAND0?
When commissioning a replacement 20BD077A3ANNAND0, the first step is to verify all power, motor, control, and grounding connections before applying power. The drive parameters should then be compared with the original system configuration, with particular attention to motor voltage, motor current, motor frequency, motor power, control mode, acceleration and deceleration settings, command source, and reference source. The motor should initially be operated under low-load or no-load conditions where appropriate, allowing the technician to verify the direction of rotation, output frequency, current, and general operating behavior. After basic operation is confirmed, the load can be increased gradually while monitoring drive status and motor performance. Start, stop, acceleration, deceleration, fault response, external interlocks, and controller communication should all be tested before returning the equipment to normal production. This systematic commissioning process helps identify wiring errors, incorrect parameters, and control-system mismatches before they cause repeated trips or equipment damage.
