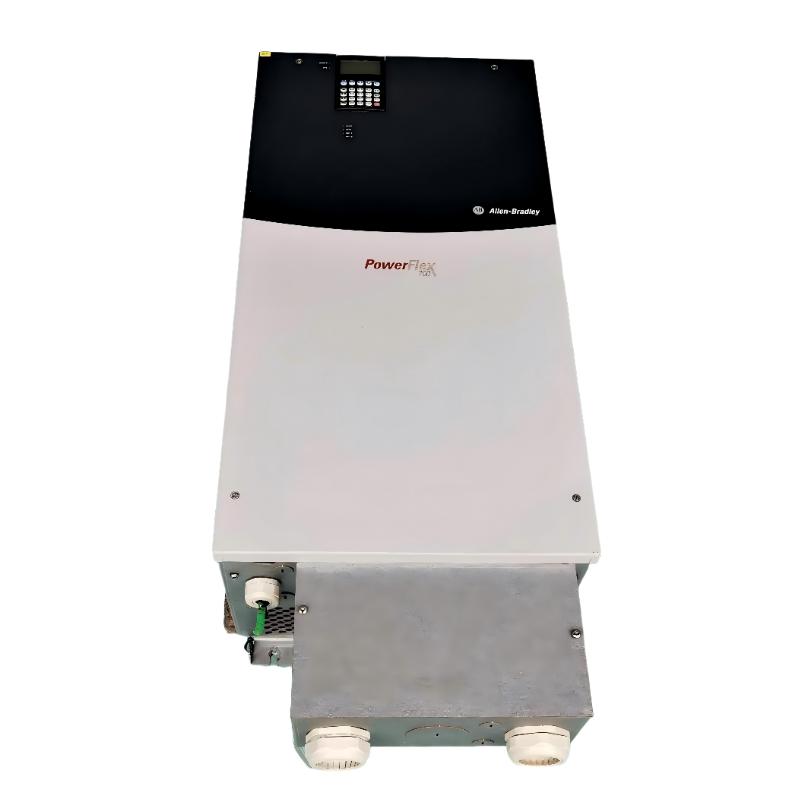

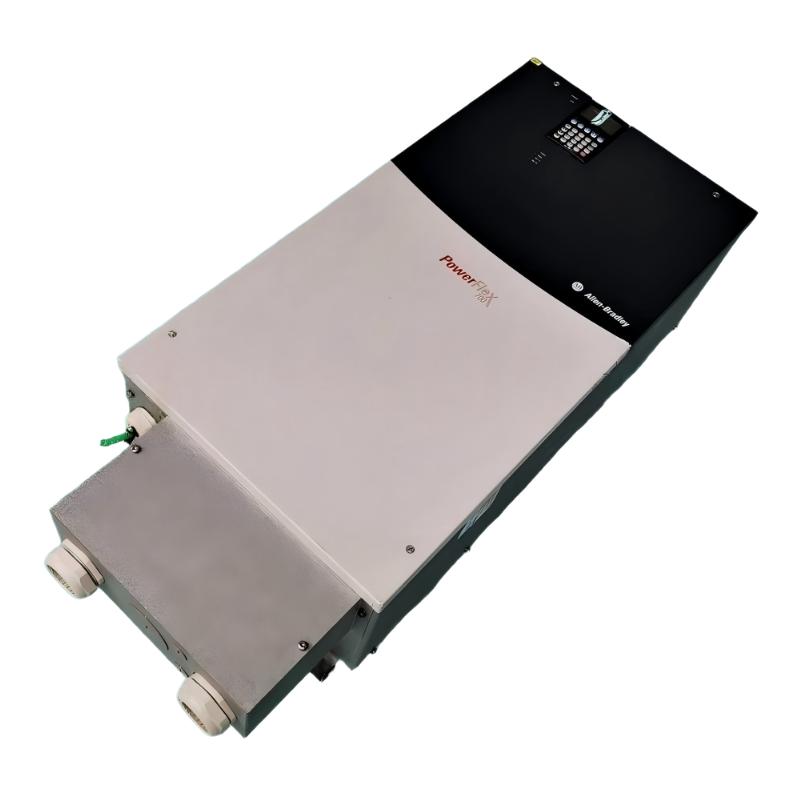

1. What is the rated output capacity of the Allen-Bradley 20BD180A3ANNANC1?
The 20BD180A3ANNANC1 has a continuous output current rating of 180 A at 480 VAC, three-phase operation. It is rated for 150 HP under normal-duty conditions and 125 HP under heavy-duty conditions. For short-duration overload operation, the drive can deliver 234 A for one minute and 312 A for three seconds. Proper sizing should be based on the motor’s actual full-load current, load characteristics, acceleration requirements, and duty cycle rather than horsepower alone. Applications involving frequent starts, high-inertia loads, or repeated overload conditions should be evaluated carefully to make sure the drive has sufficient current and thermal capacity for the required operating profile.

2. Which motor control methods are supported by the 20BD180A3ANNANC1?
The PowerFlex 700 20BD180A3ANNANC1 supports vector control, sensorless vector control, and programmable V/Hz control. Sensorless vector control can provide improved low-speed torque and speed regulation without requiring an encoder, making it suitable for many general industrial applications. With encoder feedback available, the drive can achieve tighter speed and torque control for applications where higher performance is required. V/Hz control is generally suitable for simpler applications such as pumps, fans, and standard motor loads. Accurate motor nameplate information should be entered during commissioning, and the appropriate motor tuning procedure should be performed when using vector-based control to achieve stable current and torque performance.

3. Does the 20BD180A3ANNANC1 have an internal brake resistor or brake IGBT?
No. This configuration does not include an internal brake IGBT or internal brake resistor. During rapid deceleration, high-inertia loads can regenerate energy back into the drive, causing the DC bus voltage to rise. If the regenerated energy cannot be dissipated, a DC bus overvoltage fault may occur. Applications such as large fans, centrifuges, hoists, conveyors, and other equipment with frequent or rapid stopping should therefore be evaluated for external dynamic braking requirements. The required braking solution depends on motor speed, load inertia, deceleration time, stopping frequency, and regenerated power. Simply reducing the deceleration time may increase the risk of overvoltage trips if the regenerated energy is excessive.

4. How should an overcurrent fault on the 20BD180A3ANNANC1 be troubleshot?
Begin by checking the driven mechanical equipment for excessive load, mechanical binding, bearing problems, or sudden increases in resistance. Next, verify that the motor voltage, current, frequency, and speed parameters programmed into the drive match the motor nameplate. If the fault occurs primarily during acceleration, increasing the acceleration time can reduce the instantaneous current demand. The motor and output cables should also be inspected for phase-to-phase faults, insulation problems, or incorrect connections. When sensorless vector control is being used, incorrect motor data or incomplete motor tuning can affect current regulation and should be checked. If encoder feedback is used, inspect the encoder supply, wiring, connectors, and feedback configuration for intermittent or incorrect signals.

5. What I/O interfaces are provided by the 20BD180A3ANNANC1?
The drive provides six digital inputs, three digital outputs, two analog inputs, and two analog outputs. These interfaces can be assigned to functions such as start, stop, enable, jog, fault reset, preset speed selection, running status, fault indication, and process feedback. Analog inputs can receive speed or process references from a PLC, DCS, potentiometer, or field instrument, while analog outputs can provide operating information to a control system or monitoring device. Because the I/O functions are configurable, commissioning should include verification of terminal wiring, signal type, scaling, and parameter assignment. This is particularly important when the drive is connected to an automated control system where an incorrect signal assignment could result in an unexpected start or incorrect motor speed.

6. Can the 20BD180A3ANNANC1 be integrated with a PLC or DCS?
Yes. The 20BD180A3ANNANC1 supports industrial automation integration through its control I/O and ControlNet communication capability. A PLC or DCS can be used to exchange operating commands, speed references, drive status, alarms, and fault information with the drive. During system design, it is important to determine whether the primary control method will use hardwired I/O or network communication. Communication node settings, command source, reference source, and fault-handling behavior should be configured consistently between the drive and the control system. For critical equipment, the control strategy should also define what happens if communication is lost, including the required stop behavior and recovery procedure.

7. Which parameters should be checked before commissioning the 20BD180A3ANNANC1?
Before the first motor run, verify the incoming power configuration and all motor nameplate data, including rated voltage, current, frequency, and speed. The selected control method, command source, and speed reference source should also be confirmed. Acceleration and deceleration times should be appropriate for the mechanical load, while maximum frequency, minimum frequency, current limit, and stop mode should be reviewed. If vector control is selected, complete the required motor tuning procedure. For applications using encoder feedback, verify encoder power, signal wiring, feedback direction, and related drive parameters. Digital and analog I/O should be tested individually, followed by a controlled low-speed test before the motor is placed into normal automatic operation.

8. What maintenance practices help improve the reliability of the 20BD180A3ANNANC1?
Routine maintenance should focus on cooling, electrical connections, feedback wiring, and environmental conditions. Keep ventilation paths and cooling components clean and make sure accumulated dust or conductive contamination does not restrict airflow. Power terminals, motor terminals, and control connections should be inspected periodically for looseness, discoloration, or signs of overheating. Because this configuration supports encoder feedback, the encoder cable, connectors, shielding, and signal integrity should also be checked when speed feedback problems occur. Recording fault codes, output current, DC bus voltage, and operating temperature can help identify developing problems. The drive should be operated within its specified voltage, temperature, humidity, and load limits to reduce thermal stress and improve long-term operating stability.
