1. What are the main electrical specifications of the Allen Bradley 20BE144A0ANNAND0?

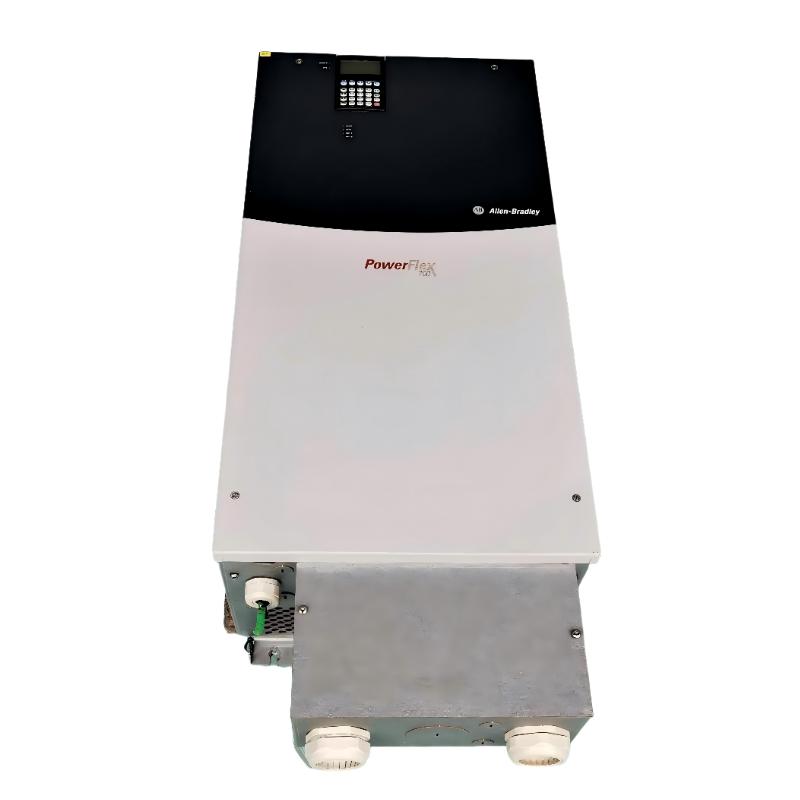

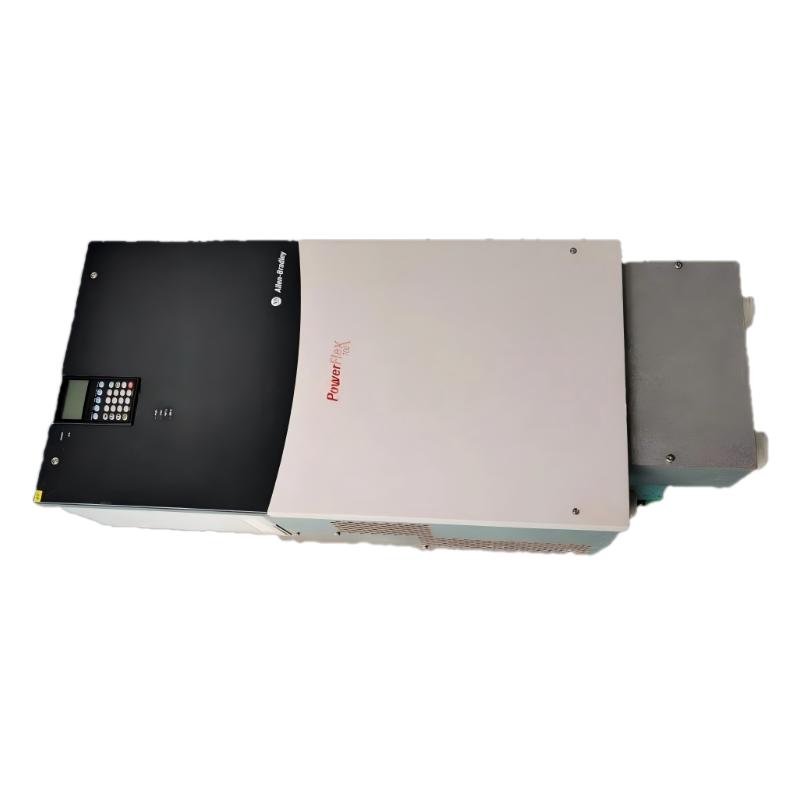

The 20BE144A0ANNAND0 is a PowerFlex 700 AC drive designed for 600 VAC, three-phase, 60 Hz power systems. It provides a continuous output current of 144 A and is rated for 150 HP under Normal Duty and 125 HP under Heavy Duty operation. This makes it suitable for high-power industrial motor control applications.

2. What type of motor control does the 20BE144A0ANNAND0 use?
The drive uses vector control with 120 VAC I/O. Sensorless vector control provides improved speed and torque performance compared with basic V/Hz control, particularly during acceleration, deceleration, and changing load conditions. It is suitable for applications where stable motor speed and good torque response are required without encoder feedback.

3. Does the 20BE144A0ANNAND0 include encoder feedback?
The standard configuration does not include feedback. The drive can operate using sensorless vector control, which calculates motor operating conditions from electrical measurements. If an application requires closed-loop speed control, precise low-speed operation, or positioning, an appropriate PowerFlex 700 feedback option and compatible encoder should be considered.

4. Does this model have an internal brake resistor or brake IGBT?
No. The 20BE144A0ANNAND0 is supplied without a brake IGBT and without an internal brake resistor. If the application involves rapid deceleration or a high-inertia load that generates significant regenerative energy, an external braking solution may be required. The braking system should be selected based on motor power, load inertia, deceleration time, and braking frequency.

5. How can the 20BE144A0ANNAND0 be integrated with a PLC or DCS?
The drive does not include an internal communication module in this configuration, but it provides standard analog and digital I/O for hardwired control. It has 2 analog inputs, 2 analog outputs, 6 digital inputs, and 3 digital outputs. The RS-485 interface can also be used where the system architecture requires serial communication.

For PLC or DCS integration, the control system should be configured consistently with the drive’s start/stop command source, speed reference, operating status, fault signals, and reset logic. Proper signal isolation and grounding are also important in industrial environments.

6. What should be checked if the 20BE144A0ANNAND0 reports an overcurrent fault?
An overcurrent fault may be caused by excessive mechanical load, incorrect motor parameters, a short acceleration time, mechanical binding, motor cable problems, or motor insulation issues. Check the motor nameplate data programmed into the drive, inspect the motor and connected machinery, and verify that acceleration settings are suitable for the load.

If the fault occurs mainly during startup or acceleration, motor parameter configuration and load inertia should be checked first. If it occurs during normal operation, investigate mechanical overload, motor current balance, cable insulation, and possible bearing or transmission problems.

7. What are the Normal Duty and Heavy Duty ratings of the 20BE144A0ANNAND0?
The 20BE144A0ANNAND0 is rated at 150 HP for Normal Duty applications and 125 HP for Heavy Duty applications. Normal Duty is generally associated with applications having moderate overload requirements, while Heavy Duty operation is intended for applications with higher starting torque or more demanding overload conditions.

When selecting the drive for a specific motor, the actual load profile should be considered rather than selecting solely according to motor horsepower. Starting current, acceleration requirements, operating cycle, load inertia, and continuous current demand all affect the appropriate drive rating.

8. What protection and operating conditions should be considered when using this drive?
The PowerFlex 700 provides motor overload protection and adjustable acceleration and deceleration settings from 0 to 3600 seconds. Correct motor parameters, current limits, overload settings, and thermal protection should be configured according to the motor and application. The drive is designed for an operating temperature range of 0–50 °C and relative humidity of 5–95% without condensation.

For reliable operation, the installation should also provide adequate ventilation and protection from conductive dust, excessive moisture, and other environmental contaminants. When the application involves frequent braking, rapid speed changes, or high-inertia loads, the DC bus and regenerative energy conditions should be evaluated carefully.
