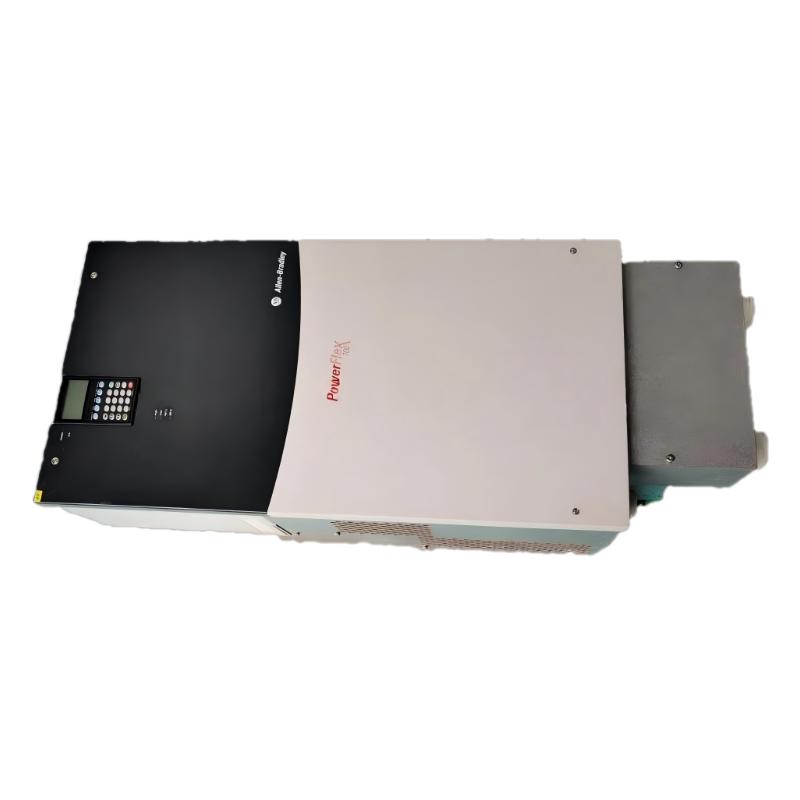

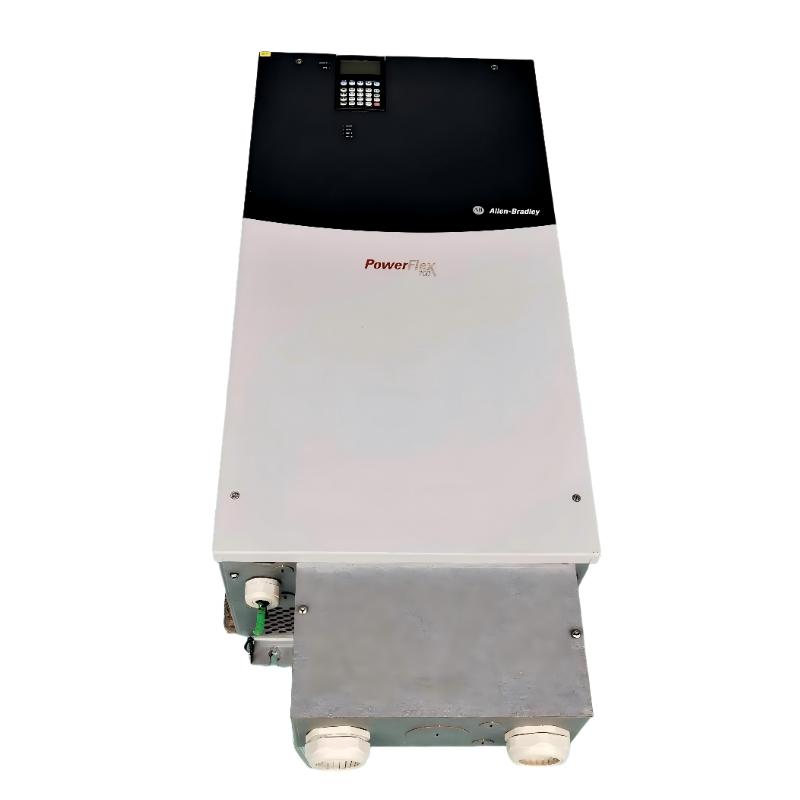

1. What is the rated input voltage of 20BF098A0ANNANC0?

The 20BF098A0ANNANC0 is designed for three-phase AC power in the 500–690 VAC range, with 690 VAC being the rated voltage for this configuration. Before installing the drive, the actual incoming line voltage should be measured and verified to ensure that it is suitable for the drive. The three-phase supply should also be checked for excessive voltage imbalance, loose connections, and abnormal fluctuations.

Because this drive is intended for high-voltage industrial applications, the incoming power system must be properly protected and grounded. Correct circuit breakers, fuses, disconnecting devices, conductors, and grounding arrangements should be selected according to the installation requirements. Before energizing the drive, technicians should verify the input terminals and confirm that the motor voltage and frequency are compatible with the drive output.

If the incoming voltage is outside the permitted range, the drive may experience abnormal DC bus voltage, excessive input current, overheating, or protective trips. During replacement projects, it is therefore recommended to measure the actual plant power supply rather than relying only on the specifications of the previously installed drive.

2. What is the continuous output current of 20BF098A0ANNANC0?

The 20BF098A0ANNANC0 has a continuous output current rating of 98 A. It can also provide higher short-term current capability, with a 1-minute overload rating of 123 A and a 3-second overload rating of 140 A. These ratings allow the drive to handle temporary increases in motor load when the application is correctly configured.

The drive is suitable for approximately 90 kW normal-duty applications and 75 kW heavy-duty applications. However, motor selection should not be based on power rating alone. The motor’s full-load current, starting torque, acceleration requirements, load inertia, operating cycle, and environmental conditions should all be considered.

For applications involving frequent starts, rapid acceleration, heavy mechanical loads, or repeated overload conditions, the heavy-duty rating should be evaluated carefully. Continuous operation near the maximum current can increase thermal stress on the drive. If the drive is being used as a replacement, comparing the motor nameplate current with the actual operating current is an important part of the selection and commissioning process.

3. What motor control methods are supported by 20BF098A0ANNANC0?

The 20BF098A0ANNANC0 supports several motor control methods, including sensorless vector control, V/Hz control, and vector-based control. This provides flexibility for different industrial applications. V/Hz control can be suitable for relatively simple applications such as fans and pumps, while vector control is more appropriate when improved speed stability and torque response are required.

During commissioning, accurate motor nameplate information should be entered into the drive. This normally includes rated motor voltage, current, frequency, speed, and power. These values are important because the drive uses them to establish the appropriate motor-control parameters.

For conveyors, compressors, mixers, material-handling equipment, and other machines with changing loads, the selected control method should match the mechanical characteristics of the application. After initial setup, technicians should monitor motor current, acceleration behavior, running speed, and torque response. If the motor shows excessive current or unstable operation, the motor data and control parameters should be checked before making major changes to current limits.

4. Does 20BF098A0ANNANC0 include an internal brake IGBT or brake resistor?

The 20BF098A0ANNANC0 configuration does not include an internal brake IGBT or a drive-mounted brake resistor. This is an important consideration for machinery that requires rapid deceleration, frequent stopping, or controlled braking of high-inertia loads.

When a motor decelerates, mechanical energy can be returned to the drive’s DC bus as regenerative energy. If the regenerated energy is greater than the system can absorb, the DC bus voltage can rise significantly. When the voltage reaches the protection threshold, the drive may generate an overvoltage fault and stop the motor.

Applications such as centrifuges, lifting equipment, high-speed conveyors, winders, and other high-inertia machinery should therefore be evaluated for braking requirements before commissioning. The required stopping time, motor speed, load inertia, and frequency of deceleration should all be considered. If rapid braking is required, an appropriate external braking or regenerative-energy solution may be necessary rather than simply reducing the programmed deceleration time.

5. Does 20BF098A0ANNANC0 support encoder feedback?

The standard 20BF098A0ANNANC0 configuration is supplied without feedback. This means the basic configuration does not include a standard encoder feedback interface. For many general-purpose speed-control applications, sensorless vector control can provide suitable speed and torque performance without requiring an encoder.

However, applications involving high-precision speed regulation, very low-speed operation, synchronization, or closed-loop control may require a feedback solution. In such cases, the complete drive configuration should be reviewed to determine whether a compatible feedback option can be installed.

When replacing an existing drive, engineers should also verify whether the original system used encoder feedback. If the original machine depended on feedback for accurate speed control and the replacement configuration operates without feedback, the machine’s low-speed performance and speed stability may change significantly. Encoder type, signal characteristics, interface requirements, and compatibility should therefore be confirmed before modifying the control architecture.

6. Does 20BF098A0ANNANC0 include a communication module?

The standard 20BF098A0ANNANC0 configuration does not include a communication module. If the drive needs to communicate with a PLC, DCS, SCADA system, HMI, or another industrial controller, an appropriate communication solution must be considered as part of the overall system design.

Drive communication can be used to exchange start and stop commands, speed references, actual operating frequency, motor current, drive status, warning information, and fault codes. Network communication can also simplify centralized monitoring and allow operating information to be accessed from a control room or supervisory system.

Before commissioning a networked application, the required communication protocol should be identified. The engineer should also define the required control words, status information, network addressing, communication parameters, and behavior following a communication failure. If the drive is controlled entirely through hardwired I/O, the lack of a communication module may not affect basic operation, but network-based control will require a compatible communication solution.

7. What PWM and carrier frequency settings are available for 20BF098A0ANNANC0?

For the 690 VAC configuration, the specified PWM frequency is 2 kHz, with available carrier-frequency settings of 2, 4, 8, and 10 kHz. Carrier frequency affects the switching behavior of the drive’s power electronics and can influence motor acoustic noise, current waveform, switching losses, and internal temperature.

Increasing the carrier frequency can reduce certain audible motor noises and may provide smoother motor operation in some applications. However, a higher switching frequency also increases the number of switching events performed by the power devices, which can increase switching losses and thermal loading.

This is particularly important for a 98 A high-current drive. If the drive operates close to its rated output current for long periods, increasing the carrier frequency can have a noticeable effect on thermal performance. The selected setting should therefore be based on the motor, load, ambient temperature, operating cycle, ventilation conditions, and required acoustic performance rather than simply choosing the highest available frequency.

8. How should overcurrent and overvoltage faults on 20BF098A0ANNANC0 be diagnosed?

When an overcurrent fault occurs, the first step is to determine exactly when the fault happens. If it occurs immediately during startup, technicians should check the motor nameplate parameters, acceleration time, motor wiring, output terminals, and mechanical starting load. An acceleration time that is too short or a machine with excessive starting torque requirements can cause the motor current to rise rapidly.

If an overcurrent fault appears during normal operation, the mechanical system should be inspected for sudden increases in load, mechanical binding, damaged bearings, blocked pumps, or other abnormal conditions. The motor and output cables should also be checked for insulation problems, loose connections, phase abnormalities, or other electrical faults.

For DC bus overvoltage faults, the deceleration process should be investigated. High-inertia loads can return substantial regenerative energy to the DC bus when the motor slows down. If the deceleration time is too short, the resulting voltage rise can activate the drive’s overvoltage protection. The programmed deceleration time, operating speed, load inertia, stopping frequency, and braking arrangement should therefore be reviewed.

Repeatedly resetting the drive without determining the cause is not a reliable troubleshooting method. Fault codes, output current, operating frequency, motor status, and machine conditions should be recorded when the problem occurs. If the motor, wiring, mechanical load, and drive parameters have all been verified but the fault continues, further inspection of the drive’s power section, DC bus circuitry, cooling system, and control electronics may be required.
