Technical Specifications

FAQ

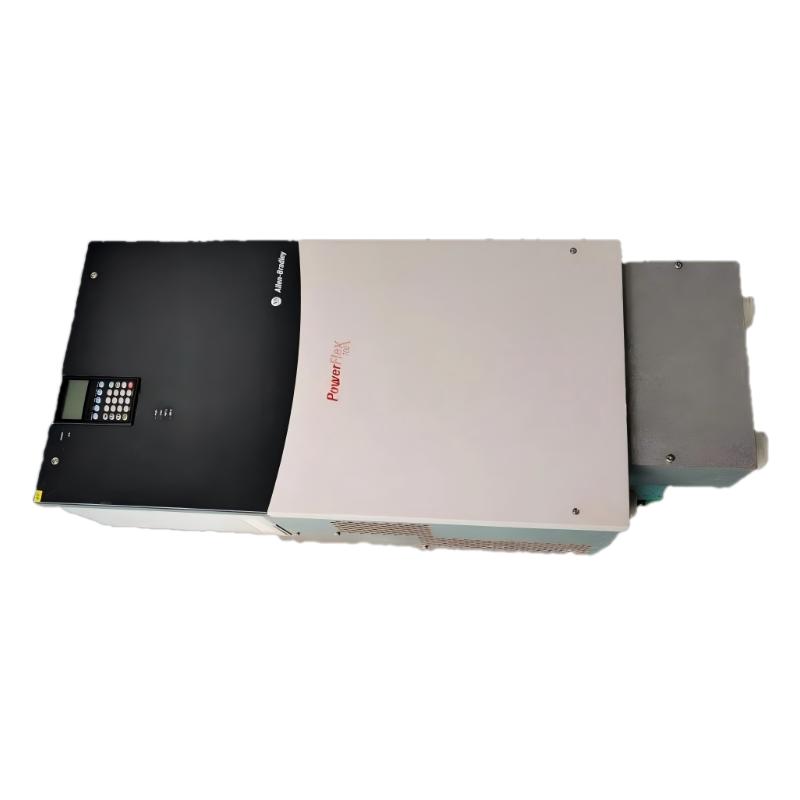

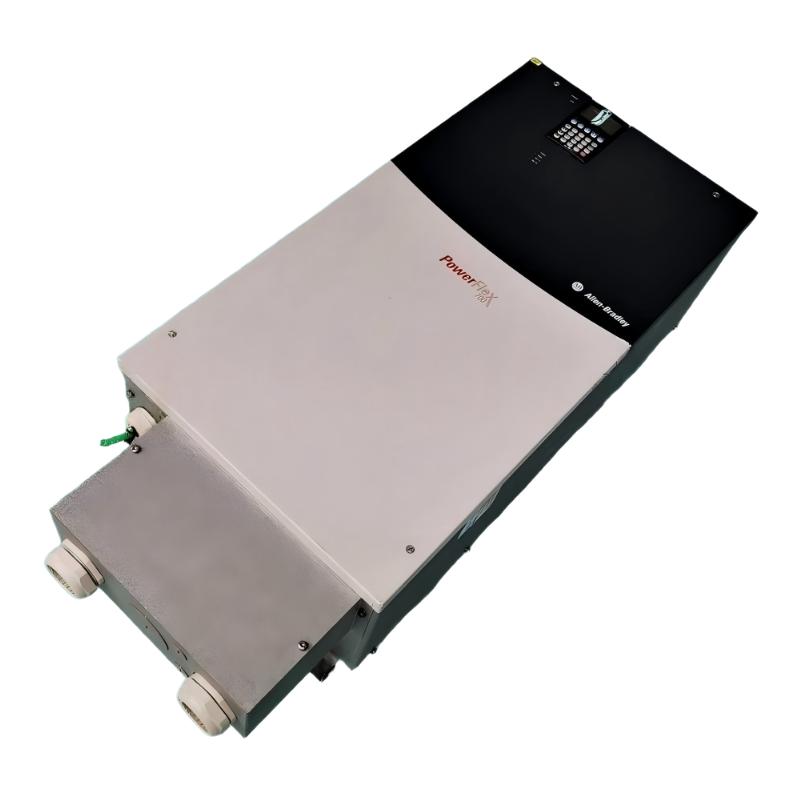

1. What is the input voltage of the Allen-Bradley 20BH260A0ANNANC0?
The 20BH260A0ANNANC0 is designed for a 540 VDC input supply and uses a DC input configuration without precharge. The DC power source should be properly matched to the drive rating, and suitable input protection and isolation equipment should be installed. Stable DC bus voltage is important for reliable operation because abnormal input voltage can cause undervoltage, overvoltage, or other protection faults.

2. What is the output current rating of the 20BH260A0ANNANC0?
The drive provides a continuous output current rating of 260 A. It can deliver approximately 305 A for one minute and 410 A for three seconds under the specified overload conditions. This short-term overload capability allows the drive to handle temporary increases in motor torque demand during acceleration, starting, or sudden load changes. Motor selection should consider both continuous current and the actual overload requirements of the application.

3. What motor capacity is suitable for the PowerFlex 700 20BH260A0ANNANC0?
The 20BH260A0ANNANC0 is rated for 132 kW normal-duty operation and 110 kW heavy-duty operation. The appropriate motor should be selected based on rated current, load characteristics, starting torque, acceleration requirements, and duty cycle rather than power rating alone. For applications involving frequent starts, high breakaway torque, or significant load variations, the heavy-duty rating should be used as the primary sizing reference.

4. Does the 20BH260A0ANNANC0 support sensorless vector control?
Yes. The drive supports sensorless vector control with full tuning capability and can operate without an external feedback device. Under suitable operating conditions, speed regulation can reach approximately 0.1% of base speed across a 120:1 speed range. Correct motor nameplate data and proper tuning are important for achieving stable low-speed operation, accurate speed control, and good torque response.

5. Does the 20BH260A0ANNANC0 have an internal braking resistor or brake IGBT?
No. This model does not include an internal braking resistor or brake IGBT. When the motor decelerates a high-inertia load, regenerative energy can return to the DC bus and increase the bus voltage. Applications requiring rapid or frequent deceleration may therefore need an external braking solution. The braking equipment should be selected according to the motor rating, deceleration time, braking frequency, load inertia, and regenerative energy.

6. What control I/O is available on the 20BH260A0ANNANC0?
The drive provides two analog inputs, two analog outputs, six digital inputs, and three digital outputs. This I/O can be used for start/stop commands, direction control, speed references, external interlocks, fault reset signals, operating status, and process monitoring. The available I/O makes the drive suitable for integration with PLC systems and other industrial automation equipment.

7. What should be checked if the 20BH260A0ANNANC0 develops an overcurrent fault?
The first step is to determine whether the fault occurs during startup, acceleration, normal operation, or deceleration. Check the motor and mechanical system for excessive load, binding, or sudden torque increases. Verify the motor nameplate parameters programmed into the drive and inspect the motor cables and terminals for short circuits or insulation problems. If the fault occurs during acceleration, increasing the acceleration time may reduce the current demand. If it occurs during steady operation, the mechanical load and motor condition should be investigated more closely.

8. How can the 20BH260A0ANNANC0 be maintained for reliable long-term operation?
Regular maintenance should include inspection of cooling fans, heat sinks, power terminals, control wiring, grounding, and the surrounding environment. Dust, oil mist, moisture, and corrosive contaminants should be prevented from accumulating around the drive. Electrical connections should be checked periodically because loose terminals can cause increased resistance and localized heating. Reviewing fault history and monitoring overtemperature, overcurrent, overvoltage, and undervoltage conditions can also help identify developing problems before they result in major component failures.
