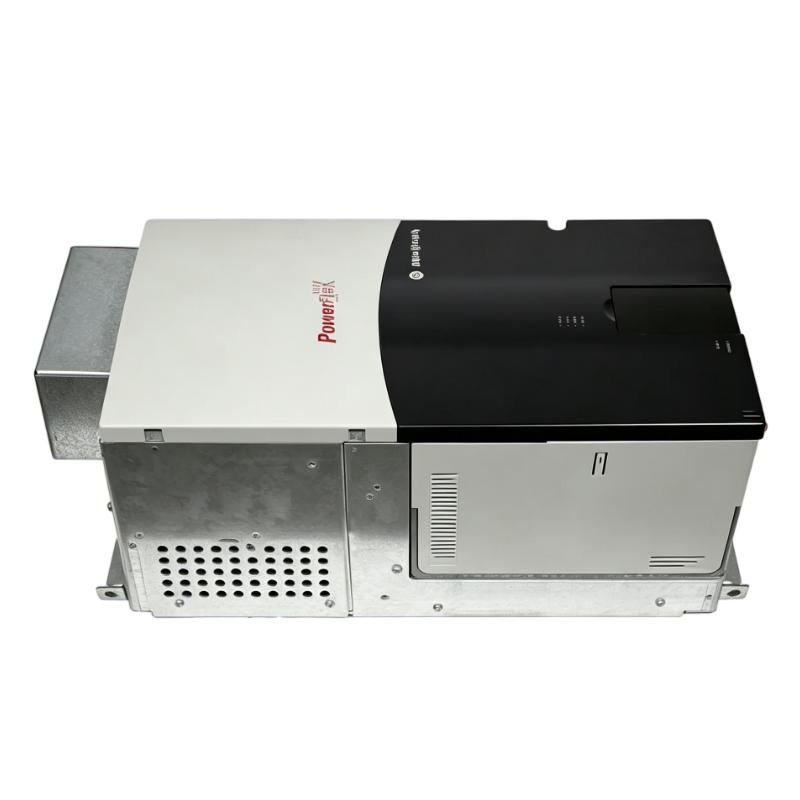

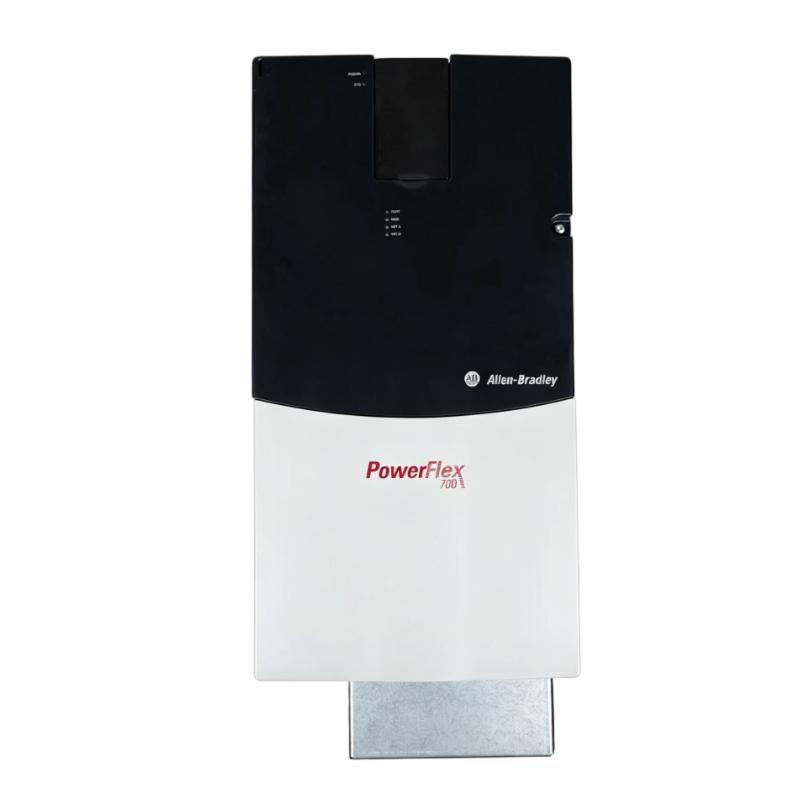

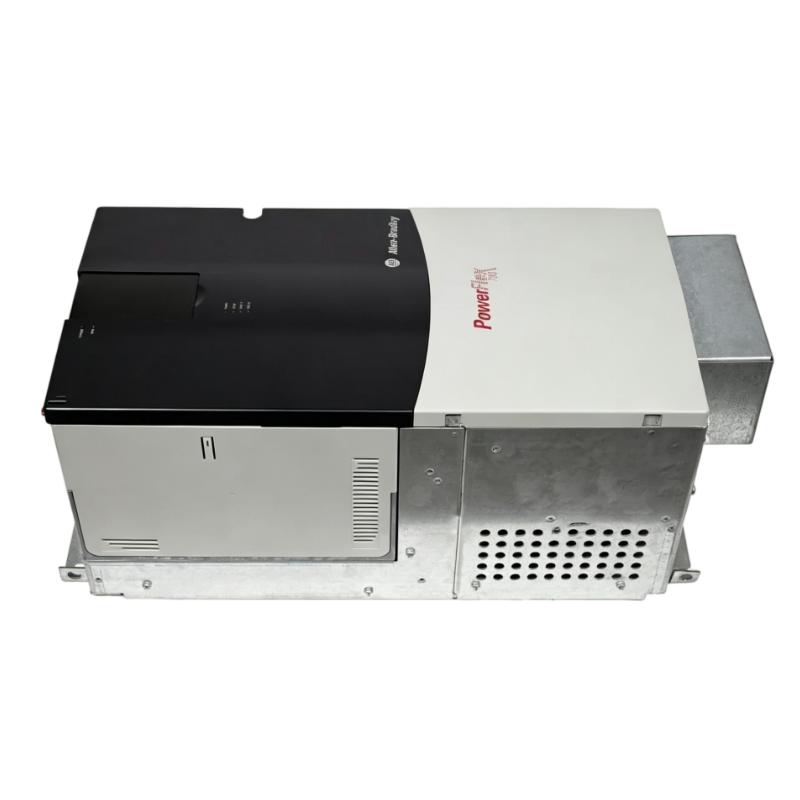

1. What is the rated output current of the 20BP105A3ANNACC1?

The 20BP105A3ANNACC1 has a rated output current of 105 A. This rating is suitable for applications requiring variable-speed control of medium-to-high-power industrial AC motors. When selecting a motor, the motor’s rated current should be compared directly with the drive’s continuous output capability. Motor voltage, operating frequency, load type, acceleration requirements, duty cycle, and required overload capability should also be considered to ensure that the drive is correctly matched to the application.

2. What input power supply does the 20BP105A3ANNACC1 require?

The 20BP105A3ANNACC1 is designed for a 540 VDC input supply. This configuration uses a DC bus rather than a conventional direct three-phase AC input. The external DC power system should therefore include suitable isolation, protection, switching, and current-handling equipment. During installation, the DC bus connection and power-up sequence should be carefully controlled. Because a high-voltage DC bus can retain stored electrical energy after the power source has been disconnected, appropriate discharge and verification procedures are required before maintenance.

3. What motor control methods are supported by the 20BP105A3ANNACC1?

The drive supports sensorless vector control, V/Hz control, and vector control. Sensorless vector control can provide improved speed and torque response without requiring a physical motor speed feedback device, making it suitable for many industrial applications. V/Hz control can be used for applications with more straightforward speed-control requirements. The appropriate control method depends on the motor characteristics and mechanical load. During commissioning, accurate motor nameplate information should be entered so that the drive can establish the correct voltage, current, frequency, and control characteristics.

4. What are the normal-duty and heavy-duty power ratings of this drive?

The 20BP105A3ANNACC1 is rated for 55 kW under normal-duty operation and 45 kW under heavy-duty operation. The difference between these ratings is related to the current and overload requirements of the application. Heavy-duty applications can require higher short-term torque and greater overload capability, so the applicable power rating is lower than the normal-duty rating. The final selection should be based on motor current and actual load requirements rather than power alone, particularly for applications involving frequent acceleration, high inertia, or rapidly changing loads.

5. Does the 20BP105A3ANNACC1 have an internal braking resistor or Brake IGBT?

This configuration does not include a Brake IGBT and does not have an internal braking resistor. If the application requires rapid deceleration or significant regenerative braking, the braking requirements should therefore be evaluated as part of the overall system design. Large-inertia loads can return energy to the drive’s DC bus during deceleration, potentially increasing bus voltage. Depending on the application, an external braking solution or an appropriately controlled deceleration strategy may be required to keep the system within acceptable operating limits.

6. Which communication protocols can be used with the 20BP105A3ANNACC1?

The PowerFlex 700 platform supports a range of industrial communication technologies, including CAN, DeviceNet, EtherNet/IP, LON, Modbus, PROFIBUS, and TCP/IP. These communication capabilities allow the drive to be integrated into PLC, DCS, HMI, and plant-level automation systems. When configuring communications, the control system and drive should use consistent addresses, command structures, status information, speed references, and fault data. Communication wiring and network configuration should also be checked carefully before enabling remote start and speed-control commands.

7. What should be checked if the 20BP105A3ANNACC1 generates an overcurrent fault?

An overcurrent fault should first be investigated from both the electrical and mechanical sides of the system. The motor should be checked for mechanical blockage, excessive friction, abnormal bearings, or an unexpectedly high load. The motor cables should be inspected for phase-to-phase shorts, ground faults, damaged insulation, or incorrect connections. The motor nameplate parameters programmed into the drive should also be verified. If the fault occurs mainly during acceleration, the acceleration time may be too short for the load inertia. Increasing the acceleration time can reduce the instantaneous current demand. Repeated faults may require further inspection of the motor, cabling, load, and drive power section.

8. How should the 20BP105A3ANNACC1 be commissioned for reliable operation?

Commissioning should begin by verifying the DC input supply, grounding, protection equipment, motor wiring, control wiring, and communication connections. The motor nameplate data should then be entered accurately, including rated voltage, current, frequency, and other required motor parameters. The selected control mode, minimum and maximum frequency, acceleration and deceleration times, current limits, stopping method, and I/O functions should be reviewed before operation. Initial testing should be performed at low speed and under controlled load conditions. Motor rotation direction, output current, operating frequency, fault status, and load response should be monitored before gradually increasing the system to its normal operating condition.
