Technical Specifications

FAQ

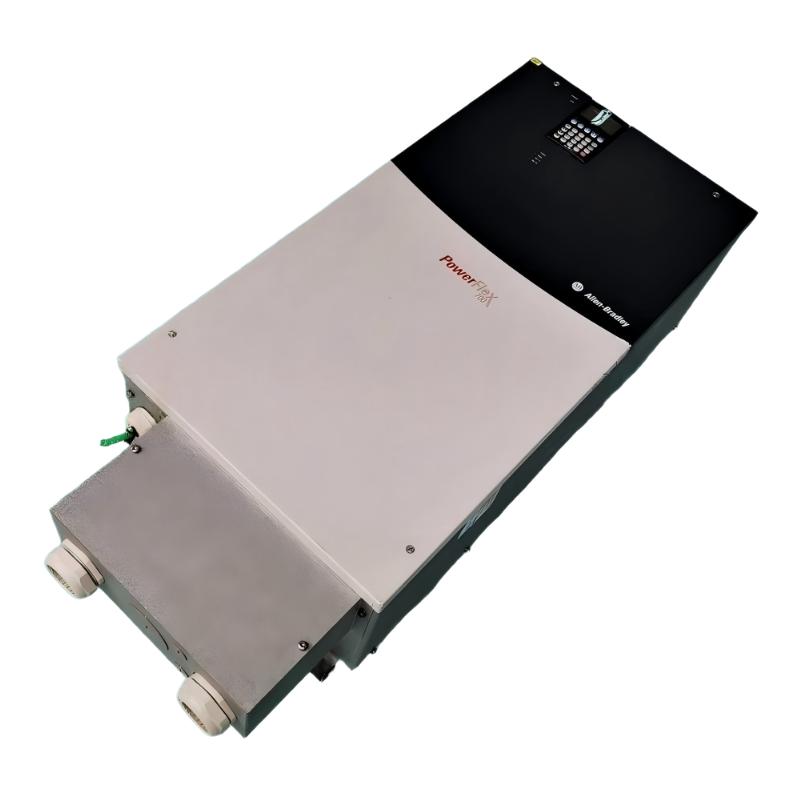

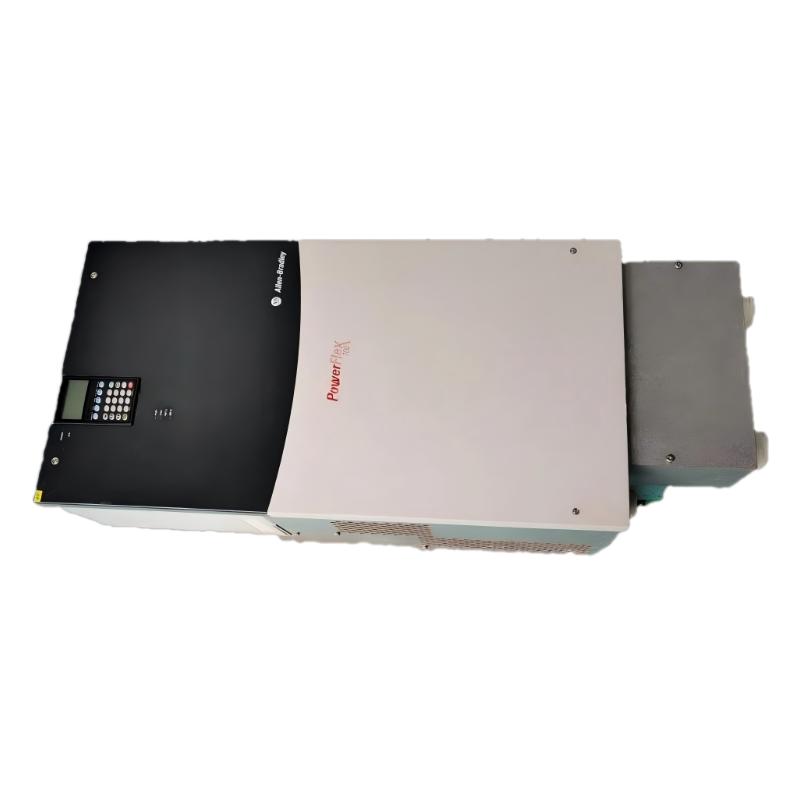

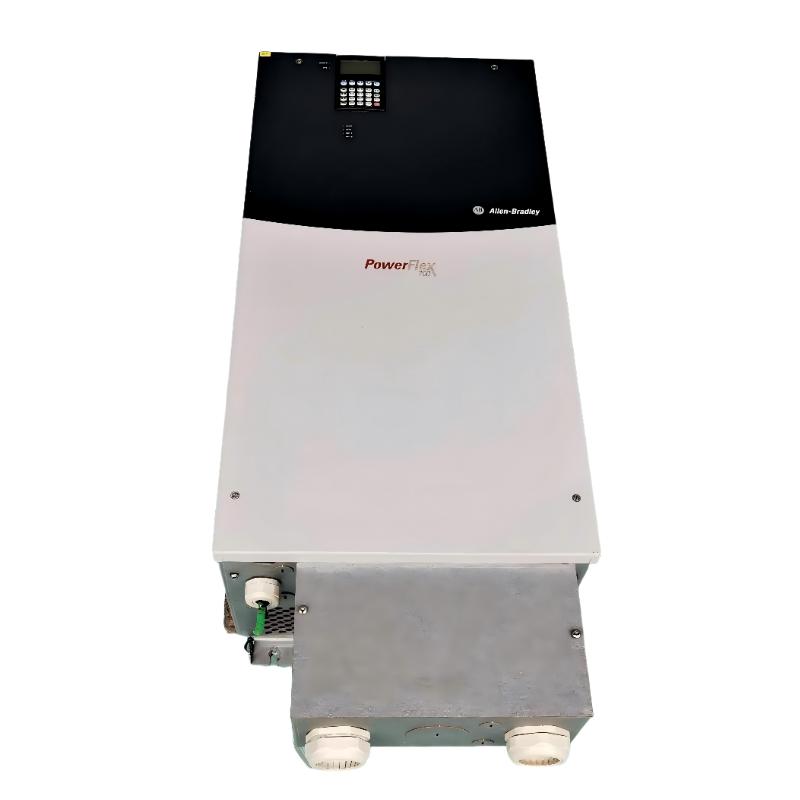

1. What is the rated output current and power rating of the Allen-Bradley 20BP260F0ANNANC0?
The 20BP260F0ANNANC0 is rated for 260 A continuous output current. Its normal-duty power rating is 132 kW, while the heavy-duty rating is 110 kW. The appropriate rating should be selected according to the actual motor current and load profile rather than motor power alone. Applications with high starting torque, frequent acceleration, shock loading, or repeated overload conditions should be evaluated using the heavy-duty rating. The motor nameplate voltage, current, frequency, and speed should also be entered correctly during commissioning. Maintaining the motor current within the drive’s continuous rating is important for thermal performance and long-term reliability, particularly in high-load industrial applications.

2. What type of motor control does the 20BP260F0ANNANC0 support?
The drive supports vector control with 24 V DC I/O and can be configured for sensorless vector, V/Hz, or vector control depending on the application. Sensorless vector control provides improved speed and torque performance without requiring an encoder, making it suitable for many industrial motors where feedback is not required. V/Hz control can be used for simpler variable-speed applications, while vector control is more suitable for applications requiring stronger dynamic response and speed regulation. Proper motor data is essential for all control modes. Incorrect motor parameters can cause unstable speed, excessive current, poor low-speed torque, or difficult commissioning. The control method should be selected according to the actual motor and mechanical load characteristics.

3. Does the 20BP260F0ANNANC0 have encoder feedback?
No. The 20BP260F0ANNANC0 is a no-feedback configuration. It is intended to operate without an installed encoder feedback system and can use sensorless vector control for applications requiring improved speed and torque control without a physical speed sensor. For standard pumps, fans, conveyors, and many general-purpose industrial machines, this configuration can provide suitable speed regulation. Applications requiring highly accurate low-speed operation, closed-loop speed regulation, or precise positioning may require a compatible feedback solution and a different configuration. During setup, encoder-related parameters should not be enabled unless the drive has been properly equipped with compatible feedback hardware.

4. What carrier frequencies are available on the 20BP260F0ANNANC0?
The drive supports carrier frequencies of 2, 4, 8, and 10 kHz, with the drive rating based on a 4 kHz carrier frequency. Increasing the carrier frequency can reduce certain audible motor noises and may provide smoother motor current characteristics. However, higher switching frequencies also increase switching losses and heat generation in the power section. For a 260 A Frame 6 drive, carrier frequency should therefore be selected according to the actual load and thermal conditions. A 4 kHz setting is a practical starting point for many applications. If a higher carrier frequency is required, monitor drive temperature, output current, enclosure ventilation, and operating duty to ensure the thermal load remains acceptable.

5. What should be checked if the 20BP260F0ANNANC0 trips on overcurrent?
Begin by checking the motor and output wiring for phase-to-phase shorts, ground faults, damaged insulation, or incorrect connections. The mechanical load should also be inspected for locked components, excessive friction, bearing problems, or sudden increases in torque demand. If the fault occurs during acceleration, check whether the acceleration time is too short for the connected load. If the fault occurs during normal operation, compare actual motor current with the expected load current and investigate any abnormal mechanical conditions. Motor nameplate parameters should be verified in the drive, and the selected control mode should be appropriate for the motor. Repeatedly increasing the current limit is not a proper solution because it can increase electrical and thermal stress on the drive and motor.

6. How should acceleration and deceleration times be configured?
The 20BP260F0ANNANC0 provides two independently programmable acceleration and deceleration times, each adjustable from 0 to 3600 seconds. The correct values depend on motor capacity, load inertia, machine mechanics, and the required production cycle. An acceleration time that is too short can cause high motor current and trigger current limiting or overcurrent protection. A very short deceleration time can create significant regenerative energy and raise the DC bus voltage. For initial commissioning, it is generally preferable to use conservative acceleration and deceleration settings and then optimize them while observing motor current and mechanical response. Separate acceleration and deceleration settings can be useful when different operating sequences require different speed-change characteristics.

7. How should a DC bus overvoltage problem be handled during deceleration?
The 20BP260F0ANNANC0 does not include an internal brake IGBT or internal brake resistor. During rapid deceleration of a high-inertia load, the motor can operate as a generator and return energy to the DC bus. If the regenerative energy is greater than the system can absorb, the DC bus voltage can rise and produce an overvoltage fault. The first step is to determine whether the deceleration time can be increased. If the machine must stop quickly, an external braking or regenerative energy-management solution may be required. High-inertia applications such as large fans, centrifuges, hoists, and heavy conveyors should be evaluated for regenerative energy during drive selection rather than relying only on parameter adjustments after installation.

8. What can cause the 20BP260F0ANNANC0 to overheat during operation?
Overheating can result from high load current, elevated ambient temperature, insufficient airflow, excessive carrier frequency, blocked cooling paths, or continuous motor overload. The drive should operate within its specified 0–50 °C ambient temperature range, while the control cabinet should provide adequate ventilation and heat removal. Check cooling fans, air filters, cabinet airflow, and the space around the drive. Also verify whether the motor current remains close to the drive’s rated output for extended periods. If a higher carrier frequency is being used, consider whether the additional switching losses are contributing to the temperature rise. Dust accumulation and poor cabinet ventilation can significantly reduce cooling performance. A persistent thermal problem should be addressed at the installation and load level rather than simply resetting temperature-related faults.
