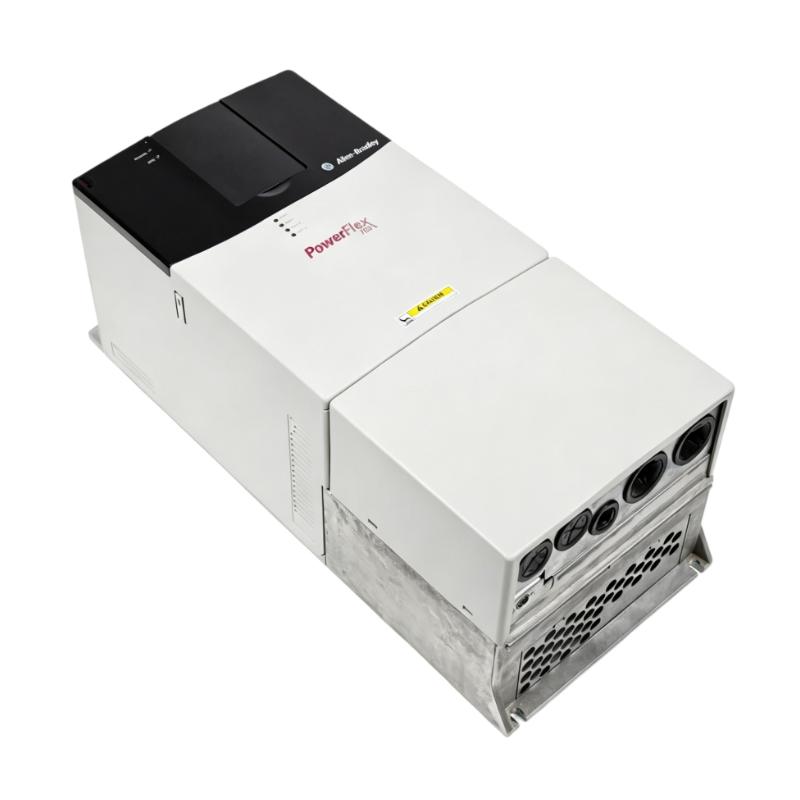

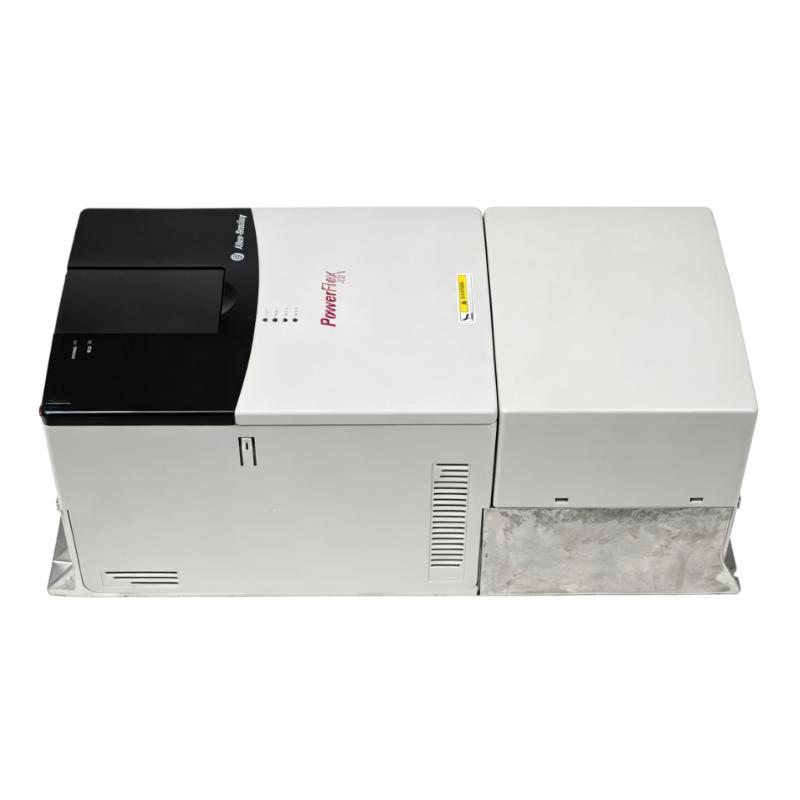

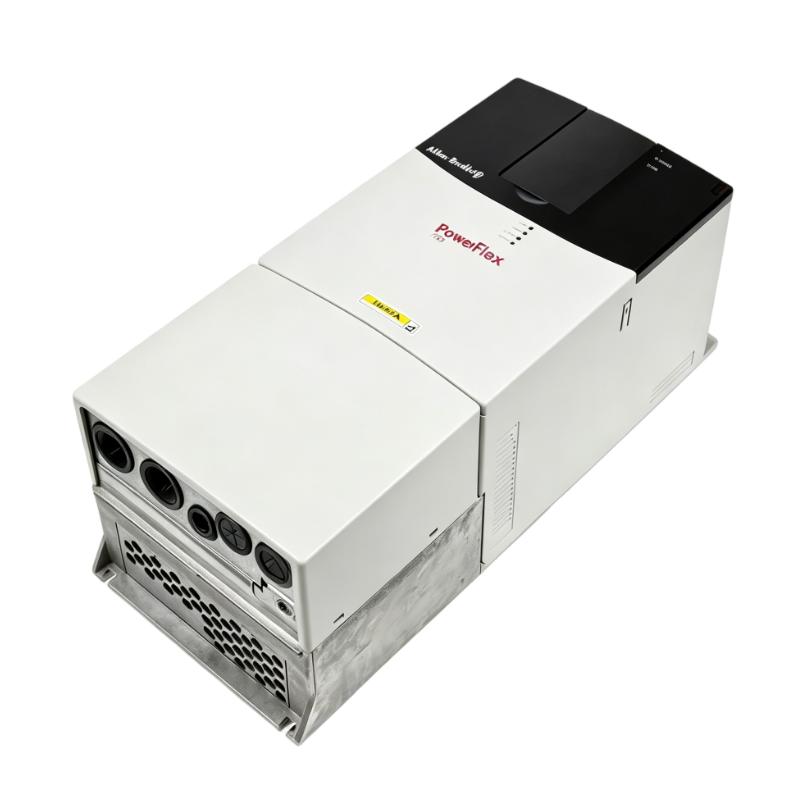

Allen Bradley 20BP365A0ANNNNC0 PowerFlex 700 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 20BP365A0ANNNNC0 |
| Product Series | PowerFlex 700 |
| Product Type | AC Drive |
| Drive Type | Adjustable Frequency AC Drive |
| Input Voltage | 540 V DC |
| Input Configuration | DC Input with Precharge |
| Input Phase | DC |
| Continuous Output Current | 365 A |
| 1-Minute Output Current | 402 A |
| 3-Second Output Current | 548 A |
| Normal-Duty Power Rating | 200 kW |
| Heavy-Duty Power Rating | 180 kW |
| Frame Size | Frame 8 |
| PWM Frequency | 2 kHz |
| Rated Ambient Temperature | 40°C |
| Control Method | Vector Control |
| Output Voltage | 0 to Rated Motor Voltage |
| Maximum Output Frequency | 400 Hz |
| Overload Protection | Electronic Motor Overload Protection |
| Motor Control | Sensorless Vector / Vector Control |
| Feedback | No Feedback |
| Brake IGBT | No Brake IGBT |
| Brake Resistor | Without Drive-Mounted Brake Resistor |
| Communication Module | No Communication Module |
| I/O Configuration | 120 V I/O |
| Enclosure | IP20 / NEMA Type 1 |
| EMC Filter | Without CE-Compliant Filter |
| Precharge | Integrated DC Precharge |
| Acceleration Time | Programmable, 0 to 3600 s |
| Deceleration Time | Programmable, 0 to 3600 s |
| Output Phases | 3-Phase Motor Output |
| Short-Circuit Rating | Up to 200 kA symmetrical, subject to specified protection |
| Operating Temperature | 0 to 40°C typical |
| Cooling | Forced-Air Cooling |
| Dimensions | 2349.1 × 757.9 × 1153.4 mm |
| Weight | 509 kg |
FAQ
1. What type of drive is the Allen-Bradley 20BP365A0ANNNNC0?
The 20BP365A0ANNNNC0 is an Allen-Bradley PowerFlex 700 adjustable frequency AC drive designed for high-power motor control. This configuration uses a 540 V DC input with precharge and has a continuous output current rating of 365 A. It is a large Frame 8 drive intended for demanding industrial applications.
2. What are the output current and power ratings of the 20BP365A0ANNNNC0?
The drive provides 365 A continuous output current, 402 A for one minute, and 548 A for three seconds. Its listed power ratings are 200 kW for normal-duty operation and 180 kW for heavy-duty operation. These ratings allow the drive to handle substantial motor loads while accommodating short-duration overload conditions.
3. What is the DC input voltage of this PowerFlex 700 drive?
The 20BP365A0ANNNNC0 belongs to the PowerFlex 700 540 V DC input family with precharge. For the 20BP365 rating, the published DC input current is 428 A for the 200 kW normal-duty configuration and 381 A for the 180 kW heavy-duty configuration. Appropriate DC bus protection and precharge arrangements should be provided according to the installation requirements.
4. What control method does the 20BP365A0ANNNNC0 use?
The PowerFlex 700 platform supports vector-based motor control as well as configurable motor-control functions. The drive can be configured for applications requiring controlled acceleration, deceleration, speed regulation, and torque response. Correct motor data and control parameters should be entered during commissioning to obtain stable motor operation.
5. Does the 20BP365A0ANNNNC0 include a built-in brake IGBT or brake resistor?
This catalog configuration does not include a brake IGBT or a drive-mounted brake resistor. Therefore, applications requiring regenerative braking must use an appropriate external braking solution or another system-level method for handling regenerated energy. The braking arrangement should be selected according to the motor’s regenerative energy and required stopping cycle.
6. What communication and feedback options are provided with this model?
The specified configuration is supplied without an internal communication module and without motor feedback. PowerFlex 700 drives support optional communication and feedback configurations depending on the selected hardware and application requirements. When closed-loop speed or position control is required, the appropriate feedback interface and compatible option module must be considered during system design.
7. What should be checked if the motor fails to start with the 20BP365A0ANNNNC0?
First verify the DC bus voltage, precharge operation, control power, enable signals, programmed start command, and motor output connections. Check the drive fault and alarm status for overvoltage, undervoltage, overcurrent, overload, or control-related conditions. Motor nameplate data and acceleration parameters should also be reviewed because incorrect configuration can prevent a high-power motor from starting correctly.
8. What can cause overcurrent or unstable operation on this PowerFlex 700 drive?
Overcurrent can result from excessive mechanical load, incorrect motor parameters, short circuits, improper acceleration settings, motor connection problems, or an unsuitable control configuration. For unstable operation, check the motor data, control mode, acceleration and deceleration times, current limits, and mechanical load. Because the 20BP365A0ANNNNC0 is a high-current Frame 8 drive, correct installation, cooling, cable selection, grounding, and protection are particularly important for reliable operation.
