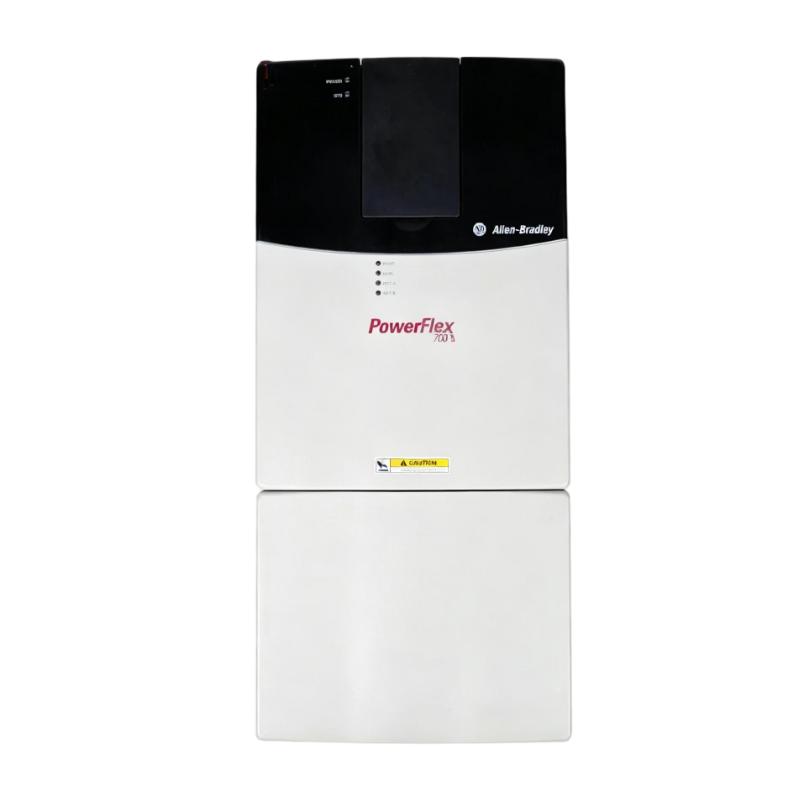

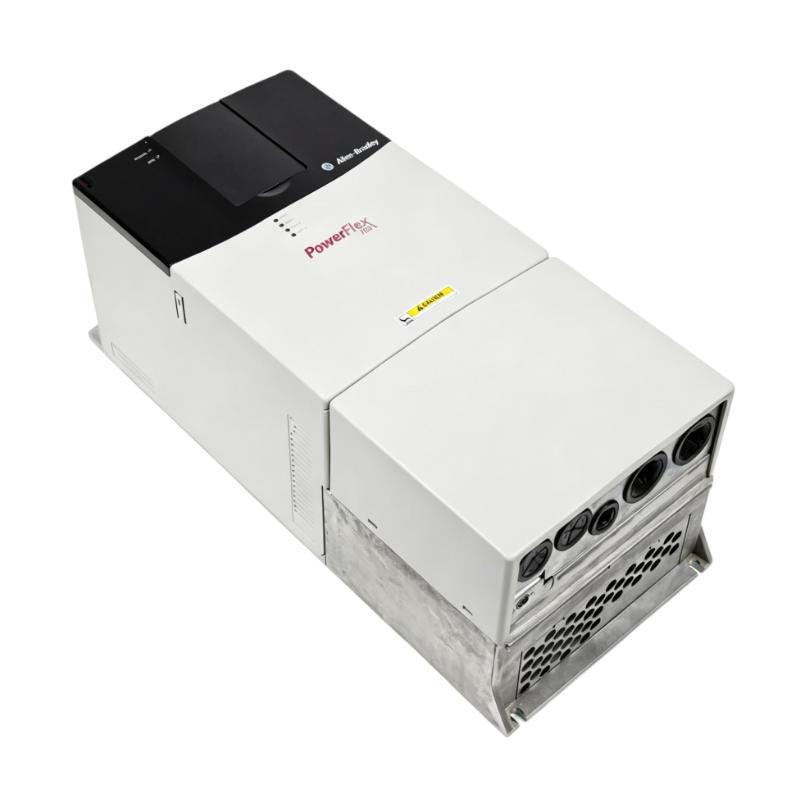

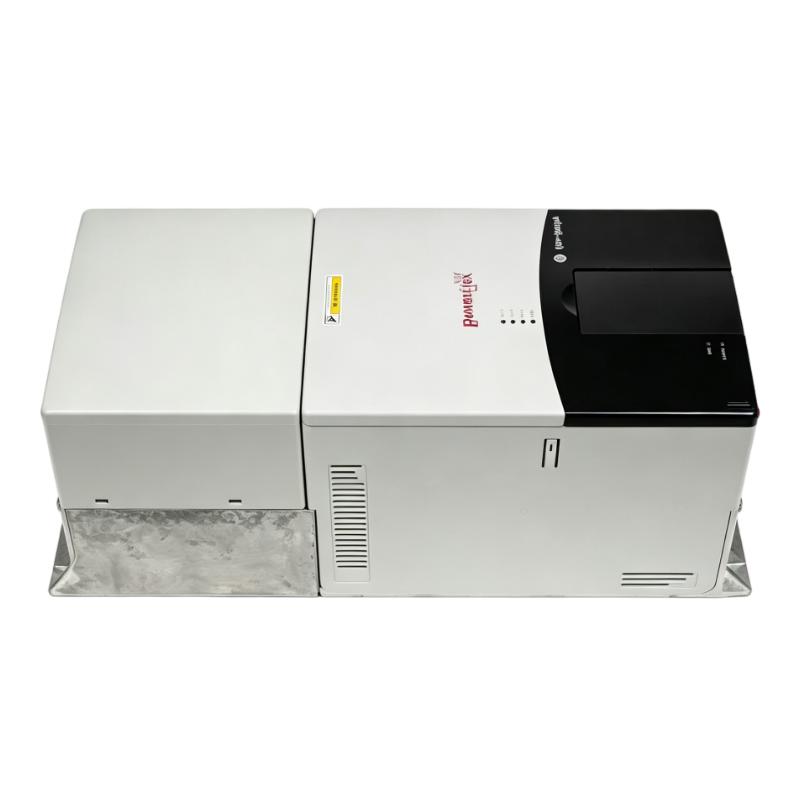

Allen Bradley 20BP535N0ANNNNC0 PowerFlex 700 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 20BP535N0ANNNNC0 |
| Product Series | PowerFlex 700 |
| Product Type | AC Variable Frequency Drive |
| Input Voltage | 540 V DC |
| Input Type | DC input with precharge |
| Continuous Output Current | 535 A |
| 1-Minute Overload Current | 589 A |
| 3-Second Overload Current | 803 A |
| Normal-Duty Power Rating | 315 kW |
| Heavy-Duty Power Rating | 280 kW |
| Frame Size | Frame 8 |
| PWM Frequency | 2 kHz |
| Rated Ambient Temperature | 40°C |
| Control Method | Vector Control |
| I/O Type | 120 V I/O |
| Output | Three-phase AC output |
| Motor Control | Sensorless Vector Control / Vector Control |
| Feedback | No feedback |
| Braking IGBT | Not included |
| Dynamic Braking Resistor | Not included |
| Communication Module | Not included |
| EMC Filter | No CE-compliant filter |
| Cooling Method | Forced-air cooling |
| Acceleration Time | 0–3600 s, programmable |
| Deceleration Time | 0–3600 s, programmable |
| Motor Protection | Electronic motor overload protection |
| Maximum Output Frequency | Up to 400 Hz, depending on configuration and settings |
| DC Precharge | Integrated |
| Dimensions | 2283.7 × 726.6 × 757.8 mm |
| Weight | 384 kg |
FAQ
1. What type of drive is the Allen-Bradley 20BP535N0ANNNNC0?
The 20BP535N0ANNNNC0 is a high-power Allen-Bradley PowerFlex 700 AC variable frequency drive. It is designed for industrial motor speed control and high-power applications, using a 540 V DC input and three-phase AC motor output.
2. What is the continuous output current of the 20BP535N0ANNNNC0?
The continuous output current is 535 A. The drive can provide higher short-term current during overload conditions, with approximately 589 A for 1 minute and 803 A for 3 seconds. Motor current and load requirements should be evaluated when selecting operating parameters.
3. What input voltage does the PowerFlex 700 20BP535N0ANNNNC0 use?
This configuration uses a 540 V DC input and includes a DC precharge function. The DC supply system should provide sufficient voltage and current capacity, while upstream protection and the DC bus arrangement should be suitable for the drive.
4. What motor control methods are available?
The drive uses vector-control technology and supports sensorless vector control. Proper motor nameplate information, current limits, acceleration settings, and control parameters are important for achieving stable motor operation and appropriate torque response.
5. Does the 20BP535N0ANNNNC0 have a built-in braking resistor?
This configuration does not include a built-in dynamic braking resistor or braking IGBT. If the application involves rapid deceleration or high-inertia loads that return significant regenerative energy to the DC bus, an appropriate external braking or regenerative solution may be required.
6. Can the drive operate with encoder feedback?
The 20BP535N0ANNNNC0 is configured as a no-feedback drive. Applications requiring closed-loop speed control, improved low-speed torque, or precise motor regulation should verify the required feedback interface and compatible PowerFlex options before installation.
7. What should be checked when the motor does not start?
Check the 540 V DC input, DC bus voltage, start command, stop input, enable signals, digital I/O, and control wiring first. Review the active fault code and fault history as well. If the drive accepts the start command but the motor remains stopped, verify the frequency reference, motor parameters, interlocks, and acceleration settings.
8. How can an overcurrent fault be diagnosed?
Begin by checking the displayed fault code and fault history. Inspect the motor cables and terminals for short circuits, grounding faults, or incorrect connections. Mechanical overload, excessive starting torque, and insufficient acceleration time should also be considered. Verify that the motor data programmed into the drive matches the actual motor nameplate and adjust current and acceleration parameters as required.
Allen Bradley 20BP535N0ANNNNC0 PowerFlex 700 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
