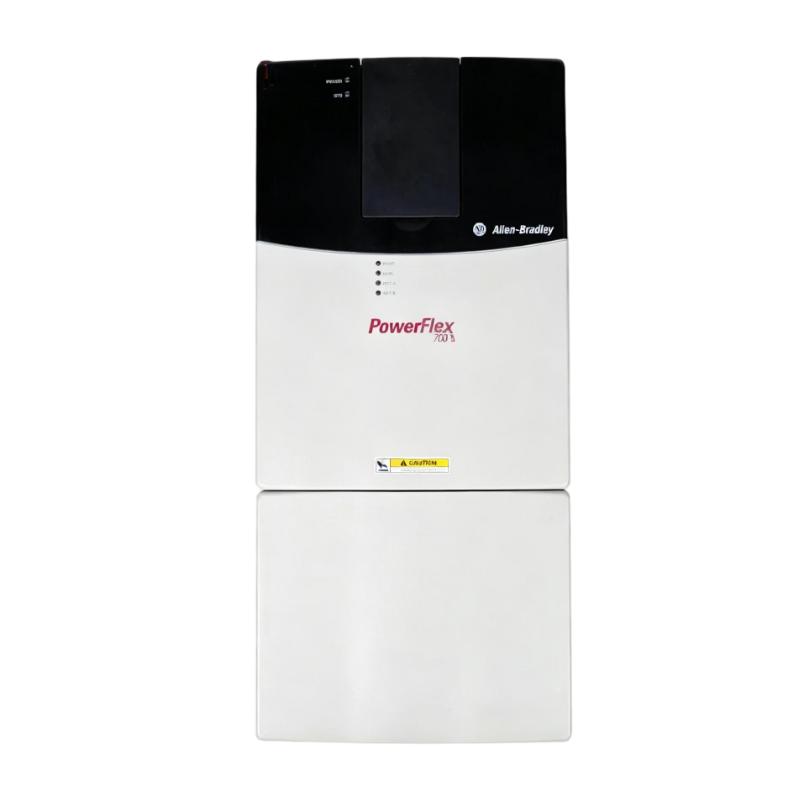

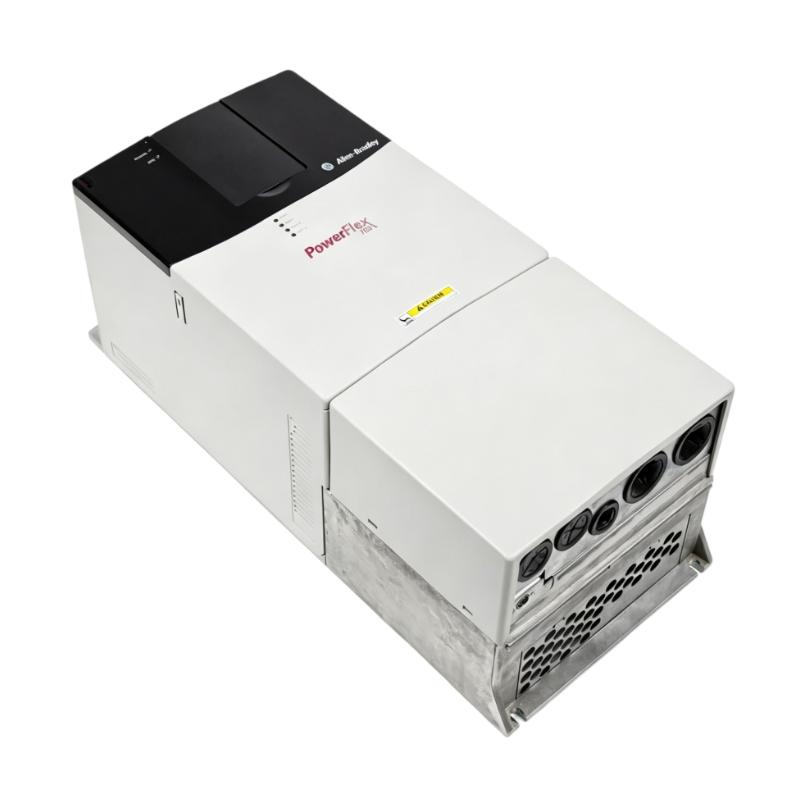

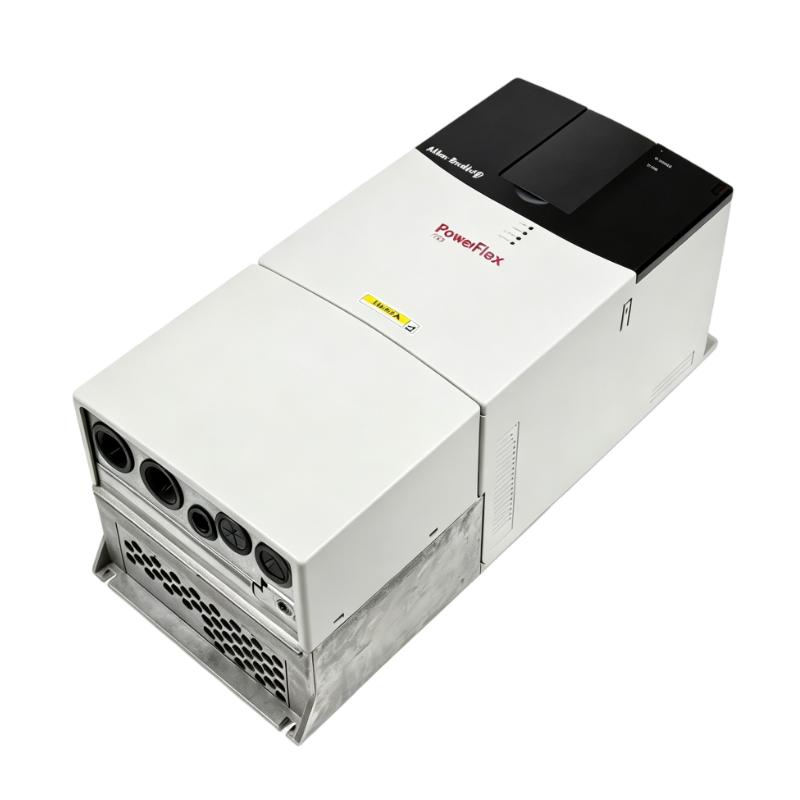

Allen Bradley 20BP535U0NNNNNC0 PowerFlex 700 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 20BP535U0NNNNNC0 |
| Product Series | PowerFlex 700 |
| Product Type | AC Variable Frequency Drive |
| Input Voltage | 540 V DC |
| Input Type | DC input with precharge |
| Rated Output Current | 535 A |
| 1-Minute Overload Current | 589 A |
| 3-Second Overload Current | 803 A |
| Normal-Duty Power Rating | Approx. 300 kW |
| Heavy-Duty Power Rating | Approx. 280 kW |
| Frame Size | Frame 8 |
| PWM Frequency | 2 kHz |
| Rated Ambient Temperature | 40°C |
| Control Method | Vector Control |
| Motor Control | Sensorless Vector Control / Vector Control |
| I/O Type | 24 V I/O |
| Output | Three-phase AC output |
| Feedback | No feedback |
| Braking IGBT | Not included |
| Dynamic Braking Resistor | Not included |
| Communication Module | Not included |
| HIM Operator Interface | Not included |
| EMC Filter | No CE-compliant filter |
| Enclosure Rating | IP00 |
| DC Precharge | Integrated |
| Cooling Method | Forced-air cooling |
| Motor Protection | Electronic motor overload protection |
| Acceleration Time | 0–3600 s, programmable |
| Deceleration Time | 0–3600 s, programmable |
| Maximum Output Frequency | Up to 400 Hz, depending on configuration |
| Dimensions | 2283.7 × 726.6 × 757.8 mm |
| Weight | 384 kg |
FAQ
1. What type of product is the Allen-Bradley 20BP535U0NNNNNC0?
The 20BP535U0NNNNNC0 is a high-power Allen-Bradley PowerFlex 700 AC variable frequency drive. It is designed for large industrial AC motor applications, including motor speed control, torque control, and process control.
2. What is the rated output current of the 20BP535U0NNNNNC0?
The drive has a continuous rated output current of 535 A. Its short-term overload capability is approximately 589 A for 1 minute and 803 A for 3 seconds. Drive selection should consider the motor rated current, load characteristics, and required overload conditions.
3. What input power does the PowerFlex 700 20BP535U0NNNNNC0 use?
This model uses a 540 V DC input and incorporates an integrated DC precharge function. The DC power system should provide sufficient capacity, while the DC bus, upstream protection, and associated wiring must be suitable for the drive’s operating requirements.
4. What motor control methods are supported?
The 20BP535U0NNNNNC0 uses PowerFlex 700 vector-control technology and supports sensorless vector control. Correct motor nameplate data, speed reference, current limits, and acceleration and deceleration parameters are important for stable operation and proper torque response.
5. Does this model include a braking IGBT or built-in braking resistor?
The 20BP535U0NNNNNC0 does not include a braking IGBT or built-in dynamic braking resistor. Applications involving high-inertia loads, rapid deceleration, or frequent stopping may require an external braking or regenerative energy solution.
6. Does the 20BP535U0NNNNNC0 support encoder feedback?
This configuration is a no-feedback version and does not include a standard encoder feedback interface. If closed-loop speed control, precise low-speed operation, or encoder-based control is required, the appropriate feedback option and system configuration should be verified.
7. What should be checked if the motor does not start after the drive is powered on?
First check the 540 V DC input and DC bus voltage. Then verify the start command, stop signal, enable conditions, digital inputs, and control wiring. Check the active fault code and fault history as well. The frequency reference, motor parameters, interlocks, and acceleration settings should also be verified.
8. How should an overcurrent fault be diagnosed?
Start by reading the PowerFlex 700 fault code and fault history. Check the motor and output cables for short circuits, ground faults, or wiring errors. Also inspect the mechanical load for excessive load or binding. Verify that the motor nameplate data is correctly programmed and review the current limit, starting torque, and acceleration parameters according to the application.
Allen Bradley 20BP535U0NNNNNC0 PowerFlex 700 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
