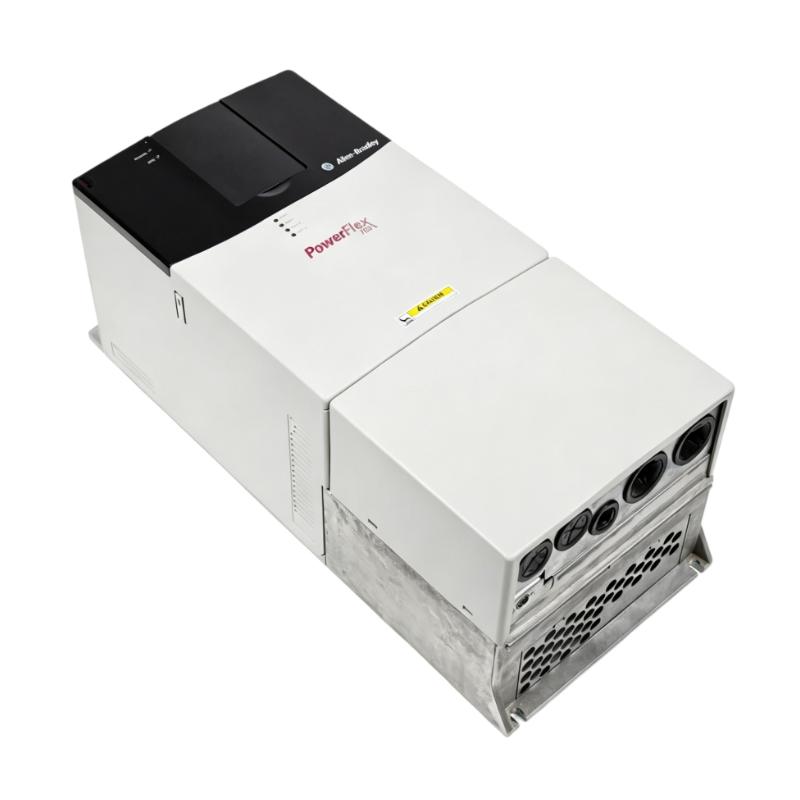

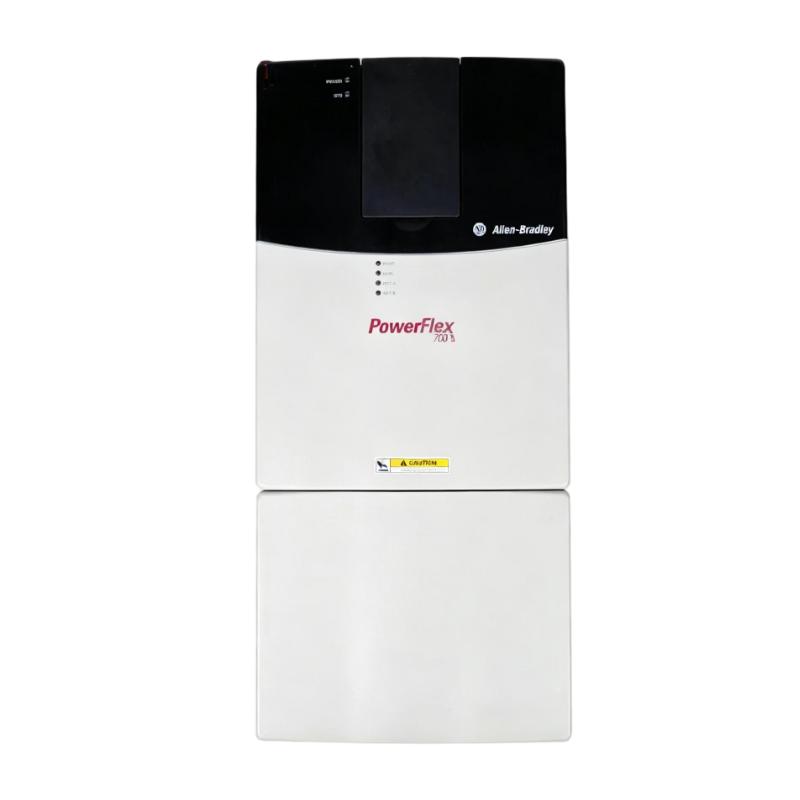

Allen Bradley 20BP600U0NNNNNC0 PowerFlex 700 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 20BP600U0NNNNNC0 |
| Product Series | PowerFlex 700 |
| Product Type | AC Variable Frequency Drive |
| Input Voltage | 540 V DC |
| Input Type | DC input with precharge |
| Continuous Output Current | 600 A |
| 1-Minute Overload Current | 660 A |
| 3-Second Overload Current | 900 A |
| Normal-Duty Power Rating | 350 kW |
| Heavy-Duty Power Rating | 300 kW |
| Frame Size | Frame 8 |
| PWM Frequency | 2 kHz |
| Rated Ambient Temperature | 40°C |
| Control Method | Vector Control |
| Motor Control | Sensorless Vector Control / Vector Control |
| I/O Type | 24 V I/O |
| Output | Three-phase AC output |
| Feedback | No feedback |
| Braking IGBT | Not included |
| Dynamic Braking Resistor | Not included |
| Communication Module | Not included |
| HIM Operator Interface | Not included |
| EMC Filter | Not included |
| Enclosure Rating | IP00 |
| DC Precharge | Integrated |
| Cooling Method | Forced-air cooling |
| Motor Protection | Electronic motor overload protection |
| Acceleration Time | 0–3600 s, programmable |
| Deceleration Time | 0–3600 s, programmable |
| Maximum Output Frequency | Up to 400 Hz, depending on configuration |
| Dimensions | 2283.7 × 726.6 × 757.8 mm |
| Weight | 384 kg |
FAQ
1. What type of drive is the Allen-Bradley 20BP600U0NNNNNC0?
The 20BP600U0NNNNNC0 is a high-power Allen-Bradley PowerFlex 700 AC variable frequency drive. It is designed for large industrial motor applications requiring high output current, adjustable speed control, and vector-based motor control.
2. What is the continuous output current of the 20BP600U0NNNNNC0?
The drive provides a continuous output current of 600 A. Its short-term overload capability is approximately 660 A for 1 minute and 900 A for 3 seconds. The actual operating current should be selected according to the motor rating and load characteristics.
3. What input voltage does this PowerFlex 700 model use?
The 20BP600U0NNNNNC0 uses a 540 V DC input and incorporates an integrated DC precharge function. The external DC power system should have sufficient capacity, and the upstream protection and DC bus wiring should be properly rated for the application.
4. What motor control methods are supported?
The drive uses PowerFlex 700 vector-control technology and supports sensorless vector control. Correct motor nameplate data, current limits, speed references, and acceleration and deceleration parameters should be configured to achieve stable motor operation.
5. Does the 20BP600U0NNNNNC0 include a braking IGBT or braking resistor?
This configuration does not include a braking IGBT or built-in dynamic braking resistor. For applications with high-inertia loads, rapid deceleration, or frequent stopping, an external braking or regenerative energy solution may be required.
6. Does the drive support encoder feedback?
The 20BP600U0NNNNNC0 is configured as a no-feedback version. If the application requires closed-loop speed regulation, precise low-speed operation, or encoder-based control, the required feedback hardware and compatible configuration should be evaluated separately.
7. What should be checked if the motor does not start?
Check the 540 V DC input and DC bus voltage first. Then verify the start command, stop signal, enable conditions, digital inputs, and control wiring. Review the active fault code and fault history, and confirm that the frequency reference, motor parameters, interlocks, and acceleration settings are correctly configured.
8. How should an overcurrent fault be diagnosed?
Start with the PowerFlex 700 fault code and fault history. Check the motor and output cables for short circuits, ground faults, or incorrect wiring. Inspect the mechanical load for excessive torque or binding, verify the programmed motor data against the motor nameplate, and review the current limit and acceleration parameters.
Allen Bradley 20BP600U0NNNNNC0 PowerFlex 700 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
