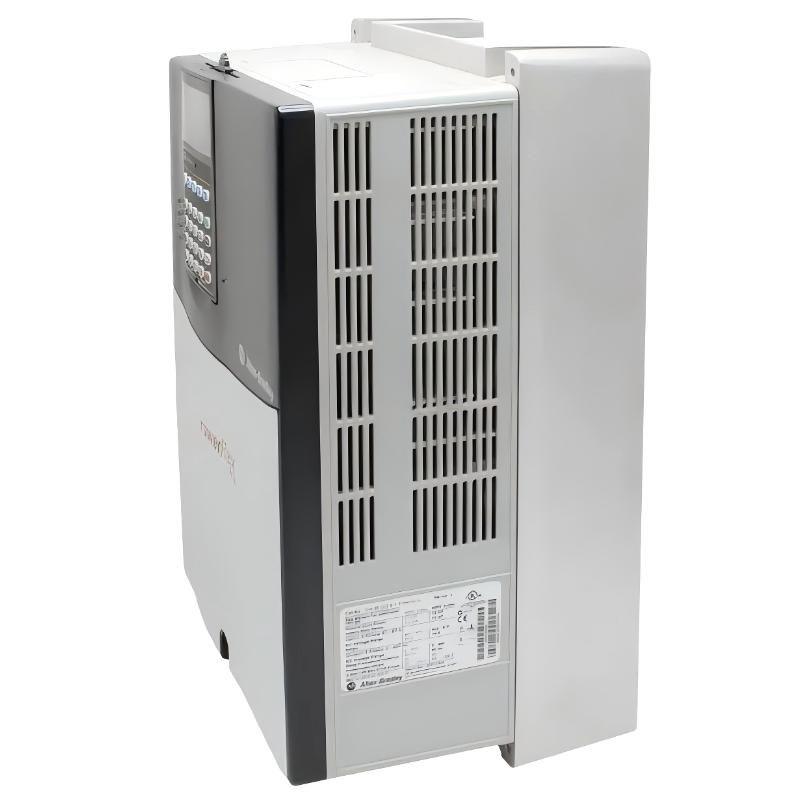

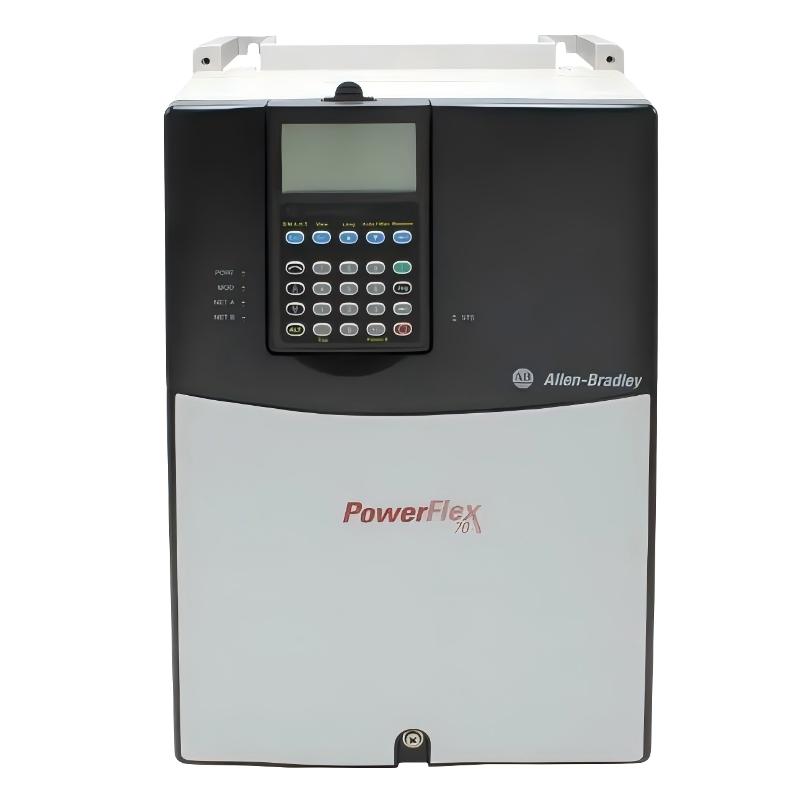

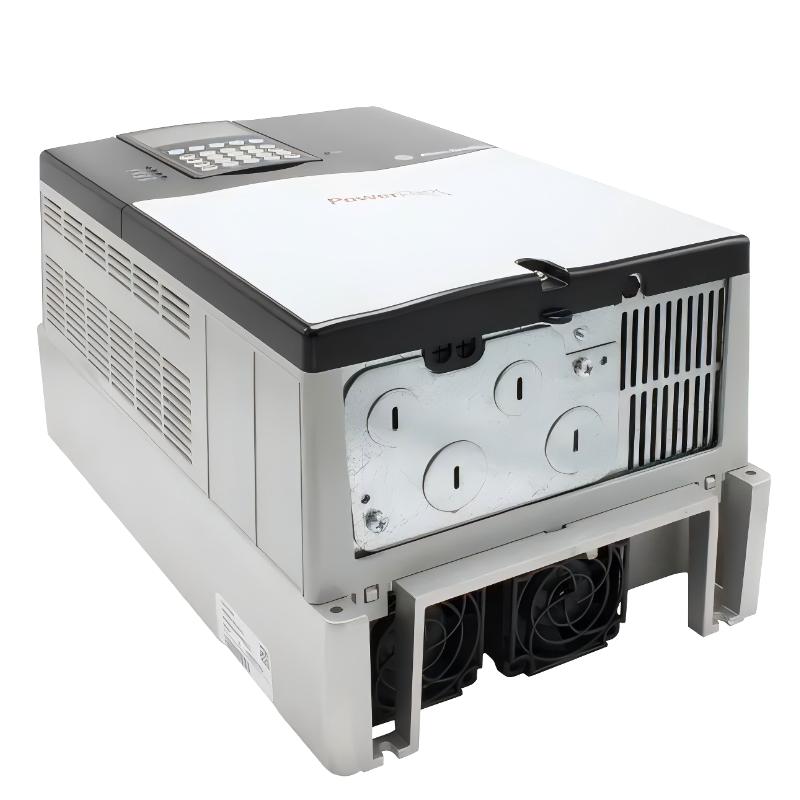

Allen Bradley 20DC056A0EYNANANE PowerFlex 700S AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | 20DC056A0EYNANANE |
| Product Type | PowerFlex 700S AC Drive |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Series | PowerFlex 700S Series |
| Main Function | High-performance variable frequency drive for precise AC motor speed, torque, and motion control |
| Application | Industrial motor control, conveyors, pumps, fans, machine tools, process automation |
| Input Voltage | 400 VAC |
| Input Phase | 3-phase |
| Output Phase | 3-phase |
| Output Current | 56 A |
| Normal Duty Power Rating | 30 kW |
| Heavy Duty Power Rating | 22 kW |
| Frame Size | Frame 3 |
| Control Type | PowerFlex 700S Phase II Control |
| Motor Control Method | Field-oriented vector control, sensorless vector control, permanent magnet motor control |
| Output Frequency Range | 0…400 Hz |
| Overload Capacity | 110% for 1 minute; 150% for 3 seconds |
| Brake Function | Brake IGBT installed |
| Internal Brake Resistor | No internal brake resistor |
| EMC Filter | Integrated EMC filter |
| Communication Module | No communication module included |
| Encoder Feedback | Standard incremental encoder support |
| Analog Outputs | 2 |
| Digital / Analog I/O | Supports expanded I/O options |
| DC Bus Voltage | 540 VDC nominal |
| Efficiency | Approx. 97.5% at rated load |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Mounting Method | Panel mounting |
| Cooling Method | Forced air cooling |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Shock Resistance | 10 G peak, 11 ms duration |
| Vibration Resistance | 1 G peak, 5.5 Hz |
| Dimensions | Approx. 517.5 × 253.9 × 200 mm |
| Weight | Approx. 18.55 kg |
| Typical Applications | High-performance motor control, production machinery, material handling, industrial automation systems |
FAQ
Q1: What is the 20DC056A0EYNANANE mainly used for?
A: The 20DC056A0EYNANANE is a PowerFlex 700S AC drive designed for high-performance motor control applications requiring precise speed and torque regulation.
Q2: What motor power does the 20DC056A0EYNANANE support?
A: It supports 30 kW motors in normal-duty operation and approximately 22 kW in heavy-duty applications.
Q3: What input power supply is required for this drive?
A: It requires a 400 VAC three-phase power supply.
Q4: Does the 20DC056A0EYNANANE include a brake resistor?
A: No. It includes a brake IGBT, but an external brake resistor is required when dynamic braking is needed.
Q5: What control technology does the 20DC056A0EYNANANE use?
A: It uses PowerFlex 700S Phase II control technology with advanced field-oriented control for accurate speed and torque performance.
Q6: Does this model include a communication module?
A: No. The drive is supplied without an internal communication module. Optional communication adapters can be added according to system requirements.
Q7: Can the 20DC056A0EYNANANE be used for motion or high-precision applications?
A: Yes. With encoder feedback support and advanced control algorithms, it is suitable for applications requiring improved speed regulation and torque control.
Q8: What are the main advantages of the 20DC056A0EYNANANE?
A: It provides high-performance motor control, strong overload capability, flexible feedback options, industrial-grade reliability, and integration capability with Allen-Bradley automation systems.
Allen Bradley 20DC056A0EYNANANE PowerFlex 700S AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
