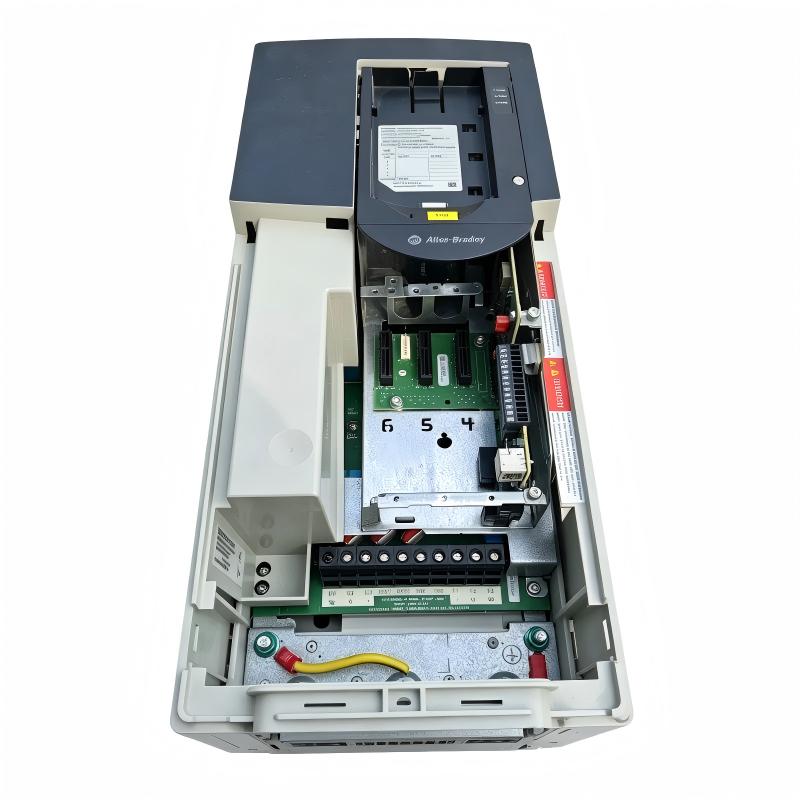

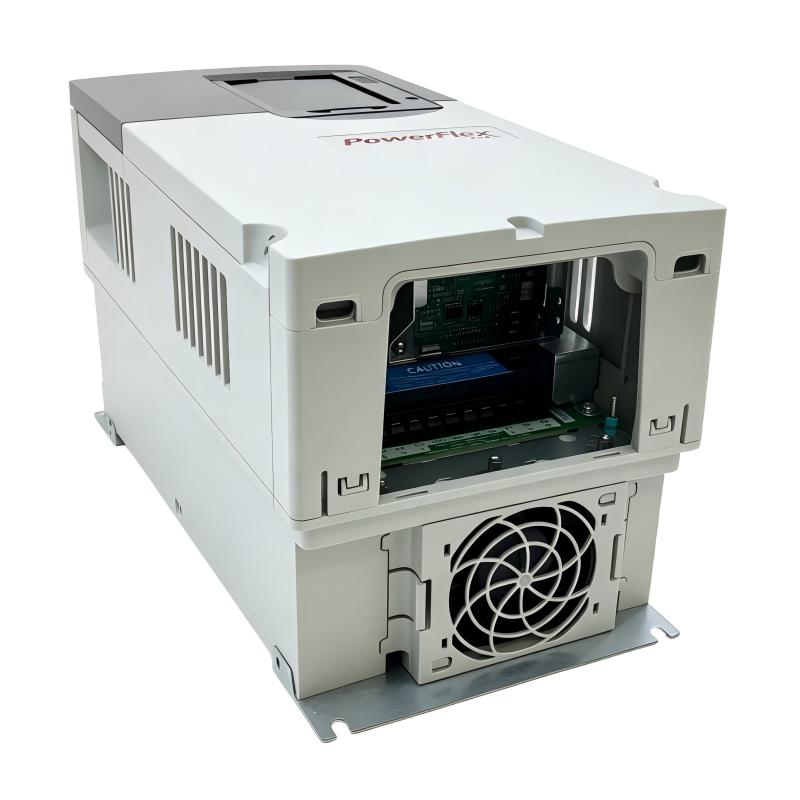

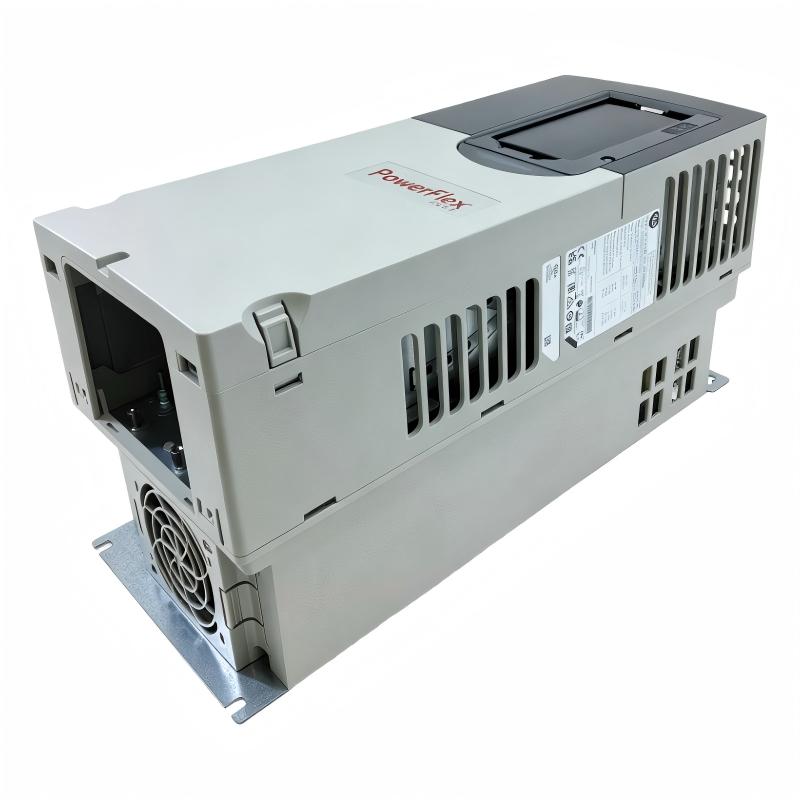

Allen Bradley 20F11NC030AA0NNNNN PowerFlex 753 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | AC Drive |
| Manufacturer | Allen-Bradley |
| Product Series | PowerFlex 753 |
| Model | 20F11NC030AA0NNNNN |
| Drive Type | PowerFlex 753 AC Drive with Embedded I/O |
| Input Voltage | 400 VAC |
| Input Phase | 3-Phase |
| Input Type | AC Input with Precharge and DC Terminals |
| Rated Output Current | 30 A |
| Normal-Duty Power Rating | 15 kW / 20 HP |
| Heavy-Duty Power Rating | 11 kW |
| Frame Size | Frame 3 |
| Enclosure | IP20/IP00, NEMA/UL Open Type |
| Cooling Method | Forced-Air Cooling |
| EMC Filtering | Included |
| Common-Mode Configuration | Jumper Removed |
| Dynamic Braking | Internal Dynamic Braking Transistor |
| Internal Brake Resistor | Not Included |
| HIM | No HIM / Blank Configuration |
| Embedded I/O | Included |
| Control Methods | V/Hz, Sensorless Vector, Vector Control |
| Motor Compatibility | Induction Motor and Permanent Magnet Motor |
| Input Frequency | 50/60 Hz |
| Output Frequency | Programmable according to application |
| Acceleration Time | Programmable |
| Deceleration Time | Programmable |
| Mounting | Panel Mount |
| Dimensions | 454 × 190 × 212 mm |
| Weight | 11.8 kg |
| Product Status | Discontinued |
FAQ
1. What is the Allen-Bradley 20F11NC030AA0NNNNN used for?
The 20F11NC030AA0NNNNN is a PowerFlex 753 AC drive designed for industrial motor speed and torque control. It includes embedded I/O and is suitable for applications involving pumps, fans, conveyors, machine tools, and other industrial motor-driven equipment.
2. What are the rated power and current of the 20F11NC030AA0NNNNN?
The drive has a 30 A rated output current and a normal-duty power rating of 15 kW (20 HP). Its heavy-duty power rating is 11 kW, making the actual motor selection dependent on the required load and overload conditions.
3. What input power supply does the 20F11NC030AA0NNNNN require?
This model uses a 400 VAC three-phase input and supports an AC input configuration with precharge and DC terminals. The incoming supply should be checked against the drive’s voltage and current requirements before installation.
4. Does the 20F11NC030AA0NNNNN include dynamic braking?
Yes. The specified configuration includes an internal dynamic braking transistor. However, it does not include an internal braking resistor, so an external resistor may be required for applications with significant regenerative energy or rapid deceleration.
5. Does the PowerFlex 753 20F11NC030AA0NNNNN include embedded I/O?
Yes. Embedded I/O is included in this configuration, allowing the drive to connect directly with field control signals without requiring every basic control function to be handled through an optional communication module.
6. What motor-control functions are available on this PowerFlex 753 drive?
The PowerFlex 753 supports common motor-control methods such as V/Hz and vector-based control. The appropriate control mode should be selected according to the motor type, load characteristics, speed-control requirements, and required dynamic response.
7. Does the 20F11NC030AA0NNNNN include an HIM keypad?
No. This configuration is supplied as a blank/no-HIM version. Drive setup, monitoring, and parameter adjustment can therefore be handled through the available control and communication interfaces or by installing a compatible Human Interface Module when required.
8. What should be checked when commissioning the 20F11NC030AA0NNNNN?
Before commissioning, verify the three-phase input voltage, motor nameplate data, motor wiring, grounding, control I/O, acceleration and deceleration settings, EMC configuration, and braking requirements. Perform an initial low-speed test to confirm motor direction, current, feedback, and control response before operating under the normal load.
Allen Bradley 20F11NC030AA0NNNNN PowerFlex 753 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
