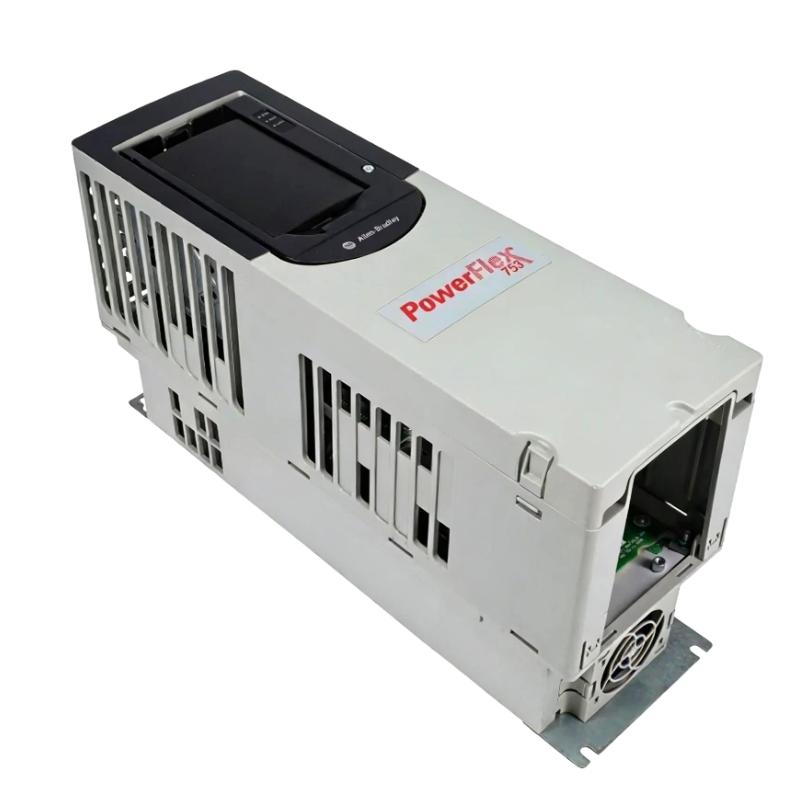

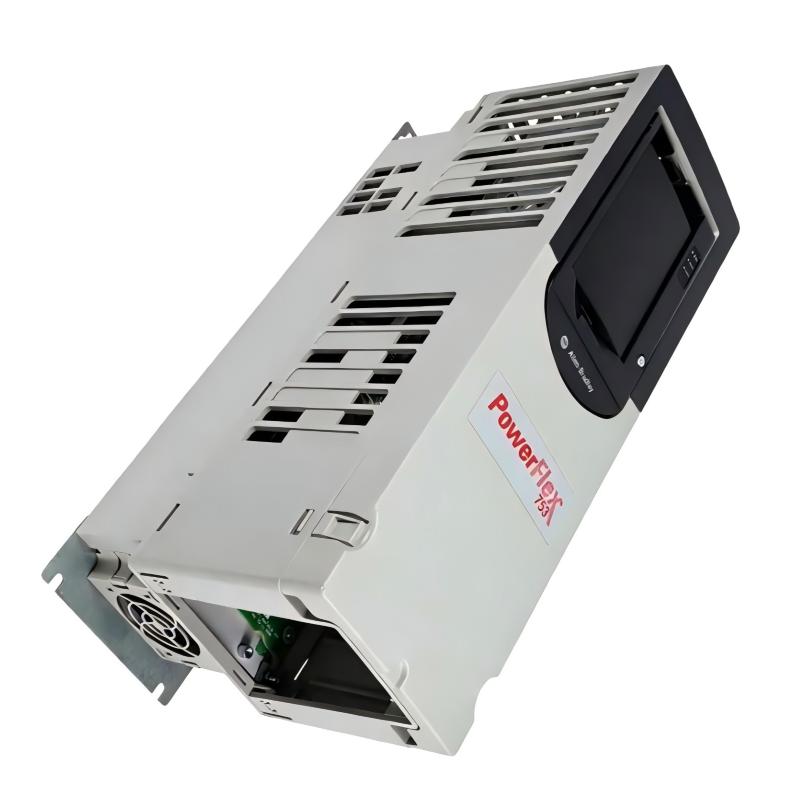

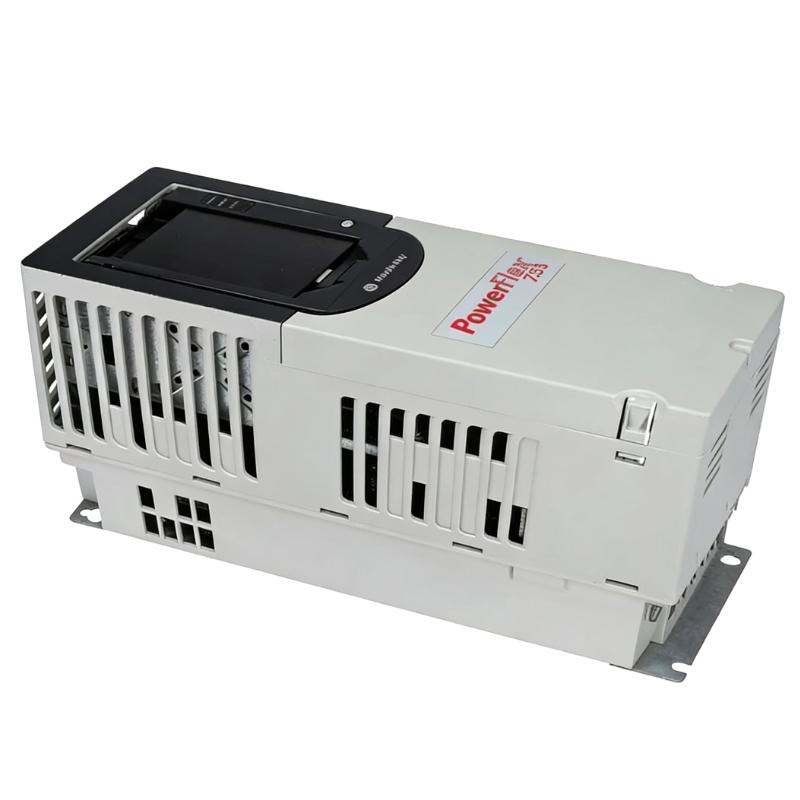

Allen Bradley 20F11NC5P0AA0NNNNN PowerFlex 753 AC Packaged Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | 20F11NC5P0AA0NNNNN |
| Product Type | PowerFlex 753 AC Packaged Drive |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Series | PowerFlex 753 Series |
| Main Function | Variable frequency drive for controlling AC motor speed, torque, and operation in industrial applications |
| Application | Machine automation, conveyors, pumps, fans, material handling, general motor control systems |
| Input Voltage | 480 VAC |
| Input Phase | 3-phase |
| Output Phase | 3-phase |
| Output Current | 5 A |
| Normal Duty Power Rating | 3 HP (2.2 kW) |
| Heavy Duty Power Rating | 2 HP (1.5 kW) |
| Frame Size | Frame 2 |
| Control Type | PowerFlex 753 standard embedded I/O control |
| Motor Control Method | Sensorless vector control, vector control with feedback (optional) |
| Output Frequency Range | 0…400 Hz |
| Overload Capacity | 110% for 1 minute; 150% for 3 seconds |
| Input Type | AC input with precharge |
| Dynamic Braking | Internal brake transistor included |
| EMC Filtering | Integrated EMC filter |
| CM Jumper | Installed |
| Human Interface Module (HIM) | No HIM (blank cover) |
| Embedded I/O | Standard embedded I/O |
| Communication Interface | DPI interface |
| Supported Communication Options | EtherNet/IP, DeviceNet, ControlNet, PROFIBUS and other optional communication adapters |
| Safety Function | Safe Torque-Off compatible |
| Enclosure Rating | IP20 / NEMA Open Type |
| Cooling Method | Forced air cooling |
| Mounting Method | Panel mounting |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | Approx. 260 × 170 × 180 mm |
| Weight | Approx. 5.8 kg |
| Typical Applications | Industrial machinery, conveyor systems, pumps, fans, production equipment, automated manufacturing systems |
FAQ
Q1: What is the 20F11NC5P0AA0NNNNN mainly used for?
A: The 20F11NC5P0AA0NNNNN is a PowerFlex 753 AC drive used for variable speed control of three-phase AC motors in industrial automation systems.
Q2: What motor power does the 20F11NC5P0AA0NNNNN support?
A: It supports up to 3 HP (2.2 kW) motors under normal-duty operation and approximately 2 HP (1.5 kW) under heavy-duty operation.
Q3: What input power supply is required?
A: The drive requires a 480 VAC three-phase input power supply.
Q4: Does the 20F11NC5P0AA0NNNNN include a HIM display?
A: No. This model is supplied without a Human Interface Module and uses a blank cover configuration.
Q5: Does the drive support dynamic braking?
A: Yes. It includes an internal dynamic brake transistor, allowing connection of an external brake resistor when required.
Q6: What communication networks can be used with this drive?
A: Optional communication adapters allow integration with industrial networks such as EtherNet/IP, DeviceNet, ControlNet, PROFIBUS, and other automation communication systems.
Q7: Is the 20F11NC5P0AA0NNNNN suitable for industrial environments?
A: Yes. It is designed for industrial control applications and provides reliable operation in machine automation, material handling, and process control systems.
Q8: What are the main advantages of the 20F11NC5P0AA0NNNNN?
A: It provides reliable motor speed control, embedded I/O capability, flexible communication options, dynamic braking support, and easy integration into Allen-Bradley automation platforms.
Allen Bradley 20F11NC5P0AA0NNNNN PowerFlex 753 AC Packaged Drive is in stock. Please contact us for a quick quote and competitive pricing.
