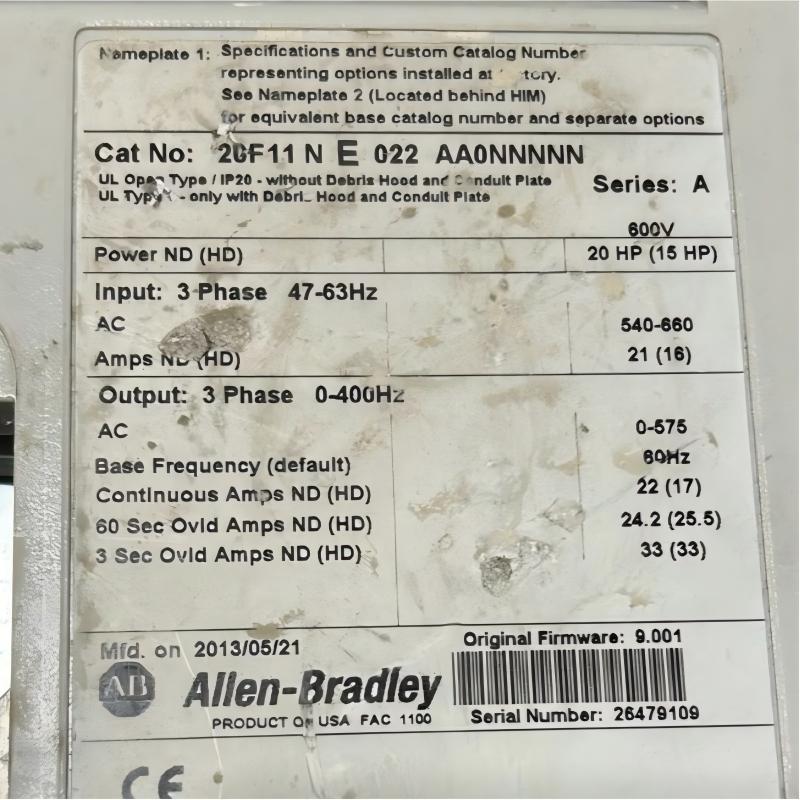

Allen Bradley 20F11NE022AA0NNNNN PowerFlex 753 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 20F11NE022AA0NNNNN |
| Product Type | AC Drive |
| Series | PowerFlex 753 |
| Brand | Allen-Bradley |
| Drive Type | Air-Cooled AC Drive |
| Input Voltage | 600 VAC, 3-Phase |
| Input Frequency | 50/60 Hz |
| Normal-Duty Output Current | 22 A |
| Heavy-Duty Output Current | 17 A |
| Normal-Duty Power | 20 HP / 15 kW |
| Heavy-Duty Power | 15 HP / 11 kW |
| Frame Size | Frame 3 |
| Input Type | AC Input with Precharge and DC Terminals |
| Enclosure Type | IP20/IP00, NEMA/UL Open Type |
| Cooling Method | Forced Air |
| Embedded I/O | Included |
| EMC Filtering | Filtered |
| Common Mode Capacitor Jumper | Installed |
| Dynamic Braking | Internal DB Transistor |
| HMI | Blank Cover, No HIM |
| Control Method | V/Hz, Sensorless Vector and Flux Vector Control |
| Operating Temperature | 0–50°C |
| Relative Humidity | 5–95%, Non-Condensing |
| Application | Industrial Motor Speed and Torque Control |
| Dimensions | 454 × 190 × 212 mm |
| Weight | 11.8 kg |
FAQ
1. What is the rated output current of the Allen-Bradley 20F11NE022AA0NNNNN?
The 20F11NE022AA0NNNNN has a continuous normal-duty output current rating of 22 A and a heavy-duty rating of 17 A. The applicable rating should be selected according to the motor load profile, operating cycle, and required overload capability. Proper current matching helps prevent unnecessary overload trips and thermal stress.
2. What input voltage does the 20F11NE022AA0NNNNN support?
This PowerFlex 753 AC drive is designed for a 600 VAC, three-phase power system. It uses an AC input configuration with precharge and DC terminals. Before commissioning, the incoming supply voltage, phase configuration, grounding, and input wiring should be verified to ensure correct electrical installation.
3. What motor power ratings are supported by the 20F11NE022AA0NNNNN?
The drive is rated for 20 HP, approximately 15 kW, under normal-duty operation and 15 HP, approximately 11 kW, under heavy-duty operation. Final drive selection should also consider motor full-load current, starting torque, load inertia, acceleration requirements, and the frequency of overload conditions.
4. Does the 20F11NE022AA0NNNNN include dynamic braking?
Yes. The PowerFlex 753 drive includes an internal dynamic braking transistor. During rapid motor deceleration, regenerative energy can increase the DC bus voltage. An appropriately rated external braking resistor can dissipate this energy and provide controlled braking. The resistor should be selected according to the load inertia, braking frequency, and deceleration requirements.
5. What cooling method does the 20F11NE022AA0NNNNN use?
The drive uses forced-air cooling. Internal fans and heat sinks remove heat generated by the power switching components. Adequate cabinet ventilation and unobstructed airflow are important for stable operation. Preventive maintenance should include checking fan operation, air passages, and dust accumulation around the cooling system.
6. Which motor control modes are supported by the PowerFlex 753?
The PowerFlex 753 platform supports V/Hz and vector-based motor control methods. The appropriate mode depends on the motor characteristics, load requirements, desired speed regulation, and torque response. For vector-control applications, accurate motor nameplate data and appropriate tuning are important for achieving stable motor operation.
7. What parameters should be configured during initial commissioning?
Initial commissioning should include the motor rated voltage, rated current, rated frequency, rated power, and rated speed. Acceleration and deceleration times, minimum and maximum frequency, stopping method, motor rotation direction, and current limits should also be checked. Input power and protective grounding should be verified before energizing the drive.
8. How should overcurrent or DC bus overvoltage faults be diagnosed?
For an overcurrent fault, inspect the motor and output cables for short circuits or ground faults and verify that the mechanical load is within the drive’s capability. If DC bus overvoltage occurs during deceleration, check the deceleration time, load inertia, and dynamic braking configuration. Reviewing the fault code, fault history, and operating conditions can help identify the underlying cause.
