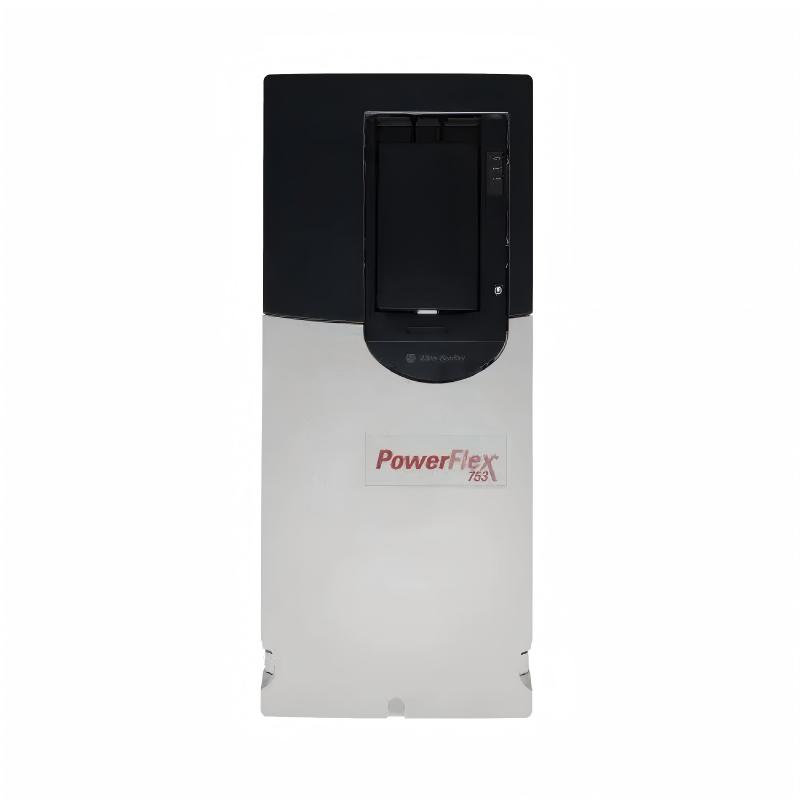

Allen Bradley 20F11NE032JA0NNNNN PowerFlex 753 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | PowerFlex 753 |
| Product Type | AC Drive / Variable Frequency Drive |
| Model / Catalog Number | 20F11NE032JA0NNNNN |
| Input Voltage | 600 V AC, 3-Phase |
| DC Bus Voltage | 810 V DC |
| Rated Output Current, Normal Duty | 32 A |
| Rated Output Current, Heavy Duty | 27 A |
| Normal-Duty Power Rating | 30 HP / 22 kW |
| Heavy-Duty Power Rating | 25 HP / 18.5 kW |
| Frame Size | Frame 4 |
| Enclosure Type | IP20/IP00, NEMA/UL Open Type |
| Input Type | AC Input with DC Terminals |
| Cooling Method | Forced Air |
| Control Method | Vector Control |
| PID Control | Supported |
| Dynamic Braking | Built-in Dynamic Braking Transistor |
| Dynamic Braking Resistor | External |
| EMC Filtering | Filtered, CM Jumper Installed |
| Safety Functions | Supported through optional safety modules |
| Operator Interface | No HIM Included |
| Embedded I/O | Yes |
| Communication Expansion | Supported through optional communication modules |
| DeviceLogix | Supported |
| Operating Temperature | 0 to 50°C |
| Relative Humidity | 5 to 95%, Non-Condensing |
| Storage Temperature | -40 to +70°C |
| Installation | Panel Mount |
| Dimensions | 474 × 212 × 222 mm |
| Weight | 13.6 kg |
FAQ
1. What is the Allen-Bradley 20F11NE032JA0NNNNN?
The 20F11NE032JA0NNNNN is an Allen-Bradley PowerFlex 753 air-cooled AC drive with embedded I/O. It is designed for industrial motor speed and torque control and uses a 600 V AC, three-phase input configuration.
2. What motor power rating does the 20F11NE032JA0NNNNN support?
The drive is rated for 30 HP (22 kW) under normal-duty operation and 25 HP (18.5 kW) under heavy-duty operation. Motor selection should be based primarily on the motor rated current and the actual load profile rather than horsepower alone.
3. What are the input voltage and current ratings of this PowerFlex 753 drive?
The 20F11NE032JA0NNNNN is designed for a nominal 600 V AC three-phase supply. Its continuous output current is 32 A for normal-duty operation and 27 A for heavy-duty operation. The incoming power system should be properly protected and matched to the drive rating.
4. Does the 20F11NE032JA0NNNNN have built-in dynamic braking?
Yes. The drive includes a dynamic braking transistor. An external braking resistor can be connected when the application requires rapid deceleration or when the motor and load generate significant regenerative energy during braking.
5. How is the 20F11NE032JA0NNNNN cooled?
The PowerFlex 753 uses forced-air cooling. Adequate ventilation around the drive is important for maintaining normal operating temperature. Cooling fans, air passages, and the surrounding installation area should be checked periodically, especially in dusty industrial environments.
6. Does the 20F11NE032JA0NNNNN include EMC filtering?
Yes. This configuration is supplied with filtering and the CM jumper installed. Proper grounding, motor cable routing, and separation of power and control wiring are still important for reducing electromagnetic interference in the overall automation system.
7. Can the 20F11NE032JA0NNNNN communicate with a PLC or DCS?
Yes. The PowerFlex 753 platform supports optional communication modules for integration with PLC, DCS, and other industrial control systems. Depending on the selected communication option, drive commands, operating status, feedback values, alarms, and diagnostic information can be exchanged with the control system.
8. What parameters should be checked during commissioning?
Commissioning should begin by verifying the motor nameplate data, including rated voltage, current, frequency, and speed. The control mode, acceleration and deceleration times, maximum frequency, current limits, and protection settings should then be configured according to the application. A low-speed test run is recommended before applying the full operating load.
Allen Bradley 20F11NE032JA0NNNNN PowerFlex 753 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
