1. What is the Allen-Bradley 20F11RC2P1AA0NNNNN used for?

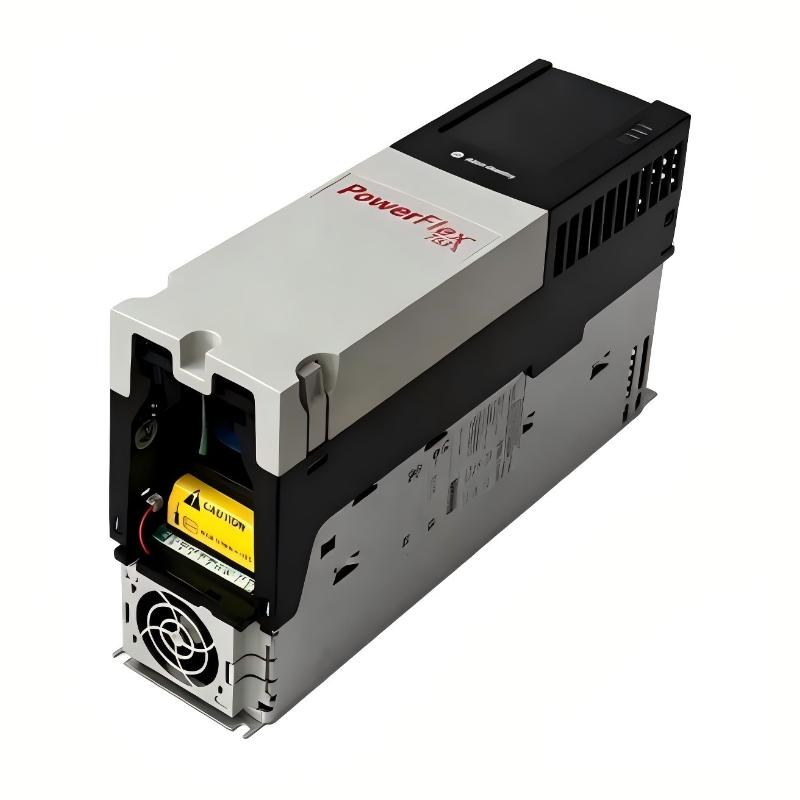

The 20F11RC2P1AA0NNNNN is a PowerFlex 753 air-cooled AC drive designed for variable-speed and torque control of three-phase AC motors. It is suitable for conveyors, fans, pumps, material-handling equipment, and other industrial automation machinery. By regulating output frequency and voltage, the drive provides controlled motor starting, stopping, acceleration, deceleration, and speed regulation.

2. What are the input voltage and output current ratings of the 20F11RC2P1AA0NNNNN?
The drive is designed for a 380–480 V AC three-phase input, with a nominal input voltage of 400 V AC. Its continuous output current is 2.1 A, with approximately 2.3 A available for one minute and 3.2 A for three seconds under the specified overload conditions. Motor selection should be based on the motor nameplate current and the actual load characteristics, including starting torque, acceleration requirements, and operating duty.

3. What motor power rating is suitable for the 20F11RC2P1AA0NNNNN?
The drive has a 0.75 kW normal-duty rating and a 0.37 kW heavy-duty rating. For standard variable-speed applications, the normal-duty rating can be used when the motor and load remain within the drive’s operating limits. For applications requiring higher starting torque or frequent acceleration and deceleration, the heavy-duty rating should be considered. Motor rated current should also be checked during selection.

4. Does the 20F11RC2P1AA0NNNNN support dynamic braking?
Yes. The drive includes an internal dynamic braking transistor. During deceleration, especially with high-inertia loads, the motor can generate regenerative energy that increases the DC bus voltage. An appropriately selected braking resistor can be used with the internal braking transistor to dissipate this energy and improve deceleration performance. The braking resistor should be selected according to load inertia, braking time, braking frequency, and application requirements.

5. What is the purpose of the EMC filter and CM jumper configuration?
This configuration includes EMC filtering and has the CM jumper removed. The EMC filter helps reduce high-frequency electrical noise generated during drive operation. The common-mode capacitor jumper configuration affects the high-frequency current path between the drive and the grounding system. The correct configuration should be determined according to the power distribution system, grounding method, and EMC requirements of the installation.

6. Can the 20F11RC2P1AA0NNNNN be integrated with a PLC control system?
Yes. The PowerFlex 753 platform can be integrated with PLCs and other industrial automation equipment through compatible communication options. Depending on the system configuration, a PLC can send start, stop, and speed commands while receiving drive status, fault information, and diagnostic data. During commissioning, the communication module, network parameters, command source, and speed reference source should be configured correctly.

7. How should an overcurrent fault on the 20F11RC2P1AA0NNNNN be diagnosed?
First inspect the motor output wiring and terminals for short circuits, ground faults, loose connections, or incorrect wiring. Verify that the motor rated voltage, current, and frequency parameters have been entered correctly. The mechanical load should also be checked for excessive friction, mechanical blockage, or abnormal starting torque requirements. If the overcurrent fault occurs mainly during startup or acceleration, check the acceleration time and motor control mode. The drive fault code and diagnostic information should then be reviewed to identify the specific cause.

8. What should be considered when installing and commissioning the 20F11RC2P1AA0NNNNN?
Before installation, verify the three-phase input voltage, motor ratings, protective grounding, power wiring, and control wiring. During commissioning, enter the motor nameplate data accurately and configure the required minimum frequency, maximum frequency, acceleration time, deceleration time, current limit, and motor control method. Because the drive uses forced-air cooling, the airflow path should remain clear and free from excessive dust or contamination. During initial operation, check motor rotation direction, output current, operating frequency, and acceleration/deceleration response before placing the equipment into normal continuous operation.
