Allen Bradley 20F11RC8P7JA0NNNNN PowerFlex 753 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

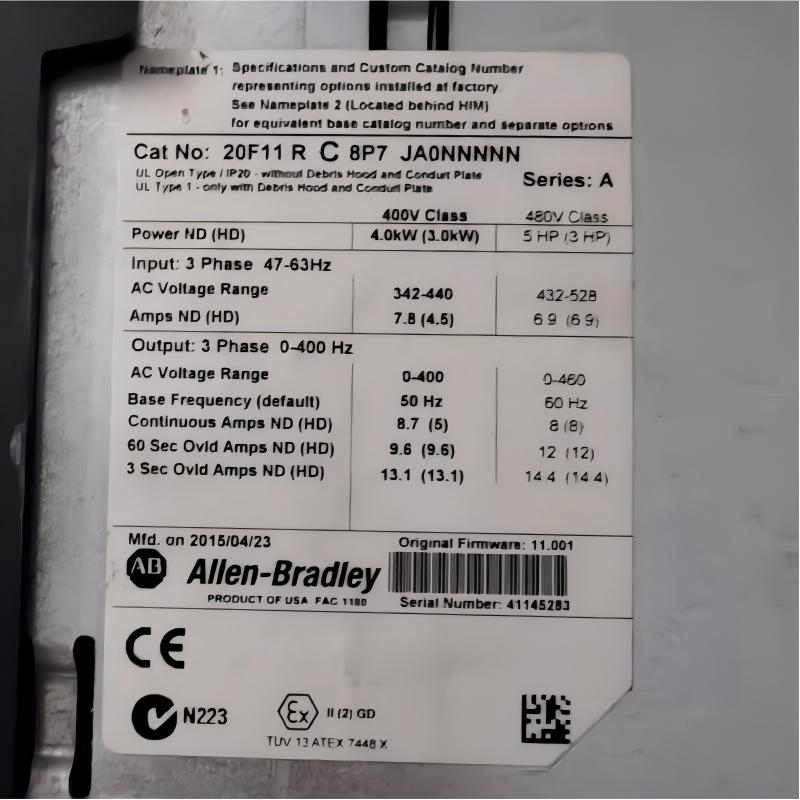

Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F11RC8P7JA0NNNNN |
| Product Series | PowerFlex 753 |
| Product Type | PowerFlex 753 AC Drive |
| Drive Type | Variable Frequency AC Drive |
| Rated Input Voltage | 400 V AC |
| Input Voltage Range | 380–480 V AC |
| Input Phase | Three-phase |
| Input Frequency | 50/60 Hz |
| Normal Duty Power Rating | 4 kW / 5 HP |
| Heavy Duty Power Rating | 2.2 kW |
| Continuous Output Current | 8.7 A |
| Frame Size | Frame 1 |
| Cooling Method | Forced-air cooling |
| Enclosure Rating | IP20 |
| Enclosure Type | NEMA/UL Open Type |
| Control Methods | V/Hz, Sensorless Vector Control |
| Dynamic Braking | Built-in dynamic braking transistor |
| EMC Filter | Built-in filter |
| I/O | Built-in I/O support |
| Motor Control | Induction motor speed and torque control |
| Communication | Network communication options supported through PowerFlex 753 option modules |
| Operator Interface | HIM interface compatible |
| Typical Applications | Conveyors, pumps, fans, machine equipment and industrial drive systems |
| Mounting | Control cabinet mounting |
| Operating Environment | Industrial automation environments |
| Dimensions | 400.5 × 110 × 211 mm |
| Weight | 6 kg |
FAQ
1. What is the Allen-Bradley 20F11RC8P7JA0NNNNN used for?
The Allen-Bradley 20F11RC8P7JA0NNNNN is a PowerFlex 753 AC drive designed to control the speed and torque of three-phase AC motors. It is suitable for industrial equipment such as conveyors, pumps, fans, machine systems and other variable-speed motor applications.
2. What input power does the 20F11RC8P7JA0NNNNN require?
The drive is designed for a three-phase AC input in the 380–480 V range, with a nominal rating of 400 V AC. The input frequency is typically 50/60 Hz. The incoming power supply should be checked before installation, and appropriate disconnecting, overcurrent protection and grounding should be provided.
3. What is the motor power rating of the 20F11RC8P7JA0NNNNN?
The normal-duty power rating is 4 kW, or approximately 5 HP. For heavy-duty applications, the corresponding rating is 2.2 kW. Final drive selection should consider motor rated current, load torque, acceleration requirements and overload conditions rather than relying on motor horsepower alone.
4. What is the continuous output current of this PowerFlex 753 drive?
The continuous output current is 8.7 A. The connected motor’s rated current should be within the drive’s applicable output-current rating. When operating under high ambient temperatures or demanding load cycles, the installation and drive derating requirements should also be considered.
5. Which control modes are available on the 20F11RC8P7JA0NNNNN?
The PowerFlex 753 platform supports V/Hz and sensorless vector control. V/Hz control is commonly used for applications with relatively straightforward speed regulation requirements, while sensorless vector control provides better speed and torque control for applications requiring improved dynamic performance.
6. Does the 20F11RC8P7JA0NNNNN support dynamic braking?
Yes. The drive includes a dynamic braking transistor for use with a suitable external braking resistor. Dynamic braking helps dissipate regenerative energy during rapid motor deceleration. The braking resistor should be selected according to the motor inertia, braking frequency, required stopping time and drive specifications.
7. What can cause an overcurrent fault on the 20F11RC8P7JA0NNNNN?
Common causes include excessive mechanical load, incorrect motor parameters, short circuits in the motor cable, motor insulation problems and acceleration settings that are too aggressive. Check the motor wiring and insulation first, then verify the motor nameplate data and acceleration parameters. Mechanical binding or a sudden increase in load should also be investigated.
8. What should be checked when commissioning the 20F11RC8P7JA0NNNNN?
Verify the input voltage, motor wiring, grounding and protective devices before applying power. Enter the correct motor nameplate information and configure the required control mode, acceleration and deceleration times, minimum and maximum frequency limits, and other application parameters. During the first test run, operate the motor at low speed and check current, rotation direction, vibration, fault codes and load response before moving to normal operating conditions.
Allen Bradley 20F11RC8P7JA0NNNNN PowerFlex 753 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
