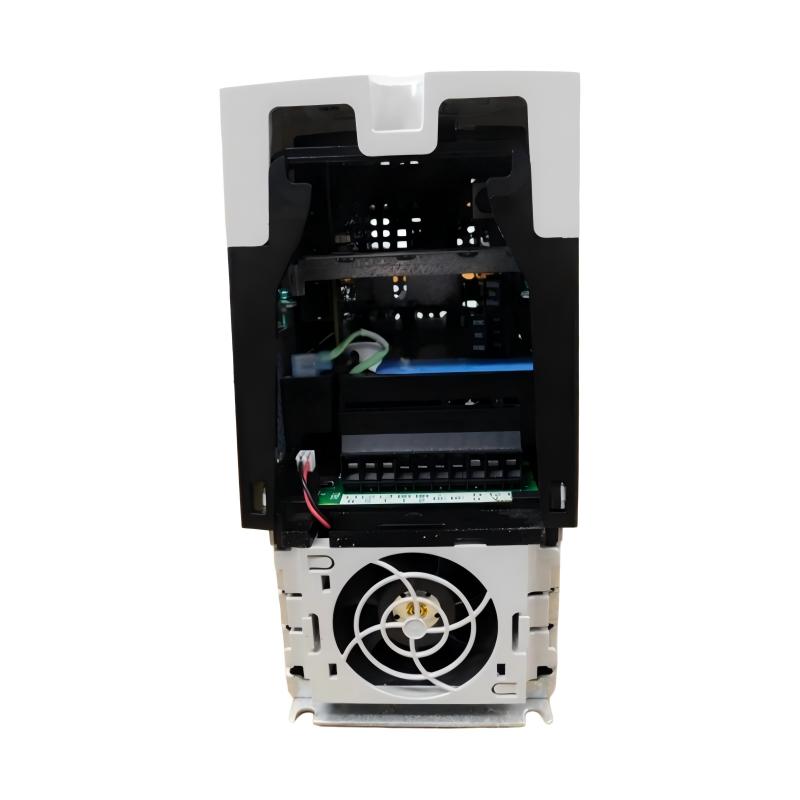

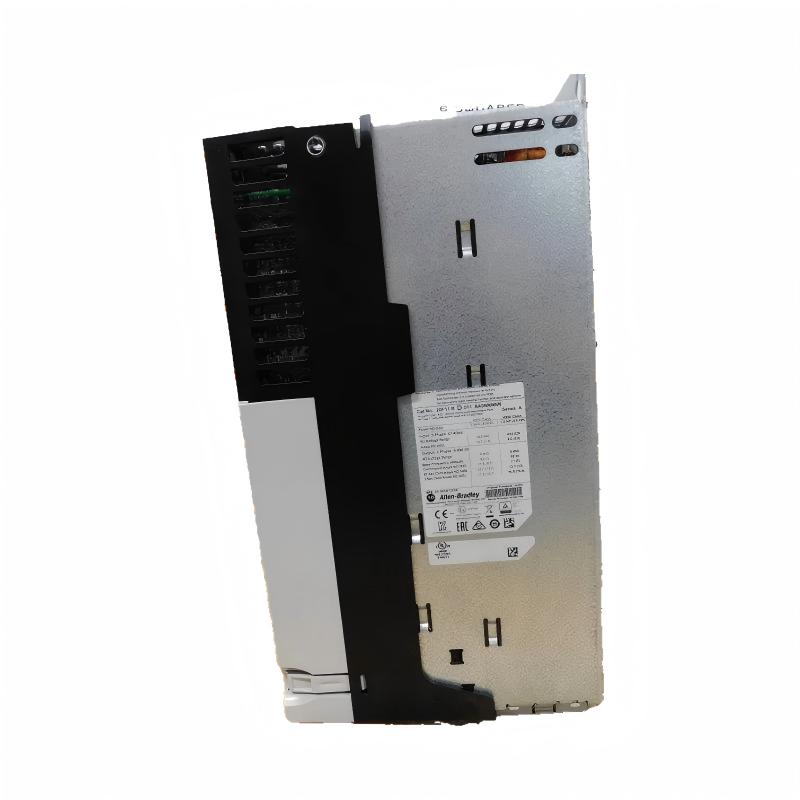

Allen Bradley 20F11RD011AA0NNNNN PowerFlex 753 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

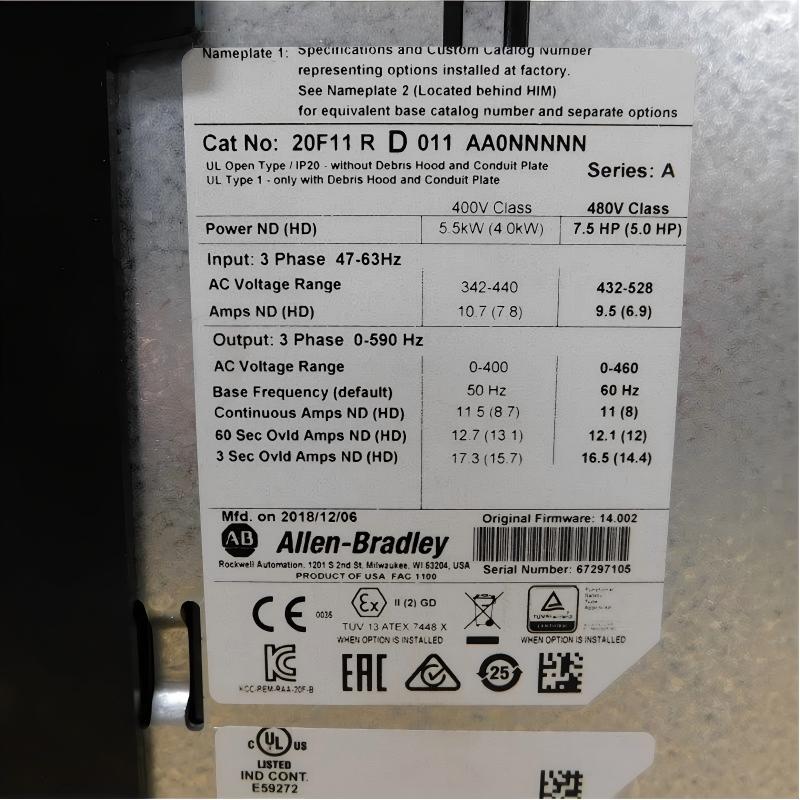

Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F11RD011AA0NNNNN |
| Product Series | PowerFlex 753 |
| Product Type | PowerFlex 753 AC Drive |
| Drive Type | AC Variable Frequency Drive |
| Rated Input Voltage | 480 V AC |
| Input Voltage Range | 380–480 V AC |
| Input Phase | Three-phase |
| Input Type | AC input with precharge |
| Normal Duty Power Rating | 7.5 HP |
| Heavy Duty Power Rating | 5 HP |
| Continuous Output Current | 11 A |
| 1-Minute Overload Current | 12.1 A |
| 3-Second Overload Current | 16.5 A |
| Frame Size | Frame 1 |
| Control Method | Closed-loop vector control and other selectable control modes |
| PID Control | Supported |
| Dynamic Braking | Built-in braking transistor |
| EMC Filtering | Supported |
| Operator Interface | No built-in keypad |
| Enclosure Rating | IP20 |
| Enclosure Type | NEMA/UL Type Open |
| Cooling Method | Forced-air cooling |
| Mounting | Control cabinet or panel mounting |
| I/O Expansion | Modular I/O and option cards supported |
| Communication Expansion | Industrial network communication through option modules |
| Safety Functions | Available through compatible option modules |
| Typical Applications | Conveyors, pumps, fans, machinery and industrial drive systems |
| Dimensions | 400.5 × 110 × 211 mm |
| Weight | 6 kg |
FAQ
1. What is the Allen-Bradley 20F11RD011AA0NNNNN?
The Allen-Bradley 20F11RD011AA0NNNNN is a PowerFlex 753 AC variable frequency drive designed for speed, frequency and torque control of three-phase AC motors. This model belongs to the 480 V AC class and is suitable for industrial machinery, conveyors, pumps, fans and other variable-speed motor applications.
2. What input voltage does the 20F11RD011AA0NNNNN require?
The drive is rated for 480 V AC and supports a three-phase input voltage range of 380–480 V AC. The input section uses an AC input configuration with precharge. Before installation, verify that the plant supply is within the specified range and provide suitable circuit protection, disconnecting equipment and protective grounding.
3. What motor power can the 20F11RD011AA0NNNNN handle?
The normal-duty rating is 7.5 HP, while the heavy-duty rating is 5 HP. Motor selection should also take into account the motor nameplate current, load characteristics, starting torque and overload cycle. For applications involving continuous heavy loading, the heavy-duty rating should be used when matching the drive to the motor.
4. What is the output current of the 20F11RD011AA0NNNNN?
The continuous output current is 11 A. The drive can provide 12.1 A for a 1-minute overload period and 16.5 A for a 3-second overload period. These different overload ratings should be considered when evaluating applications with high starting torque, frequent acceleration or short-term overload requirements.
5. What control functions are supported by the 20F11RD011AA0NNNNN?
The PowerFlex 753 platform supports multiple motor-control functions, including closed-loop vector control and PID control. With appropriate feedback and option modules, the drive can be configured for more precise speed or torque regulation. The control method should be selected according to the motor type, load characteristics and required control performance.
6. Does the 20F11RD011AA0NNNNN support dynamic braking?
Yes. The drive includes a dynamic braking transistor that can be used with an external braking resistor. During rapid deceleration, regenerative energy from the motor can be dissipated through the braking resistor, improving stopping performance. For high-inertia or frequently cycled applications, the braking resistor should be selected according to braking power, duty cycle and required deceleration time.
7. How should an overcurrent fault on the 20F11RD011AA0NNNNN be diagnosed?
First inspect the motor output cables for short circuits, ground faults and incorrect wiring. Then verify that the motor nameplate parameters have been entered correctly. The acceleration time, mechanical load and possible mechanical binding should also be checked. If the fault occurs mainly during startup or acceleration, focus on the acceleration settings and starting load. If it occurs after extended operation, check the mechanical load and motor operating current.
8. What should be checked when commissioning the 20F11RD011AA0NNNNN?
Before commissioning, verify the input voltage, grounding, motor wiring and protective devices. Enter the correct motor nameplate data and configure the control mode, acceleration time, deceleration time, minimum frequency and maximum frequency. During the initial test, operate the motor at low speed and monitor output current, rotation direction, operating status and fault history. Once the motor and mechanical system operate normally, gradually increase the speed to the required operating level.
Allen Bradley 20F11RD011AA0NNNNN PowerFlex 753 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
